All stock codes associated to this product
42K0665, LXPCX860DTE, LM42K0665
The Lexmark CX860 Series color A4 MFPs combine print speed of up to 57 pages per minute, ease of use, professional color and standard input capacity of up to 1,750 pages with available finishing options. Production-class performance. A 1.6 GHz quad core processor with 2 GB of standard memory helps the CX860 Series handle complex jobs, while print speed of up to 57 ppm allows users in high-volume print environments to get fast color output. Even large color print jobs complete quickly so users are more productive.

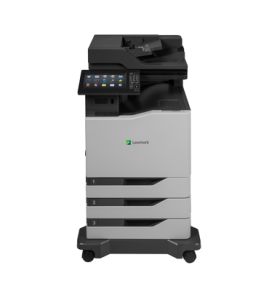

The Lexmark CX860dte Colour Laser Multifunction Centre is a versatile and reliable machine that can handle all of your printing, scanning, copying, and faxing needs. With a fast print speed of 57 ppm for both mono and colour documents, a 550-sheet tray, and a 50-sheet automatic document feeder, this machine can easily keep up with your busy office. The intuitive touch screen display makes it easy to navigate all of the features, and the USB 2.0 connectivity means you can easily connect to your computer to print, scan, and copy documents.
The CX860 Series’ 25-cm (10-inch) class e-Task colour touchscreen features an ultra-smooth surface that can be activated by almost anything, including pens, emails or nails – without pressure or direct skin contact. Lexmark-exclusive Embedded Solutions Framework (eSF) makes the MFP programmable to meet the needs of each customer and industry.
Professional colour features include spot colour replacement for repeatable colour accuracy even with critical corporate identity elements, PANTONE® calibration and ultra-sharp 4800 Colour Quality.
Tech Specs
- Part Number
- 42K0665
- Print Technology
- Color Laser
- Function
- Colour Copying
- Colour Faxing
- Colour Printing
- Colour Scanning
- Colour Network Scanning
- Workgroup Size
- Large Workgroup
- Touch Screen Display
- Yes
- Display
- Lexmark e-Task 25 cm class colour touch screen
- Print Speed (A4, Black)
- Up to 57 ppm6
- Print Speed (A4, Colour)
- Up to 57 ppm6
- Print Speed (A4, Black) Duplex
- Up to 57 spm6
- Time to First Page (Black)
- As fast as 6.5 seconds
- Time to First Page (Colour)
- As fast as 6.5 seconds
- Duplex (2-sided) Printing
- Integrated Duplex
- Print Resolution, Black
- 1200 x 1200 dpi
- 4800 Colour Quality (2400 x 600 dpi)
- Print Resolution, Colour
- 1200 x 1200 dpi
- 4800 Colour Quality (2400 x 600 dpi)
- Copy Speed (A4, Black)
- Up to 57 cpm6
- Copy Speed (A4, Colour)
- Up to 57 cpm6
- Time to First Copy (Black)
- As fast as 6.0 seconds
- Time to First Copy (Colour)
- As fast as 7.0 seconds
- Reduce / Enlarge Range
- 25 - 400 %
- A4/Ltr Simplex Scan Speed (Black)
- Up to 57 / 60 sides per minute
- Scan Speed (A4/Ltr, Colour)
- Up to 57 / 60 sides per minute
- A4/Ltr Duplex Scan Speed (Black)
- Up to 114 / 120 sides per minute
- Duplex Scan Speed (A4/Ltr, Colour)
- Up to 114 / 120 sides per minute
- Scan Area, Maximum (mm)
- 216 x 355 mm
- ADF Scan
- DADF (single pass Duplex)
- Scanner Type
- Flatbed scanner with ADF
- Scan Technology
- CCD
- Optical Scanning Resolution
- 1200 X 600 ppi
- Scan File Formats (Send as)
- JPEG, JPG
- PDF
- Secure PDF
- TIFF
- XPS
- Archival PDF (A-1a, A-1b)
- Searchable PDF (optional OCR with 1GB RAM and hard disk required)
- Highly compressed PDF (1GB RAM and hard disk required)
- Scan Destinations
- e-mail
- FTP
- USB Flash drive
- USB or Network connected computer
- Lexmark Document Solutions Suite (LDSS)
- Modem Speed
- ITU T.30, V.34 Half-Duplex, 33.6 Kbps
- Fax Transmission Speed
- < 3 seconds per page
- Processor Speed
- Quad Core 1.6 GHz
- Memory, Standard
- 2048 MB
- Memory, Maximum
- 4096 MB
- Hard Disk
- Included in configuration
- Apple Operating Systems Supported
- Apple OS X (10.6, 10.7, 10.8, 10.9, 10.10, 10.11)
- Citrix MetaFrame
- Microsoft Windows Server 2008 and 2008 X64 Edition with Citrix XenApp 5.0
- Microsoft Windows Server 2008 R2 with Citrix XenApp 6.0, 6.5
- Microsoft Windows Server 2012 with Citrix XenApp 6.0, 6.5
- Linux Operating Systems Supported
- Debian GNU/Linux 7.0, 8.0
- Fedora 21, 22
- Linpus Linux Lite Desktop 2.1
- Linux Mint 13 LTS, 17 LTS, 17.1 LTS, 17.2 LTS
- Linux Mint 2 Debian
- PCLinuxOS 2014.12
- Red Hat Enterprise Linux WS 4, 5, 6, 7
- SUSE Linux Enterprise Desktop 10, 11, 12
- SUSE Linux Enterprise Server 10, 11, 12
- Ubuntu 12.04 LTS, 14.04 LTS, 15.04
- openSUSE 13.1, 13.2
- openSUSE Tumbleweed
- Microsoft Windows Operating Systems Supported
- Windows XP
- Windows XP x64
- Windows Vista
- Windows Vista x64
- Windows Server 2008
- Windows Server 2008 x64
- Windows 7
- Windows 7 x64
- Windows Server 2008 R2
- Windows 8
- Windows 8 x64
- Windows Server 2012
- Windows 8.1
- Windows 8.1 x64
- Windows Server 2012 R2
- Windows RT
- Windows RT 8.1
- Windows 10
- Novell Operating Systems Supported
- Novell NetWare 6.5 Open Enterprise Server
- Novell Open Enterprise Server 2 on SUSE Linux Enterprise Server 10 SP4
- Novell Open Enterprise Server 11 on SUSE Linux Enterprise Server 11
- UNIX Operating Systems Supported
- Sun Solaris x86 10, 11
- Sun Solaris SPARC 10, 11
- IBM AIX 6.1, 7.1
- Included Paper Handling
- 550-Sheet Input
- 100-Sheet Multipurpose Feeder
- Integrated Duplex
- 2 x 550-Sheet Tray
- 500-Sheet Output Bin
- Optional Paper Handling
- 550-Sheet Tray
- Staple Punch Finisher
- Inline Stapler
- 2200-Sheet Tray
- Paper Input Capacity, Standard
- Up to 1750 pages 75 gsm bond
- Paper Input Capacity, Maximum
- Up to 4500 pages 75 gsm bond
- Paper Output Capacity, Standard
- Up to 500 pages 75 gsm bond
- Paper Output Capacity, Maximum
- Up to 1950 pages 75 gsm bond
- Paper Weight Range Supported - Standard Tray (gsm)
- 60 - 176 gsm
- Paper Weight Range Supported - Multipurpose Feeder (gsm)
- 60 - 176 gsm
- Integrated Tray Card Stock Upper limit (grain long)
- Index Bristol - 300 gsm (166 lb)
- Tag - 300 gsm (184 lb)
- Cover - 300 gsm (110 lb)
- ADF
- 150-Sheet Automatic Document Feeder
- ADF Paper Input Capacity
- Up to 150 pages 75 gsm bond
- ADF Paper Output Capacity
- Up to 150 pages 75 gsm bond
- Finishing Option
- Yes
- Finishing Functions
- Offset stacking
- Stapling
- Hole punching
- Number of Paper Inputs, Standard
- 4
- Number of Paper Inputs, Maximum
- 6
- Media Types Supported
- Card Stock
- Dual Web Labels
- Envelopes
- Labels
- Plain Paper
- Polyester Labels
- Vinyl Labels
- Refer to the Card Stock &Label Guide.
- Banner Paper
- Media Sizes Supported
- 10 Envelope
- 7 3/4 Envelope
- 9 Envelope
- A4
- A5
- B5 Envelope
- C4 Envelope
- C5 Envelope
- DL Envelope
- Index Card
- Executive
- Folio
- JIS-B5
- Legal
- Letter
- 4 x 6"
- Statement
- Universal
- Oficio
- A6
- Caster Base
- Included
- Standard Ports
- One Internal Card Slot
- USB 2.0 Specification Hi-Speed Certified (Type B)
- Gigabit Ethernet (10/100/1000)
- Two Rear USB 2.0 Specification Hi-Speed Certified ports (Type A)
- Two Front USB 2.0 Specification Hi-Speed Certified port (Type A)
- Optional Network Ports
- Internal MarkNet N8360 802.11b/g/n Wireless, NFC
- Direct USB
- Yes
- Ethernet Network
- Yes
- Wireless
- Wireless Option
- Network Protocol Support
- TCP/IP IPv4
- TCP/IP IPv6
- TCP
- UDP
- Network Printing Methods
- LPR/LPD
- Direct IP (Port 9100)
- Enhanced IP (Port 9400)
- Secure IP (Port 96xx)
- FTP, TFTP
- ThinPrint .print integration
- Telnet
- IPP 1.0, 1.1, 2.0 (Internet Printing Protocol)
- Microsoft Web Services WSD
- Pull Printing
- Network Management Protocols1
- HTTP
- HTTPs (SSL/TLS)
- SNMPv1, SNMPv2c
- SNMPv3
- WINS
- IGMP
- BOOTP, RARP
- APIPA (AutoIP)
- DHCP
- ICMP
- DNS
- Bonjour
- DDNS
- mDNS
- ARP
- NTP
- Telnet
- Finger
- Network Security
- SNMPv3
- 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS
- IPSec
- Printer Languages (Standard)
- PCL 5c Emulation
- PCL 6 Emulation
- Personal Printer Data Stream (PPDS)
- PostScript 3 Emulation
- Direct Image
- Microsoft XPS (XML Paper Specification)
- AirPrintâ„¢
- PDF 1.7 emulation
- Fonts and Symbol Sets
- 3 of 9 scalable PCL 5e fonts in Narrow, Regular and Wide
- 2 PCL bitmap fonts
- 39 scalable PPDS fonts
- 84 scalable PCL fonts
- OCR-A, OCR-B scalable PCL 5e fonts
- For more information, refer to the Technical Reference.
- 165 scalable PostScript fonts
- 15 PPDS bitmap fonts
- Laser Cartridge Yields (up to)5
- 55,000-page Black and Colour (CMYK) Ultra High Yield Cartridges
- 22,000-page Colour (CMY) Extra High Yield Cartridges
- 33,000-page Black Extra High Yield Cartridge
- 17,000-page Colour (CMY) High Yield Cartridges
- 8,000-page Black and Colour (CMYK) Cartridges
- Photoconductor Estimated Yield
- Up to 175000 pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage4
- Cartridge(s) Shipping with Product
- 8,000-page Black Return Program Toner Cartridge
- 17,000-page Colour (CMY) High Yield Return Program Toner Cartridges
- Replacement Cartridges:
- Product functions only with replacement cartridges designed for use in a specific
geographical region. See www.lexmark.com/regions for more details.
- Packaged Size (mm - H x W x D)
- 1380 x 762 x 830 mm
- Packaged Weight, kg
- 157.4 kg
- Size (mm - H x W x D)
- 933 x 559 x 588 mm
- Weight
- 143 kg
- Noise Level, Idle
- 14 dBA
- Noise Level (Print), Operating
- 56 dBA
- Duplex Print Noise Level, Operating
- 57 dBA
- Noise Level (Copy), Operating
- 59 dBA
- Noise Level (Scan), Operating
- 55 dBA
- Quiet Mode
- 52 dBA
- ENERGY STAR
- Yes
- Average Power (Hibernate Mode)
- 0.3 watts
- Average Power (Sleep Mode)
- 3.3 watts
- Average Power (Ready Mode)
- 125 watts
- Average Power (Printing)
- 870 watts
- Average Power while Printing Duplex
- 820 watts
- Average Power (Copying)
- 650 watts
- Average Power (Scanning)
- 115 watts
- ENERGY STAR Typical Electricity Consumption (TEC)
- 3.5 kilowatt-hours per week
- Product Warranty
- 1-Year Onsite Service
- Product Certifications
- ENERGY
STAR, ICES-003 Class A, BSMI Class A, VCCI Class A, FCC Class A,
NOM-032, UL,
cUL, NOM, US FDA/CDRH,
IEC 60825-1, CB Report, ISO-532B, CE (EU) DoC, EFTA (CE), KC
logo, CCC, C-tick DoC,
EuP, CECP, CEL, EC 1275/2008, ECMA-370, TED, SII, TER, SABS,
UL-AR, GS Mark, Green
Dot, ISO-9296, COC, CCD-035 EcoLogo, Green Mark, EPEAT, Blue
Angel (Blauer Engel)
- Maximum Monthly Duty Cycle
- Up to 350000 pages per month3
- Recommended Monthly Page Volume
- 5000 - 50000 pages2
- Specified Operating Environment
- Humidity: 15 to 80% Relative Humidity
- Temperature: 10 to 32°C
- Altitude: 0 - 2896 meters
- License/Agreement Terms
- Printers are sold subject to certain license/agreement conditions. See www.lexmark.com/printerlicense
for details.
- Country of Origin
- China (PR)
- UNSPSC Code
- 43212110
- Developer Unit(s) Estimated Yield
- Up to 300000 pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage
