Canon ImagePrograf PRO1000 - 17" A2 Wide Format Professional Photographic Inkjet



Hello to an Amazing New Printer

The 17" Canon imagePROGRAF PRO-1000, the first in a new series of professional printers embodies all that you have yearned for in a printer, in one tidy little package. This is the printer we engineered to reset the bar. The printer that is equally obsessed.

Every Artist Wants To Be

Anti-clogging technology is designed to eliminate white lines for consistently high quality prints. Ink ejection conditions are precisely checked with sensors, and when a blockage is detected, another nozzle automatically provides backup and compensates to provide a smooth, even flow of ink.

In addition to reducing the possibility of printing failures due to banding, this also reduces the frequency at which head cleaning is required. By reducing unnecessary head cleaning you save valuable inks.

Powerful Settings

Feed the Vision!

Witness the beauty of intuitive user interface advances with our powerful new plug-in software. Professional photographers are able to completely customize and save multiple printing parameters and then recall those settings on-the-fly to align with their finely tuned expectations. By reducing the process of test prints you save time, ink and paper. This efficiency enhances productivity placing the focus on your prints, not set up.

Canon in, Canon out now has greater appeal because a contrast reproduction function in combination with the Digital Lens Optimizer included in Digital Photo Professional prints sharp, high-definition images without losing any of the qualities present when the image was photographed. Intuitive operation, flexible settings, enhanced integration all work seamlessly with your image editing software.

For Pros And Schools!

Manage multiple printers, regardless of location, for consistency. The Device Management Console allows you to monitor, control and calibrate your imagePROGRAF PRO-1000 printers remotely. The settings you establish here can be duplicated in another printer there.

Also accurately track the costs of every single job with Accounting Manager by accounting for every sheet of paper and the volume of ink needed for each print.

Rich Detail

Hit The Perfect Notes!

Newly formulated inks add the power of density and dynamic range. Light reflected off of printed images is equalized by the Chroma Optimizer and the newly Formulated Photo Black ink. The PRO-1000 allows for a denser droplet placement, faithfully reproducing detailed blacks to make images crisp, and precise color graduation with enhanced dynamic range successful. Equally impressive results are achieved on Fine Art papers.

With 11-color inks, a newly formulated blue and magenta ink, plus the Chroma Optimizer ink, produce superior printouts on which dark blue areas are clearly defined to express your printed photography with the power of nuance. Achieve a wider color gamut and richer details in darker shadowed areas for the finest details in nightscapes and sunsets. Also change media types from glossy to fine art paper seamlessly with a dedicated nozzle for Matte Black and Photo Black.

Our passion has yielded a new blue color for details in the shadows.

Holds The Line

Be Powerful!

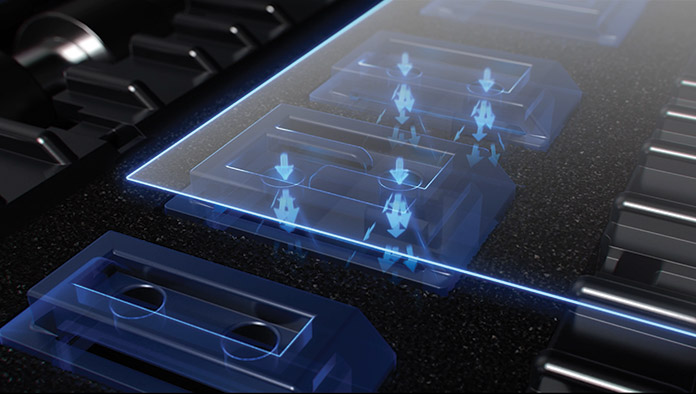

We excel at alignment, by design. The Canon Air Feeding System prevents each page from skewing and improves the precision of ink droplet placement. A series of openings located on top of the platen vacuum-grips the paper flat during feeding. The skew correction function guarantees that all types of paper, including thick paper, can be printed without misplacement as it is held tight to the platen with a vacuum grip, even in environments with factors of temperature and humidity.

Air Feeding Systems.

This Air Feeding system creates a printing environment that holds a consistent height between the print head and the media being used. In a world of constant variables, the remarkable ink impact accuracy is just another factor in gorgeous prints. Be still my heart.

A series of openings located on top of the platen vacuum-grip the paper as it feeds through the printer.

Beautiful Color

Precisely.A 1.28 wide print head expands the printing area by 50% so that with each movement of the print head you gain greater efficiencies and faster speeds while producing a quality of print that is remarkable by any standard.

A smarter engine enables both high-resolution and high-speed printing in one fell swoop. Witness 32,256,000 ink droplets placed on the paper per second. The high-precision control engine processes massive volumes of image data, generates the printing data, and controls optimal ink layout for spectacular color, detail and density on high-resolution prints, at a rapid pace.

Gorgeous Prints

Create Beauty!

Preserve, display, and relive the magic of the moment from capture to output. Faithfully reproduce every nuance and color of the original scene for the absolute truest prints possible.

This is the professional printer that excels under expectation. A 17" wide format with 12 inks create stunning black and white prints, detailed graduations, and wide color gamuts that can reproduce the most difficult magentas and blues.

Be obsessed with color.

  • A broader color gamut and improved gloss uniformity create superb glossiness and anti-bronzing
  • Incredibly accurate color reproduction, outstanding image clarity, and enhanced detail in darker areas
  • Higher black density renders even the finest shadow detail, for a print that becomes a work of art

The Printer That's Equally Obsessed

Isn't it time you upgraded to the all new CANON imagePROGRAF PRO-1000? This is the printer for professionals who want sharp, bright, fast and obsessively beautiful prints they can share with the world. The proof is in the print. Get yours today!

Canon Pro-1000 Printer




Print Features

Borderless Printing, Canon
PRINT app,2
Grayscale Photo
Printing, Wireless PictBridge,3
Wireless Printing,4
Pro Gallery
PIXMA Cloud Link6

Printing Technology

FINE: Full-Photolithography Inkjet Nozzle Engineering

Head Configuration

12 Ink Integrated Type (4 Ink Chips x 3)

Nozzle Pitch

600 dpi x 2

Nozzle Configuration

1,536 Nozzles x 12 Inks, Total: 18,432

Droplet Size

4 Picoliters per Ink

Maximum Print Resolution7

Up to 2400 x 1200 dpi

Ink Information

Type: Pigment Based LUCIA PRO Ink Technology, Tank Fill Volume: 80 ml

Print Speed8,9

17 x 22 Bordered Photo (Color): Approx. 4 minutes 10 seconds9, 13 x 19 Bordered Photo (Color): Approx. 2 minutes 30 seconds9

Media Handling

Rear Tray and Manual Feed Slot

Media Sizes

17 x 22, 14 x 17, 13 x 19, 11 x 14, 10 x 12, 8.5 x 11, 8 x 10, 5 x 7, 4 x 6 (All Media Sizes Capable of Borderless Printing)

Media Thickness

Rear Tray: Maximum 0.3 mm, Manual Feed Slot: 0.1 mm - 0.7 mm


General Features

12 Individual Ink Tanks, Advanced Pattern Print, Index Print,
Fine Art Paper Support, L-COA PRO Image Processing Engine,
Non-Firing and Compensation Function, Real Time Control of
Ink Ejection, Air Feeding System, Color Density Sensor,
Calibration Link, Contrast Reproduction


Hi-Speed USB 2.0, Ethernet (10/100Base -T/TX), PictBridge
(Wireless LAN),3
Wireless LAN (IEEE 802.11b/g /n)4

Acoustic Noise Level10,11

Approx. 41.0 bB(A)11

Printer Memory

1 GB (Standard)


3.0 LCD


Rated EPEAT Silver, Energy Star Certified, RoHS Directive

Software (Mac/

Setup Software & Users Guide CD-ROM, imagePROGRAF


PRO-1000 Printer Driver, Print Studio Pro v 2.0,14 Management
Tools: Media Configuration Tool, Accounting Manager, Device
Management Console, Quick Utility Toolbox

OS Compatibility12,13

Computer Operating Systems: Mac:12 Mac OS X v10.7.5 10.10.x, Windows:13 Windows 10, Windows 8, Windows 8.1, Windows 7, Windows 7 SP1, Windows Vista SP1, Vista SP2, Windows, Server 2012, 2012 R2, 2008, 2008 R2, Mobile Operating Systems: iOS, Android,

Recommended Operating Enviorment15

Temperature: 59 - 86 F (15 - 30 C), Relative Humidity: 10 - 80% (No Condensation)

Storage Environment

Temperature: 32 - 104 F (0 - 40 C), Relative Humidity: 5 - 95% (No Condensation)

Product Information

Model No.

imagePROGRAF PRO-1000

Compatible Inks

17 Professional

Photographic Inkjet Printer


PFI-1000 MBK

Matte Black Ink Tank


PFI-1000 PBK

Photo Black Ink Tank


PFI-1000 C

Cyan Ink Tank


PFI-1000 M

Magenta Ink Tank


PFI-1000 Y

Yellow Ink Tank


PFI-1000 PC

Photo Cyan Ink Tank


PFI-1000 PM

Photo Magenta Ink Tank


PFI-1000 GY

Gray Ink Tank


PFI-1000 PGY

Photo Gray Ink Tank


PFI-1000 R

Red Ink Tank


PFI-1000 B

Blue Ink Tank


PFI-1000 CO

Chroma Optimizer Ink Tank


Maintenance Cartridge


Maintenance Cartridge


Compatible Ink Packs


12 Ink Pack PFI-1000 12 Ink Pack


1 AirPrint functionality requires an iPad, iPhone 3GS or later, or iPod touch 3rd generation or later device running iOS 4.2 or later, and an AirPrint-enabled printer connected to the same network as your iOS device. A printer connected to the USB port of your Mac, PC, AirPort Base station, or Time Capsule is not supported.

2 Requires an Internet connection and the Canon PRINT Inkjet/SELPHY app, available for free on the App Store and at Google Play. Compatible with iPad, iPhone 3GS or later, and iPod touch 3rd generation or later devices running iOS 7.0 or later, and Android mobile devices running Android 2.3.3 or later. Your device must be connected to the same working network with wireless 802.11 b/g/n capability as your printer. For users of compatible Apple mobile devices, document printing requires Apple AirPrint, which requires an AirPrint-enabled printer connected to the same network as your iOS device. A printer connected to the USB port of your Mac, PC, AirPort Base station, or Time Capsule is not supported.

3 DPS over IP compatible device required.

4 Wireless printing requires a working network with wireless 802.11b/g or n capability. Wireless performance may vary based on terrain and distance between the printer and wireless network clients.

5 Requires an Internet connection and the Pro Gallery Print app, available for free on the App Store. Compatible with iPad 2, iPad (3rd/4th generation), iPad Air, iPad Air 2 or later and devices running iOS 7.0 or later. Compatible with SmugMug and Zenfolio web services.

6 Requires an Internet connection.

7 Ink droplets can be placed with a pitch of 1/2400 inch at minimum. Results may vary depending on printer driver settings.

8 Photo print speed is based on the default setting using ISO/JIS-SCID N2. Print speed may vary depending on system configuration, interface, software, document complexity, print mode, page coverage, type of paper used etc.

9 When using Canon Photo Paper Pro Luster (LU-101) .

10 Acoustic Noise is measured based on ISO7779 standard.

11 When printing ISO/JIS-SCID N2 pattern on Photo Paper Pro Platinum (PT-101) using default settings.

12 Internet Connection required during software installation.

13 Operation can only be guaranteed on a PC with pre-installed Windows 10, Windows 8.1, Windows 8, Windows 7, Vista or XP.

14 Print Studio Pro v 2.0 plug-in software is compatible with Adobe Photoshop CS5/CS6/CC/CC(2014)/ CC(2015), Adobe Photoshop Elements 11/12/13, Adobe Photoshop Lightroom 3/4/5/6 and Canon Digital Photo Professional 3.12 or later

15 For the temperature and humidity conditions of papers such as photo paper, refer to the papers packaging or the supplied instructions.

16 Warranty programs are subject to certain conditions and restriction.
