Overview

Engineered and tested to deliver extreme performance, Kingston HyperX easily endures the most rigorous demands of any creative professional, gamer or PC enthusiast.

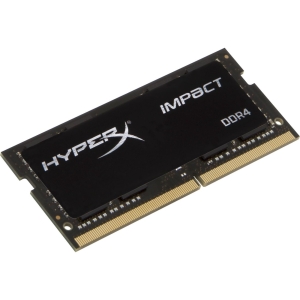

Hyper HX421S13IB/16 is a 1G x 64-bit (16GB) DDR4-2133 CL13 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 512M x 8-bit DDR4 FBGA components. Each module supports Intel Extreme Memory Profiles (Intel XMP) 2.0. This module has been tested to run at DDR4-2133 at a low latency timing of 13-13-13 at 1.2V. Additional timing parameters are shown in the PnP Timing Parameters section below. The JEDEC standard electrical and mechanical specifications are as follows:

  • JEDEC/PnP: DDR4-2133 CL13-13-13 @1.2V
  • XMP Profile #1: DDR4-2133 CL13-13-13 @1.2V

Features

  • Power Supply: VDD = 1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP - 2.5V Typical
  • VDDSPD = 2.25V to 3.6V
  • On-Die termination (ODT)
  • 16 internal banks; 4 groups of 4 banks each
  • Bi-Directional Differential Data Strobe
  • 8 bit pre-fetch
  • Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
  • Height 1.18 (30.00mm)

Specifications

CL(IDD)

:

13 cycles

Row Cycle Time (tRCmin)

:

46.5ns (min.)

Refresh to Active/Refresh
Command Time (tRFCmin)

:

260ns (min.)

Row Active Time (tRASmin)

:

33ns (min.)

Maximum Operating Power

:

TBD W*

UL Rating

:

94 V - 0

Operating Temperature

:

0o C to +85o C

Storage Temperature

:

-55o C to +100o C

*Power will vary depending on the SDRAM used.
