All stock codes associated to this product
GVN950D52GD, GV-N950D5-2GD
Features
- Powered by NVIDIA GeForce GTX 950 GPU
- Integrated with industry's best 2GB GDDR5 memory and 128-bit memory
interface
- Boost:1228 MHz/ Base:1051 MHz in OC Mode
- Boost:1190 MHz/ Base:1026 MHz in Gaming Mode
- Features Dual-link DVI-I / Dual-link DVI-D / HDMI / DisplayPort
- Recommended system power supply requirement: 350W

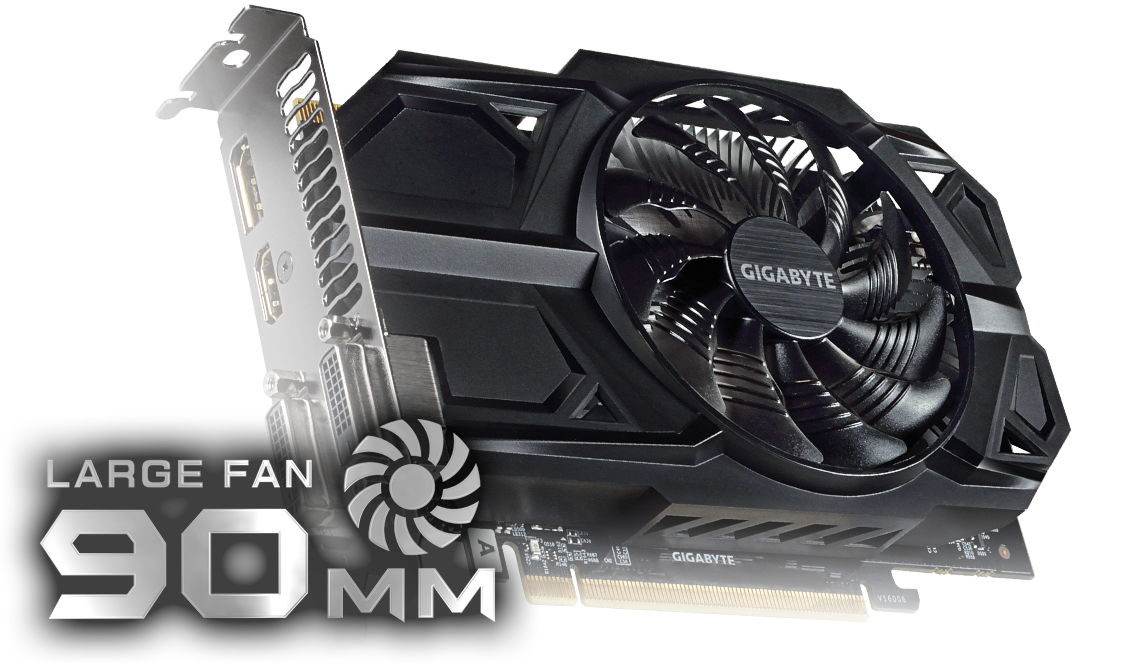

GIGABYTE
custom-designed 90mm cooler |
GIGABYTE custom-designed 90 mm cooler, with air flow optimized cover and
aluminum base. The cooler can dissipate heat effectively from the GPU while
keeping the fan at lower speed and noise.

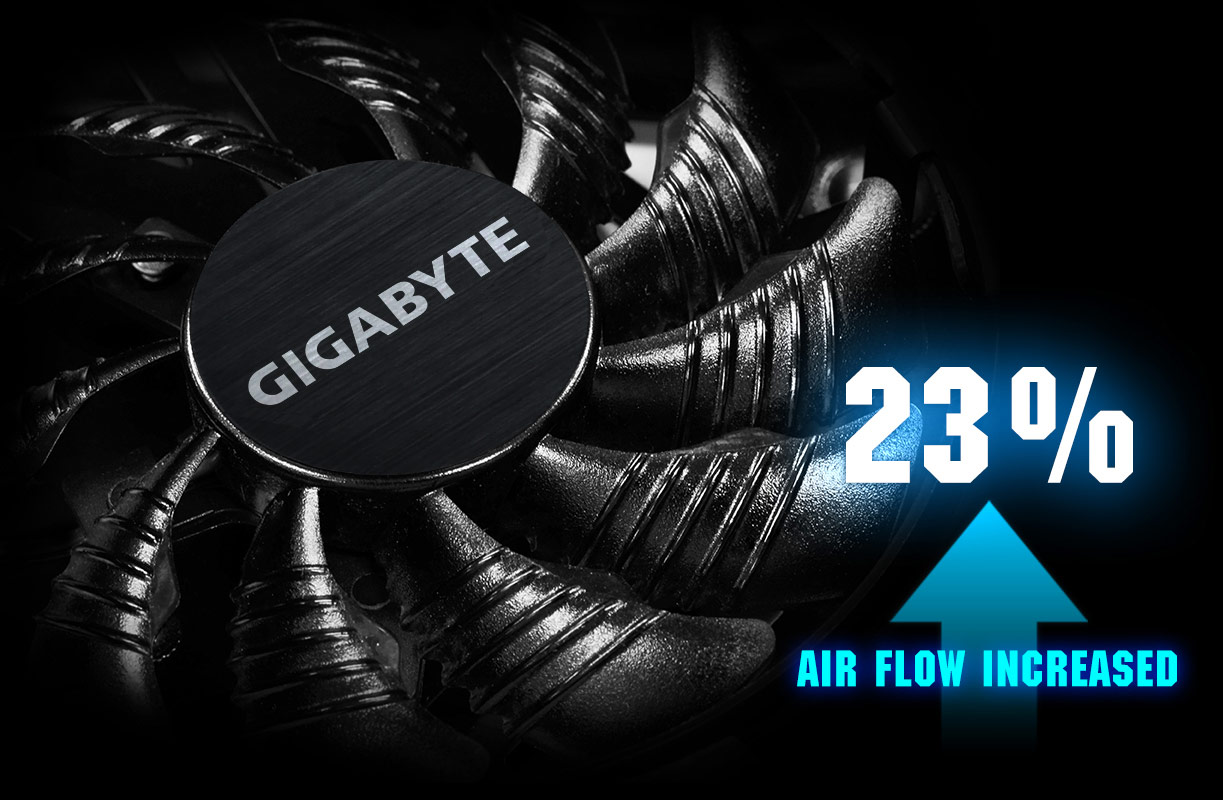

Unique
Blade Fan Design |
The airflow is spilt through the triangle design at the fan edge, and is
guided smoothly through the fan by special 3D stripe curve design. At the same
time, it effectively enhanced the cooling capacity while reducing air
turbulence.
Ultra
Cooling |

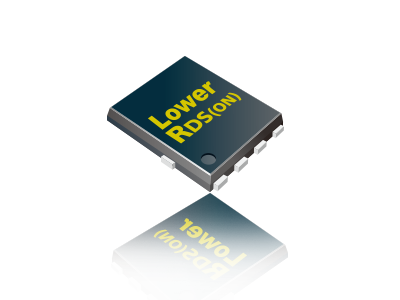

Lower RDS(on) MOSFETs are specially designed to produce lower switching
resistance for faster electric current charging and discharging at extremely low
temperature.
Low
Power Loss |

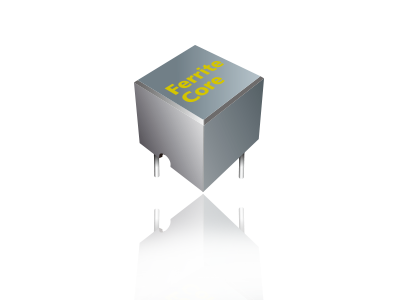

Ferrite Core Chokes hold energy much longer than common iron-core chokes at
high frequency, thus effectively reduce core energy loss and EMI
interference.
Longer
Life |

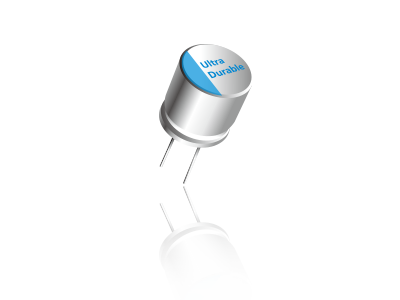

Lower ESR Solid Capacitors ensure better electronic conductivity for
excellent system performance and longer lifespan.

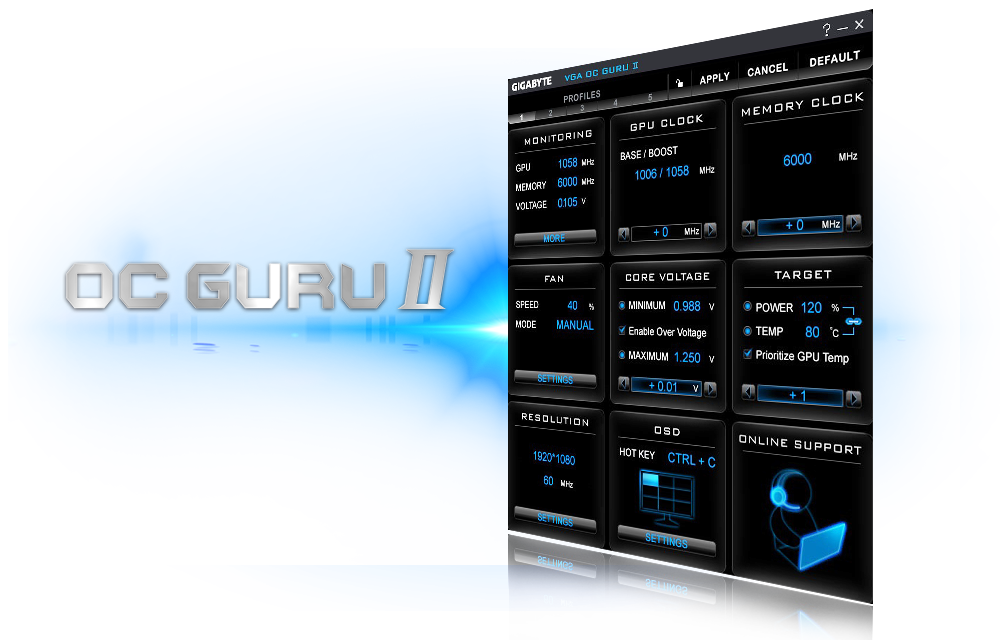

OC GURU
ll |
Brand-new intuitive user interface helps you easily modify important settings
and directly update driver and BIOS. Clock speeds, voltage, fan performance, and
OSD setting can be monitored and tuned in real-time according to your own
preference.
Specifictions
|
Graphics
Processing |
GeForce GTX
950 |
|
Core
Clock |
Boost:1228 MHz/
Base:1051 MHz in OC Mode |
|
Boost:1190 MHz/
Base:1026 MHz in Gaming Mode |
|
Memory
Clock |
6610
MHz |
|
Process
Technology |
28
nm |
|
Memory
Size |
2
GB |
|
Memory
Bus |
128
bit |
|
Card
Bus |
PCI-E
3.0 |
|
Memory
Type |
GDDR5 |
|
DirectX |
12 |
|
OpenGL |
4.5 |
|
PCB
Form |
ATX |
|
Digital max
resolution |
4096 X
2160 |
|
Analog max
resolution |
2048 x
1536 |
|
Multi-view |
4 |
|
Card
size |
H=27 mm, L=181 mm,
W=119 mm |
|
I/O |
Dual-link DVI-I /
Dual-link DVI-D / HDMI / DisplayPort |
|
Power
Connectors |
350W |
