Details
This is a USB-C to USB 3.0 with Gigabit Ethernet USB-C charging port and HDMI port hub. The USB3.0 port allows you to connect a USB device or another hub to the host computer, the USB-C female port can charge for the host computer and supply power for the hub simultaneously, the Gigabit Ethernet port allows the host computer to get access to the network and the HDMI port (DP Altmode) allows you to connect an HDMI monitor so that you can watch videos or slideshows together on a big screen. It can work on Macbook or Google new Chromebook Pixel and other USB-C supported devices.
OPERATION
- Connect the USB-C male port of this product to Macbook or Chromebook
- Connect HDMI output of this product to HDTV with one HDMI cable
- Connect the USB 3.0 output of this product to a USB 3.0/USB 2.0 device
- Connect Gigabit Ethernet port of this product to Ethernet Router with an
Ethernet cable
- Automatically or manually set IP address of computer
- Connect the USB-C charging port, it can charge for the host computer and
support this adapter to work simultaneously
Note: When connecting the USB-C male port of the adapter to
Chromebook, the mouse to be connected to the USB 3.0 port will not work
immediately, it will have seconds’ delay. This problem is caused by the
incompatibility of Chromebook, not by the product itself.

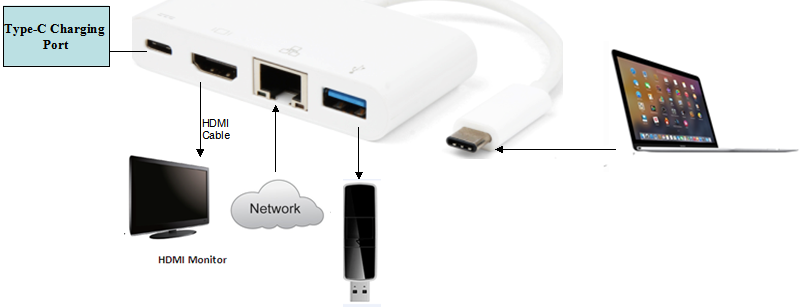

Connection Diagram
Features
-
Support
USB-C, HDMI, USB3.0, Gigabit Ethernet port
-
Support
USB 3.0 super speed (5Gbps) transmission, downward compatible USB2.0
-
USB
3.0 port supports to charge and transmit data for the USB device
simultaneously
-
Support
HDMI video resolution up to 4KX2K
-
Support
10/100 /1000Mbps bandwidth
-
Support
twisted pair crossover detection and auto-correction
-
USB-C
female port can charge for Macbook or Google new Chromebook Pixel and other
USB-C supported devices and supplies power for the hub simultaneously
-
USB-C
female port supplies power up to 60W (20V/3A)
-
Multiple
USB-C interfaces support plug and play, hot swap
-
Easy
to use and carry
Specifications
|
Input/Output
Connector |
|
|
Input |
USB-C Male 1, USB-C
Female 1 for charging |
|
Output |
RJ45 1, HDMI Female x1,
USB3.0 Female x1 |
|
|
|
Resolutions |
Resolutions: Up to
4KX2K@Hz |
|
Warranty |
Limited Warranty: 1
year |
|
Environmental |
Operating Temperature:
0C to + 45C |
|
Operating Humidity: 10%
to 85% RH (no condensation) |
|
Storage Temperature:
-10C to +70C |
|
Storage Humidity: 5% to
90 % RH (no condensation) |
|
Power
Supply |
USB Female Port: Up to
60W (20V/3A) |
|
USB 3.0 Port: Up to 5W
(5V/1A) |
|
Regulatory
Approvals |
Certifications:
FCC,CE |
|
Accessory
Adapter |
User Manual: English
Version |
