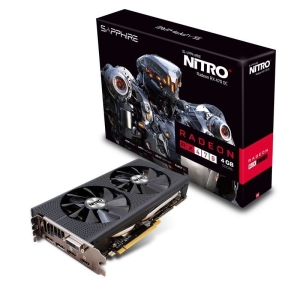

11256-01-20G | Sapphire Radeon RX470 4GB NITRO+ OC Video Card

Overview

The SAPPHIRE NITRO+ Radeon RX 470 is the next big thing in mainstream 1080p gaming.Custom-designed SAPPHIRE NITRO+ models come with an energy-efficient foundation of Polaris chip and a slew of added features in both cooling and aesthetics already seen in the NITRO+ RX 480 model.Compared to the previous R9 270 generation GPU, playing on the RX 470 means performance up to 2.4x better in latest titles such as Total War: WARHAMMER or DOOM. Engineered with power savings in mind, the 4th generation Graphics Core Next chip maintains the typical board power of around 170 W. Polaris-powered GPU-s also mean improved geometry engine, increased cache and native asynchronous shaders for unmatched efficiency in DirectX 12.

The SAPPHIRE NITRO+ Radeonâ„¢ RX 470 cards all come equipped with 2048 GCN-based stream processors and 256-bit memory interface. The 4 GB model is also factory-overclocked to 1260 MHz boost clock (1143 MHz base), with the memory clock set to 1750 MHz for 7 Gbps bandwidth.

Introducing AMD LiquidVR

LiquidVR™ is an AMD initiative dedicated to making VR as comfortable and realistic as possible by creating and maintaining what’s known as “presence� — a state of immersive awareness where situations, objects, or characters within the virtual world seem “real.� Guided by close collaboration with key technology partners in the ecosystem, LiquidVR™ uses AMD’s GPU software and hardware sub-systems to tackle the common issues and pitfalls of achieving presence, such as reducing motion-to-photon latency to less than 10 milliseconds. This is a crucial step in addressing the common discomforts, such as motion sickness, that may occur when you turn your head in a virtual world and it takes even a few milliseconds too long for a new perspective to be shown.

AMD XConnectâ„¢ Technology

Plug in and game on with AMD XConnect technology.

Now it’s easier than ever to connect and use an external Radeon™ graphics card. With AMD XConnect™ technology, external GPU enclosures configured with Radeon™ Graphics can easily connect and disconnect to a compatible ultrathin notebook or 2-in 1 over Thunderbolt™ 3 at any time, just like a USB flash drive—a first for external GPUs!

Virtual Super Resolution

Virtual Super Resolution (VSR) is an AMD feature that is game and engine agnostic to simulate Super-Sampling Anti-Aliasing (SSAA) in games that do not have native SSAA support. VSR can also be used in conjunction with other native in-game anti-aliasing for even more game graphics-setting control. VSR allows games to render at higher resolutions (up to 4K; see the Virtual Super Resolution Support table, below) and then rescales them down to a lower native display resolution. Using this, you can get quality that rivals up to 4K, even on a 1080p display while playing your favorite games.

HDR Ready

High Dynamic Range (HDR) is a state-of-the-art technology for gamers and cinephiles that care deeply about the display quality of their TV or monitor. Modeled after the acuity of human vision, HDR vastly expands the range of colors and contrast ratios that can be shown by compatible displays. HDR-ready games and movies played on an HDR display appear strikingly sharp, colorful, and vivid, with enhanced contrast and sophisticated nuance compared to even the most stunning SDR content.

NITRO Boost

The new NITRO Boost switch increases the boost clock and power limit for higher performance to unleash the gaming performance of the card.

Planning to overclock or looking for maximum performance? SAPPHRE NITRO cards come with an 8 pin power connector to plug in and enable Nitro Boost.

Black Diamond Chokes 4

Our Black Diamond Chokes are 10% cooler and 25% more power efficient than a normal choke - and these Mark 4 Chokes reduce the coil temperatures by other 15% over the Mark 3s.

These exclusive chokes will maintain gaming stability using their built-in heatsinks and help minimize coil whine.

VR Friendly

The SAPPHIRE NITRO Gaming Series cards come with Dual HDMI ports, specifically designed to work with VR. By having two HDMI ports, you can have both an HD monitor and cutting-edge VR headset running at the same time.

The ports are HDMI 2.0b, the latest update, with an 18Gbps bandwidth, up to 32 audio channels, and is able to support 4K 50/60 resolutions like 2160P, whilst remaining entirely backwards compatible with older HDMI specifications.

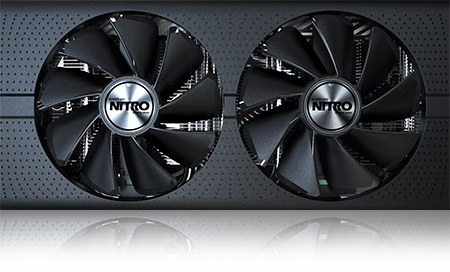

Dual-X Cooling

SAPPHIRE's acclaimed Dual-X Cooling is powered by two massive yet silent fans and state-of-the-art radiator design. The new form of our 95mm blades mean greater airflow and superior heatsink coverage at lower noise compared to standard cooling designs.

These feature dual ball bearing fans, which have an 85% longer lifespan than sleeve bearings in our tests.

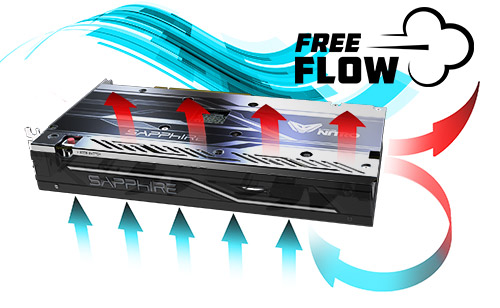

NITRO Free Flow

We looked at the traditional axial fan design system, and found that the way it circulates the hot air back to the fan inlet resulted in a higher temperature over time. With NITRO Free Flow (NFF) we redesigned the airflow of the entire cooler and board, so that the hot air is expelled through the system fan instead, rapidly dissipating heat.

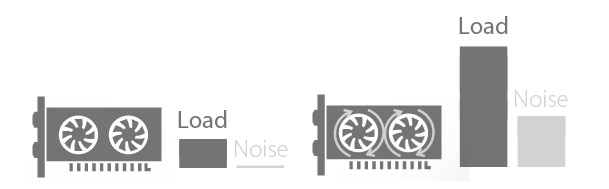

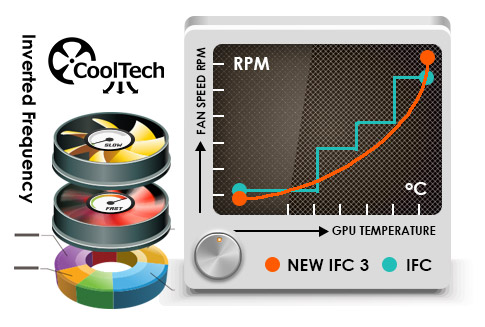

NITRO CoolTech

With the SAPPHIRE NITRO Gaming Series cards Intelligent Fan Control III, the fan starts precisely at 52 degrees Celsius to smartly balance performance against fan noise.

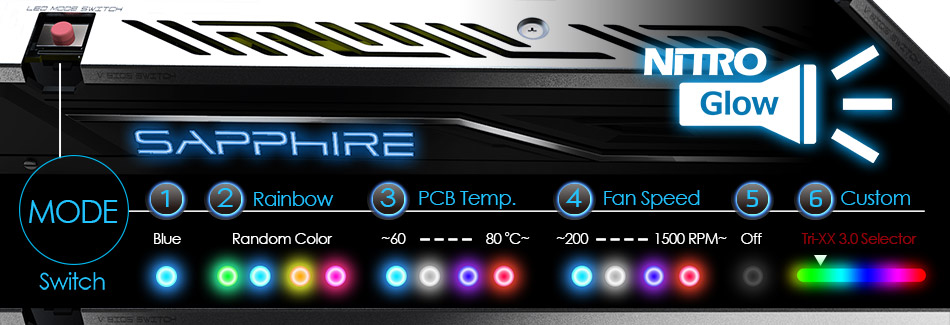

NITRO Glow

The graphics card is more than another component; its the beating heart of your gaming system. It should look as good as it costs. With tasteful shroud design augmented by RGB LEDs, each card is practically a piece of art. You can even change the colours of the LED, for your own customized design. This can be controlled via software using the latest version of SAPPHIREs Award Winning Overclocking Utility TriXX 3.0, or through hardware by pressing the red button on the back of your SAPPHIRE NITRO Gaming Series card. Users can choose from a set of five different modes including Fan Speed Mode, PCB Temperature Mode or the colourful rainbow mode. If you prefer, LEDs can also be turned off.

Fan Check

Occasionally a graphics card requires servicing, and more often than not it is the fan that needs some love and attention. However, it can be frustrating to return the entire card and wait for a replacement to be authorised. SAPPHIRE's new Fan Check allows users to check the coolers status and immediately contact customer support through Fan Service in case of problems. To resolve a specific fan issue, SAPPHIRE provides a quick and easy solution.

AMD Freesync technology

No stuttering. No tearing. Just gaming.

AMD FreeSyncâ„¢ technology allows a compatible graphics card and monitor to dynamically change frame rates for the optimum display quality without tearing or stuay.

Industry-Standard Displayport

Freesync uses industry-standard displayport Adaptive-Sync Eliminates screen tearing without all the usual lag and latency

• Synchronizes the refresh rate of a compatible monitor to the frame rate of your content, however much it varies
• Monitor partners are validating with drivers from AMD now

DirectX® 12

DirectX® 12 is a new, “console-like� graphics API from Microsoft® that empowers game developers with more direct and obvious control of PC hardware. This direct or “explicit� control better exposes the hardware resources of AMD Radeon™ GPUs to yield higher hardware throughput and, ultimately, more performance for users. To put it simply: much more efficient hardware through smarter software! At the discretion of a game developer, this superior efficiency can be spent on higher framerates, lower latency (VR), lower power consumption, better image quality, or some calculated balance of all four. In any scenario, gamers stand to benefit greatly from choosing AMD hardware to run their favorite DirectX® 12 game.

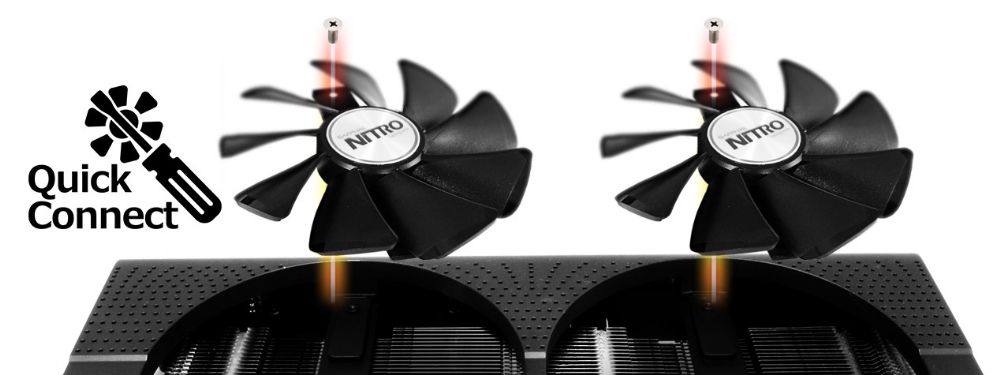

NITRO Quick Connect

If theres a fan problem, you dont have to return the entire card SAPPHIRE or our channel partners will send out a replacement fan directly to you! All the SAPPHIRE NITRO + Radeon RX480 and RX470 fans use our Quick Connect system. That means theyre easy to remove, clean and replace, with just one screw holding them securely in place.

AMD Eyefinity Technology

Multidisplay technology for gaming, productivity and entertainment

We are taking you beyond the boundaries of traditional PC displays. AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive (an average of 42% more productive according to one study).

Take your PC games to the next level of reality and immersion. Most modern games look great on three screens, and only AMD Radeon graphics offer you the ability to play across five screens for an eye-popping gaming experience. Other combinations and configurations with up to six screens work too.1 Create your dream display.

AMD Crossfireâ„¢

Harness the power of multiple GPUs

AMD CrossFireâ„¢ technology is the ultimate multi-GPU performance gaming platform. Unlocking game-dominating power, AMD CrossFireâ„¢ harnesses the power of two or more discrete graphics cards working in parallel to dramatically improve gaming performance.1 AMD CrossFireâ„¢ technology ready graphics cards fit practically every budget. With the flexibility to combine two, three or four GPUs, AMD CrossFireâ„¢ technology is the perfect solution for those who demand extreme performance.

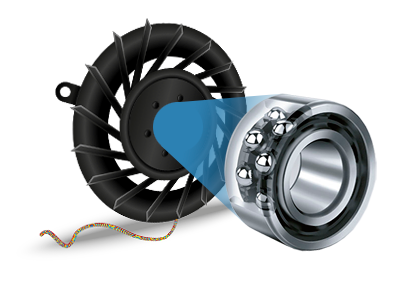

Two-ball bearing

Dual ball bearings on the fan spindles ensure smooth running and long life and are designed to keep out dust.A quiet cooling solution, Two ball-bearing fan features a high-efficiency blade design.

Frame Rate Target Control

Frame Rate Target Control (FRTC) enables users to set a target maximum frame rate when playing an application in full screen mode; the benefit being that FRTC can reduce GPU power consumption (great for games running at frame rates much higher than the display refresh rate) and therefore reduce heat generation and fan speeds/noise on the graphics card.

Frame Rate Target Control caps performance not only in 3D rendered in-game scenes, but also in splash screens, loading screens and menus, where frame rates can often run needlessly into the hundreds of FPS. Users might wish to set a very high cap just to limit wasteful FPS like that seen in menus and such, while still taking advantage of the responsiveness given by FPS well beyond 60.

Specifications
