All stock codes associated to this product
RX460WF2OC4GD, RX460WF2OC-4GD
Overview
- Powered by Radeon RX460
- Integrated with 4GB GDDR5 128bit memory
- WINDFORCE 2X with Blade Fan Design
- Support Full UHD HEVC Encode and Decode
Core Clock

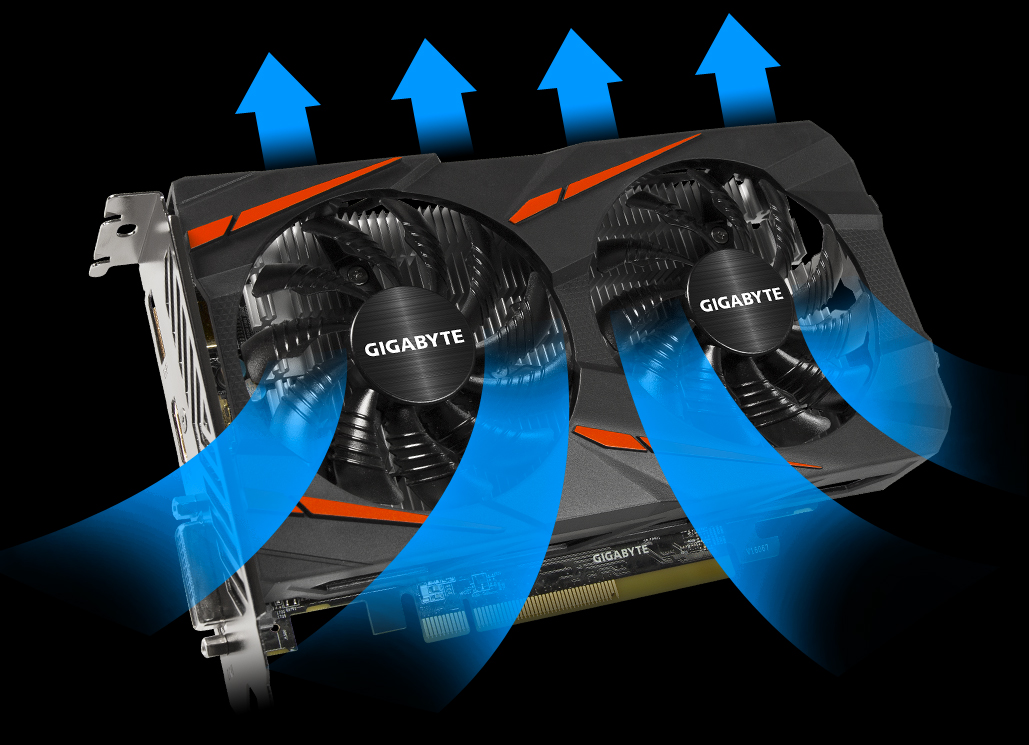

WINDFORCE 2X Cooling System
The WINDFORCE 2X cooling system features two unique blade fans, 3D active fan
functionality, delivering an effective heat dissipation capacity for higher
performance at lower temperatures.
WINDFORCE 2X Cooling System- Fans

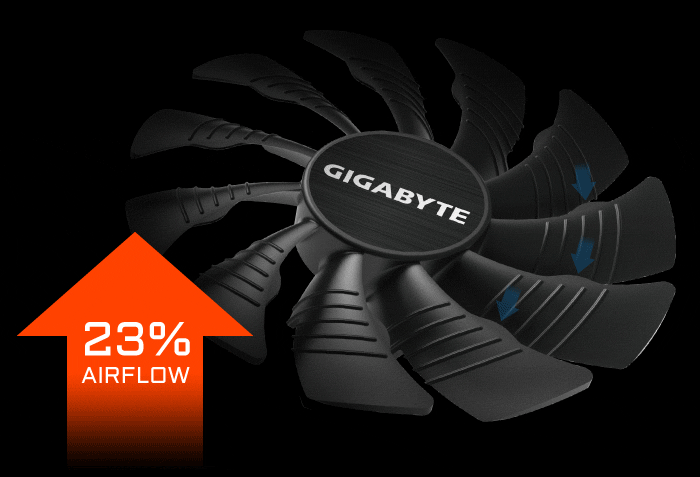

Unique Blade Fan
Design The airflow is spilt by the triangle fan edge, and guided smoothly
through the 3D stripe curve on the fan surface, effectively enhancing the air
flow by 23% over traditional fans.
3D Active Fan
The semi-passive fans will remain off when the GPU is under a set loading or
temperature for low power gaming. It allows gamers to enjoy gameplay in complete
silence when the system is running light or idle.
Durability
Ultra Durable Graphics Components
Engineered with the highest-grade chokes and capacitors, the graphic card
delivers outstanding performance and durable system lifespan.
Built for OverClocking with 4+1 power phases
Compared to reference design, the 4+1 power phases on the card make the
MOSFET working at a lower temperature and provide more stable voltage output.
(*reference design 3+1)

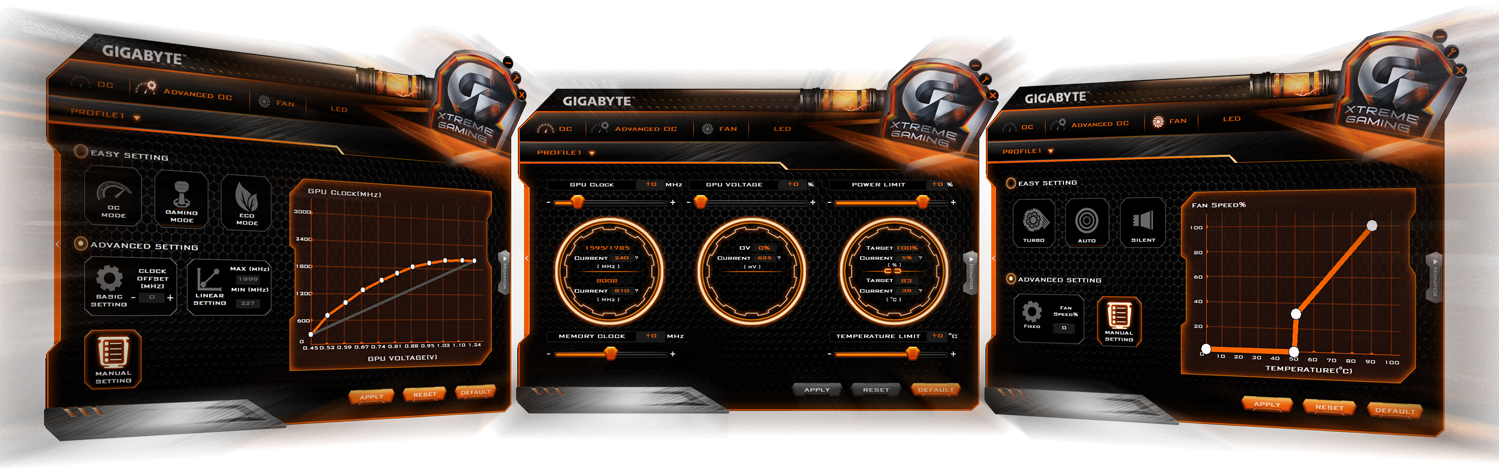

Intuitive XTREME Engine Utility
Xtreme Engine
Adjust clock speeds, voltage, fan performance, power target can be monitored
and tuned in real-time according to your own preference through this intuitive
interface
Specifications
|
Graphics
Processing |
Radeon
RX460 |
|
|
|
Core
Clock |
1212
MHz |
|
|
|
Process
Technology |
14
nm |
|
|
|
Memory
Clock |
7000
MHz |
|
|
|
Memory
Size |
4
GB |
|
|
|
Memory
Type |
GDDR5 |
|
|
|
Memory
Bus |
128
bit |
|
|
|
Card
Bus |
PCI-E 3.0 x 8 |
|
|
|
Output |
Dual-link DVI-D
*1 |
|
Dual-link DVI-D
*1 |
|
HDMI-2.0b*1 (Max
Resolution: 4096x2160 @60 Hz) |
|
Display Port-1.4 *1
(Max Resolution: 7680x4320 @60 Hz) |
|
|
|
Digital max
resolution |
7680x4320@60Hz |
|
|
|
Multi-view |
3 |
|
|
|
Card size
|
H=37 L=191 W=111 mm |
|
|
|
PCB
Form |
ATX |
|
|
|
DirectX |
12 |
|
|
|
OpenGL |
4.5 |
|
|
|
Recommended
PSU |
350W |
