All stock codes associated to this product
GVN1060WF2OC3GD, GV-N1060WF2OC-3GD, VCGVN1060WF2OC3GD, VCGV-N1060WF2OC-3GD, 4719331331290
Overview
- Powered by GeForceGTX
1060
- Integrated with 3GB GDDR5 192bit memory
- WINDFORCE 2X with Blade Fan Design
- Support up to 8K display @60Hz
- Built with 4+1 power phases
Core Clock
Boost: 1797MHz/ Base: 1582MHz in OC Mode
Boost: 1771MHz/ Base: 1556MHz in Gaming Mode

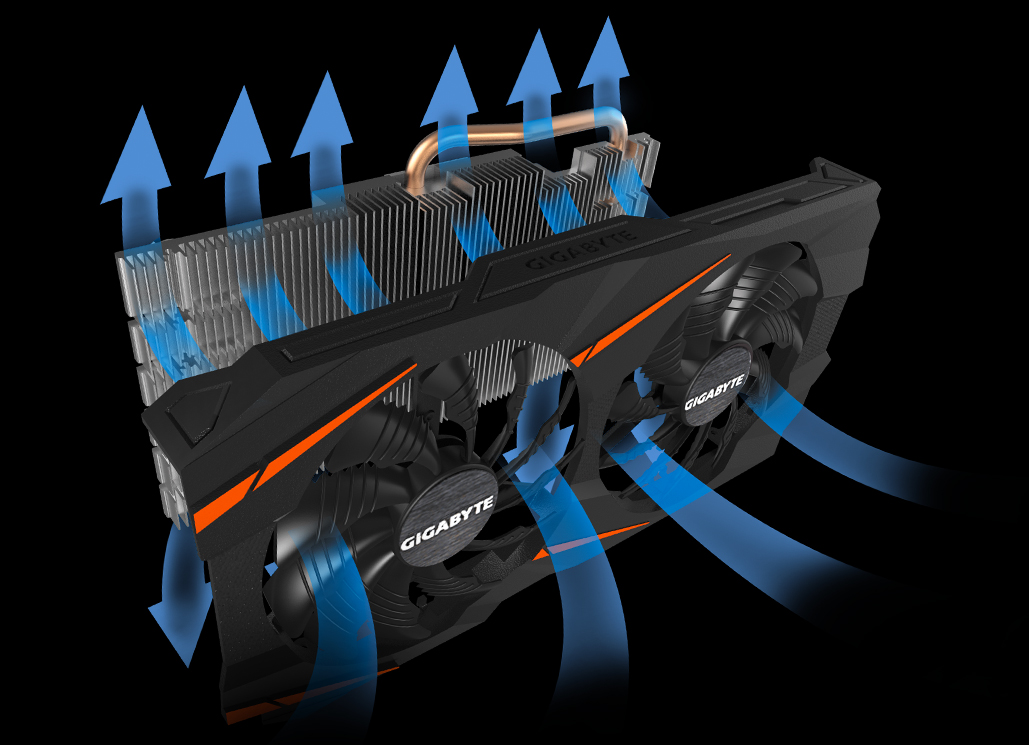

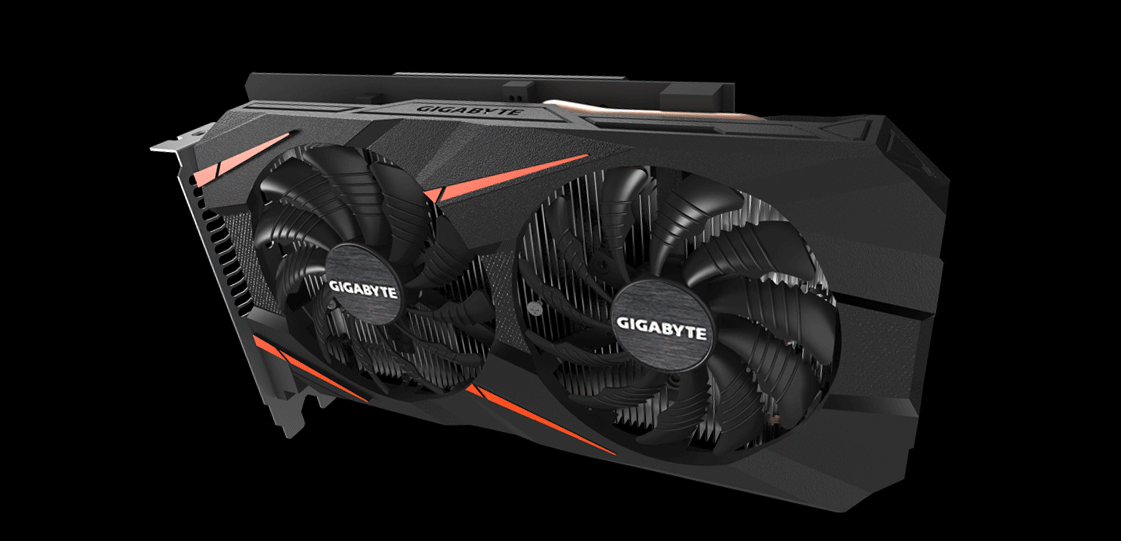

WINDFORCE 2X Cooling System
The WINDFORCE 2X cooling system features two 90mm unique blade fans,
alternate spinning fan design, pure copper composite heat-pipe, heat pipe direct
touch technology, semi-passive 3D active fan, and protection back plate together
delivering an effective heat dissipation capacity for higher performance at
lower temperatures.
WINDFORCE 2X Cooling System- Fans

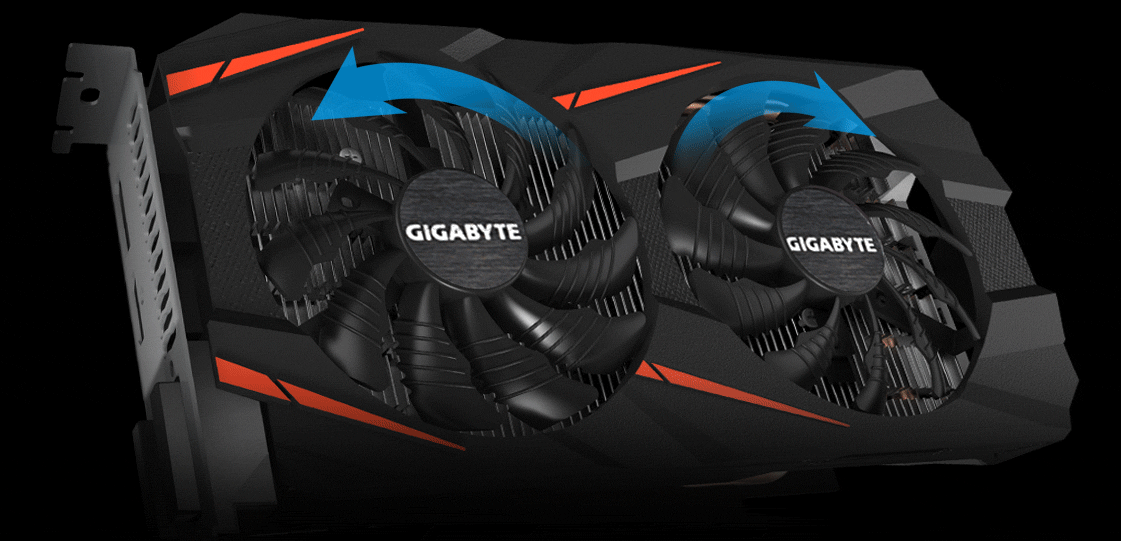

Alternate Spinning Fan Design
Optimize air flow by the alternate spinning fans that reduce air turbulence
and effectively dissipate the heat.

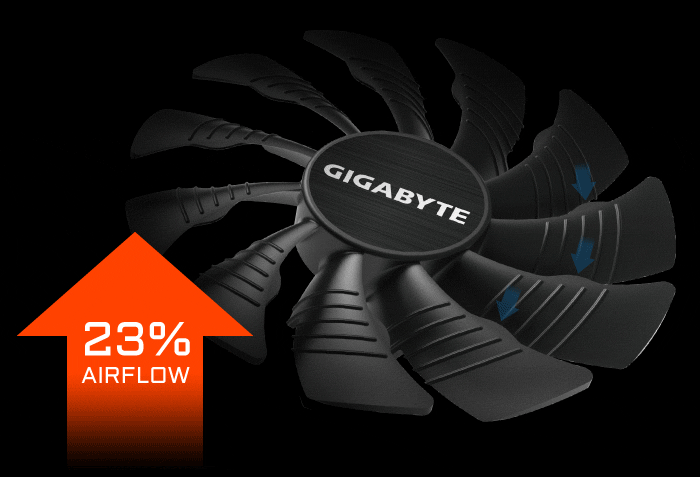

90mm Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through
the 3D stripe curve on the fan surface, effectively enhancing the air flow by
23% over traditional fans.
3D Active Fan
The semi-passive fans will remain off when the GPU is under a set loading or
temperature for low power gaming. It allows gamers to enjoy gameplay in complete
silence when the system is running light or idle.
WINDFORCE 2X Cooling System- Heat Pipe

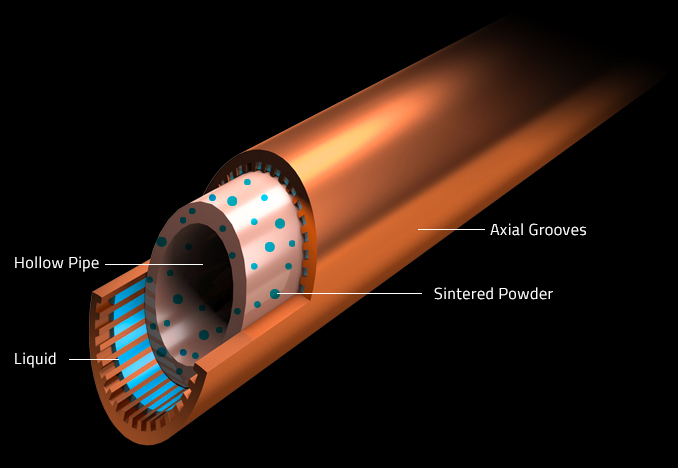

Composite heat-pipe
The composite heat-pipe combines both thermal conductivity and phase
transition for efficiently managing the transfer of heat between two solid
interfaces which increases 29% of cooling capacity.

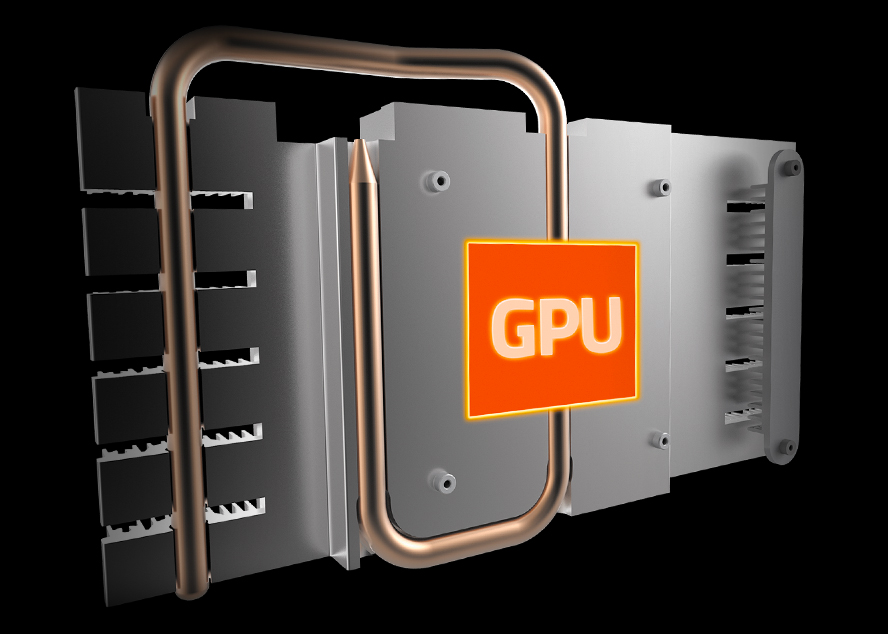

Heat Pipe Direct Touch
The pure copper heat pipe is shaped to maximize the direct contact area to
the GPU.
WINDFORCE Cooling System- protection back plate

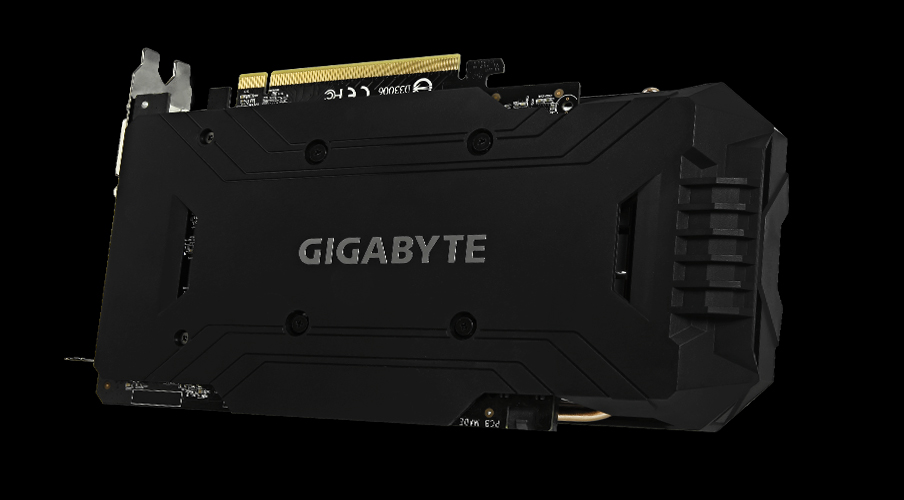

Protection back plate
Glorious black back plate provides the solid protection, strengthens the
structure and inspires the passion for gaming.
Performance
One-click Super overclocking
With a simple click on XTREME engine utility, gamers can easily tune the card
to meet their various gaming requirements without any overclocking knowledge,
while saving the hassle of manual adjustment.
Durability

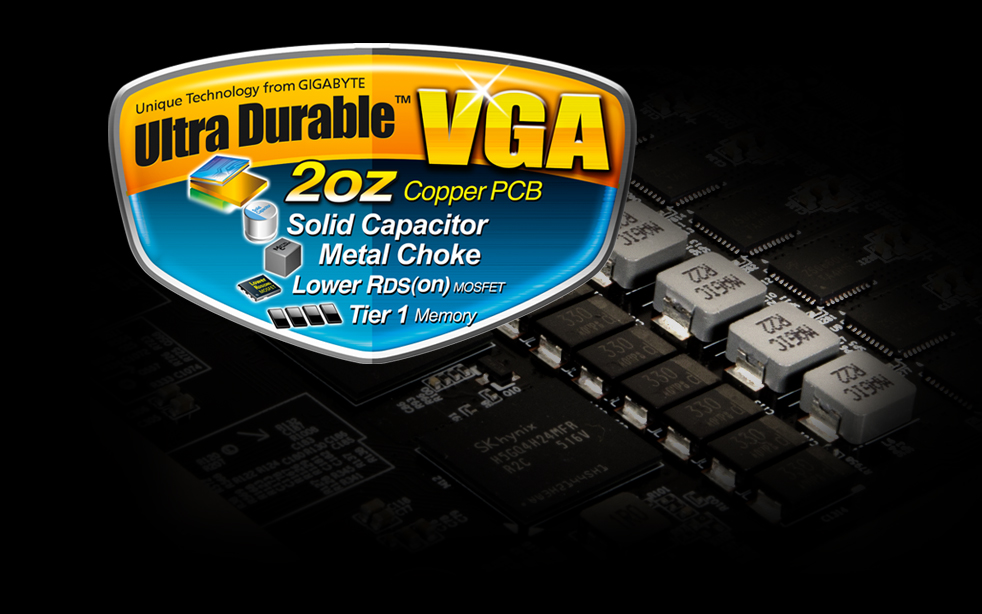

Ultra Durable Components
Engineered with the highest-grade chokes and capacitors, this graphic card
delivers outstanding performance and durable system lifespan
Built for OverClocking with 4+1 power phases
Compared to founders edition, the 4+1 power phases on the card make the
MOSFET working at a lower temperature and provide more stable voltage output.
(*founders edition:3+1)

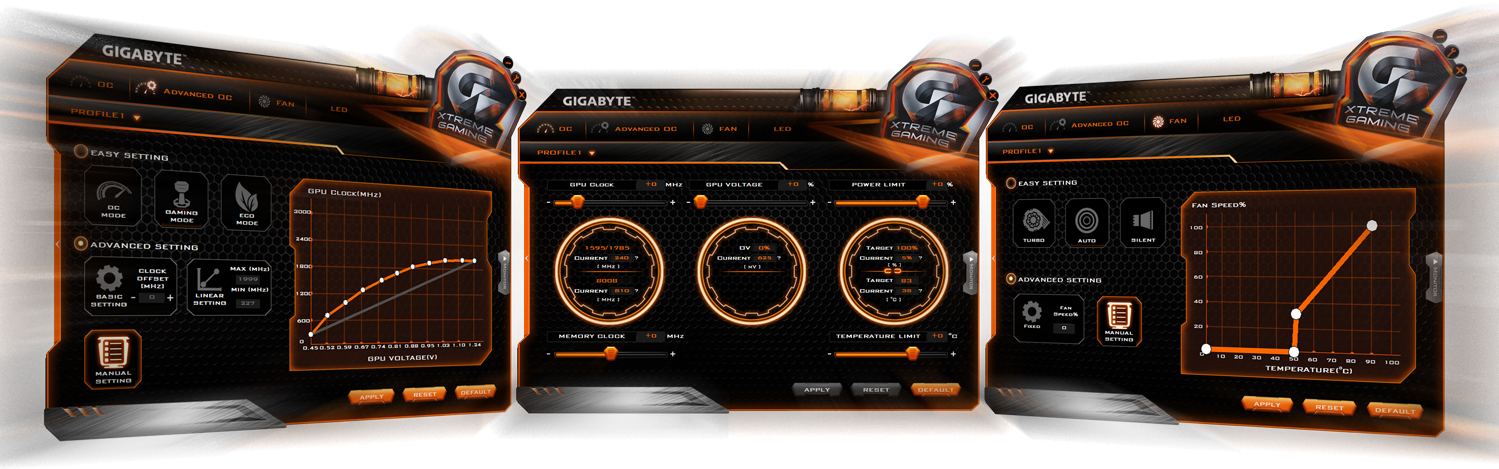

Intuitive XTREME Engine Utility
Adjust clock speeds,
voltage, fan performance, power target can be monitored and tuned in real-time
according to your own preference through this intuitive interface
Specifications
|
Graphics
Processing |
GeForce GTX
1060 |
|
Core
Clock |
Boost: 1797MHz/ Base:
1582MHz in OC Mode |
|
Boost: 1771MHz/ Base:
1556MHz in Gaming Mode |
|
Memory
Clock |
8008
MHz |
|
Process
Technology |
16
nm |
|
Memory
Size |
3
GB |
|
Memory
Type |
GDDR5 |
|
Memory
Bus |
192
bit |
|
Card
Bus |
PCI-E 3.0 x
16 |
|
Output |
Dual-link DVI-D
*2 |
|
|
|
HDMI-2.0b*1 (Max
Resolution: 4096x2160 @60 Hz) |
|
|
|
Display Port-1.4 *1
(Max Resolution: 7680x4320 @60 Hz) |
|
Digital max
resolution |
7680x4320 |
|
Multi-view |
4 |
|
Card
size |
H=39 L=223 W=121
mm |
|
PCB
Form |
ATX |
|
DirectX |
12 |
|
OpenGL |
4.5 |
|
Recommended
PSU |
400W |
|
Power
Connectors |
6
pin*1 |
