Core
- Boost: 1936 MHz / Base: 1784 MHz in OC mode
- Boost: 1898 MHz / Base: 1759 MHz in Gaming mode
XTREME PERFORMANCE
GIGABYTE Xtreme Gaming Series graphics cards are crafted for perfection in
pursuit of the ultimate graphics experience for gaming enthusiasts. Based on the
revolutionary NVIDIA® Pascal™ GPU architecture, Xtreme gaming graphics card
brings you incredible gaming experience.
- GPU Gauntlet Sorting
- Pascal-powered graphics card give you superior performance and power
efficiency
- Support up to 8K display @60Hz (requires 2*DP1.3 connectors)
- Outstanding performance for Virtual Reality gaming

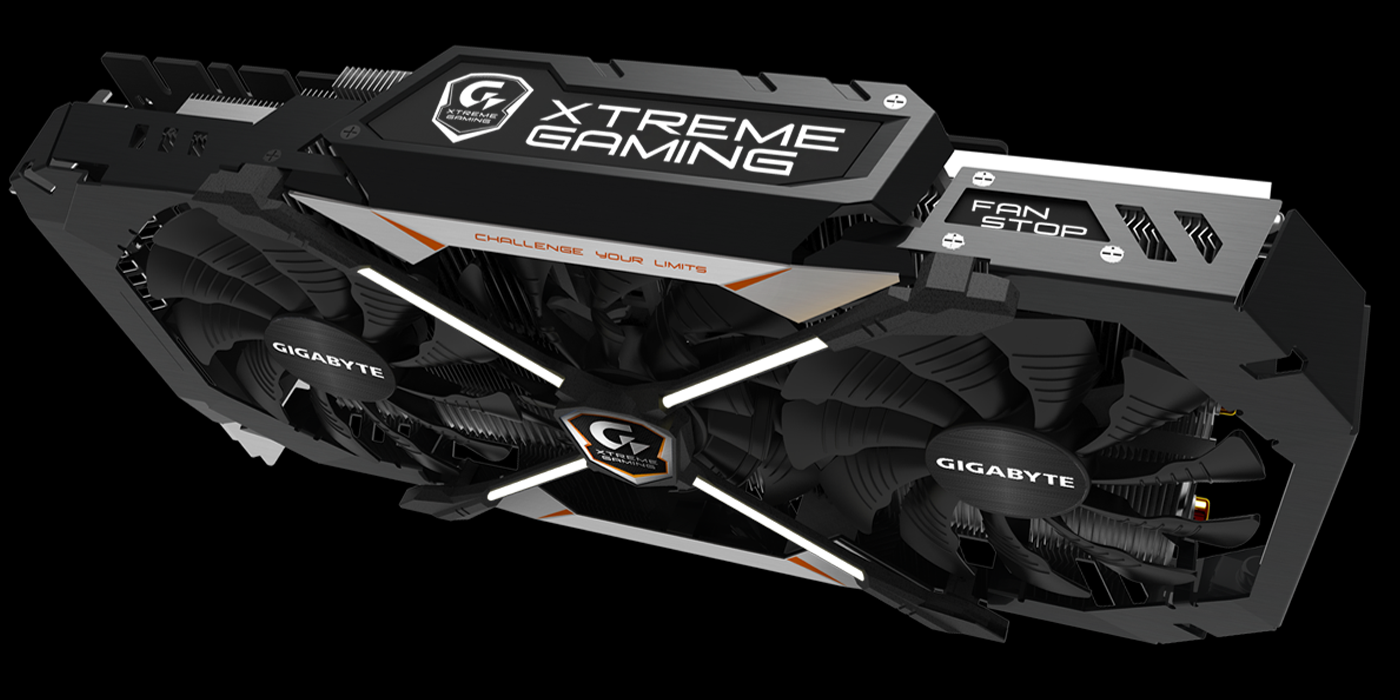

WINDFORCE STACK 3X COOLING SYSTEM
The WINDFORCE stack 3X cooling system features GIGABYTE patent-pending 3X
100mm stack fan, unique blade fan design, double ball bearing structure, angular
fin design and 6 composite heat-pipes, together delivering an effective heat
dissipation capacity for higher performance at lower temperatures.
Stack Fan Design
The 3x 100mm stack fans provide larger and more smooth airflow. And with more
heatsink coverage than 3x 80mm fans, WINDFORCE stack fans will have 10% better
cooling performance.
INNOVATIVE STACK FAN DESIGN
Make 3x 100mm stack fans into less than 300mm length area. To concentrate and
enlarge the airflow on the whole heatsink for the most efficient heat
dissipation.

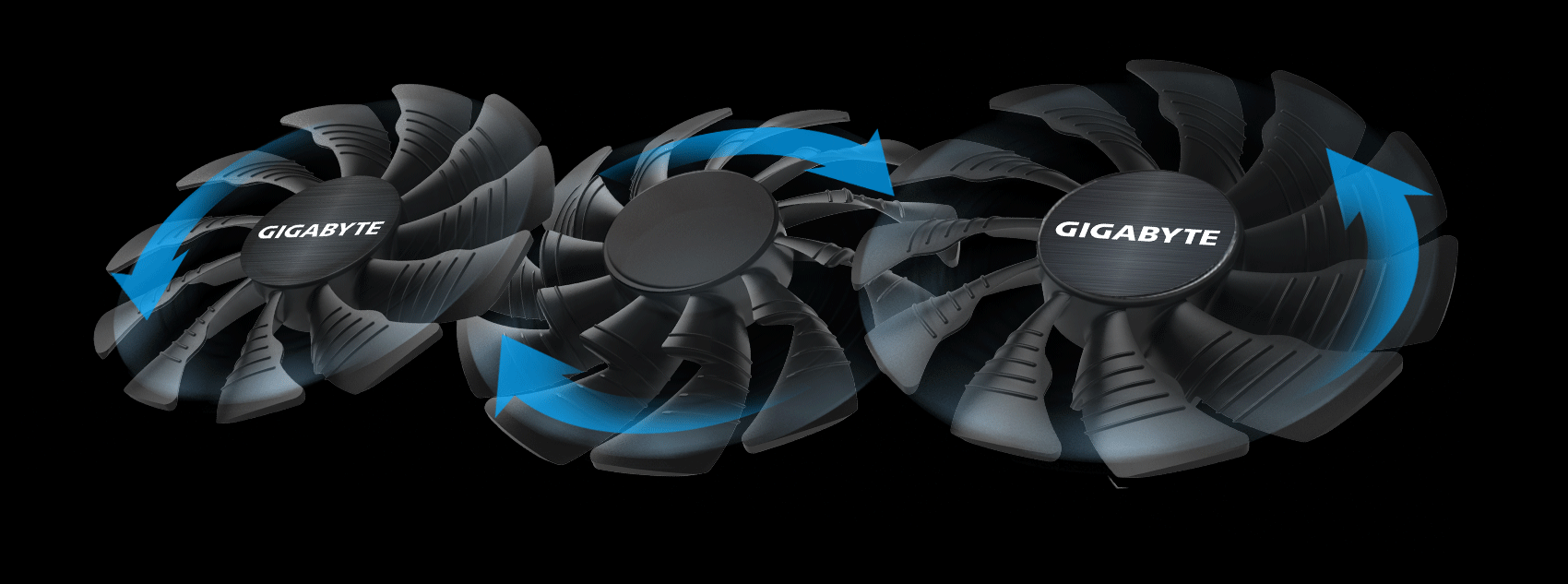

ALTERNATE SPINNING FAN DESIGN
The middle fan spins in the reverse direction to optimize the airflow to
dissipate the heat more effective for accomplishing higher performance at a
lower temperature.

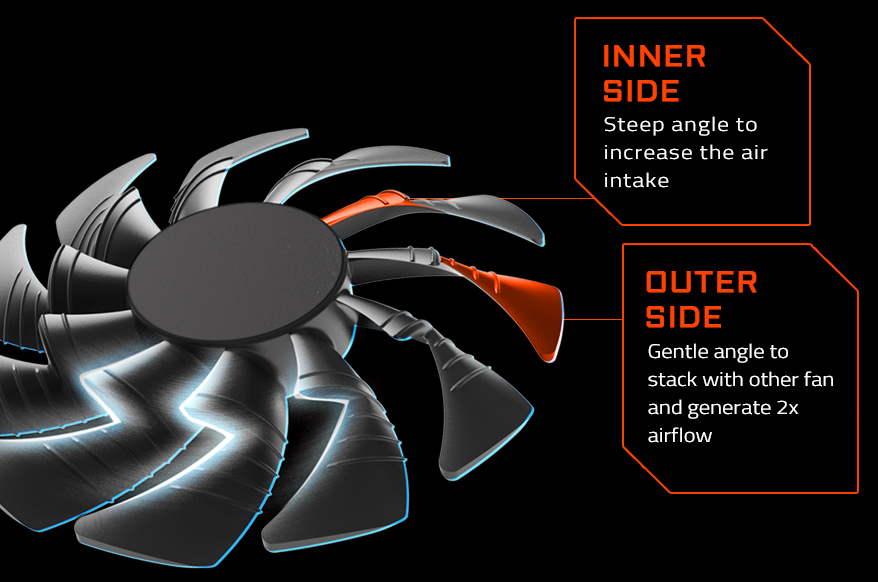

UNIQUE BLADE FAN DESIGN
The airflow is spilt by the triangle fan edge, and guided smoothly through
the 3D stripe curve on the fan surface, effectively enhancing the airflow by 23%
over the traditional fans.
DOUBLE BALL BEARING STRUCTURE
The double ball bearing structure has better heat endurance and efficiency
than sleeve structure. Hence it will provide longer life time.

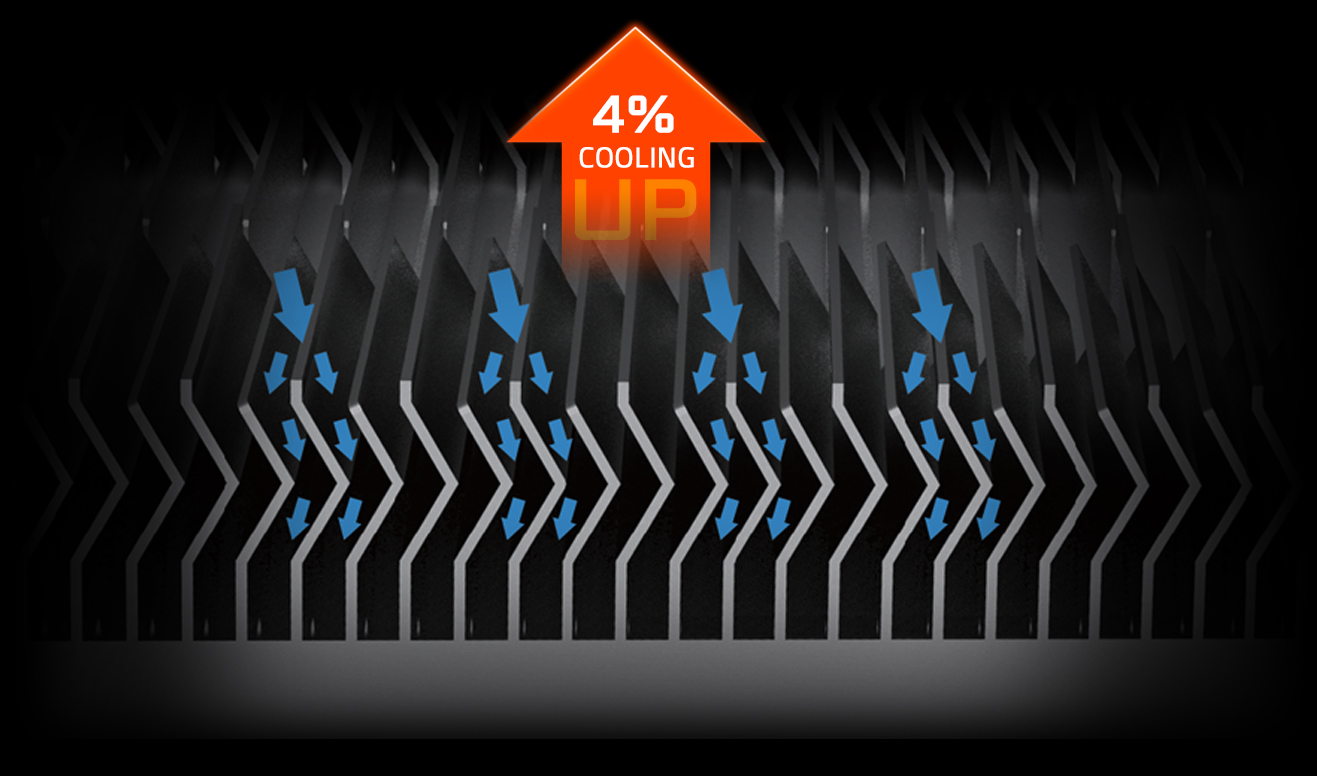

ANGULAR FIN DESIGN
The angular and unequal fins height does not only channel the airflow through
the fins and enlarge the contact surface but also results in a lower noise level
and better cooling capacity.
COMPOSITE HEAT-PIPES
The composite heat-pipes combines both thermal conductivity and phase
transition for efficiently managing the transfer of heat between two solid
interfaces which increases 29% of cooling capacity.
LARGE COPPER BASE PLATE
With direct contact to the GPU and VRAM, the large copper base plate combines
the composite heat pipes to efficiently transfer heat generated from the
interior cores to the heat sink, keeping the graphics card cool and stable when
overclocked for better performance.

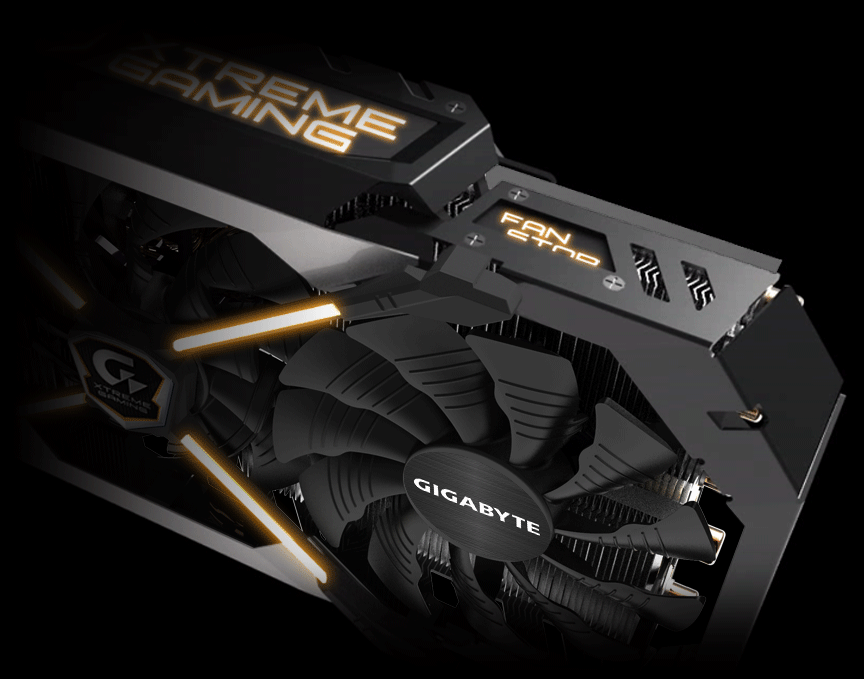

3D ACTIVE FAN WITH RGB LED INDICATORS
The XTREME GAMING graphics cards are equipped with 3D-Active Fan, the
industry's first 0dB semi-passive fan design introduced by GIGABYTE back in
2007.The fans will remain off when the GPU is under a set loading or temperature
for low power gaming. The LED fan indicator on the top of the graphics card
provides an instant display of the fan status.

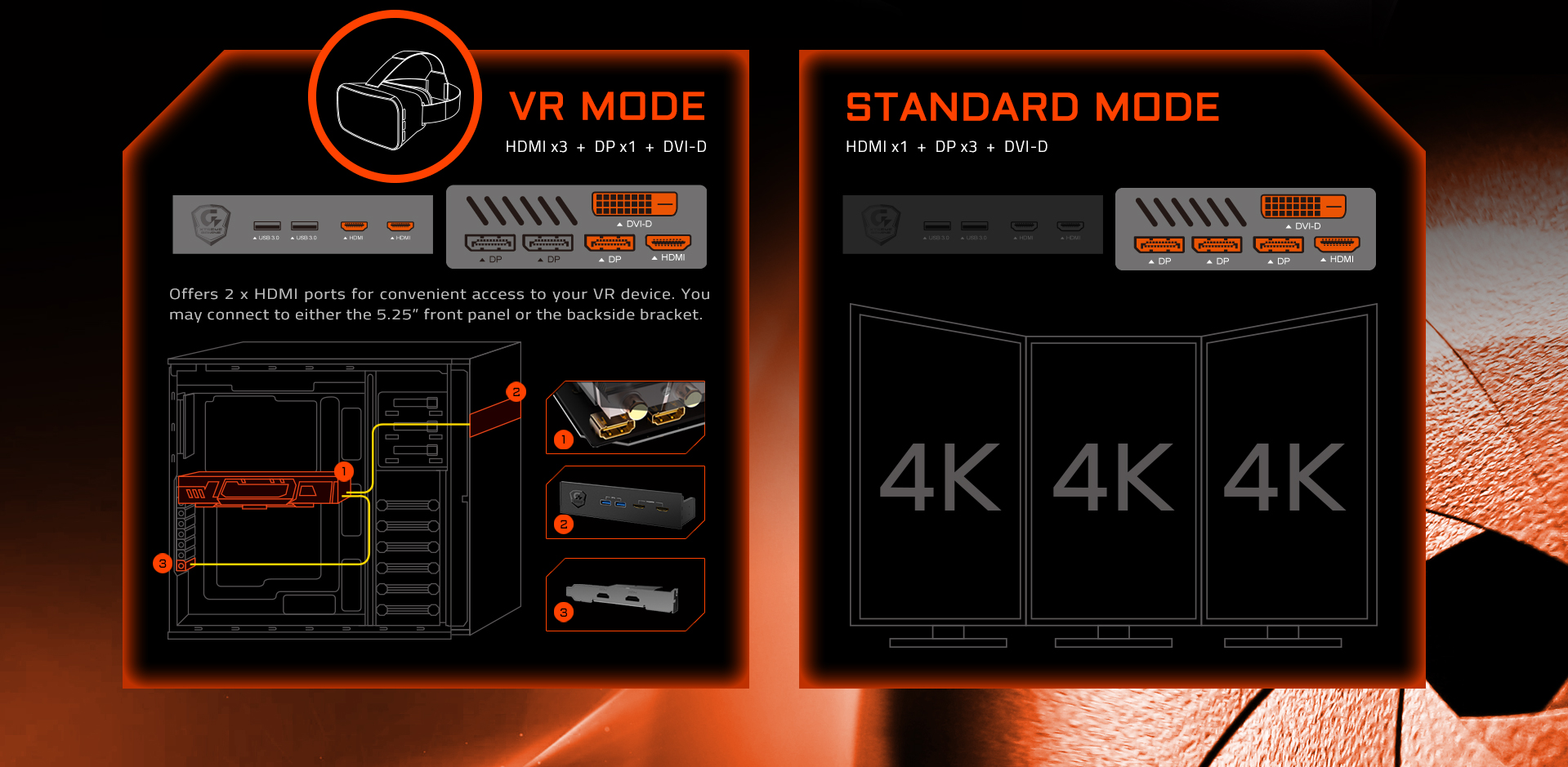

XTREME VR LINK
Xtreme VR Link provides the best solution for both VR device demand with 3
HDMI ports and 3x 4k monitors demand with 3 DP ports. Outputs are automatically
detected when restarting PC.

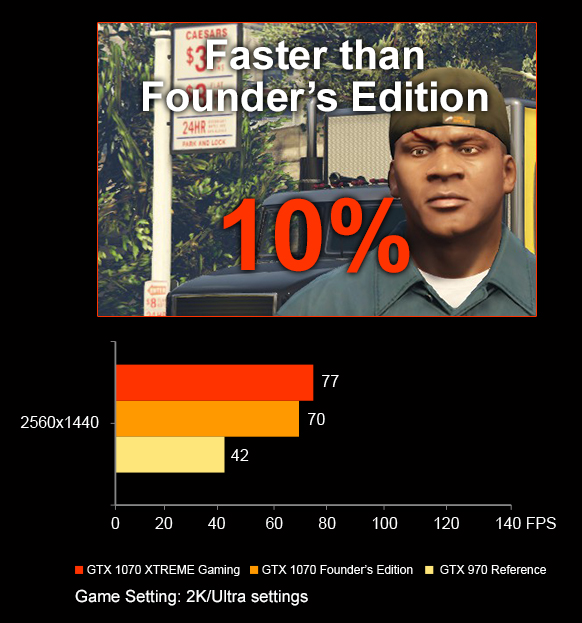

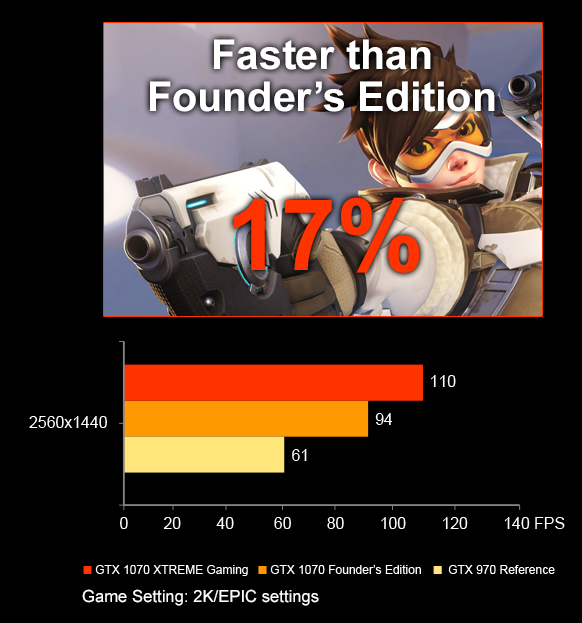

XTREME PERFORMANCE
Overwatch
GTA5

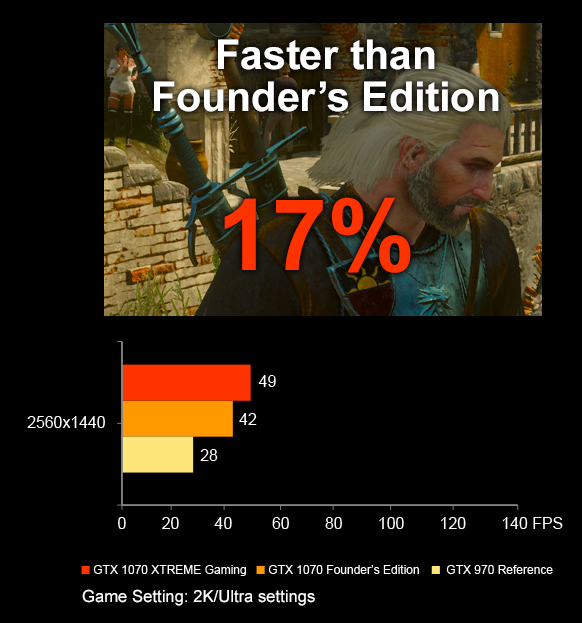

Witcher 3
System Configuration: MB:GA-Z97-SOC / CPU: Intel i7 4790K /
Memory: 16GB / HDD: SSD 128GB / OS: Windows7 64bit
XTREME OUTLOOK
16.8M CUSTOMIZABLE COLOR LIGHTING
With 16.8M customizable color options and numerous lighting effects, you
could now choose the right scheme for your gaming rig through XTREME Engine
utility.
CYCLING
- Smoothly cycles through all colors
BREATHING
- Choose a color to fade in and out
FLASH
- Choose a color for flash effect
DUAL FLASH
- Choose a color for double flash effect
CONSISTENT
- Choose a color for static light
XTREME SLI BRIDGE
Xtreme SLI HB(High Bandwidth) bridge supports illuminated logo with
customizable effects and dual link SLI speed up to 1080 MHz.
XTREME CARE
We want your experience with XTREME GAMING to be the best you have ever had.
This is why, on top of our standard 3-year warranty, we would like to offer you
an additional 1 year of Xtreme Care protection to your XTREME GAMING graphics
card free of charge. Register onXTREME GAMINGto get 4 years
warranty.
XTREME PROTECTION
- Dust -resistant shields the circuit board from dust, insects, dropped
screws, drill shavings, and abrasion.
- Moisture-resistant prevents unwanted conduction paths and board damage.
- Corrosion-resistant protects boards from environmental contaminants, such
as salt spray, humidity, and corrosion.
STYLISH METAL BACK PLATE
Glorious black metal back plate provides the solid protection, strengthens
the structure and inspires the passion for gaming.
LED POWER INDICATORS TO SHOW IF THE PCI-E VOLTAGE FROM PSU IS
STABLE
Be alert when PCI-E voltage is unstable with the smart power LED indicators.
When experiencing any power abnormality, the indicator will alert gamers by
flashing light.
XTREME DURABILITY
BUILT FOR EXTREME OVERCLOCKING WITH 12+2 POWER PHASES
Compared to the reference design, the 12+2 power phases on the card make the
MOSFET working at a lower temperature and provide more stable voltage output.
Over temperature protection and load balance to each MOSFET can effectively
extend the card life.
TITAN X-GRADE CHOKES AND CAPACITORS FOR EXTREME
DURABILITY
Xtreme Gaming Graphics Cards are engineered with the same highest-grade
chokes and capacitors as those of Titan X, delivering high quality performance
and longer system lifespan.
XTREME FRIENDLY
FRIENDLY PCB DESIGN THANKS TO FULLY AUTOMATED PRODUCTION
PROCESS
Fully automated production process ensures top quality of the circuit boards
and eliminates sharp protrusions of the solder connectors seen on the
conventional PCB surface. This friendly design prevents your hands from getting
cut or inadvertently damaging components when making your build
INTUITIVE XTREME ENGINE
Adjust clock speeds, voltage, fan performance, power target can be monitored
and tuned in real-time according to your own preference through this intuitive
interface
XTREME PACKAGE
- GV-N1080 XTREME-8GD Graphics card
- Xtreme VR Link extended 5.25front panel (2 HDMI ports and 2 USB3.0
ports)
- Xtreme VR Link extended bracket
- Xtreme SLI bridge
- XMP300 mouse pad
- Xtreme Gaming member club registration guide
- Graphics card quick manual
- Paper folder
- Wrist protector
- PCI-E Power cable x1 (Two 6pin to 8 pin)
- Xtreme Gaming Sticker
Specifications
|
Graphics
Processing |
GeForce GTX
1080 |
|
Core
Clock |
Boost: 1936 MHz / Base:
1784 MHz in OC mode |
|
Boost: 1898 MHz / Base:
1759 MHz in Gaming mode |
|
Memory
Clock |
OC mode: 10400
MHz |
|
Gaming mode: 10206
MHz |
|
Process
Technology |
16
nm |
|
Memory
Size |
8
GB |
|
Memory
Bus |
256
bit |
|
Card
Bus |
PCI-E 3.0 x
16 |
|
Memory
Type |
GDDR5X |
|
DirectX |
12 |
|
OpenGL |
4.5 |
|
PCB
Form |
ATX |
|
Digital max
resolution |
7680x4320@60Hz |
|
Multi-view |
4 |
|
I/O |
Standard mode
(Dual-link DVI-D*1, DP1.4*3, HDMI 2.0b*1) |
|
VR mode (Dual-link
DVI-D*1, DP*1, HDMI*3) |
|
Card
size |
H=57 L=287 W=140
mm |
|
Recommended
PSU |
500W ( WITH TWO 8-Pin
EXTERNAL POWER CONNECTOR) |
|
Accessories |
1. Xtreme VR Link
extended 5.25front panel (2 HDMI ports and 2 USB3.0
ports) |
|
2. Xtreme VR Link
extended bracket |
|
3. Xtreme SLI
bridge |
|
4. XMP300 mouse
pad |
|
5. Xtreme Gaming member
club registration guide |
|
6. Graphics card quick
manual |
|
7. Paper
folder |
|
8. Wrist
protector |
|
9. PCI-E Power cable x1
(Two 6pin to 8 pin) |
|
10. Xtreme Gaming
Sticker |
| |
