The Ubiquiti PBE-5AC-500 PowerBeam AC High-Performance airMAX ac Bridge is a powerful device that is designed to extend the reach of your wireless network. It operates in the 5GHz frequency range and has a maximum data rate of up to 867Mbps. The device has a built-in 500mm reflector for increased range and performance. It also comes with a pole-mounting kit for easy installation.

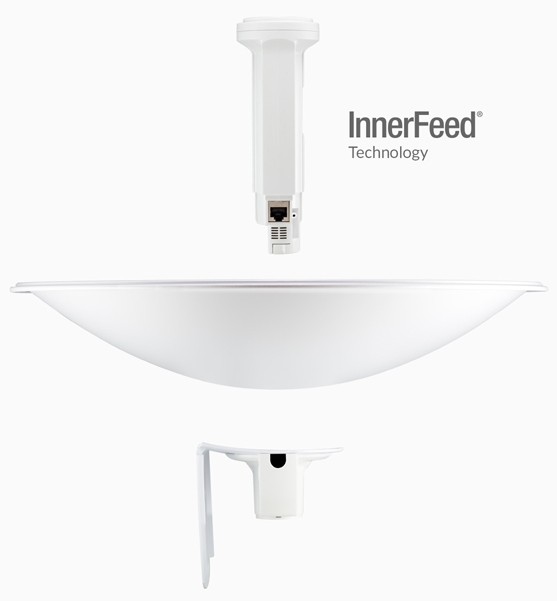

The Ubiquiti PBE-5AC-500 PowerBeam is a high-performance CPE device that incorporates a dish reflector design with proprietary airMAX ac technology. This makes it ideal for deployments that require maximum performance. The PowerBeam ac also features InnerFeed technology, which integrates the radio into the feedhorn of an antenna. This eliminates the need for cables to connect the radio to the antenna, which improves performance by eliminating cable losses.

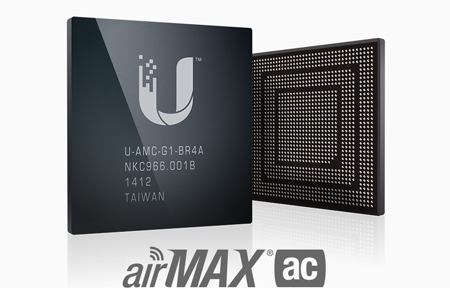

Superior Processing - Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Performance Breakthrough - airMAX ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
The PowerBeam ac's excellent beam directivity provides the best performance in high-noise environments. The form factor of the PowerBeam ac features the highest gain for its size.
Ubiquiti's airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
The PowerBeam ac PBE-5AC-500 includes a protective radome to shield the radio from nature's harshest elements.
Specifications
|
PBE-5AC-500 |
|
Dimensions |
Radome Excluded |
Radome Included |
|
520 x 520 x 308 mm (20.47 x 20.47 x 12.13") |
525 x 525 x 315 mm (20.67 x 20.67 x 12.40") |
|
Weight |
Radome Excluded |
Radome Included |
|
2.35 kg (5.18 lb) |
3.15 kg (6.95 lb) |
|
Power Supply |
24V, 0.5A Gigabit PoE |
|
Max. Power Consumption |
8.5W |
|
Power Method |
Passive PoE (Pairs 4, 5+; 7, 8 Return) |
|
Supported Voltage Range |
20-26VDC |
|
Operating Frequency |
Worldwide |
USA: U-NII-1 |
USA: U-NII-2A |
USA: U-NII-2C |
USA: U-NII-3 |
|
5150 - 5875 MHz |
5150 - 5250 MHz* |
5250 - 5350 MHz* |
5470 - 5725 MHz* |
5725 - 5850 MHz* |
|
Gain |
27 dBi |
|
Networking Interface |
(1) 10/100/1000 Ethernet Port |
|
Processor Specs |
Atheros MIPS 74Kc, 720 MHz |
|
Memory |
128 MB DDR2, 16 MB Flash |
|
LEDs |
(1) Power, (1) LAN, (4) WLAN |
|
Signal Strength LEDs |
Software-Adjustable to Correspond to Custom RSSI
Levels |
|
Max. VSWR |
1.5:1 |
|
Channel Sizes |
PtP Mode |
PtMP Mode |
|
10/20/30/40/50/60/80 MHz |
10/20/30/40 MHz |
|
Polarization |
Dual Linear |
|
Enclosure |
Outdoor UV Stabilized Plastic |
|
Mounting |
Pole-Mount (Kit Included) |
|
Wind Loading |
264.6 N @ 96 km/h (60 lbf @ 60 mph) |
|
Wind Survivability |
96 km/h (60 mph) |
|
ESD/EMP Protection |
Air: 24 kV, Contact: 24 kV |
|
Operating Temperature |
-40 to 70 C (-40 to 158 F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Wireless Approvals |
FCC, IC, CE |
|
RoHS Compliance |
Yes |
|
Salt Fog Test |
IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method
509.5 |
|
Vibration Test |
IEC 68-2-6 |
|
Temperature Shock Test |
IEC 68-2-14 |
|
UV Test |
IEC 68-2-5 at 40 C (104 F), Equivalent: ETS 300
019-1-4 |
|
Wind-Driven Rain Test |
ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method
506.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PBE-5AC-500 Output Power: 24 dBm |
|
TX Power Specifications |
RX Power Specifications |
|
Modulation |
Data Rate |
Avg. TX |
Tolerance |
Modulation |
Data Rate |
Sensitivity |
Tolerance |
|
airMAX ac |
1x BPSK () |
24 dBm |
2 dB |
airMAX ac |
1x BPSK () |
-96 dBm |
2 dB |
|
2x QPSK () |
24 dBm |
2 dB |
2x QPSK () |
-95 dBm |
2 dB |
|
2x QPSK () |
24 dBm |
2 dB |
2x QPSK () |
-92 dBm |
2 dB |
|
4x 16QAM () |
24 dBm |
2 dB |
4x 16QAM () |
-90 dBm |
2 dB |
|
4x 16QAM () |
24 dBm |
2 dB |
4x 16QAM () |
-86 dBm |
2 dB |
|
6x 64QAM (2/3) |
23 dBm |
2 dB |
6x 64QAM (2/3) |
-83 dBm |
2 dB |
|
6x 64QAM () |
22 dBm |
2 dB |
6x 64QAM () |
-77 dBm |
2 dB |
|
6x 64QAM (5/6) |
21 dBm |
2 dB |
6x 64QAM (5/6) |
-74 dBm |
2 dB |
|
8x 256QAM () |
20 dBm |
2 dB |
8x 256QAM () |
-69 dBm |
2 dB |
|
8x 256QAM (5/6) |
19 dBm |
2 dB |
8x 256QAM (5/6) |
-65 dBm |
2 dB |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
