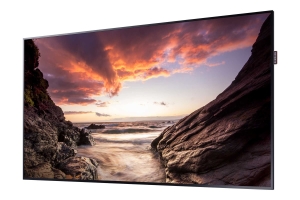

Samsung PH55F Full HD Commercial LED Display Monitor



Overview

Premium TIZEN-powered displays built to handle any business need in a slim, captivating design.

Key Highlights

24/7 operation 24/7 protection

MagicInfo S4 powered by Tizen MagicInfo S4 powered by Tizen

EdgeLED Edge LED

Anti-Glare Anti-Glare

Quad Core CPU Quad Core CPU

Wi-fi module embedded Wi-fi module embedded

  • All-in-one display solution with embedded MagicInfo Player S4 powered by TIZEN
  • IP5x certification and non-glare panel to withstand a range of environmental conditions
  • Sleek design with slim depth (29.9mm) and narrow bezels (6.9mm)

Features

The all-new embedded media player powered by TIZEN™

The new 2016 SMART Signage that supports SSSP 4.0 allows for a stronger, faster and more stable performance than its previous models. Transcending past hardware performance, the new SSSP 4.0 enables CMS partners to develop and deploy advanced web applications which can help to effectively manage content and SMART Signage for their customers.

Powerful Performance

1) Enhanced 3D Graphic Engine

  • Experience dynamic content by enhancing 3D graphic performance while text scrolling appears smooth and the display offers a level of robustness that can even support 3 movies playing concurrently on one screen.

2) PC-less Touch Solution

  • Touch performance is fully realized due to the powerful TIZEN OS that bypasses the need for a PC.

3) Enhanced Security

  • Applications, platform and system are all supported by TIZEN OS and a holistic security architecture allows for high stability and security through 3 layers of supplementation.

Easy Development

The ability to develop the solution further is facilitated, thanks to various development tools such as SW Development Kit (SDK) or Remote Web Inspector (RW). In addition, as it is a web standard-based open platform, it is highly compatible with HTML5.

Simple Usability

Usability is attained due to a touch-friendly UI while web browsers are able to display a homepage without the need to develop a web app. The SSSP 4.0 user screen has also been improved (new home UI) and quick access for web apps is supported through URL Launcher.

Offering robust options for content creation, scheduling and deployment tools

A key aspect of the enhanced TIZEN-based SSSP 4.0 platform, Samsungs MagicInfo Player S4 enables users to fully leverage the power of their display network from any location through a centralized server. More useable than ever, MagicInfo Player S4 merges a dedicated Backup Player with DataLink content streaming capabilities to reduce the effort needed to share vital information.

Powerful Performance

With MagicInfo Player S4, the new graphic engine applied to 2016 SMART Signage heightens the overall display performance while ensuring seamless transition of content and smoother ticker text scrolling.

Meanwhile, high resolution images (max. 5120 X 5120) are supported and more than 100 text boxes are available. When its Touch Overlay option is utilized, the user can fully navigate the web browser through the tap of a finger on the display thus mitigating the need for additional PCs.

Simple Usability

More than just a media player, it also functions as an advanced content management solution which can allow you to play media files, set and edit media playback schedules, plus configure the display as a video wall and control device through the use of its WiFi connection, on/off timer and more. The newly designed graphical user interface enables enhanced ease-of-use and local content management capability.

Total Solution

Samsung MagicInfo server has also been newly designed and upgraded to version 4.0. MagicInfo server software is a specialized content management software which enables large organizations to manage multiple digital signage through an integrated single server. The organizations can also remotely monitor and manage smart signage from a centralized location.

Discover displays that break the previous limits of slim design

Boasting of the slimmest depth design in the industry (29.9mm), Samsungs new PHF and PMF Series standalone displays provide a compact, but strong signage solution for environments limited by space or configuration. Available in a range of sizes (43-, 49- and 55-inch models available for both PHF and PMF signage, with an additional 32-inch model available for the PMF Series), these standalone displays feature a narrow-bezel configuration to further maintain viewers focus aimed at on-screen content.

* The specification by model such as size, brightness, and operational time is different. See the specification table for more details.

Unlock easier and more flexible control due to a centralized infrared receiver

The standalone displays integrated centralized infrared receiver (IR) ensures easier and more flexible user control. All models can receive the IR signal on individual panels via Central IR. Through tailored installation or mounting, users can navigate the IR functionality from various locations, further augmenting uninterrupted performance.

Bring an end to unwanted glare and always be assured of high visibility and readability

Equipped with a non-glare frontal panel, the PHF and PMF Series displays reduce natural and ambient light interference to ensure continuous readability in any location. Image visibility and information readability are deemed to be very high, because it is less reflective under light or sunlight, which poses no issues when used with QSR menu boards, or airport flight schedule boards with ample natural light.

* The specification by model such as size, brightness, and operational time is different. See the specification table for more details.

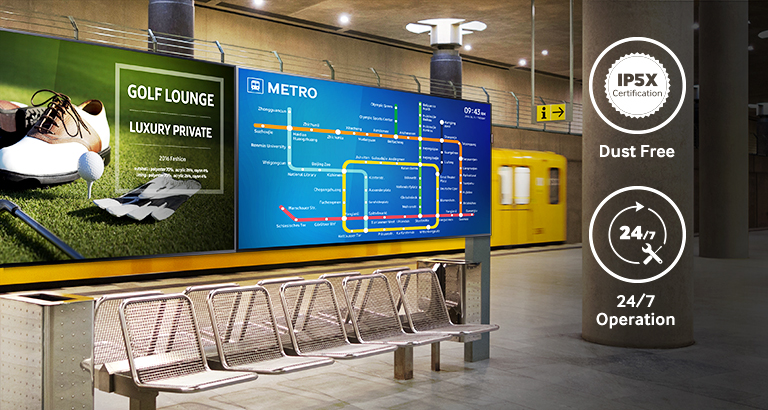

Put your worries to rest knowing that your display is protected from a range of environmental conditions

All of Samsungs new PMF and PHF standalone displays are IP5x certified, signifying their dust-resistant design and ability to withstand a range of environmental conditions.

The certification alleviates concerns about dust accumulating on displays installed on subway trains or on external platforms. Customers can conveniently use this IP5x certified display without needing to prepare additional enclosure in dusty places. Uninterrupted, 24/7 content delivery is always assured regardless of surrounding natural or interactive conditions.

Specifications

Panel

Diagonal Size

55

Type

60Hz E-LED BLU

Resolution

1920*1080 (Full HD)

Pixel Pitch(mm)

0.630(H) x 0.630(V)

Active Display Area(mm)

1209.6(H) x 680.4(V)

Brightness(Typ.)

700 nit

Contrast Ratio

5000:01:00

Viewing Angle(H/V)

178:178

Response Time(G-to-G)

8ms

Display Colors

10bit Dithering - 1.07Billion

Color Gamut

72%

Haze

25%

Display

Dynamic C/R

Mega

H-Scanning Frequency

30 ~ 81kHZ

V-Scanning Frequency

48 ~ 75HZ

Maximum Pixel Frequency

148.5MHz

Display

Speaker Type

Built in Speaker(10W + 10W)

Connectivity

Input

RGB

DVI-I(D-Sub Common), Display Port 1.2 (2)

Video

HDMI (2)

Audio

Stereo mini Jack

Usb

USB 2.0 x 2

Output

RGB

DP1.2(Loop-out)

Video

N/A

Audio

Stereo mini Jack

Power Out

N/A

External Control

RS232C(in/out) thru Stereo Jack, RJ45

External Sensor

N/A

Tuner

No

Power

Type

Internal

Power Supply

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Power Consumption

Max[W/h]

187

Typical[W/h]

EU 134, US 134, WW 134

BTU(Max)

637.67

Sleep mode

less than 0.5W

Off mode

less than 0.5W

Mechanical Specification

Dimension (mm)

Set

1228.4 x 701.2 x 29.9

Package

1335 X 812 X 182

Weight (kg)

Set

16.3

Package

21.8

VESA Mount (mm)

400x400

Protection Glass

N/A

Stand Type

Foot Stand (Optional)

Media Player Option Type

N/A

Bezel Width (mm)

6.9/6.9/8.9

Operation

Recommended Usage Hours

24/7

Operating Temperature

0.0    ~   40.0

Humidity

10.0  %  ~   80.0   %

Feature

Key Features

Slim & Light Signage with Built-in MagicInfo S4, SSSP 4.0

Special Features

H/W : Non Glare Panel, Temperature Sensor, Video Wall(15x15(OSD)), Video Wall Daisy Chain(16), Pivot Display, Clock Battery(80hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, IP5x, Center IR S/W : Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Firmware Update by Network, New Home Screen, PC-less VideoWall, Multi Channel, Mobile Control, Event Schedule, Backup Player

Internal Player

Processor

Cortex-A12 1.3GHz Quad Core CPU

On-Chip Cache Memory

L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB

Clock Speed

1.3GHz CPU Quad

Main Memory Interface

2.5GB 3 channel 96bit DDR3-933 (1866MHz)

Graphics

2D & 3D Graphics Engine - Up to 3840x2160p. 32bpp - Supports OpenGL ES

Storage (FDM)

8GB (3.75GB Occupied by O/S, 4.25GB Available, )

Multimedia

Video Decoder - MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC - VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc.

IO Ports

USB 2.0

Operating System

Tizen 2.4 (VDLinux)

Certification

Safety

CB (Europe) : IEC60950-1/EN60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BIS(India) : IEC60950-1 / IS13252 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC60950-1/AS/NZS 60950-1 UL(USA) : cUL60950-1 CSA (Canada) : cUL TUV (Germany) : CE NEMKO (Norway) : CE

EMC

FCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China) :GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003

Environment

N/A

Accessory

Included

Quick Setup Guide, Regulatory Guide , Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Cover Jack

Optional

Stand

STN-L4655E

Mount

WMN4270SD

Specialty

CML450H

Media Player

Media Player

SBB
