Overview

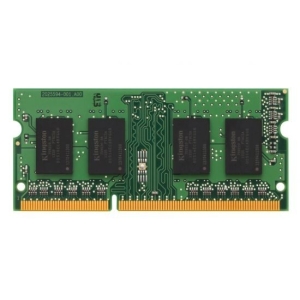

This document describes ValueRAM's 1G x 64-bit (8GB) DDR4-2400 CL17 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. This 260-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

Features

  • Power Supply: VDD=1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP - 2.5V Typical
  • VDDSPD=2.2V to 3.6V
  • Nominal and dynamic on-die termination
  • (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Single-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology Terminated control command and address bus
  • PCB: Height 1.18 (30.00mm)
  • RoHS Compliant and Halogen-Free

Specifications

  • CL(IDD)                                                                                  17 cycles
  • Row Cycle Time (tRCmin)                                                       45.75ns(min)
  • Refresh to Active/Refresh Command Time (tRFCmin)              350ns (min)
  • Row Active Time (tRASmin)                                                    32ns (min)
  • Maximum Operating Power                                                      TBD W*
  • UL Rating                                                                                94 V- 0
  • Operating Temperature                                                             Oc to + 85c
  • Storage Temperatures                                                               55o C to +100o C
