Overview

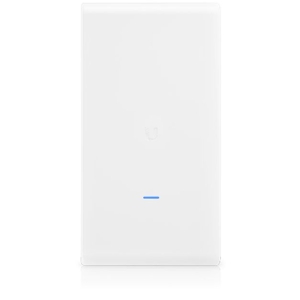

Expand your Wi-Fi network outdoors with the UniFi AC Mesh Pro Access Point, part of the Ubiquiti Networks UniFi Enterprise Wi-Fi System. The UAP-AC-M-PRO is a high-performance, outdoor, 3x3 MIMO, 802.11AC dual-band access point, capable of speeds of up to 1750 Mbps. It features a propietary, MIMO-optimized, omni-directional Super Antenna for exceptional 360° coverage, providing symmetrical long-range communications of up to 183 meters.

Specifications

UNIFI

Dimensions

343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x 2.37")

Weight

633 g (1.40 lb)

Networking Interface

(2) 10/100/1000 Ethernet Ports

Buttons

Reset

Antennas

3 Dualband antennas

Wi-Fi Standards

802.11a/b/g/n/ac

Power Method

802.3af PoE

Power Supply

PoE Injector 48VDC -0.5A Gigabit

Maximum Power Consumption

9W

Max TX Power

22 dBm

BSSID

Up to Four per Radio

Power Save

Supported

Wireless Security

WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

Certifications

CE, FCC, IC

Mounting

Wall/Pole (Pole Kit Included)

Operating Temperature

-40 to 70 C (-40 to 158 F)

Operating Humidity

5 to 95% Noncondensing

ADVANCED TRAFFIC MANAGEMENT

VLAN

802.1Q

Advanced QoS

Per-User Rate Limiting

Guest Traffic Isolation

Supported

WMM

Voice, Video, Best Effort, and Background

Concurrent Clients

100+

SUPPORTED DATA RATES (MBPS)

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n

6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)

802.11ac

6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps
