Overview



Gigabit Connectivity

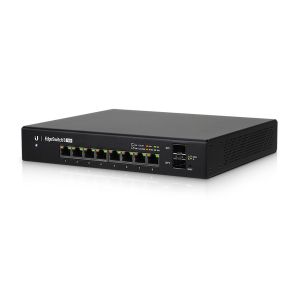

The compact EdgeSwitch features a versatile port configuration: eight Gigabit Ethernet ports that support PoE+ and two SFP ports for fiber connectivity. It can be placed on a desktop or mounted on a wall.

Convenient PoE+ Support

Sharing a total of 150W, eight Gigabit Ethernet ports offer auto-sensing IEEE 802.3af/at PoE/PoE+ or 24V passive PoE to simplify your infrastructure.

Optical Fiber Backhaul

The EdgeSwitch provides fiber connectivity options for your growing networks. Two SFP ports provide uplinks of up to 1 Gbps.

Powerful Performance

The EdgeSwitch delivers robust switching performance with its total, non-blocking throughput of up to 10 Gbps.

Switching Capacity

The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Advanced UI

The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.

Specifications

•8 RJ45 GbE ports with PoE output support (both 802.3af/at and passive 24V) and two 1G SFP ports
•Fanless design with removable mounting ears
•Same features as existing EdgeSwitch models (extensive L2 features and basic L3 features)
•Full line-rate performance for all ports simultaneously (i.e., 10 Gbps "throughput", 20 Gbps "capacity", or 14.88 Mpps "rate")
•DC power input support: Terminal block for 42V to 56V DC input
•Power consumption max 20W (excluding PoE output)
•RJ45 serial console port
•Operating temperature range depending on power input and load: ?AC input up to 150W: -25C to 45C
?AC input up to 100W: -25C to 55C
?DC input: -25C to 60C

Advanced Switching Technology for the Masses

Build and expand your network with Ubiquiti Networks® EdgeSwitchTM, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.

The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Switching Performance

The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss
