Overview
Featuring a panel antenna and dual-polarity performance, the NanoStationM
is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance
CPE devices with a sleek form factor.
Models: locoM5
Compact CPE Design
The NanoStationM features the CPE design that expanded the global Wireless
ISP industry.
Plug and Play Installation
The NanoStationM requires no tools for assembly; only a single wrench is
required for pole-mounting.

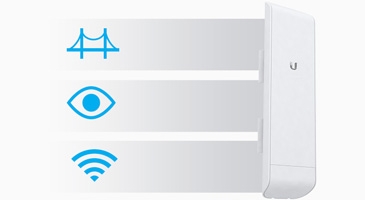

Versatile Application Use
The NanoStationM can be deployed for Point-to-Point (PtP) bridging, wireless
connectivity to a video surveillance system, or use as an airMAX CPE.
Dual Ethernet Connectivity
With software-enabled PoE output, the secondary Ethernet port can power an
external device, such as a PoE security camera, for seamless IP video
integration.
Powerful airOS Features
Ubiquitis versatile airOS firmware technology enables high-performance,
outdoor multi-point networking. airOS provides features such as wireless
settings, bridge or routing configuration and system management services.
Advanced Software Technology
Ubiquitis airMAX technology is proven in millions of deployments worldwide,
exhibiting outstanding performance in outdoor environments. The TDMA airMAX
protocol enables unprecedented scalability, high throughput and low latency in
unlicensed, multipoint networks.
Window/Wall Mounting Kit
Use the NanoStationMount
to quickly mount the NanoStationM on a window or wall. 180 vertical or
horizontal adjustment allows for custom positioning.

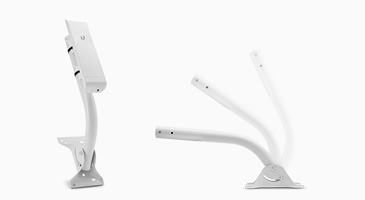

Wall/Pole Mounting Kit
The Universal Arm Bracket is designed for convenient wall or pole mounting of
the NanoStationM. 90 tilt adjustment allows for easy positioning.
Specifications
|
Frequency |
5 GHz |
|
Throughput |
150+ Mbps |
|
Range |
10+ km |
Specifications locoM5 Dimensions 161 x 31 x 80 mm (6.31 x 1.22 x 3.15")
Weight 180 g (6.35 oz)
Power Supply (PoE) 24V, 0.5A Max.
Power Consumption 5.5W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Frequency Worldwide USA USA DFS 5170-5875 MHz 5725-5850 MHz 5250-5850 MHz Gain 13 dBi
Networking Interface (1) 10/100 Ethernet Port
Processor Specs Atheros MIPS 74Kc, 560 MHz
Memory 64 MB DDR2, 8 MB
Flash Frequency 5 GHz
Cross-pol Isolation 20 dB
Minimum Max. VSWR 1.4:1
Beamwidth 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization Dual Linear Enclosure Outdoor UV Stabilized
Plastic Mounting Pole-Mount (Kit Included)
Operating Temperature -30 to 75° C (-22 to 167° F)
Operating Humidity 5 to 95%
Noncondensing Wireless Approvals FCC Part 15.247, IC RS210, CE RoHS Compliance Yes Shock & Vibration ETSI300-019-1.4
