All stock codes associated to this product
VE807, ATVE807

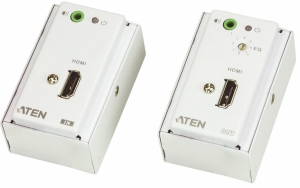

Aten VE807 HDMI/Audio Cat5 Extender w. MK Wall Plate
The VE807 HDMI/Audio Cat 5 Extender with MK Wall Plate is designed to be
conveniently mounted in a one- gang junction box for the UK, Singapore, Hong
Kong and other markets that apply MK type junction boxes. It extends HDMI and
audio signals up to 60 meters over a Cat 5e/6 cable and supports widescreen
formats ensuring excellent video quality.
The VE807 can be easily powered at either the transmitter or receiver side
using a second Cat 5e/6 cable. The VE807s compact wall plate design does away
with bulky cables allowing a neat and convenient installation. Therefore, it is
a perfect solution for function rooms, museums and any setting that requires
equipment or cabling to be kept from the publics view.
Features
- Uses two Cat 5e/6 cables to connect the local and remote units- one to
transmit video and another to supply power*
- Remotely powered from either the transmitter or receiver side**
- Extends the distance between HDMI source and display
- Supports superior video quality up to 1080p @ 60 Hz at a distance of 40 m;
1080i @ 60 Hz at a distance of 60 m
- Designed to mount in one- gang junction box for UK, Singapore, Hong Kong
and other markets that apply MK type junction boxes.
- HDMI (3D, Deep Color); HDCP compatible
- Supports 8 segment equalization adjustment via switch
- Supports wide screen formats
- Supports hot- plugging
- Supports stereo audio
- Built- in 8KV/ 15 KV ESD protection
- Plug- and- play with no software installation required
- LED indication of power sources / connection status
Package Contents
- 1x VE807 HDMI/Audio Cat 5 Transmitter with MK Wall Plate
- 1x VE807 HDMI/Audio Cat 5 Receiver with MK Wall Plate
- 1x Terminal Block Connector
- 1x Power Adapter
- 2x MK type Wall Plate Covers
- 8x Screw Covers
- 1x Screw kit
- 1x User Instructions

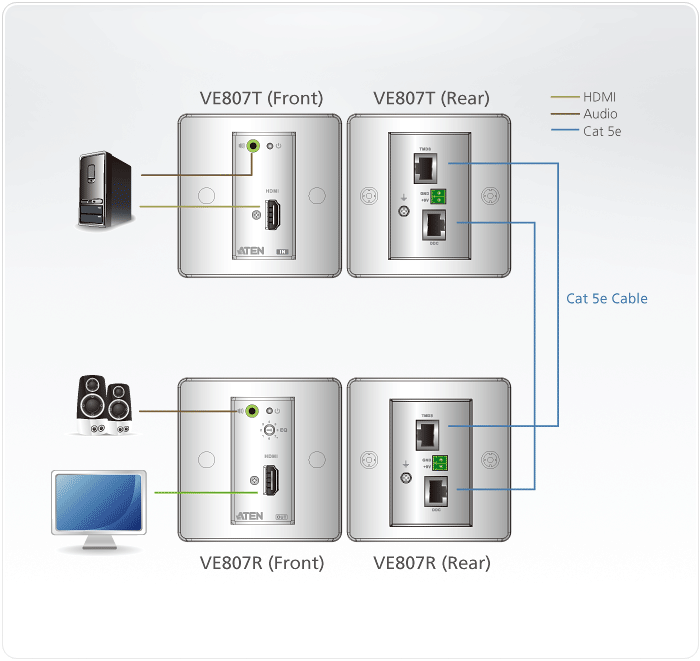

Diagram
Specifications
|
Video Input |
|
|
Interfaces |
1 x HDMI Type A Female (Black) |
|
Impedance |
100 ohms |
|
Max. Distance |
1.8 m |
|
|
|
Video Output |
|
|
Interfaces |
N/A |
|
Impedance |
N/A |
|
|
|
Video |
|
|
Max. Data Rate |
6.75 Gbps (2.25 Gbps Per Lane) |
|
Max. Pixel Clock |
225 MHz |
|
Compliance |
HDMI (3D, Deep Color) |
|
HDCP Compatible |
|
Max. Resolutions / Distance |
Up to 1080p@40m; 1080i@60m |
|
|
|
Audio |
|
|
Input |
1 x HDMI Type A Female (Black) |
|
Output |
N/A |
|
|
|
|
Power |
|
|
Connectors |
1 x Terminal Block (Green) |
|
Consumption |
9 VDC, 2.9W |
|
|
|
Environmental |
|
|
Operating Temperature |
0 - 50°C |
|
Storage Temperature |
-20 - 60°C |
|
Humidity |
0-80% RH, Non-Condensing |
|
|
|
Physical Properties |
|
|
Housing |
Metal |
|
Weight |
0.18 kg ( 0.4 lb ) |
|
Dimensions (L x W x H) |
6.86 x 4.98 x 2.69 cm |
|
(2.7 x 1.96 x 1.06 in.) |
|
|
|
Carton Lot |
5 pcs |
|
|
|
Note |
For some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
