Overview
All-in-one displays that leverage capacitive touch technology backed by
Tizen-powered media player
Key Highlights
- Capacitive touch technology that enables up to 10 different touch points
simultaneously
- All-in-one display solution with embedded MagicInfo Player S4 powered by
Tizen
- IP5x certification that reflects it can withstand demanding usage
environments
Features

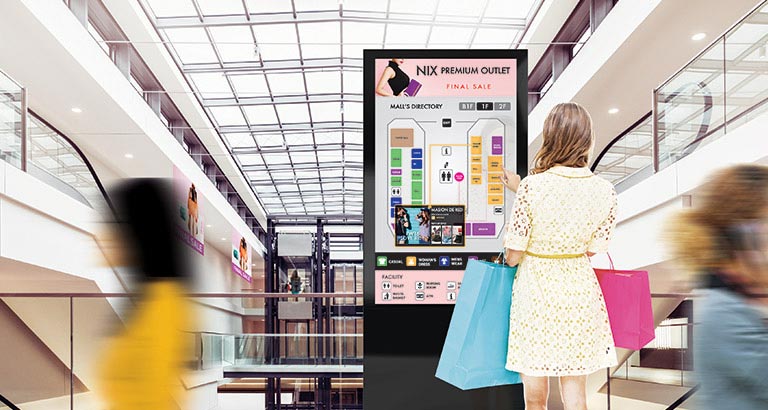

Achieve compelling customer engagement through all-in-one touchscreen
displays
Samsungs PMF-BC displays combine the visual power of its signage with the
touch-driven efficiency of its interactive offerings to better serve the needs
of retail, public, corporate and transportation environments, among others. The
displays allow consumers to seamlessly navigate a range of relevant content
without interference from surrounding light or environmental conditions. The
integrated, powerful Tizen operating system grants PMF-BC users exciting
capabilities to deliver rich, engaging content with minimal operational burden
required.

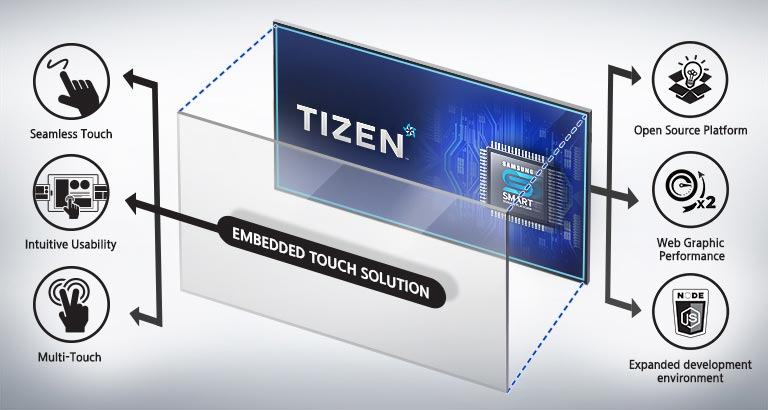

Powerful, Convenient Management through an All-in-One
Composition
Samsungs PMF-BC displays condense several vital signage components including
a powerful operating system, embedded media player and capacitive touch
technology into an all-in-one solution. Backed by the versatile Tizen OS, the
PMF-BC displays deliver dynamic, touch-enabled content without requiring
external PCs or devices. An intuitive interface further drives quick and
convenient navigation across essential applications and content.
Comfortable, Multi-Point Capacitive Touch Communication
Through capacitive touch technology and a user-friendly design, Samsungs
PMF-BC displays foster a comfortable, easy-to-navigate digital writing
experience. The interactive displays can accommodate up to 10 unique touch
points while maintaining the smooth, familiar feel of analog board or
pen-and-paper writing, and without interference from dust, sunlight or other
natural variables.

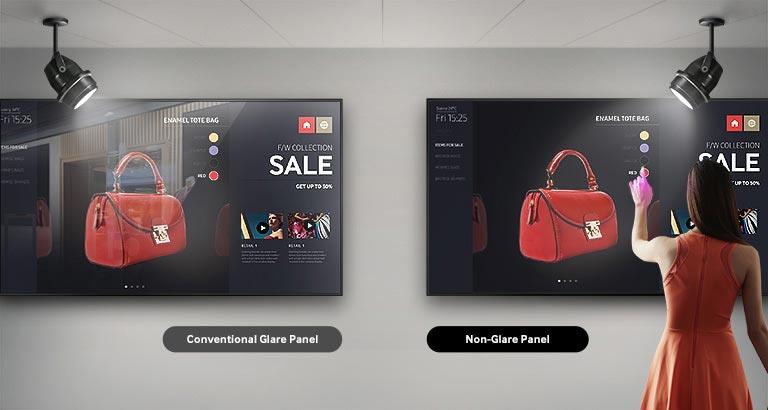

Brilliant, Glare-Free Visual Quality
Featuring elevated contrast ratios and 400nit brightness, the PMF-BC displays
showcase highly visible content even in environments subject to variable
lighting conditions. A non-glare, glass touch front panel further reduces the
impact of natural and ambient light interference and guarantees consistent
readability, while a complementary anti-haze coating drives smooth,
uninterrupted on-screen navigation.

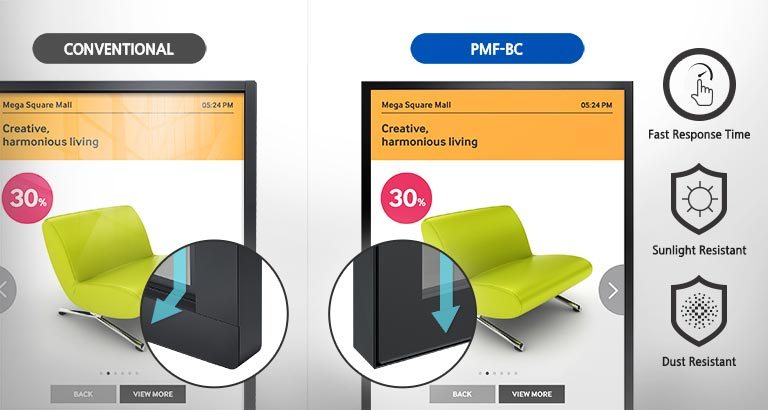

Reliable, Dust-Resistant Design for Continuous Content
Delivery
Designed for 24/7 operations, Samsungs PMF-BC displays build trust for users
looking to deliver unwavering messaging without ongoing maintenance. Each PMF-BC
display undergoes rigorous IP5x certification to validate its resistance to
dust, dirt and other environmental factors. Likewise, these benefits make the
PMF-BC a welcome addition to train and bus stations, and other environments
frequently subject to the elements.

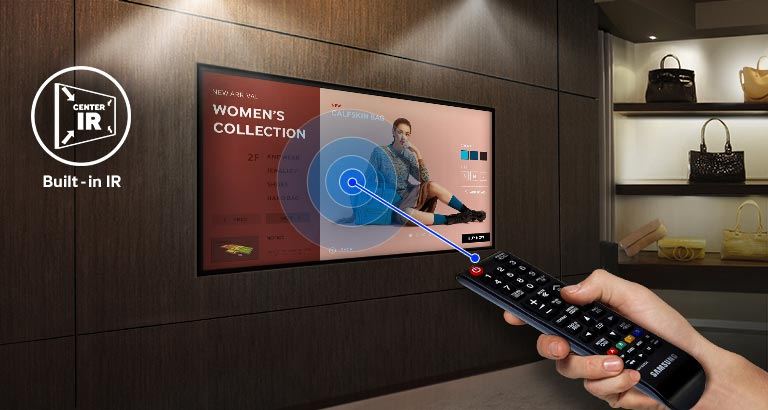

Convenient Display Control through a Centralized
Receiver
The PMF-BC displays drive user convenience through a centralized infrared
receiver (IR). Contrary to standard displays which place their IR in a
hard-to-access - and thus hard-to-control - location, the PMF-BC displays
receive IR signals across their individual panels. As a result, users can
activate IR functionalities from various locations and further augment quick and
uninterrupted management.
Specifications
Panel
- Diagonal Size32"
- Type60Hz E-LED BLU
- Resolution1920*1080 (Full HD)
- Pixel Pitch(mm)0.360(H) x 0.360(V)
- Active Display Area(mm)698.4(H) x 392.85(V)
- Brightness(Typ.)300 nit
- Contrast Ratio5000:1
- Viewing Angle(H/V)178:178
- Response Time(G-to-G)8ms (TBD)
- Display Colors10bit Dithering - 1.07Billion
- Color Gamut72%
- Haze2% (Panel), 15% (Glass)
Display
- Dynamic C/RMega
- H-Scanning Frequency30 ~ 81kHZ
- V-Scanning Frequency48 ~ 75HZ
- Maximum Pixel Frequency148.5MHz
Sound
- Speaker Type Built in Speaker(10W + 10W)
Connectivity
Input
- RGBDVI-I(D-Sub Common), Display Port 1.2 (1)
- VideoHDMI 2.0 (2)
- HDCPHDCP 2.2
- AudioStereo mini Jack, RGB/DVI/HDMI
- USBUSB 2.0 x 2 (1 Used for Touch)
Output
- RGBDP1.2(Loop-out)
- VideoN/A
- AudioStereo mini Jack
- UsbUSB Type-B x 2 (Touch Sensor Data, PC 1 / SoC 1)
- Power OutN/A
- External ControlRS232C(In/Out) thru Stereo Jack, RJ45
- External SensorN/A
- TunerYes (only for NA)
Power
- TypeInternal
- Power SupplyAC 100 ~ 240 V, 50/60 Hz
Power Consumption
- Max[W/h]90
- Typical[W/h]62
- BTU(Max)306.9
- Sleep modeless than 0.5W
- Off modeless than 0.5W
Mechanical Specification
Dimension (mm)
- Set745.2 x 439.6 x 62.1
- Package845 X 543 X 148
Weight (kg)
- VESA Mount (mm)200x200
- Mounting HoleN/A
- Protection Glass3.2T Semi-Tempered Touch Glass
- Stand TypeFoot Stand (Optional)
- Media Player Option TypeN/A
- Bezel Width (mm)21.9 / 21.9 / 21.9
Operation
- Recommended Usage Hours16/7
- Operating Temperature 0.0 ~ 40.0
- Humidity 10.0 %~ 80.0 %
Feature
- Key FeaturesSlim & Light Signage with Built-in MagicInfo S4, SSSP
4.0, Cap-Touch
- Special Features H/W : Non Glare Touch Panel, Temperature Sensor, Video
Wall(15x15(OSD)), Video Wall Daisy Chain(16), Pivot Display, Clock
Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module
Embedded, Tuner(only for NA), Center IR S/W : Magic Clone(to USB), Auto Source
Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP(Only for NA),
Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support),
Firmware Update by Network, New Home Screen, PC-less VideoWall, Multi Channel,
Mobile Control, Event Schedule, Backup Player
Internal Player
- ProcessorCortex-A12 1.3GHz Quad Core CPU
- On-Chip Cache MemoryL1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB
- Clock Speed1.3GHz CPU Quad
- Main Memory Interface2.5GB 3 channel 96bit DDR3-933
(1866MHz)
- Graphics2D & 3D Graphics Engine - Up to 3840x2160p. 32bpp -
Supports OpenGL ES
- Storage (FDM)8GB (3.75GB Occupied by O/S, 4.25GB Available, )
- Multimedia Video Decoder - MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC
- VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio DSP (Decoder) - AC3 (DD), MPEG,
DTS and etc.
- IO PortsUSB 2.0
- Operating SystemTizen 2.4 (VDLinux)
Certification
- SafetyCB (Europe) : IEC60950-1/EN60950-1 CCC (China) : GB4943.1-2011
PSB (Singapore ) : PSB+IEC60950-1 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM
(Argentina ) : IRAM+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1
BIS(India) : IEC60950-1 / IS13252 NOM(Mexico) : Tuner : NOM-001-SCFI-1993
Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 EAC(Russia) :
EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 BSMI(Taiwan) :
BSMI+IEC60950-1 RCM(Australia) : IEC60950-1/AS/NZS 60950-1 UL(USA) :
cUL60950-1 CSA (Canada) : cUL TUV (Germany) : CE NEMKO (Norway) : CE
- EMCFCC (USA) Part 15, Subpart B Class A CE (Europe) :
EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3
/2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24
BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV
EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China)
:GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST
22505-97 EN55022:2006+A1:2007
EN55024:1998+A1:2001+A2:2003
Accessory
- IncludedQuick Setup Guide, Regulatory Guide , Warranty Card, Power
Cord, Remote Controller, Batteries, RS232C(IN) Gender, Cover Jack, USB
Cable
