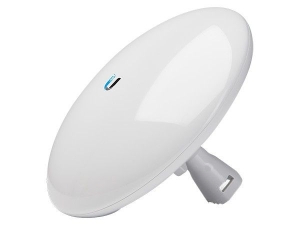

Ubiquiti NBE-2AC-13 NanoBeam AC airMAX AC CPE w. Dedicated Management Radio

Features

  • Uniform Beamwidth Maximizes Noise Immunity
  • airMAX ac Processor for Superior Performance
  • Dedicated Wi-Fi Radio for Management

Overview

Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment), the NanoBeam2AC with dedicated Wi-Fi management.

Improved Noise Immunity

The NanoBeam 2AC directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam 2AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency

Integrated Design

The radio and antenna are combined to create a more efficient and compact CPE. The NanoBeam 2AC gets maximum gain out of the smallest footprint.

Providing high performance and an innovative form factor, the NanoBeam 2AC is versatile and cost-effective to deploy

Software

airOS 8 is the revolutionary operating system for Ubiquiti airMAX ac products.

Powerful Wireless Features

  • Access Point PtMP airMAX Mixed Mode
  • airMAX ac Protocol Support
  • Long-Range Point-to-Point (PtP) Link Mode
  • Selectable Channel Width
    • PtP: 10/20/40 MHz
    • PtMP: 10/20/40 MHz
  • Automatic Channel Selection
  • Transmit Power Control: Automatic/Manual
  • Automatic Distance Selection (ACK Timing)
  • Strongest WPA2 Security

Usability Enhancements

  • airMagic Channel Selection Tool
  • Dynamic Configuration Changes
  • Instant Input Validation
  • HTML5 Technology
  • Optimization for Mobile Devices
  • Detailed Device Statistics
  • Comprehensive Array of Diagnostic Tools, including RF Diagnostics and airView Spectrum Analyzer

Advanced RF Analytics

airMAX ac devices feature a multi -radio architecture to power a revolutionary RF analytics engine.

An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 2.4 GHz spectrum and every received symbol to provide you with the most advanced RF analytics in the industry

Real-Time Reporting

airOS 8 displays the following RF information:

  • Persistent RF Error Vector Magnitude (EVM) constellation diagrams
  • Signal, Noise, and Interference (SNI) diagrams
  • Carrier to Interference-plus-Noise Ratio (CINR) histograms

Spectral Analysis

airView allows you to identify noise signatures and plan your networks to minimize noise interference. airView performs the following functions:

  • Constantly monitors environmental noise
  • Collects energy data points in real -time spectral views
  • Helps optimize channel selection, network design, and wireless performance

airView runs in the background without disabling the wireless link, so there is no disruption to the network.

In airView, there are three spectral views, each of which represents different data: waveform, waterfall, and ambient noise level.

airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys.

UNMS App

The NanoBeam 2AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Accessing airOS via Wi-Fi

The UNMS app provides instant accessibility to the airOS configuration interface and can be downloaded from the AppStore (iOS) or Google Play (Android). UNMS allows you to set up, configure, and manage the NanoBeam 2AC and offers various configuration options once you're connected or logged in.

Technology

Unlike standard Wi-Fi protocol, Ubiquitis Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.

This time slot method eliminates hidden node collisions and maximizes airtime efficiency, so airMAX technology provides performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class.

  • Intelligent QoS Priority assigned to voice/video for seamless streaming.
  • Scalability High capacity and scalability.
  • Long Distance Capable of high-speed, carrier-class links.

Superior Performance

The next-generation airMAXac technology boosts the advantages of our proprietary TDMA protocol.

Ubiquitis airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Throughput Breakthrough

airMAX ac supports high data rates, which require dense modulation: 256QAM a significant increase from 64QAM, which is used in airMAX.

With their use of proprietary airMAXac technology, 2.4 GHz airMAX ac products support up to 330+Mbps real TCP/IP throughput more than double the throughput of standard airMAX products

Hardware Overview

The NanoBeam 2AC features airMAX ac technology and a dedicated Wi-Fi radio for management.

Ease of Installation

  • Quick Installation No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting.
  • Convenient Alignment The NanoBeam 2AC pivots on its ball joint mount for easy aiming.

Innovative Mechanical Design

  • Efficient Footprint -The radio and antenna are combined into a single body that takes up minimal space. The form factor features the highest gain for its size.
  • Aesthetics - The NanoBeam 2AC is small enough to blend discreetly into the background at a customer's location.
  • Versatile Mounting - The NanoBeam 2AC can be mounted in almost any position needed for line of sight

Specifications

NBE-2AC-13

Dimensions (Mount Included)

189 x 189 x 125 mm (7.44 x 7.44 x 4.92")

Weight (Mount Included)

0.530 kg (1.17 lb)

Power Supply

24V, 0.5A Gigabit PoE Adapter (Included)

Max. Power Consumption

7.5W

Gain

13 dBi

Networking Interface

(1) 10/100/1000 Ethernet Port

Wi-Fi for Management

Processor Specs

Atheros MIPS 74Kc, 533 MHz

Memory

64 MB DDR2

LEDs

Power, Ethernet, (4) Signal Strength

Signal Strength LEDs

Software-Adjustable to Correspond to Custom RSSI Levels

Max. VSWR

1.5:1

Channel Sizes

PtMP Mode

10/20/40 MHz

PtP Mode

10/20/40MHz

Polarization

Dual Linear

Enclosure

Outdoor UV Stabilized Plastic

Mounting

Pole-Mount (Kit Included), Wall-Mount

Wind Loading

45.4 N @ 200 km/h (10.2 lbf @ 125 mph)

Wind Survivability

200 km/h (125 mph)

ESD/EMP Protection

Air: ± 24 kV, Contact: ± 24 kV

RoHS Compliance

Yes

Salt Fog Test

IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

Vibration Test

IEC 68-2-6

Temperature Shock Test

IEC 68-2-14

UV Test

IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4

Wind-Driven Rain Test

ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

Operating Temperature

-40 to 70° C (-40 to 158° F)

Operating Humidity

5 to 95% Noncondensing

Certifications

CE, FCC, IC

Operating Frequency (MHz)

Worldwide

2412 - 2472

Management Radio (MHz)

Worldwide

5150 - 5250

NBE-2AC-13 Output Power: 27 dBm

TX Power Specifications

RX Power Specifications

Modulation

Data Rate

Avg. TX

Tolerance

Modulation

Data Rate

Sensitivity

Tolerance

airMAX ac

1x BPSK (½)

27 dBm

± 2 dB

airMAX ac

1x BPSK (½)

-96 dBm

± 2 dB

2x QPSK (½)

27 dBm

± 2 dB

2x QPSK (½)

-95 dBm

± 2 dB

2x QPSK (¾)

27 dBm

± 2 dB

2x QPSK (¾)

-92 dBm

± 2 dB

4x 16QAM (½)

27 dBm

± 2 dB

4x 16QAM (½)

-90 dBm

± 2 dB

4x 16QAM (¾)

26 dBm

± 2 dB

4x 16QAM (¾)

-86 dBm

± 2 dB

6x 64QAM (2/3)

25 dBm

± 2 dB

6x 64QAM (2/3)

-83 dBm

± 2 dB

6x 64QAM (¾)

24 dBm

± 2 dB

6x 64QAM (¾)

-77 dBm

± 2 dB

6x 64QAM (5/6)

23 dBm

± 2 dB

6x 64QAM (5/6)

-74 dBm

± 2 dB

8x 256QAM (¾)

22 dBm

± 2 dB

8x 256QAM (¾)

-71 dBm

± 2 dB

8x 256QAM (5/6)

21 dBm

± 2 dB

8x 256QAM (5/6)

-68 dBm

± 2 dB
