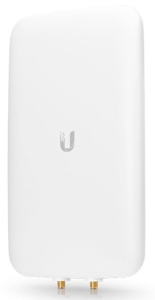

Ubiquiti UMA-D UniFi Directional Dual-Band Antenna
  • RP-SMA(2), 2.4-2.5GHz/5.1-5.9GHz, Dual-Linear Polarization
  • Wall/Pole Kits Included

IMG 1 of 1
Our Price:
$235.80
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
427485
(?) Brand:
Ubiquiti
Manuf No:
UMA-D
UMAD
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
UMA-D, UMAD, NHUUMAD, NHU-UMA-D, 817882022736

Ubiquiti UMA-D UniFi Directional Dual-Band Antenna

Features

  • Dual-Band, Dual-Polarity Optimized for 802.11ac
  • High Efficiency Directional Radiation Pattern
  • Three-Axis Ball Joint Mount for Precise Aiming

Overview

The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping. It is available in single- and five-packs.

Specifications

UMA-D

Dimensions

201.3*128*32.5 mm

Weight

400g without mount

480g with mount

Enclosure Characteristics

Outdoor UV Stabilized Plastic

RF Connections

(2) RP-SMA

Supported Frequency Range

2.4-2.5GHz, 5.1-5.9GHz

2.4GHZ BAND

Gain

10dBi

HPOL Beamwidth

90

VPOL Beamwidth

90

Elevation Beamwidth

90

Maximum VSWR

2:01

Polarization

Dual-Linear

Cross-Pol Isolation

25dB

5GHZ BAND

Gain

15dBi

HPOL Beamwidth

45

VPOL Beamwidth

45

Elevation Beamwidth

45

Maximum VSWR

2:01

Polarization

Dual-linear

Cross-Pol Isolation

30dB

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 months*

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
