All stock codes associated to this product
GVN710D5SL2GL, GV-N710D5SL-2GL, II31149, 4719331301743

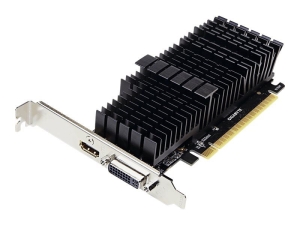

Gigabyte GeForce GT710 2GB Video Card
Features
- Powered by NVIDIA GeForce GT 710 GPU
- Integrated with 2GB GDDR5 64bit memory interface
- Core clock: 954MHz
- Features Dual-link DVI-I / HDMI
- Support PCI Express 2.0 x8 bus interface
- Recommended system power supply requirement: 300W
Overview
Silent Cell
GIGABYTE rewrites the history of silent cooling to perfect the thermal
performance, introducing the exclusive passive thermal design. This stylish
heatsink uses the natural air flow in the case to cool down and provides great
gaming experience under silent 0dB environment.
Low Profile Design
Low profile design allows space-saving installation and easier for building
your compact PC system.
Ultra Durable 2
Ultra
Cooling - Low RDS(on) MOSFET Design
Low
Power Loss - Ferrite Core Choke Design
Longer
Life - All-Solid Capacitor Design
Gold Plated HDMI
Gold plated, durable large contact area connectors have been used for optimum
signal transfer between connections
OC GURU II
Brand-new intuitive user interface helps you easily modify important settings
and directly update driver and BIOS. Clock speeds, voltage, fan performance, and
OSD setting can be monitored and tuned in real-time according to your own
preference.
- The entire materials provided herein are for reference only. GIGABYTE
reserves the right to modify or revise the content at anytime without prior
notice.
- Advertised performance is based on maximum theoretical interface values
from respective Chipset vendors or organization who defined the interface
specification. Actual performance may vary by system configuration.
- All trademarks and logos are the properties of their respective holders.
- Due to standard PC architecture, a certain amount of memory is reserved
for system usage and therefore the actual memory size is less than the stated
amount.
Specifications
Process Technology |
28 nm |
Memory Clock |
5010 MHz |
Memory Size |
2 GB |
Memory Type |
GDDR5 |
Memory Bus |
64 bit |
Card Bus |
PCI-E 2.0 |
Digital max resolution |
4096x2160 |
Analog max resolution |
2048 x 1536 |
Multi-view |
2 |
Card size |
H=35 L=151 W=69 mm |
PCB Form |
Low Profile |
DirectX |
12 |
OpenGL |
4.5 |
Recommended PSU |
300W |
I/O |
Dual-link DVI-I*1 / HDMI*1 |
Accessories |
HDMI+DVI low profile bracket
x1 |
