All stock codes associated to this product
PEX10000SRI, 3418943, 65030866170

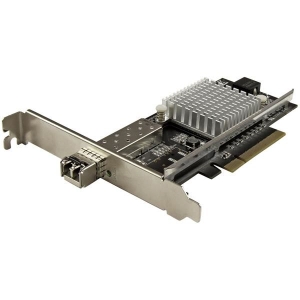

StarTech PEX10000SRI 1-Port 10G SFP+ Fiber Optic Network Card - PCIe - Intel Chip - MM
Get high performance connectivity over multi-mode fiber, by upgrading your
server or workstation with a 10GBase-SR port
This fiber optic network card delivers reliable, high-performance network
connectivity, providing an easy and cost-effective way to upgrade your server or
workstation to 10 Gigabit networking over multimode fiber. The 10G network card
comes with an installed multimode SFP+ transceiver with up to 330 m range, to
get you up and running quickly.
Take advantage of faster network speeds
Increasing numbers of network users and data-intensive applications, such as
multimedia streaming and large file transfers, all drive the need to increase
the bandwidth capability of your network infrastructure. This fiber NIC lets you
take advantage of the increased speed and stability of a 10 Gigabit network,
with data transfers of up to 10Gbps and up to 20Gbps (full duplex)
bandwidth.
Includes an SFP+ transceiver, built for reliable
performance
For added convenience, this single-port 10G network card comes with an
installed multimode SFP+ transceiver. Built to ensure reliable performance, the
10 GbE SFP+ is manufactured by StarTech.com to meet or exceed OEM specifications
and comply with the industry’s MSA (Multi-Source Agreement) standards. The
10GBase-SR SFP+ delivers 10 Gigabit connectivity over multimode fiber cable with
a range of up to 330 m (1082 ft).
Enhance your network capabilities and reliability
The 10 Gigabit network card features the Intel® 82599 chipset, delivering the
power, performance and enhanced capabilities you need for reliable network
connections to your server or computer. The Intel chip offers many advanced
features including Intel® Virtualization Technology for Connectivity, PXE
network boot support and up to 15K jumbo frame support.
The 10G NIC connects easily through an available PCI Express expansion slot,
and is compliant with PCIe Rev. 2 x8 (or higher). The network card comes with a
standard profile, and also includes a low-profile bracket, for versatile
installation.
Specifications
| Hardware |
|
Bus Type |
PCI Express |
|
Card Type |
Standard Profile (LP bracket incl.) |
|
Chipset ID |
Intel - 82599 |
|
Interface |
Fiber (10 Gigabit Ethernet) |
|
Ports |
1 |
| Performance |
|
Compatible Networks |
10 Gbps |
|
Full Duplex Support |
Yes |
|
Jumbo Frame Support |
15K max. |
|
Maximum Data Transfer Rate |
20000 Mbps (20 Gbps) - Full-Duplex |
|
Promiscuous Mode |
Yes |
|
Supported Protocols |
IEEE 802.3ad (Link Aggregation)
IEEE 802.3x (Flow Control Support)
IEEE 802.1Q (VLAN tagging) |
| Connector(s) |
|
Connector Type(s) |
1 - PCI Express x8 Male |
|
External Ports |
1 - Fiber Optic LC Duplex Female |
| Software |
|
OS Compatibility |
Windows 7, 8, 8.1, 10
Windows Server 2008 R2, 2012, 2012 R2,
2016
Linux 2.6.24 to 4.11.x LTS Versions only |
| Environmental |
|
Humidity |
20% ~ 80% RH |
|
Operating Temperature |
5C to 50C (41F to 122F) |
|
Storage Temperature |
-20C to 60C (-4F to 140F) |
| Physical Characteristics |
|
Color |
Black |
|
Product Height |
4.7 in [120 mm] |
|
Product Length |
5.3 in [135 mm] |
|
Product Weight |
4.1 oz [116 g] |
|
Product Width |
0.7 in [18 mm] |
| Packaging Information |
|
Shipping (Package) Weight |
6.8 oz [194 g] |
| What's in the Box |
|
Included in Package |
1 - 10G SFP+ fiber network card |
|
|
1 - 10GBase-SR SFP+ transceiver module |
|
|
1 - low-profile bracket |
|
|
1 - quick-start guide |
