All stock codes associated to this product
86TR3EB, 86TR3E-B
LG 86TR3E-B 86" Ultra HD Interactive Digital Board Display
Features
- Brightness: 410 cd/m2
- Touch Type: InGlass
- Multi touch point: Max 20 Point
- Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch
USB (2), Wi-fi Built-in
Overview
Embedded LG IDB App &webOS
Be Smarter and Simpler with LG IDB IDB
app makes it possible to write and collaborate on Interactive Digital
Board(IDB) without the need for a PC or additional licenses for
writing/collaboration solutions based on the webOS smart platform.

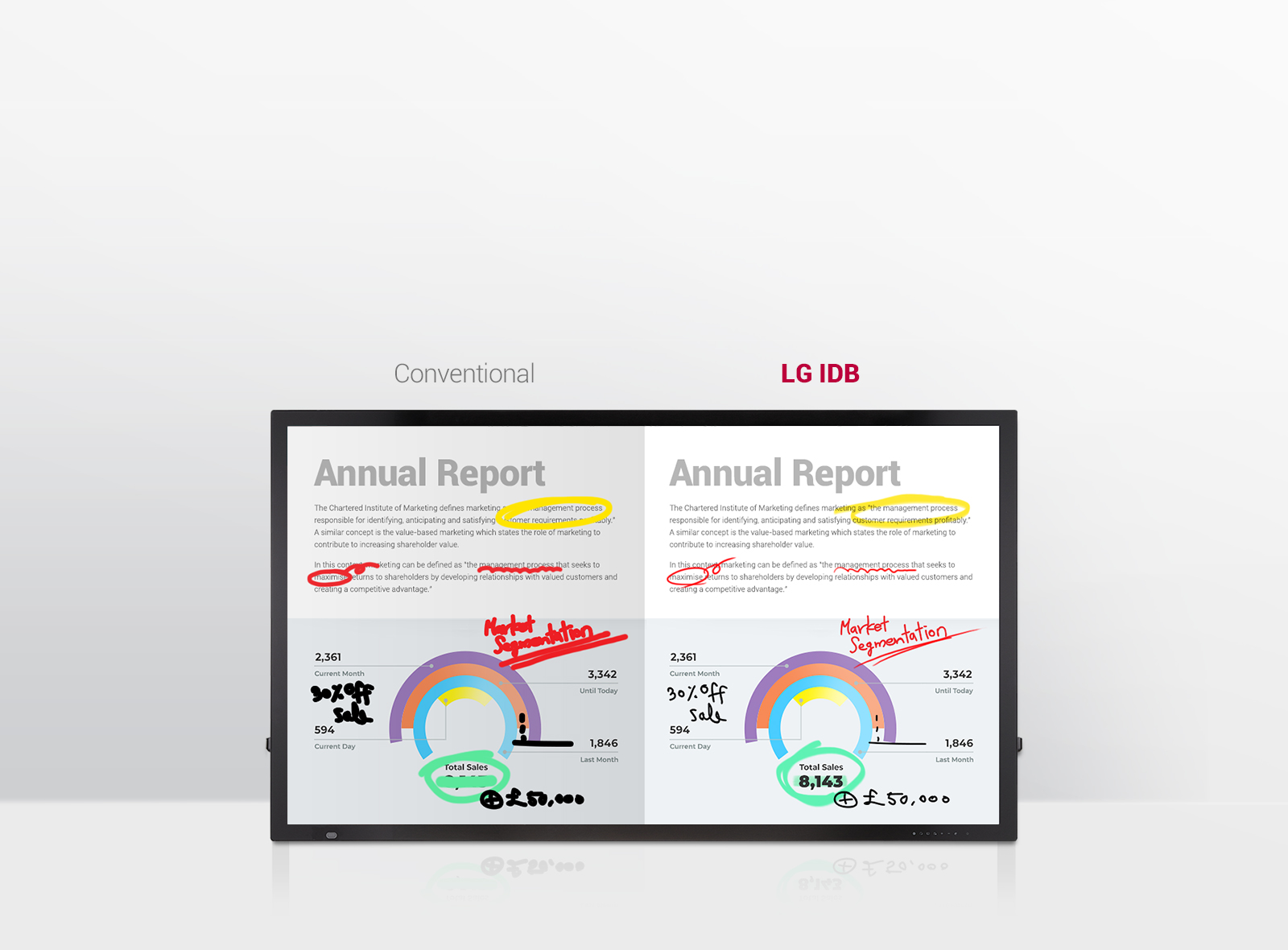

Outstanding Touch Performance
Intuitive Touch and Writing
The most advanced touch technology, InGlass, enables precise touch responses
and detailed writing like a realistic handwriting. The thickness of the pen is
adapted to the writing speed, and max. 20 point multi-touch is supported. All
notes on IDB are simply erased with user's palm.
Efficient Collaboration
All-in-One Meeting Experience
For effective collaboration, LG IDB combines once separate processes
including participant laptop screen sharing via wired/wireless connection,
writing on a shared screen, and saving annotations.

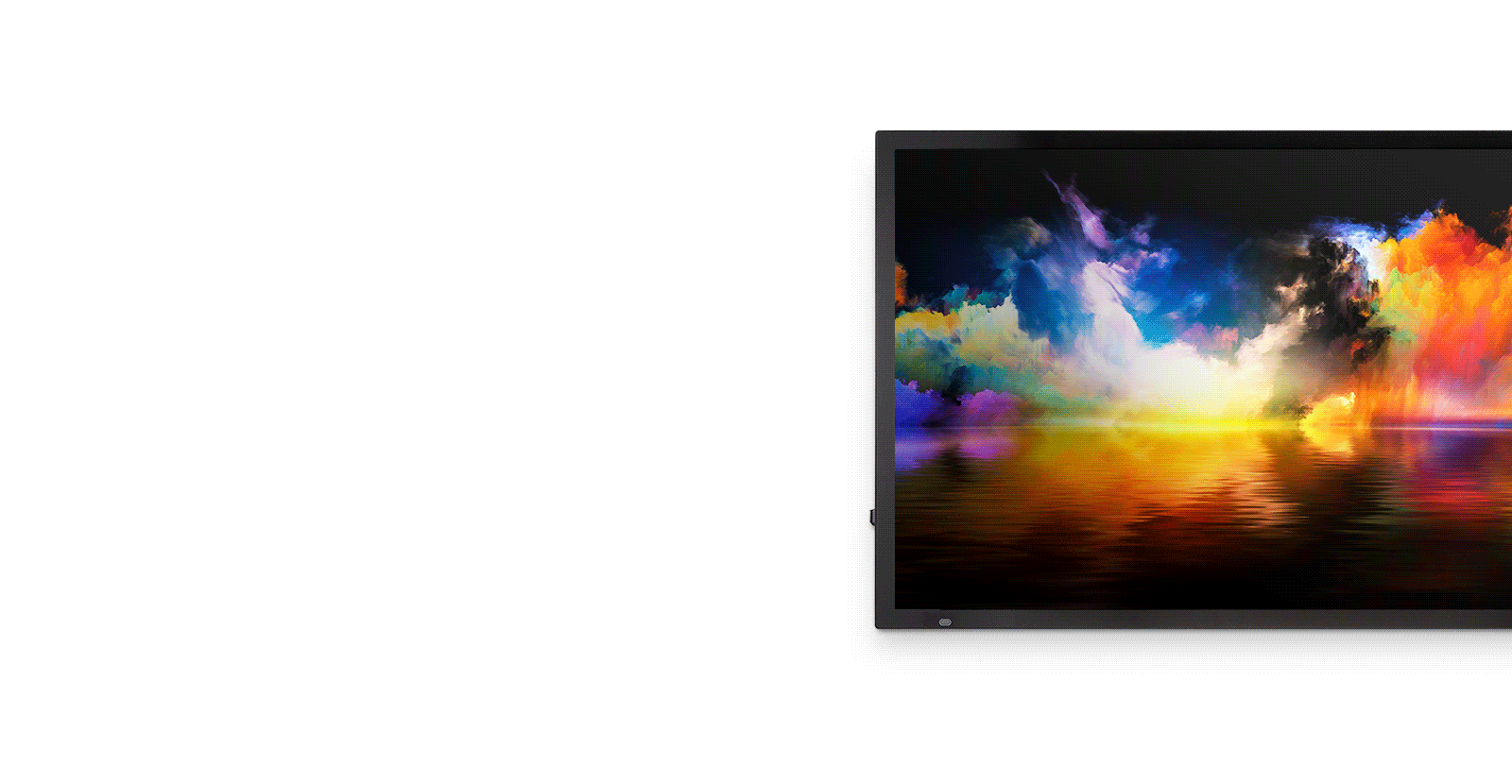

IPS Panel
True Colors, Wider View
The LG IPS panel features a wide viewing angle to deliver clear content
regardless of where meeting participants are seated. Each pixel in the IPS panel
reproduces image colors true-to-life, without distortion.

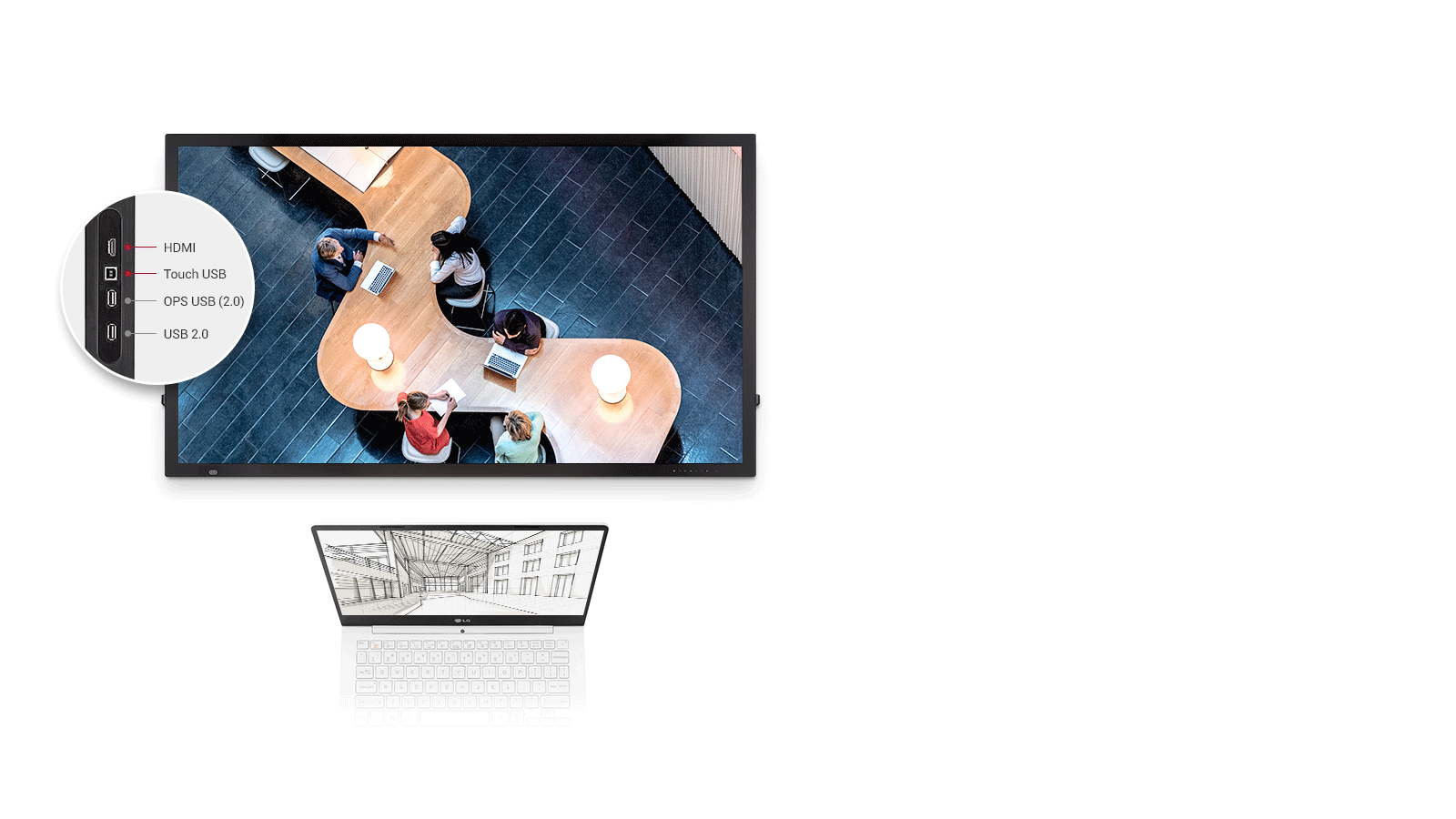

Auto Signal/Touch Switching
Quick and Easy to Share a Screen
The display can detect input/touch signals and automatically change the
source if the new input has a higher priority than the previous source. It is a
time-saving function for users to set-up the signals in conference
Assistive Touch Menu
Easy Menu Calling, and Control the menu
For improving user-friendliness, LG IDB users can run the desired function or
change the setting from anywhere by softly pressing the screen to call up the
Touch Menu.

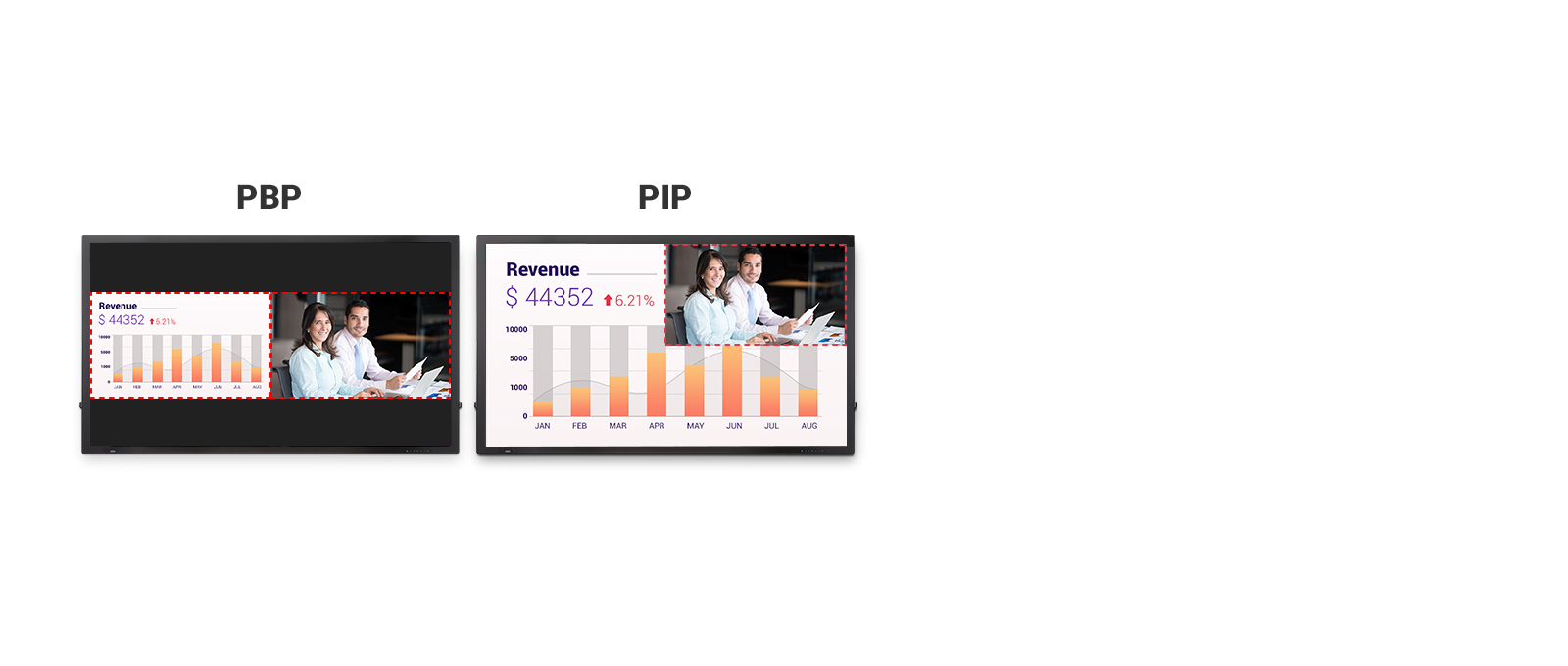

PBP/PIP
Enjoy Multi Screens
PBP/PIP enables two different content sources to be displayed in various
layout settings including full screen, original ratio, and sub screen modes.
This gives great flexibility to users to allocate space for each content
source.
Specifications
|
Panel |
|
|
Screen Size |
86" |
|
Brightness (Module, cd/) |
410 |
|
|
|
|
Connectivity |
|
|
Input |
HDMI (3), DP, DVI-D, RGB, Audio, USB 3.0, USB 2.0, OPS USB
2.0 |
|
Output |
Touch USB 2.0 (2) |
|
|
|
|
Physical Specification |
|
|
Bezel Width |
50.7 mm (T/L/R), 62.2 mm (B) |
|
Monitor Dimension (W x H x D) |
2,026.9 x 1,180.3 x 79.5 mm (w/o Handle) |
|
Weight (Head) |
85.8 kg |
|
Carton Dimensions (W x H x D) |
2,190 × 1,470 × 371 mm |
|
Packed Weight |
114.6 kg |
|
VESA Standard Mount Interface |
600 x 400 mm |
|
|
|
|
Environment Conditions |
|
|
Operation Temperature |
0°C to 40°C |
|
Operation Humidity |
10 % to 80 % |
|
|
|
|
Software Compatibility |
|
|
Content Management Software |
SuperSign Premium |
|
Control and Monitoring Software |
SuperSign Link |
|
|
|
|
Accessory |
|
|
Basic |
Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M),
Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Eyebolt
(2ea) |
|
Optional |
OPS Kit (KT-OPSA) |
|
|
|
|
Touch |
|
|
Touch type |
InGlass |
|
Available object size for touch |
more than Ø 3 mm |
|
Accuracy |
2 mm |
|
Interface |
USB 2.0 |
|
Protection Glass Thickness |
4T (Anti-Glare) |
|
Multi touch point |
Max 20 Point |
