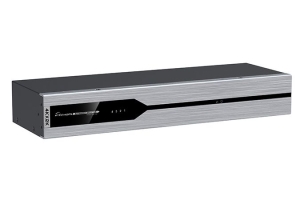

Lenkeng LKV314-4K-HDbitT 1x4 Ultra HD HDMI Extender Splitter over
CAT6 w. IR
Features
- Split 1 HDMI source to 4 HDbitT displays
- Compatible with CAT5/5e/6 cable
- Supports resolutions up to 4K*2K (3840 x 2160 @ 30Hz)
- Supports transmission distance up to 394feet (120 meters)
- Supports IR pass-back function
- Plug and play
LKV314-4K-HDbitT is the perfect solution for splitting and extending your
HDMI signal with ultra HD resolution to multiple displays over long distance. It
uses HDbitT technology to split 1 HDMI source to 4 displays simulataneously over
single CAT5/5e/6 cable for each display up to 120m / 394ft, any one of eight
HDbitT 4K receiver works with the splitter individually, and the highest
resolution supported is 4Kx2K@30Hz.
Source device:HDMI video source, such as DVD, PS3, STB, PC, Etc.
Display device: HDTV, projector or other display with HDMI port
The LKV318-HDbitT is distributes 1 HDMI source to 4 HDbitT displays over
CAT5/5e/6 cable up to 394ft/120m. This HDMI splitter is optimized for
distributing HDMI video and embedded multi-channel digital audio to multiple
display environments such as residential or digital signage markets and computer
lab applications.

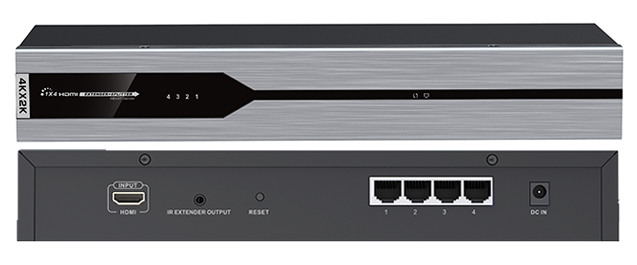

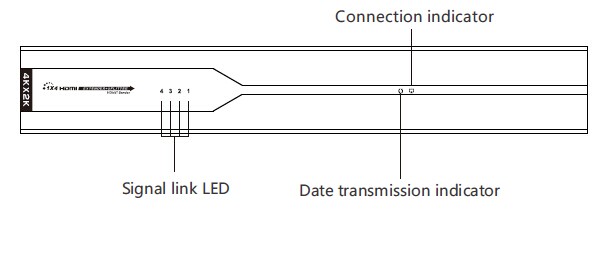

Front Panel

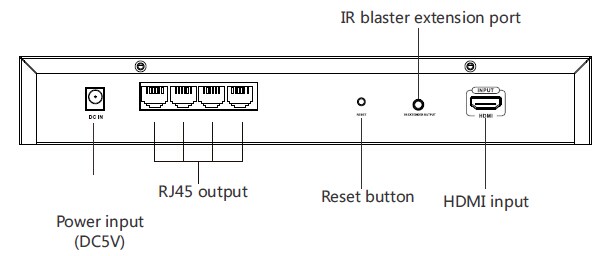

Back Panel

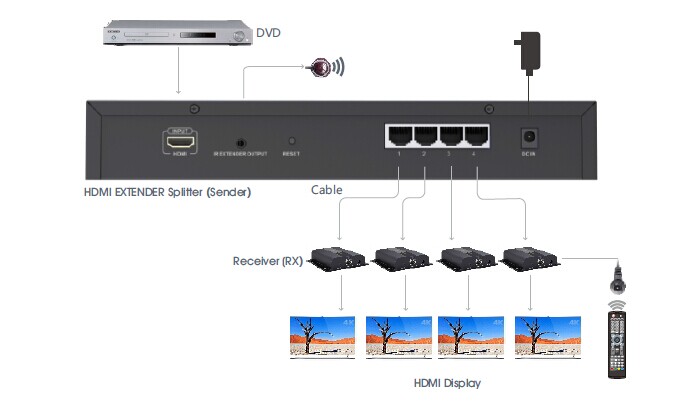

Connection
Specificartions
|
Description |
4KX2K 1X4 HDMI Extender Splitter over CAT6 with IR |
|
Input Ports |
1 x HDMI |
|
HDMI Resolutions |
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz,1080i@50/60Hz,
1080p@50/60Hz, 4K×2K@24/25/30Hz |
|
Transmit distance |
Up to 120meters transmission distance for 4Kx2K@24/25/30Hz ultra HD
over single CAT6 |
|
IR signal |
Support 20~60kHz IR device |
|
Color |
Black |
|
Power supply |
DC5V/2A |
|
Dimension |
288(W) x 98(D) x 44.4(H) mm |
|
Output Port |
4 x RJ45 |
|
Working Temperature |
0℃60℃ |
|
HDMI signal |
Compatible with HDCP |
|
Power consumption |
<10W |
|
Weight |
1000g |
