All stock codes associated to this product
KTT751, KT-T751

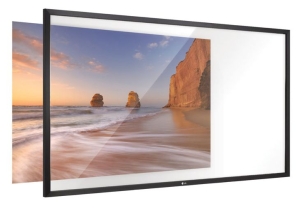

LG KT-T751 75" Touch Overlay Kit
Features
- Touch Type: IR (Infrared Rays) Spread
- Available Object Size for Touch: Ø 8 mm
- Accuracy: 1 mm
- Interface: USB 2.0
- Multi Touch Point: Max 10 Points

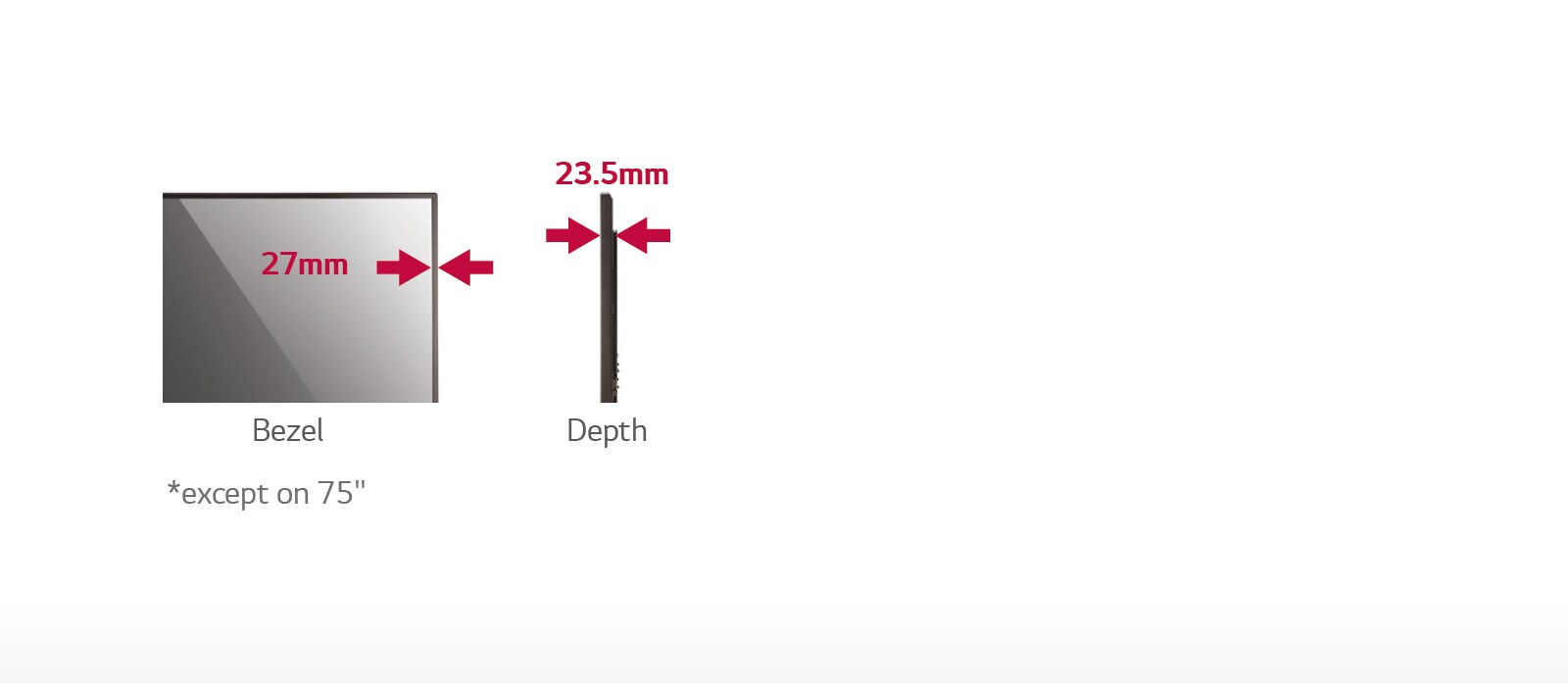

Multi-Touch with Slim Bezel
Multi-touch function is added on the existing display with the sleek and
clean looking.
10 Point Multi-Touch
It provides a more realistic interactive sense with ten simultaneous touches.
Clean Touch Experience
LG proprietary touch technology can draw clean and accurate diagonal lines
through controlling multi-touch gestures in great precision. Clean multi-touch
experience with IR Spread is based on our in-house IR-Spread technology which
provides better accuracy compared to conventional IR Matrix.
Fits the screen perfectly
Overlay models are designed to fit compatible screens and provide better
touch accuracy and performance.
Includes single point of support service
Delivers supports of both screen and overlay.
Application Scenario
Specifications
|
Touch |
|
|
Touch type |
IR(Infrared Rays) Spread |
|
Available object size for touch |
Ø 8mm |
|
Scan Time |
10 ms (1 Point) ~ 30 ms (10 Points) |
|
Accuracy |
1mm |
|
Interface |
USB 2.0 |
|
Protection Glass Thickness |
3.2T (Anti-Glare) |
|
Operating Systme Support |
Windows 7, Windows 8, Windows 8.1, Windows 10 / Mac OSX (10.7 or later)
/ Android |
|
Multi touch point |
Max 10 Point |
|
Touch Resolution |
1,428 x 803 |
|
|
|
|
Panel |
|
|
Screen Size |
75" |
|
Compatible Products |
75UH5C, 75UM3C |
|
Orientation |
Landscape & Portrait |
|
|
|
|
Connectivity |
|
|
Input |
USB |
|
|
|
|
Physical Specification |
|
|
Bezel Width |
32.0 mm |
|
Overlay Dimension (W x H x D) |
1,715 × 993.5 × 25 mm (Max 138.6 mm) |
|
Weight (Head) |
22.7 kg |
|
|
|
|
Environment Conditions |
|
|
Operation Temperature |
0°C to 40°C |
|
Operation Humidity |
10% to 85% |
|
|
|
|
Power |
|
|
Power Supply |
USB |
|
Typ. |
1.8 W |
|
|
|
|
Software Compatibility |
|
|
IWB Software |
YES (CD) |
|
|
|
|
Accessory |
|
|
Basic |
Manual (Overlay), CD (Writing S/W), Pen (2), Tray, Install
Accessories |
