Cisco IE-2000-16PTC-G-NX Industrial Ethernet 2000 Series Switches



Overview

The CiscoIndustrial Ethernet 2000 (IE 2000) Series is a range of compact, ruggedized access switches that handle security, voice, and video traffic across industrial networks. They provide customers in industries such as automotive, oil and gas, mining, transportation, and energy with highly secure access and industry-leading convergence using Cisco Resilient Ethernet Protocol (REP).

Product Details

The Cisco IE 2000 Series are designed for low cost, low ports, and small sizes. They offer:

  • Four, eight, or 16 10/100Base-T Ethernet ports (Small Form-Factor Pluggable [SFP] downlinks on selected models); fixed configurations with a compact form factor
  • Two gigabit combo ports: SFP (100 Mbps and 1 Gbps) or RJ45 uplink
  • Dual-input DC power supply, alarm relays, DIN rail mount
  • Industrial Power over Ethernet (PoE) solution
  • Conformal coating available
  • Swappable SD flash card and mini-USB connector
  • Industrial environmental compliance and certifications
  • Industrial partner applications: Ethernet/IP and PROFINET

Primary Benefits and Features

  • Easy deployment:
    • Zero-touch discovery using Dynamic Host Control Protocol (DHCP), express setup, and fast bootup time (60 seconds) to help in migrating to an Ethernet environment without resistance.
  • Security:
    • 802.1x, port security, and DHCP allow dynamic port-based authentication; Secure Shell (SSHv2); SNMPv3 provides encrypted administrator traffic during Telnet and SNMP sessions; TACACS+ and RADIUS authentication facilitate centralized control and restrict unauthorized users.
  • Resiliency:
    • Cisco REP ring protocol and PROFINET Media Redundancy Protocol (MRP)
  • Manageability:
    • Auto SmartPort, Web Device Manager, Telnet, HTTPS access, SNMP, CNA, and Cisco Prime Infrastructure.
  • Network Address Translation (NAT):
    • Line-rate, hardware-enabled 1:1 static address translation designed to enable duplicate IP address usage in the Layer 2 machine node networks.
  • Layer 3 routing:
    • IPv4 and IPv6.
  • Industrial PoE:
    • PoE (IEEE 802.af) and PoE+ (802.3at) supported on selected models.
  • Industrial automation protocols:
    • EtherNet/IP (CIP) and PROFINET MRP (IEC 62439-2) allow integration with existing management platforms from Rockwell, Siemens, and others.

Product Specifications

Switch Performance and Scalability

  • Maximum Forwarding Bandwidth 3.8Gbps
  • Maximum Switching Bandwidth 7.6Gbps
  • Maximum Forwarding rate: 5.66Mpps with 64-byte packets (Line-rate at all packet sizes)
  • Egress buffer: 2 MB
  • Unicast MAC addresses: 8000
  • Internet Group Management Protocol (IGMP) multicast groups: 255
  • Maximum virtual LANs (VLANs): 1005
  • IPv4 MAC security ACEs: 384 (default ternary content-addressable memory [TCAM] template)
  • Bidirectional, 128 NAT translation entries
  • IPv4 routing: 3500 routes, IPv6 routing: 1750 routes

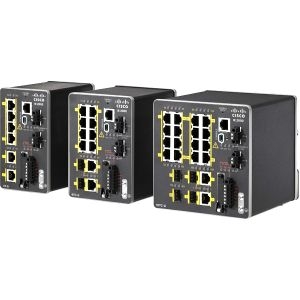

Figure 1. Industrial Ethernet 2000 Series

Table 1. Industrial Ethernet 2000 Series Configurations

Product Number

Total Ports

RJ45 Ports

Combo Ports

SFP Ports

Manufacturing License

Type of possible Upgrade

IEEE 1588

L2NAT

PoE/ PoE(+)

Conformal Coating

IE-2000-16PTC-G- NX

18

16 FE

2 GE

Enhanced LANBase

1, 2

Yes

Yes

Yes

Yes

Type of possible Upgrade Legend:

1: LAN Base to IP Lite Cisco IOS Software Upgrade

2: Enhanced LAN Base to IP Lite Cisco IOS Software Upgrade

3: LAN Lite to LAN Base Cisco IOS Software Upgrade

4: LAN Base to Enhanced LAN Base Cisco IOS Software Upgrade and License Upgrade

U: Upgradable to L2NAT via Enhanced Lan Base or IP Lite license

Table 2. Product Specifications

Description

Specification

Hardware

256 MB DRAM with ECC memory

IEEE 1588v2 FPGA

64 MB on-board flash memory

1GB removable SD flash memory card (optional)

Mini-USB connector

Alarm

Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay

Power Consumption

4-port downlink models: 9.5-15 W

8-port downlink models: 12.5-20 W

16-port downlink models: 21-30 W

4-port PoE/PoE+ models: 21-30 W (16-port base switch) and 4 PoE/PoE+ power requirement

Connectors and Cabling

100BASE-FX MMF (2 km), -LX SMF (10 km) -ZX SMF (100 km), BX10 SMF (10 km) SFP and CWDM SFP- based ports: LC fiber connectors

10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

Table 3. Cisco IE 2000 Software Features

LAN Lite License

Baseline Features

Layer 2 Switching

IEEE 802.1, 802.3, 802.3at, 802.3af standard (see Table 6), VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Resilient Ethernet Protocol (REP), Media Redundancy Protocol (MRP) Ring (IEC 62439-2)

Security

SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session

Multicast

IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier

Management

Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog

Industrial Ethernet

EtherNet/IP, Profinet v2

LAN Base License

Additional Features

Layer 2 Switching

VTPv3, EtherChannel, Voice VLAN, Flexlink

Security

IPv4 Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN. MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Access-List (ACL), IPv6 MLD snooping

Quality of Service

IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS

Management

Port-Based DHCP, Storm Control - Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM)

Industrial Ethernet

IEEE 1588 PTPv2

IPv4 Routing

IPv4 static routing

IPv6 Routing

IPv6 host support, HTTP over IPv6, SNMP over IPv6

Enhanced LAN Base

Additional Features

Industrial Management

Layer 2 switching with 1:1 static Network Address Translation (NAT)

IP Lite License

Additional Features

IPv4 Routing

RIP, OSPF, EIGRP, VRF Lite, PIM for L3 multicast routing including sparse (SM) and dense (DM) mode.

IPv6 Routing

IPv6 Static routing, OSPFv3

Security

FIPS 140-2

Embedded Event Manager

EEM feature enabled with IP Lite License

Table 4. Compliance Specifications

Description

Specification

Safety Certifications

UL/CSA 60950-1

EN 60950-1

CB to IEC 60950-1 (with country deviations)

NOM to NOM-019-SCF1 (through partners and distributors)

CE Marking

Hazard Location

ANSI/ISA 12.12.01 (Class1, Div2 A-D)*

EN 60079-0, -15 ATEX Certificate (Class 1, Zone2 A-D)*

*Cabinet enclosure required

EMC Emissions and Immunity Compliance

FCC 47 CFR Part 15 Class A

EN 55022A Class A

VCCI Class A

RoHS compliance

AS/NZS CISPR 22 Class A, AS/NZS CISPR 24

CISPR11 Class A, CISPR22 Class A

ICES 003 Class A

KCC -Korea

CE Marking

C-Tick (Australia)

Russia certification

Brazil certification

IEC/EN/EN61000-4-2 (Electro Static Discharge), 15kV air/8kV contact

IEC/EN 61000-4-3 (Radiated Immunity, 10 and 20 V/m)

IEC/EN 61000-4-4 (Fast Transients - 4kV power line, 4kV data line)

IEC/EN 61000-4-5 (Surge 2 kV/1 kV)

IEC/EN 61000-4-6 (Conducted Immunity, 10 V/emf)

IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity)

IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity)

IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity)

IEC/EN 61000-4-11 (AC power Voltage Immunity)

IEC/EN 61000-4-29 (Voltage Dips Immunity)

IEC/EN 61000-6-1 (Immunity for Light Industrial Environments)

IEC/EN 61000-6-2 (Immunity for Industrial Environments)

IEC/EN 61000-6-4 Class A

EN 61326

Shock and Vibration

IEC 60068-2-27 (Operational Shock: 30G 11ms, half sine)

IEC 60068-2-27 (Non-Operational Shock 55-70G, trapezoidal)

IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Operational Vibration)

IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Non-operational Vibration)

Industry Standards

UL508

CSA C22.2 No. 142

EN 61131-2 (EMC/EMI, environmental, mechanical)

Protective coating (specific models only)

Marine DnV

Substation KEMA (IEEE 1613, IEC 61850-3)

Railway EN 50155 (EMI/EMC, environmental, mechanical)

EN50121-3-2

EN50121-4

NEMA TS-2 (EMC, environmental, mechanical)

ABB Industrial IT certification

IP30

ODVA Industrial Ethernet/IP support

PROFINETv2.3 support

Corrosive Testing

ISO-12944-6

IEC-60068-2-60

Humidity

IEC 60068-2-52 (salt fog mist, test Kb) marine environments

IEC 60068 -2-3

IEC 60068-2-30

Relative humidity: 5% to 95% non-condensing

Operating Temperature

-40C to +70C (vented enclosure - 40 LFM Air Flow)

-40C to +60C (sealed enclosure 0 LFM Air Flow)

-34C to +75C (fan or blower-equipped enclosure 200 LFM Air Flow)

-40C to +85C (IEC 60068-2-2 Environmental Type Testing 16 hours)

Operational altitude: Up to 15,000 ft

Storage Temperature

-40 C to +85 C (storage temperature)

IEC 60068-2-14

Storage altitude: Up to 15,000 ft

Mean Time Between Failure (MTBF)

Mean time between failure: 374,052 hours (42.7 years)

Warranty

Five-year limited warranty on all IE-2000 HW PIDs and all IE Power Supplies defined in table 4 above. See link below for details on warranty

Table 5. Management and Standards

Description

Specification

Specification

IEEE Standards

IEEE 802.1D MAC bridges, STP

IEEE 802.3af Power over Ethernet

IEEE 802.1p Layer 2 COS prioritization

IEEE 802.3at Power over Ethernet Plus

IEEE 802.1q VLAN

IEEE 802.3ah 100BASE-X SMF/MMF only

IEEE 802.1s Multiple Spanning-Trees

IEEE 802.3xfull duplexon 10Base-T

IEEE 802.1wRapid Spanning-Tree

IEEE 802.3 10BASE-T specification

IEEE 802.1xPort Access Authentication

IEEE 802.3u 100BASE-TX specification

IEEE 802.1AB LLDP

IEEE 802.3ab 1000BASE-T specification

IEEE 802.3ad Link Aggregation (LACP)

IEEE 802.3z 1000BASE-X specification

IEEE 802.3af Power over Ethernet provides up to15.4WDCpower to each end device

IEEE 1588v2 PTP Precision Time Protocol

IEEE 802.3at Power over Ethernet provides up to25.5WDCpower to each end device

RFC Compliance

RFC 768: UDP

RFC 1305: NTP

RFC 783: TFTP

RFC 1492: TACACS+

RFC 791: IPv4 protocol

RFC 1493: BridgeMIB Objects

RFC 792: ICMP

RFC 1534 DHCP and BootP interoperation

RFC 793: TCP

RFC 1542: Bootstrap Protocol

RFC 826: ARP

RFC 1643: Ethernet Interface MIB

RFC 854: Telnet

RFC 1757: RMON

RFC 951: BootP

RFC 2068: HTTP

RFC 959: FTP

RFC 2131, 2132: DHCP

RFC 1157: SNMPv1

RFC 2236: IGMP v2

RFC 1901,1902-1907 SNMPv2

RFC 3376: IGMP v3

RFC 2273-2275: SNMPv3

RFC 2474: DiffServPrecedence

RFC 2571: SNMP Management

RFC 3046: DHCP RelayAgent Information Option

RFC 1166: IP Addresses

RFC 3580: 802.1xRADIUS

RFC 1256: ICMP Router Discovery

RFC 4250-4252 SSH Protocol

Simple Network Management Protocol (SNMP) MIB Objects

BRIDGE-MIB

CISCO-SNMP-TARGET-EXT-MIB

CALISTA-DPA-MIB

CISCO-STACK-MIB

CISCO-ACCESS-ENVMON-MIB

CISCO-STACKMAKER-MIB

CISCO-ADMISSION-POLICY-MIB

CISCO-STP-EXTENSIONS-MIB

CISCO-AUTH-FRAMEWORK-MIB

CISCO-SYSLOG-MIB

CISCO-BRIDGE-EXT-MIB

CISCO-TCP-MIB

CISCO-BULK-FILE-MIB

CISCO-UDLDP-MIB

CISCO-CABLE-DIAG-MIB

CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB

CISCO-CALLHOME-MIB

CISCO-VLAN-MEMBERSHIP-MIB

CISCO-CAR-MIB

CISCO-VTP-MIB

CISCO-CDP-MIB

ENTITY-MIB

CISCO-CIRCUIT-INTERFACE-MIB

ETHERLIKE-MIB

CISCO-CLUSTER-MIB

HC-RMON-MIB

CISCO-CONFIG-COPY-MIB

IEEE8021-PAE-MIB

CISCO-CONFIG-MAN-MIB

IEEE8023-LAG-MIB

CISCO-DATA-COLLECTION-MIB

IF-MIB

CISCO-DHCP-SNOOPING-MIB

IP-FORWARD-MIB

CISCO-ENTITY-ALARM-MIB

IP-MIB

CISCO-ENTITY-VENDORTYPE-OID-MIB

LLDP-EXT-MED-MIB

CISCO-ENVMON-MIB

LLDP-MIB

CISCO-ERR-DISABLE-MIB

NETRANGER

CISCO-FLASH-MIB

NOTIFICATION-LOG-MIB

CISCO-FTP-CLIENT-MIB

OLD-CISCO-CHASSIS-MIB

CISCO-IF-EXTENSION-MIB

OLD-CISCO-CPU-MIB

CISCO-IGMP-FILTER-MIB

OLD-CISCO-FLASH-MIB

CISCO-IMAGE-MIB

OLD-CISCO-INTERFACES-MIB

CISCO-IP-STAT-MIB

OLD-CISCO-IP-MIB

CISCO-LAG-MIB

OLD-CISCO-MEMORY-MIB

CISCO-LICENSE-MGMT-MIB

OLD-CISCO-SYS-MIB<

CISCO-MAC-AUTH-BYPASS-MIB

OLD-CISCO-SYSTEM-MIB

CISCO-MAC-NOTIFICATION-MIB

OLD-CISCO-TCP-MIB

CISCO-MEMORY-POOL-MIB

OLD-CISCO-TS-MIB

CISCO-PAE-MIB

RMON-MIB

CISCO-PAGP-MIB

RMON2-MIB

CISCO-PING-MIB

SMON-MIB

CISCO-PORT-QOS-MIB

SNMP-COMMUNITY-MIB

CISCO-PORT-SECURITY-MIB

SNMP-FRAMEWORK-MIB

CISCO-PORT-STORM-CONTROL-MIB

SNMP-MPD-MIB

CISCO-PRIVATE-VLAN-MIB

SNMP-NOTIFICATION-MIB

CISCO-PROCESS-MIB

SNMP-PROXY-MIB

CISCO-PRODUCTS-MIB

SNMP-TARGET-MIB

CISCO-RESILIENT-ETHERNET-PROTOCOL-MIB

SNMP-USM-MIB

CISCO-RTTMON-ICMP-MIB

SNMP-VIEW-BASED-ACM-MIB

CISCO-RTTMON-IP-EXT-MIB

SNMPv2-MIB

CISCO-RTTMON-MIB

TCP-MIB

CISCO-RTTMON-RTP-MIB

UDP-MIB

Service and Support

Cisco is committed to reducing your total cost of ownership (TCO). We offer a portfolio of technical support services to help ensure that products operate efficiently, remain highly available, and benefit from the most up-to- date system software. The services and support programs described in Table 7 are available as part of the Cisco Desktop Switching Service and Support solution and are available directly from Cisco and through resellers.

Table 6. Cisco Services and Support Programs

Advanced Services

Cisco Total Implementation Solutions (TIS), available directly from Cisco

Project management

Supplements existing staff

Cisco Packaged TIS, available through resellers

Site survey, configuration, and deployment

Helps ensure that functions meet needs

Cisco SMARTnetand SMARTnet Onsite support, available directly from Cisco

Installation, text, and cutover

Mitigates risk

Cisco Packaged SMARTnet support program, available through resellers

Training

Helps enable proactive or expedited issue resolution

Cisco SMB Support Assistant

Major moves, adds, and changes

Lowers TCO by taking advantage of Cisco expertise and knowledge

Design review and product staging

Reduces network downtime

24-hour access to software updates

Web access to technical repositories

Telephone support through the Cisco Technical Assistance Center (TAC)

Advance replacement of hardware parts

No additional files, specification sheets, guides or documentation found for product.

Flexirent

You can finance this product via Flexirent! For more information regarding flexirent, and to use the flexirent finance calculator, please click here.

The calculator provides an indicative rental cost only. Flexirent prices quoted include GST and stamp duty. Subject to credit approval. To obtain full quote and pre-approval please contact Flexirent Customer Service on 1800 240 102. Rental is payable monthly.

Warranty: 60 Month Manufacturers Return To Base

Full manufacturers warranty details are available at the manufacturers (Cisco) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
Click on a thumbnail to view it below

No related products found.


L7: 6 | TM: 11 | LM: 14 | TY: 97 | T: 155

Secure Online Shopping

We accept the following with No surcharge on VISA, Mastercard and Paypal!
Techbuy Pty Ltd 2000 - 2020 All rights reserved.
All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.
