Cisco IE-2000-8T67P-G-E Industrial
Ethernet 2000 IP67 Series Switch
Overview
The Cisco Industrial Ethernet (IE) 2000 IP67 Series is
Ciscos first ruggedized switching platform that complies with the most demanding
IP67 industrial standards. It also provides everything youve come to expect from
the global leader in Internet Protocol (IP) networking: easy integration with
the rest of your network, reliability, rock- solid performance, and world-class
support. Now, those advantages and Cisco IOS Software features extend all the
way to the factory floor, rail yard, or other industrial site, even in the
harshest environments. So you can finally fulfill the promise of network
convergence-across both information technology (IT) and operations technology
(OT) environments-with one supplier.
Features
The Cisco IE 2000 IP67 Series is purpose-built for
manufacturing, automotive, oil and gas, mining, transportation, and other
industrial work sites. It can be wall-mounted and requires no cabinet
housing.
Table 1 summarizes and describes the IE 2000 IP67 Series
primary features.
Table 1. IE 2000 IP67 Product
Highlights
|
Feature |
Description/Benefit(s) |
|
Certified IP67
rating |
The solution is IP67-rated to
protect against dust and submersion in water. It meets the most rigorous
industrial and safety standards for extreme temperature and vibration,
humidity, electromagnetic emissions, and other factors. |
|
Compliant with industrial
automation standards |
The rugged switch supports
EtherNet/IP (CIP) and PROFINET so you can easily integrate it with any
Ethernet- based industrial equipment and management system. It also
supports Precision Time Protocol (PTP) v2 for demanding synchronized
applications. |
|
Easy deployment |
With zero-touch discovery
using Dynamic Host Control Protocol (DHCP), express setup, and
sub-60-second boot- up times, you can easily migrate to
all-IP-over-Ethernet networking environment. |
|
Strong endpoint
security |
Support for the
following:
802.1x
Port security
Dynamic port-based authentication using
DHCP
Encrypted administrative traffic
Centralized
authentication |
|
Resiliency |
Cisco brings recovery
mechanisms such as flex links and Cisco Resilient Ethernet Protocol (REP)
to the factory floor or other industrial site. Profinet MRP ring provides
the open standard industrial resiliency. |
|
Manageability |
The solution is easy for
operations staff to configure and manage. Cisco Auto Smart Port lets you
configure the right quality of service (QoS) settings for any port in
seconds. It also allows for secure web-based administration and easy
integration with your network management system. |
|
Network address translation
(NAT) |
The switches provide
line-rate, hardware-enabled static address translation to easily connect
complex Layer- 2/machine node networks. |
|
Industrial power-over-
Ethernet (PoE) |
Select switch models let you
connect and power endpoints with a single cable in compliance with PoE and
PoE+ standards. |
|
Removable SD Flash
memory |
With tightly secured swappable
hard drives, you can quickly replace switches in the field with minimal
disruption. |
|
Platform
flexibility |
The Cisco IE2000 IP67 Series
is available with 8, 16, or 24 10/100Base-T, fixed-configuration Ethernet
ports and 2x Gigabit Ethernet ports. It provides M12 D Coded, X Coded, and
a mini-change dual-power connector in an industrial-hardened,
wall-mountable form factor. |
Switch Performance and
Scalability
- Line rate/nonblocking uplink/downlink ports
- Forwarding rate: 6.5 mpps with 64-byte packets
- Egress buffer: 2 MB
- Unicast MAC addresses: 8000
- Internet Group Management Protocol (IGMP) multicast
groups: 255
- Max VLANs: 1005
- IPv4 MAC security ACEs: 384 (default TCAM template)
- Bidirectional, 128 NAT entries
Switch Models and
Configurations
Figure 1 shows switch models, and Table 2 shows Cisco IE
2000 Series configuration information.

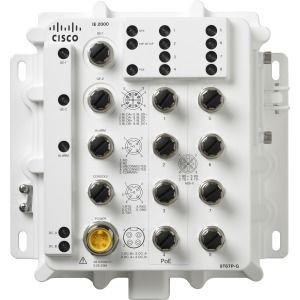

Figure 1. Industrial Ethernet 2000 IP67
Series
Table 2. Industrial Ethernet 2000 IP67
Series
|
PID |
Total Ports |
100 MB D-Code |
GE X-Code Ports |
Manufacturing License |
IEEE1588 |
NAT |
PoE (+) |
|
IE-2000-8T67P-G-E |
10 |
8 |
2 GE |
LAN
Base |
X |
XX** |
X |
Table 3. Power Supply, License Upgrade, and
Additional Parts
|
Product Number |
Description |
|
PWR-IE160W-67-DC= |
IP67-rated PoE DC-DC power
supply, Input:18V-60V Output: 54V, 3.1A max 160Watts |
|
PWR-IE180W-67-AC= |
IP67-rated PoE AC-DC power
supply, input 85-264VAC/88-300VDC, Output 54V, 3.1A max,
180Watts |
|
SD-IE-1GB |
1GB SD Memory
Card |
|
IE2000-B-E= |
IE2000 LAN Base to Enhanced
LAN Base Paper NAT License to Enable NAT Capability |
|
LIC-MRP-MANAGER= |
MRP ring Manager
license |
|
LIC-MRP-Client= |
MRP ring Client
license |
|
LIC-MRP-Multi-MGR= |
MRP Multi ring Manager
License |
|
LIC-IE2000-IP-L= |
Field upgradable IE2000 LAN
Base to IP Lite license |
|
CAB-CONSOLE-M12= |
Console Cable 6ft with M12 and
DB9F for IE2000IP67 Switch |
Table 4. Product Specifications
|
Description |
Specification |
|
Hardware |
256MB DRAM with ECC memory |
|
|
IEEE 1588v2 FPGA |
|
|
64MB on-board flash memory |
|
|
1GB
removable SD flash memory card (optional) |
|
Alarm |
Alarm-one alarm output relay using an M12 A Coded 5 Pin
connector (Max. rated: 24VDC @ 1A/48VDC @
0.5A) |
|
InputVoltageSupported |
IE-2000-8T67P-G-E, with PoE: 44-57VDC, with PoE+
50-57VDC |
|
PowerRating |
IE-2000-8T67-B: 0.023KVA |
|
PowerConsumption |
IE-2000-8T67-B: 7-17W |
|
ConnectorsandCabling |
DataCable |
|
|
Copper 100 Base-T M12 D coded 4-pole (pin) cable
connector |
|
|
Copper GE M12 X coded-8-pole (pin)-cable
connector |
|
|
AlarmCable |
|
|
M12
A-Coded 5-Pin Cable |
|
|
ConsoleCable |
|
|
M12ACoded5-Pinconnector |
|
|
PowerSupplyCables |
|
|
Power cable for power source, Mini-Change A-Size
single-ended cord set, 4 poles, female to pigtail, 16 AWG PVC cable. Molex
part#130006-0737 |
|
|
https://www.molex.com/customer.html?supplierPN=1300060737 |
|
|
Power cable to IE2000 IP67 switch: Mini-Change A-size
double-Ended Cordset, 4 poles male to female. 16 AWG, TPE cable. Molex
Part #130010-0863 |
|
|
https://www.molex.com/customer.html?supplierPN=1300100863 |
|
|
Power cable for AC-DC power source, Mini-change A-size
single-ended cord set, 3 pins, female insert on one end to pigtail, 16 AWG
PVC cable, Molex part#
130006-2419https://www.molex.com/customer.html?supplierPN=1300062419 |
|
|
Power cord from power source to power supply: 2 hole female
power cord to open for input DC
connector.https://www.molex.com/customer.html?supplierPN=1300062419 |
|
Dimensions(H xW xD) |
IE-2000-8T67P-G-E 8 ports
chassis:9.5x9.32x3.9(241.7x236.7x99mm) |
|
Weight |
IE-2000 IP67 8 ports (both models; PoE and non-PoE) 7.19
lbs. (3.26 kg) |
Table 5. Cisco IE 2000 Software
Features
|
LAN Base License
(Default) |
Features |
|
Layer 2
Switching |
IEEE 802.1, 802.3, 802.3at,
802.3af standard (see Table 6), VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC
filter, Flex Link, REP, VTPv3, EtherChannel, Voice VLAN |
|
Security |
SCP, SSH, SNMPv3, TACACS+,
RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session
(1), Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source
Guard, 802.1x, Guest VLAN, MAC Authentication Bypass, 802.1x Multi-Domain
Authentication, Storm Control, Trust Boundary |
|
Multicast |
IGMPv1, v2, v3 Snooping, IGMP
filtering, IGMP Querier |
|
QoS |
IPv4 Ingress Policing,
Rate-Limiting, Egress Queuing/Shaping, AutoQoS |
|
Management |
Fast Boot, Express Setup, Web
Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog, Port-
Based DHCP, Storm Control-Unicast, Multicast, Broadcast, SPAN Sessions
(2), RSPAN, DHCP Server, Customized TCAM/SDM Size
Configuration |
|
Industrial
Ethernet |
Ethernet/IP, Profinet,
Profinet MRP, IEEE 1588 PTPv2 |
|
IPv4 Routing |
IPv4 static
routing |
|
IPv6 Routing |
IPv6 host support, HTTP over
IPv6, SNMP over IPv6 |
|
Enhanced LAN Base |
Features |
|
Industrial Management |
Layer 2 Switching with 1:1 static
NAT |
|
IP Lite License |
Features |
|
IPv4 Routing |
RIP, OSPF, EIGRP, VRF Lite |
|
IPv6 Routing |
IPv6 Static routing, OSPFv3 |
|
Embedded Event Manager |
EEM
feature enabled with IP Lite
License |
Table 6. Compliance
Specifications
|
Description |
Specification |
|
Safety
Certifications |
UL/CSA 60950-1
EN
60950-1
CB
to IEC 60950-1 with all country deviations
NOM to NOM-019-SCFI (through partners and
distributor)
CCC (for power supply only)
(Pending) |
|
Industrial (Control Equipment)
Floor |
UL
508
CSA C22.2, No 142
CSA C22, 2 No 107.1 (for Power Supply
Only) |
|
Operating
Environment |
Operating Temperature: -40C to +60C
EN
60068-2-1
EN
60068-2-2
EN
61163
Altitude: Up to 13,800 feet or 4,200
meters |
|
EMC Emissions and Immunity
Compliance |
FCC 47 CFR Part 15 Class A
EN
55011
EN
55022A Class A
VCCI Class A
AS/NZS CISPR 22 Class A
CISPR 11 Class A
CISPR 22 Class A
ICES 003 Class A
CNS13438 Class A
KN22
EN55024
CISPR 24
AS/NZS CISPR 24
KN24
Brazil ANATEL certification
EN
61000-4-2 Electro Static Discharge
EN
61000-4-3 Radiated RF
EN
61000-4-4 Electromagnetic Fast Transients
EN
61000-4-5 Surge
EN
61000-4-6 Conducted RF
EN
61000-4-8 Power Frequency Magnetic Field
EN
61000-4-9 Pulse Magnetic Field
EN
61000-4-10 Oscillatory Magnetic Field
EN-61000-4-29 DC Power Voltage Dips and
Immunity |
|
Shock and
Vibration |
IEC 60068-2-6 Vibration: IEC 60068-2-6, IEC 255
21.1 Class 1 Vibration Test
IEC 60068-2-27 (Shock)
IEC 60068-2-31 (Shock)
IEC 60068-2-32 (Shock)
IEC 60068-2-64 (Vibration)
EN
61373 Cat 1 Class B (Shock and
Vibration) |
|
Industry
Standards |
EN
61000-6-2 Industrial
EN
61000-6-4 Industrial
EN
61000-6-1 Light Industrial
EN
61326 Industrial Control
EN
61131-2 Programmable Controllers
Marine (DnV) ENV3 (Pending)
EN
60945 Maritime navigation and radio equipment and systems
(Pending)
IEEE 1613 Electric Power Stations Communications
Networking (Pending)
IEC 61850-3 Electric Substations Communications
Networking (Pending)
EN
50155 EMC, EMI Environmental and Mechanical, galvanic isolation on uplinks
(g1/1 g1/2) only
EN
45545-3 Fire Safety in Railway Vehicles
EN
45545-2 Fire Protection
EN50121-4 Railway-Signaling and Telecommunications
Apparatus
EN50121-3-2 Railway-Apparatus for Rolling
Stock
NEMA TS-2 DC Power Traffic Control Equipment
(Pending)
ODVA Industrial EtherNet/IP
ABB Industrial IT Certificate
IP67 (per EN60529)
NEMA 4 (per UL
50E) |
|
Corrosive
Testing* |
ISO 9223: Corrosion
class C3-Medium
ISO 9223: Corrosion
class C4-High
EN
60068-2-52 Salt mist
testing |
|
Humidity |
IEC 60068-52-2 (Salt Fog Mist, Test Kb) Marine
Environments
IEC 60068 -2-3
IEC 60068-2-30
Relative Humidity: 5% to 95%
Non-condensing |
|
Operating
Temperature |
-40C to +75C
-40C to +70C (Vented Enclosure
Operating)
-40C to +60C (Sealed Enclosure
Operating)
-34C to +75C (200 LFM or more fan or blower equiped
enclosure operating)
-40C to +85C (Type Tested to +85C for 16
hours)
Altitude: Up to 13,800 feet (4570
meters) |
|
Storage
Temperature |
-40C to +85C
IEC 60068-2-14
Altitude: Up to 13,800 feet or 4,200
meters |
|
MTBF |
Mean Time Between Failures: 374,052 Hours (42.7
Years) |
|
Warranty |
Five-Year Limited
Warranty |
Service and Support
Cisco is committed to minimizing total cost of ownership
(TCO) for its customers. The company offers a portfolio of technical support
services to help make sure that its products operate efficiently, remain highly
available, and benefit from the most up-to-date system software. The services
and support programs described in Table 8 are available as part of the Cisco
Desktop Switching Service and Support solution and are available directly from
Cisco and through resellers.
Table 7. Cisco Services and Support
Programs
|
Service and
Support |
Features |
Benefits |
|
Advanced
Services |
|
Cisco Total Implementation Solutions (TIS),
available direct from Cisco
Cisco Packaged TIS, available through
resellers
Cisco SMARTnetand SMARTnet Onsite support, available direct from
Cisco
Cisco Packaged SMARTnet support program, available
through resellers
Cisco SMB Support
Assistant |
Project management
Site survey, configuration, and
deployment
Installation, text, and cutover
Training
Major moves, adds, and changes
Design review and product staging
Access to software updates 24 hours
Web access to technical repositories
Telephone support through the Cisco Technical
Assistance Center (TAC)
Advance replacement of hardware
parts |
Supplements existing staff
Helps ensure that functions meet needs
Mitigates risk
Helps enable proactive or expedited issue
resolution
Lowers TCO by taking advantage of Cisco expertise
and knowledge
Minimizes network
downtime |
Networking
