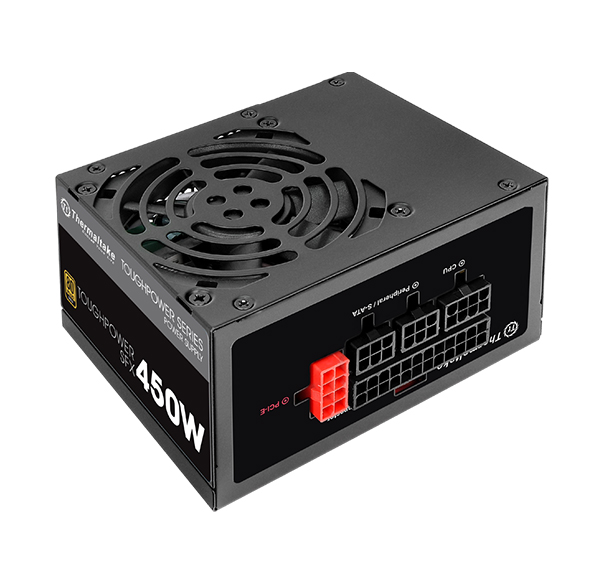

Thermaltake PS-STP-0450FPCGAU-G Toughpower SFX 450W
Gold
Overview
Incorporating various high-quality components, Toughpower SFX 450W Gold saves
energy through its 80 PLUS Gold certified high efficiency of up to 90% and
accommodates any mainstream build. The included matte black SFX to ATX adapter
bracket enables users to easily install SFX Power supply into ATX chassis.
Additionally, an embedded temperature controlled Zero RPM Smart Fan System is
optimized to deliver excellent airflow at an exceptionally low noise level.
Fully modular flat cable design is convenient for cable management. Moreover,
the powerful single +12V rail enables non-stop usage with stable and reliable
performance.

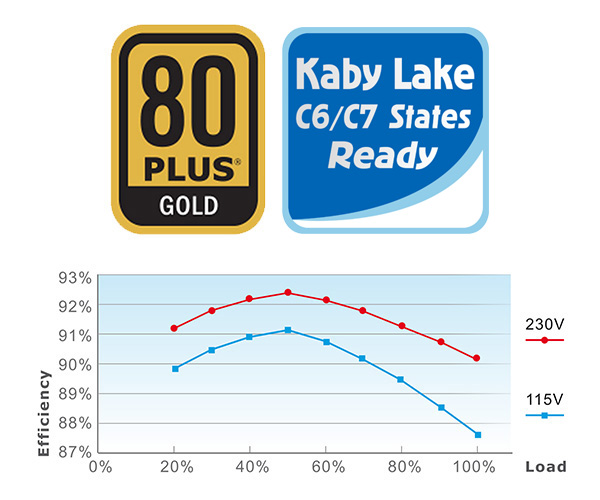

80 PLUS Gold Certified and Kaby Lake Ready
Deliver up to 90% efficiency under real world load conditions to promise
lowest power losses. Additionally, Toughpower SFX 450W Gold has been optimized
to work with Intels new 6th-generation Kaby Lake processors to achieve maximum
energy savings.

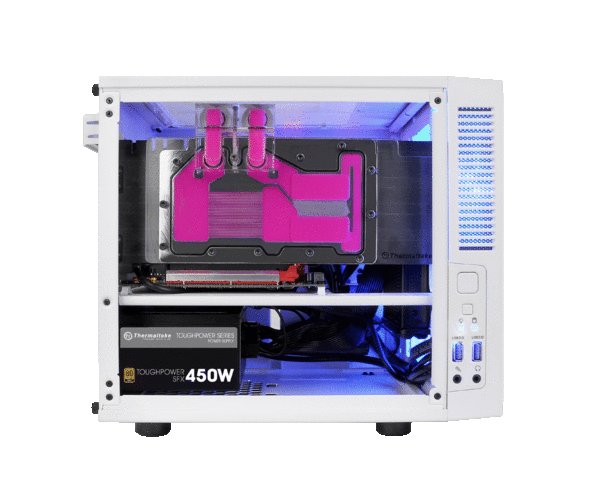

Universal Compact Design for All Mainstream PC Cases SFX to ATX PSU
Adapter Bracket
Toughpower SFX 450W Gold is designed with two-way application by the
compatibility of both the latest Intel SFX 12V 3.3 and ATX 12V 2.4 standard.
Toughpowr SFX Series has included a matte black SFX to ATX adapter bracket which
helps users easily install an SFX power supply into an ATX, Micro-ATX or
Mini-ITX chassis. In addition, with the compact design, Toughpower SFX Series
allows better airflow inside the chassis as well as leaves more space for users
to utilize.

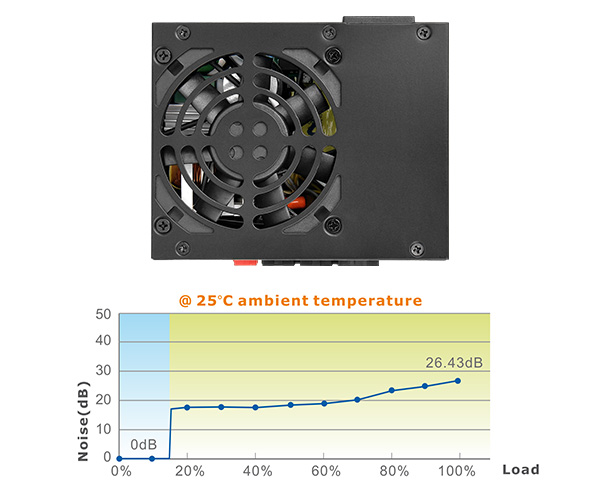

Zero RPM Smart Fan
To maximally reduce undesired noise, Toughpower SFX 450W Gold is designed
with an 80mm temperature controlled Zero RPM Smart Fan. The fan will not operate
when the PSU is at low working loads.

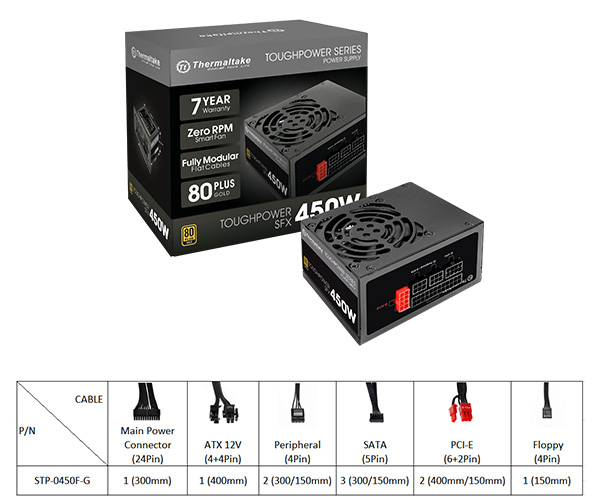

Fully Modular Low-Profile Flat Cables
Fully modular Toughpower SFX 450W Gold offers cable selection for users while
powering the system at an advantageous voltage. Low-profile flat black cables
can make cable management easier, reduce clutter and increase airflow inside the
chassis.

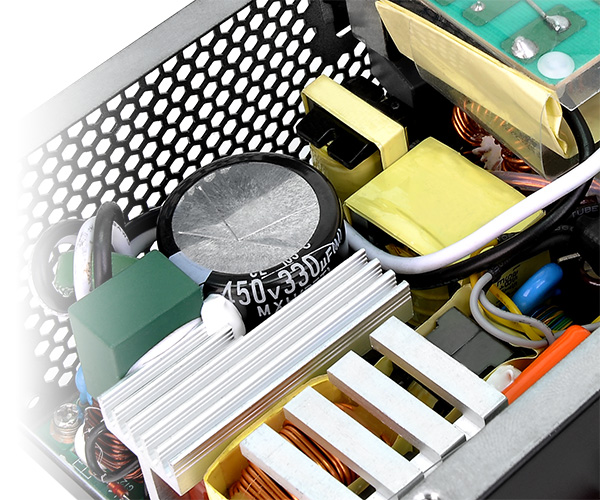

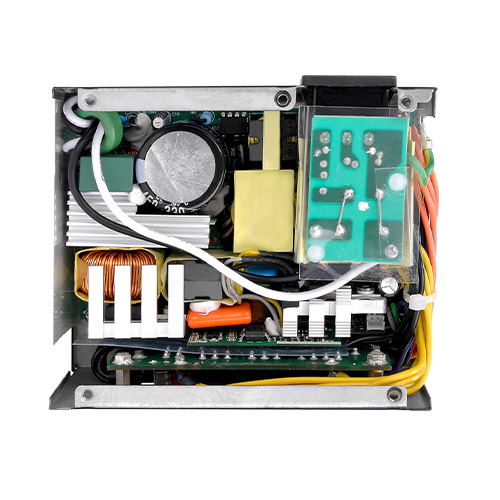

100% High Quality Japanese Capacitors
Toughpower SFX 450W Gold features 100% high quality Japanese brand
capacitors, which greatly improves the durability and offers the highest
stability and reliability.
Massive and Dedicated +12V Output
Toughpower SFX 450W Gold is equipped with a powerful single +12V rail, please
see the output specification below:
|
AC INPUT |
Input Voltage:
100V-240V |
|
Input Current:
3.5A-7A |
|
Frequency:
50Hz-60Hz |
|
DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5Vsb |
|
Max Output Current |
19A |
14A |
37A |
0.3A |
2.5A |
|
Max Output Power |
90W |
444W |
3.6W |
12.5W |
|
Continuous Power |
450W |
Specifications
|
Hardware
Protection |
OPP, OVP, OCP, and
Short-Circuit protection |
|
P/N |
PS-STP-0450FPCGXX-G |
|
Short
P/N |
STP-0450F-G |
|
Color |
Black |
|
Dimension
W
/ H / D |
125mm(W) x 63.5mm(H) x
100mm(D) |
|
PFC
Power
Factor Correction |
Active
PFC |
|
Power Good
Signal |
100-500
msec |
|
Hold Up
Time |
> 16msec at 75% of
full load |
|
Input
current |
3.5A
7A |
|
Input Frequency
Range |
50Hz -
60Hz |
|
Input
Voltage |
100V -
240V |
|
Operating
Temperature |
0 DegreeC to +40
DegreeC |
|
Operating
Humidity |
20% to
85%,non-condensing |
|
Storage
Humidity |
5% to 95%,
non-condensing |
|
Storage
Temperature |
-20 DegreeC to
+90 DegreeC |
|
Cooling
System |
8cm
fan |
|
Efficiency |
MEET 80 PLUSGold at
115Vac input. |
|
MTBF |
120,000 hrs
minimum |
|
Safety
Approval |
CE/FCC/UL/Bauart
Mark+CB/EAC |
|
Type |
Intel SFX 12V 3.3 and
ATX 12V 2.4 |
|
Model |
STP-450AH1FEG |
|
Max. Output
Capacity |
450W |
|
Peak Output
Capacity |
540W |
|
PCI-E
Connector |
2 |
