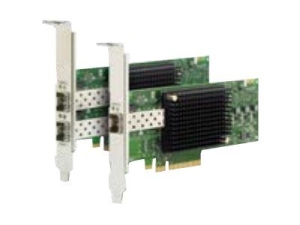

Cisco UCSC-PCIE-BD32GF= 2 Port 32GFC Short Wave Optical
– LC SFP+ (32GFC optical transceivers included)
Highlights
Faster Flash
- Completes data warehousing transactions in 1/4 of the time
- Meet the massive bandwidth requirements of flash storage arrays with up to
32GFC throughput
- Maximize the performance of flash-based systems by prioritizing
mission-critical traffic in congested networks with the exclusive ExpressLane
feature
- NVMe-enabled capability delivers an additional 55% lower latency and
supports NVMe over Fabrics and SCSI concurrently
Better Virtualization
- Near limitless scalability to support maximum VM density with 2X more
on-chip resources & bandwidth
- Improved VDI experience with lowlatency HBAs providing noticeable
improvements during boot storms
- Simplified management & installation with OneCommand Manager plug-in
for VMware vCenter server
Lossless, Reliable Networking
- Near zero downtime FCs lossless design ensures no dropped packets and
maximum uptime
- Industry Leader for Reliability Emulex HBAs can provide up to 1,141 years
of uninterrupted service
Overview
Faster Flash. Better Virtualization. Lossless
Networking.
The Emulex Gen 6 (16/32Gb) Fibre Channel (FC) Host Bus Adapters (HBAs) by
Broadcom are designed to address the demanding performance, reliability and
management requirements of modern networked storage systems that utilize high
performance and low latency solid state storage drives for caching and
persistent storage as well as hard disk drive arrays.
Fibre Channel is the gold standard for network storage connectivity in
enterprise and cloud deployments. The latest Emulex Gen 6 FC HBAs offer higher
performance, lower latency, enhanced diagnostics and manageability for Cisco UCS
C-Series rack servers. The LPe32000-series HBAs are available with single or
dual 32GFC optics. The LPe31000 is available with dualport 16GFC optics.
Unique to Fibre Channel technology is its deep ecosystem support making it
ideal for large scale, easyto-manage storage deployments. Users can count on a
complete suite of management software, inbox drivers for mainstream server
operating systems, software-defined storage APIs and tools, and the strength to
support high servicelevel agreement (SLA) applications.
Accelerate
The unique Emulex Dynamic Multi-core Architecture delivers unparalleled
performance and more efficient port utilization than other HBAs by applying all
ASIC resources to any port that needs it.
Compared to the previous generation, Emulex Gen 6 HBAs deliver 2x greater
bandwidthup to 12,800MBps (2 ports 32G, full duplex), less than half the
latency, and support an industry-leading 1.6 million IOPS on a single port,
ensuring SLAs are met. Emulex Gen 6 HBAs are an excellent choice for database
applications as recent TPC-H testing in a data warehousing environment have
demonstrated up to 71% faster completion times vs. the previous generations of
HBAs. To enable the highest Virtual Machine density, Gen 6 HBAs provide support
for up to 255 virtual functions, 1,024 Message Signaled Interrupts and expansive
on-board context for exchanges and logins.
NVM Express (NVMe) is a relatively new protocol for solid-state storage
devices built with non-volatile memory technologies. NVMe provides substantially
lower latency for storage I/O operations and significantly higher IOPS per
device. NVMe scales-up the number of devices it can address by adopting NVMe
over Fabrics technology.
Emulex Gen 6 HBAs are NVMe over Fabrics-enabled, providing an additional 55%
lower latency for storage I/O operations versus SCSI. Gen 6 NVMe-enabled HBAs
support NVMe over Fabrics and SCSI concurrently, allowing datacenters to
transition to all-flash storage at their own pace.
Protect
Emulex Gen 6 FC HBAs deliver enhanced security via the new secure firmware
update feature which protects and ensures the authenticity of device firmware.
Forward Error Correction (FEC) is a Gen 6 Fibre Channel standard feature that
provides enhanced data reliability and performance by automatically detecting
and recovering from bit errors. It is especially useful in diverse and complex
user environments such as blade system implementations. FEC is a digital signal
processing technique that introduces redundant data, called an error correcting
code, prior to data transmission. FEC then provides the receiver with the
ability to correct errors without a reverse channel to request the
retransmission of data, which improves performance.
T10 Protection Information (T10-PI) data integrity with high performance
hardware offload provides data protection from the server to the storage array.
As one of the founders of the Data Integrity Initiative (DII), Emulex, along
with Oracle and Seagate, was instrumental in defining the T10-PI standard,
which, along with the Data Integrity Extensions (DIX) standard, delivers full
end-to-end data integrity. T10- PI assures the validity of I/O operations
through the exchange of verification information during data transmissions.
Emulex HBAs are renowned for reliability, ensuring maximum SAN uptime. Their
It Just Works reputation is based on 17 million installed ports with proven
industry-leading reliability of 10 million hours field Mean Time Between
Failures (MTBF).
Control
The flagship OneCommand Manager enterprise-class management application
features a multiprotocol, cross-platform architecture that provides centralized
management of all current and previous generations of Emulex FC HBAs. This
enables IT administrators to manage network connectivity with one tool for
maximum efficiency.
Emulex HBA troubleshooting is simplified with OneCaptureTM, an Emulex device
driver utility that gathers system, adapter, device driver, and applications
information. Data collected by OneCapture is compressed into a single file and
can be sent to Broadcom Technical Support for analysis when debugging system
issues or for diagnostic purposes.
Specifications
|
Standards |
|
|
General
Specifications |
•
The LPe31000/LPe32000-series FC HBAs are powered by the XE501 controller
and utilizes an eight-lane (x8) PCIe 3.0 bus (backward compatibility to
PCIe 2.0 supported)—the architecture enables all resources to be applied
to any port that needs it, delivering over 1.6M IOPS on a single-port
|
|
Industry
Standards |
•
Current ANSI/IETF Standards: FC-PI-4; FC-PI-5; FC-PI-6; FC-FS-3;
FC-LS-2;FC-GS-6; FC-DA; FC-DA-2; FCP-4; SPC-4; SBC-3;
SSC-4 |
|
|
•
Legacy ANSI/IETF standards: FC-PH; FC-PH-2; FC-PH-3; FC-PI; FC-PI-2;
FC-PI-3; FC-FS; FC-GS-2/3/4/5; FCP-2/3; FC-HBA; FC-TAPE; FC-MI; SPC-3;
SBC-2; SSC-2; SSC-3 |
|
|
•
PCIe base spec 3.0 |
|
|
•
PCIe card electromechanical spec 3.0 |
|
|
•
Fibre Channel Class 3 |
|
|
•
PHP hot plug-hot swap |
|
|
|
|
Architecture |
|
|
Single-port
LPe32000 or dual-port LPe32002 |
•
Supports 32GFC, 16GFC and 8GFC link speeds, automatically
negotiated |
|
Dual-port
LPe31000 |
•
Supports 16GFC, 8GFC and 4GFC link speeds, automatically
negotiated |
|
|
|
|
Comprehensive
OS and Hypervisor Support |
•
Microsoft Windows |
|
|
•
Red Hat Enterprise Linux |
|
|
•
SUSE Linux Enterprise Server |
|
|
•
VMware vSphere |
|
|
|
|
Hardware
Environments |
•
Cisco UCS Series |
|
|
|
|
Optical |
•
Data rates: 28.05 Gb/s (32GFC); 14.025 Gb/s (16GFC); 8.5 Gb/s (8GFC); 4.25
Gb/s (4GFC) automatically negotiated |
|
|
•
Optics: Short wave lasers with LC type connector |
|
|
Cable:
Operating at 32Gb |
|
|
-
20m at 32Gb on 50/125 m OM2 MMF |
|
|
-
70m at 32Gb on 50/125 m OM3 MMF |
|
|
-
100m at 32Gb on 50/125 m OM4 MMF |
|
|
|
|
Physical
Dimensions |
•
Short, low profile PCIe card |
|
|
•
167.64mm x 68.91mm (6.60” x 2.71”) |
|
|
•
Standard bracket (low profile bracket ships in box) |
|
|
|
|
Environmental
Requirements |
•
Operating temperature: 0° to 55°C (32° to 131°F); 150 LFM
required |
|
|
•
Storage temperature: -20° to 85°C (-4° to 185°F) |
|
|
•
Relative humidity: 5% to 95% non-condensing |
|
|
|
|
Ordering
Information |
|
|
The
LPe31000/LPe32000-series is available from Cisco using the following part
numbers: |
|
|
LPe32002-M2 |
|
|
Part
Number: UCSC-PCIE-BD32GF |
•
2 Port 32GFC Short Wave Optical – LC SFP+ (32GFC optical transceivers
included) |
|
|
|
|
Added
Features |
|
|
Performance
Features |
•
Doubling the maximum FC link rate from 16GFC to 32GFC and enhanced
virtualization capabilities, help support IT “green”
initiatives. |
|
|
•
Frame-level multiplexing increases link efficiency and maximizes HBA
performance. |
|
|
•
Accelerates network access to SSDs with NVMe over Fibre Channel-enabled
feature- supports the upcoming NVMe over FC T11
standard |
|
Data
Protection Features |
•
End-to-end data protection with hardware parity, CRC, ECC and other
advanced error checking and correction algorithms ensure data is safe from
corruption |
|
|
•
Enhanced silent data corruption protection provided by T10-PI with
high-performance offload. T10-PI provides additional protection against
corruption in Oracle Unbreakable Linux environments. |
|
Deployment
and Management Features |
•
Universal boot capability allows the appropriate boot environment to be
automatically selected for any given hardware. |
|
|
•
Boot from SAN capability reduces system management costs and increases
uptime. |
|
|
•
Detailed, real-time event logging and tracing enables quick diagnosis of
SAN problems. |
|
|
•
Beaconing feature flashes the HBA LEDs, simplifying their identification
within server racks. |
|
|
•
Environmental monitoring feature helps optimize SAN
availability |
|
|
|
|
Management
Features |
•
The Emulex OneCommand Manager application enables centralized discovery,
monitoring, reporting, and administration of HBAs provided by Emulex on
local and remote hosts. Powerful automation capabilities facilitate remote
driver parameter, firmware and boot code upgrades. |
|
|
•
Advanced diagnostic features, such as adapter port beaconing and adapter
statistics, help optimize management and network performance, while the
environmental monitoring feature helps to maintain optimum host-tofabric
connections. In addition to the GUI interface, management functions can
also be performed via a scriptable Command Line Interface (CLI) as well as
a web browser. |
|
|
•
Meet SLAs and QoS with ExpressLane application prioritization on hosts.
ExpressLane is fully compatible with majority of switches offering QoS
features |
|
|
•
OneCommand Manager supports role-based management to facilitate
administration of adapters throughout the data center without compromising
security. Management privileges can be assigned based on LDAP and AD group
memberships. |
|
|
•
Emulex’s management instrumentation complies to open management standards,
such as SMI-S and common HBA API support, which enables seamless upward
integration into enterprise storage and server management
solutions. |
