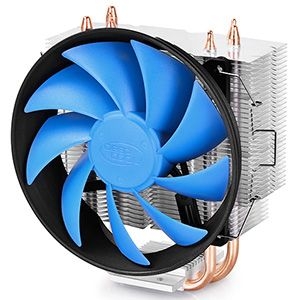

Deepcool Gammaxx300 CPU Air Coolers
Features
- AMD AM4 Ready. (NOTE: Refer to FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 for the
manuals)
- Equipped with multiple clips to support Intel LGA1366/115X/775 and AMD
AM4/FM2/FM1/AM3+/AM3/AM2+/AM2/K8.
- 3 sintered metal powder heatpipes directly contacting the CPU surface for
removing heat and eliminating chances of overheating.
- 120 x 25 mm PWM-capable fan offers perfectly balances powerful airflow and
reduced noise.
- Can be easily installed without moving the motherboard.
- Excellent cooling performance up to 130 W.
- * Optional: Socket LGA2011.
Description
GAMMAXX 300 comes with a turbine fan and can be further mounted with a second
fan. This is one of the most highly recommended mainstream CPU thermal solution.
GAMMAXX 300 comes with the Core Touch Technology (CTT), enabling rapid heat
dissipation, and making it the ideal multipurpose option for gamers and general
users.
Effective Cooling Performance
3 sintered metal powder heatpipes directly contacting the CPU surface for
removing heat and eliminating chances of overheating.

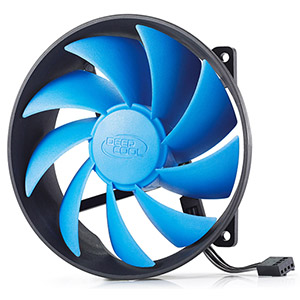

120 x 25 mm PWM-capable Fan
120 x 25 mm PWM-capable fan offers perfectly balances powerful airflow and
reduced noise.

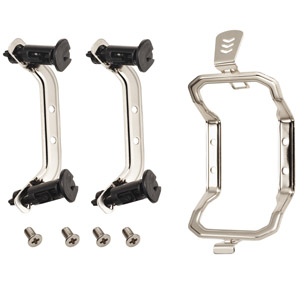

Universal Socket Compatibility
Equipped with multiple clips to support Intel LGA1366/115X/775 and AMD
AM4/FM2/FM1/AM3+/AM3/AM2+/AM2/K8.

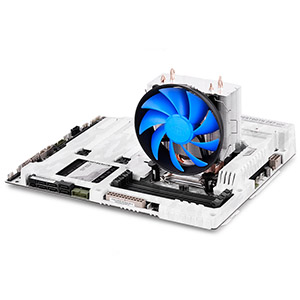

Easy Installation
Can be easily installed without moving the motherboard.
Application For
Intel Socket 130W
- LGA1366/LGA115X/LGA775
- High End Desktop i9/i7
- Core i7 Extreme/i7/i5/i3
- Core 2 Extreme/Quad/Duo
- Pentium/Pentium G
- Celeron/Celeron G
AMD Socket 125W
- AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
- (NOTE: Manuals for AM4, please refer to
FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2)
Ryzen
- APU A12/A10/A8/A6/A4
- FX 8/6/4-Core
- Phenom II X6/X4/X3/X2
- Athlon II X4/X3/X2
- Athlon X4

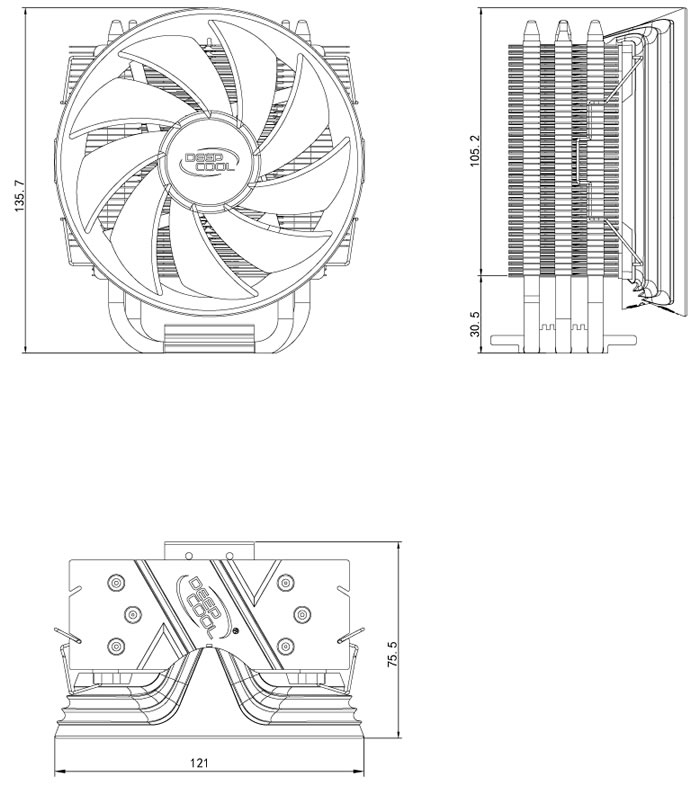

Product Dimension
Specifications
|
Overall
Dimension |
121X75.5X135.7mm |
|
Fan
Dimension |
Φ120X25mm |
|
Net
Weight |
429g |
|
Bearing
Type |
Hydro
Bearing |
|
Rated
Voltage |
12VDC |
|
Operating
Voltage |
10.813.2VDC |
|
Started
Voltage |
7VDC |
|
Rated
Current |
0.13±10%A(MAX) |
|
Power
Input |
1.56W |
|
Fan
Speed |
900±1501600±10%RPM |
|
Max.
Air Flow |
55.50CFM |
|
Noise |
17.8~21dB(A) |
