Deepcool MATX-BNKSWH-LQD Baronkase Liquid -
White
Features
- MATX Size Supports ATX MB
- Tempered Glass Side-panel
- Pre-installed Integrated Liquid Cooling System with 120mm Radiator
- Combined RGB Lighting System with Manual Controller
- All-metal Front Panel
Overview

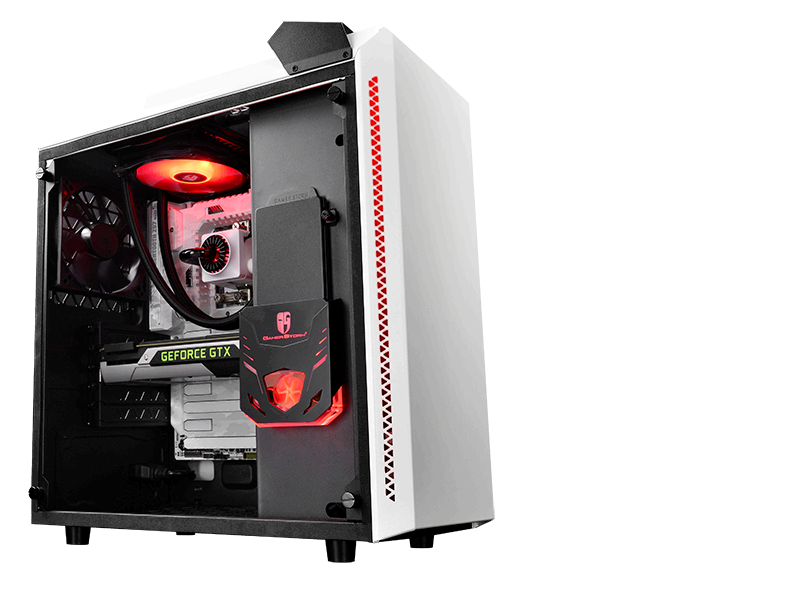

BARONKASE LIQUID is a new MATX size all-metal case that features a
pre-installed Integrated Liquid Cooling System with a 120mm Radiator. It
supports a full sized ATX mainboard, which is achieved by allowing the PSU to be
mounted at the top of the case towards the front and bringing power to the PSU
with an extension cable provided. Full length graphics cards can also be fitted
by removing a name plate on the back panel. The BARONKASE LIQUID case features a
multi-point lighting system with manual control from the top panel.

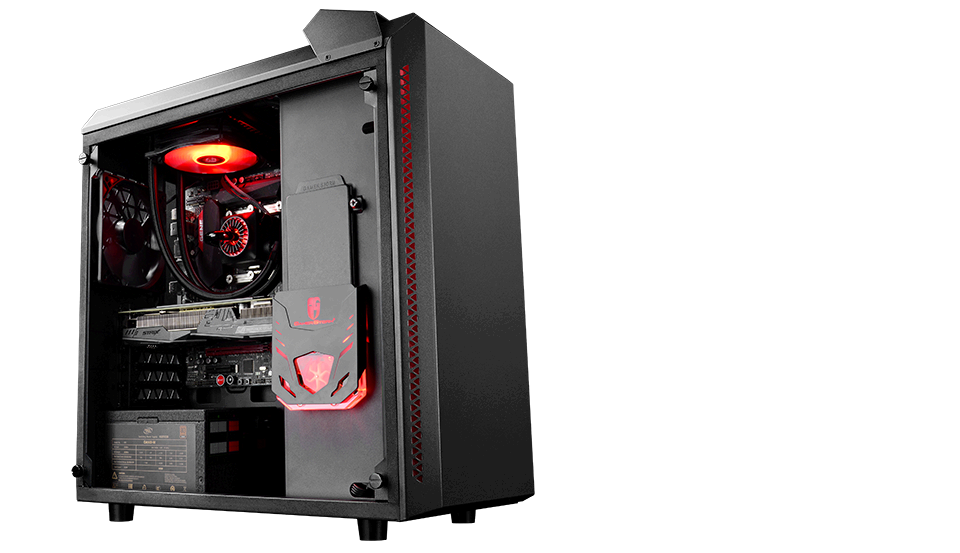

A tempered glass side panel safely mounted on soft buffered screws allows all
the interior features to be seen and admired.
MATX Case supports installation of ATX Motherboard by installing the PSU at
the top of the case towards the front
Integrated Liquid Cooling System with 120mm Radiator
Pre-installed

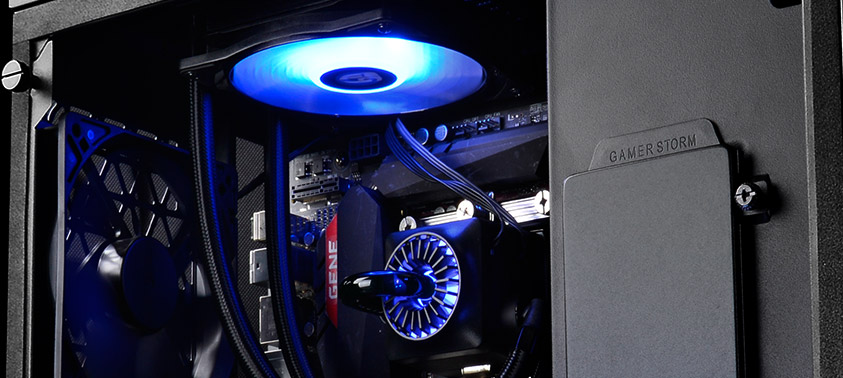

Stylish new flow-rotor unit makes liquid flow visible and
attractive
RGB Lighting System:
- 1 RGB Fan
- RGB Water-block
- RGB Flow-rotor Unit
- RGB Front Light
Tempered Glass side-panel fixed to case body with screws and soft washers to
cushion the glass and fix it firmly and safely
Easier and more user friendly cable management with Velcro attachment areas
provided
AC Power Extension Cable supplied to allow PSU to be installed at the top of
the case when an ATX MB is fitted
Manual controller for RGB Lighting system
- All-metal handle makes your PC portable
- Two USB3.0 ports
- Nameplate at rear!
- The plate can be removed to allow longer Graphic Cards to be installed
(340mm max)
The carry handle is removable when not required
Two 120mm cooling fans can be installed in the base of the case if
the PSU is fitted in the top position
The water-block is supplied mounted on a specially designed board to
keep it stable and safe during transportation

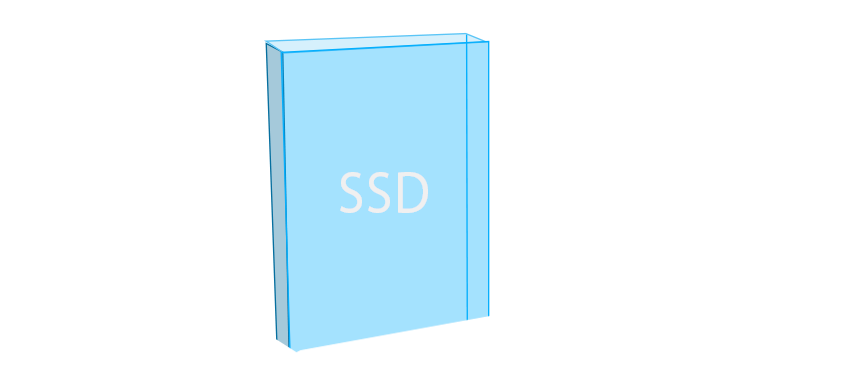

A special position is reserved for installing and displaying your SSD
perfectly

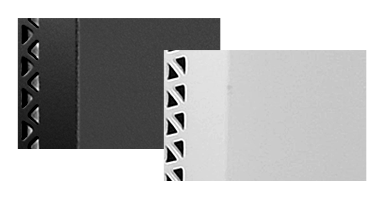

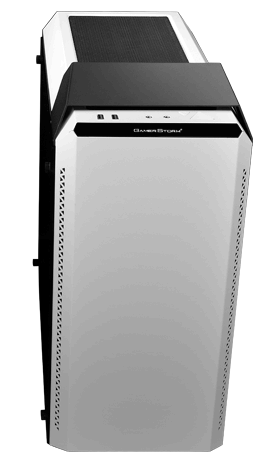

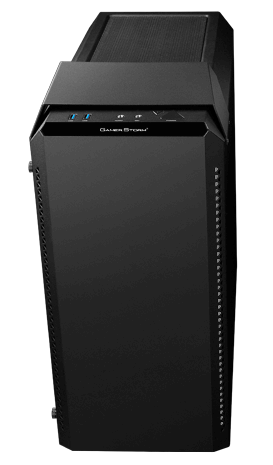

The All-metal Front Panel is available in a choice of Black or
White
Specifications
|
Materials |
SPCC(thickness:
side panel:0.7mm, Glass: 4mm, Front panel:1.2mm) |
|
Product
Dimension (LxWxH) |
423×215×470mm |
|
Weight |
Net
Weight:10 kg; Gross Weight:11 kg |
|
I/O
Panel |
2×USB3.0
/Audio(HD)×1/Mic×1/Manual Controller for RGB |
|
Motherboards |
ATX/MATX/MINI-ITX |
|
Drive
Bays |
5.25”Drive
Bays×0; 3.5“/2.5”Drive Bays×2; 2.5“Drive Bays×3 |
|
Expansion
Slots |
5 |
|
Cooling
Fans |
Pre-installed:
Rear: 1×120mm fan; Top: 1×120mm RGB fan Optional: |
|
|
Front:
2×120 or 1×140; Top: 2×120/ 2×140mm Bottom: 2×120mm in case of PSU
installed at top |
|
|
168mm
height limit /Liquid Cooler: 120mm radiator liquid cooling system
pre-installed at top; |
|
CPU
Cooler Compatibility |
Optional:
120mm radiator at rear; 120/240/140/280mm radiator at
top |
|
Power
Supply Support |
ATX
PS2 (maximum length: 200mm at bottom, 160mm at top) |
|
Graphic
Card Clearance |
Maximum
340mm length |
|
Carton
Dimension |
497×282×506mm |
|
Water
Block Dimensions |
92.5×93×85mm(L×W×H) |
|
Radiator
Dimensions |
154×120×27mm(L×W×H)(aluminum
material) |
|
Fan
Dimensions |
120×120×25mm
RGB Fan |
|
Fan
Speed |
500±150-1800±10%RPM
(4Pin) |
|
Fan
Air Flow |
69.34
CFM (MAX) |
|
Fan
Noise Level |
17.8~30dB(A) |
|
Fan
Bearing Type |
Hydro
Bearing |
|
Fan
Rated Voltage |
12VDC |
|
Fan
Rated Current |
0.32A |
|
Fan
Power Consumption |
3.84W |
|
Pump
Connector |
3Pin |
|
Pump
Operating Voltage |
6~13.8VDC |
|
Pump
Rated Voltage |
12VDC |
|
Pump
Speed |
2300±10%RPM |
|
Pump
Current |
0.2A(MAX) |
|
Pump
Power Consumption |
2.4W |
|
EAN
(WH) |
6.93341E+12 |
|
P/N
(WH) |
DP-MATX-BNKSWH-LQD |
|
EAN |
6.93341E+12 |
|
P/N |
DP-MATX-BNKSBK-LQD |
