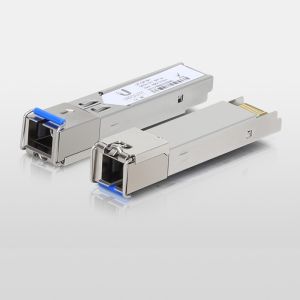

Ubiquiti UF-GP-B+ UFiber SFP+ 2.5 Gbps Fiber Module - Single Mode
  • SC/UPC Connector(1), 1490nm TX, 1310nm RX, 10G SFP+, 20km

IMG 1 of 4
Our Price:
$148.50
RRP:
$149.00
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
434974
(?) Brand:
Ubiquiti
Manuf No:
UF-GP-B+
UFGPB+
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
4/1/2019
Details Files Images & Video
All stock codes associated to this product
UF-GP-B+, UFGPB+, NHUUFGPB+, NHU-UF-GP-B+, 817882020305

Ubiquiti UF-GP-B+ UFiber GPON OLT SFP Modules



Overview

Ubiquiti Networks offers UFiber GPON modules to increase the capacity of your UFiber OLT and connect your new customers quickly.

Up to 128 UF-Nano per OLT GPON Port

Specifications

Supported Media

Single-Mode Fiber

Connector Type

(1) SC/UPC

TX Wavelength

1490 nm

RX Wavelength

1310 nm

Downstream Data Rate

2.5 Gbps

Upstream Data Rate

1.25 Gbps

Cable Distance

20 km

Dimensions

442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72")

Weight

4.40 kg (9.7 lb)

(with Mount Brackets)

4.495 kg (9.91 lb)

Networking Interfaces

(8) GPON OLT SFP

(2) 1G/10G SFP+

Concurrent Clients

1024 Registered ONUs/ONTs (128 per GPON Port)

Management Interfaces

(1) Ethernet for Out-of-Band Management

(1) RJ45 Serial Console Port

GPON Speeds

2.488 Gbps Upstream (TX)

1.244 Gbps Downstream (RX)

Operating Wavelengths

1490 nm TX

1310 nm RX

Normal Optical Power Range

TX (Class B+): 1.5 dBm to 5 dBm

RX: -8 dBm to -28 dBm

Range

Physical Reach

20 km

Logical Reach

60 km

Max. Differential Fiber Distance

20 km (B+) /40 km (C+)

Power Method

100-240VAC, 100W AC/DC Power Module (Included)

38-54VDC, 100W DC/DC Power Module (Optional)

Power Supply

(1) 25V, 100W AC/DC PSU Module (Included)

Max. Power Consumption

40W (Excluding SFP Modules)

Operating Mode

OLT 2/3 Ethernet Switch and GPON Core

Advanced QoS

Supports 8 Priority Queues per User Port and Traffic Classification

Processor Specs

MIPS 1004kc, 880 MHz Dual Core

Memory Information

512 MB DDR3, 512 MB NAND

Operating Temperature

-10 to 45 DegreeC (14 to 113 DegreeF)

Operating Humidity

10 to 90% Noncondensing

Certifications

CE, FCC, IC
