All stock codes associated to this product
F1DN104K3AU, F1DN104K-3AU

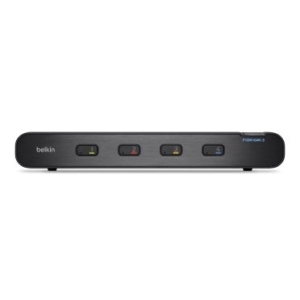

Belkin F1DN104K-3AU Secure 4-Port Keyboard/Mouse
Switch
Features
- Seamless Cursor Switching (SCS) - allows you to transition automatically
between highly isolated computers when the mouse cursor crosses the display
border. Audio and Keyboard signals are also switched from one channel to the
next as the point device moves from one display to the next.
- True data path isolation - Provides single, unbuffered, dedicated
processor for each peripheral port to prevent data breaches.
- Lag-free, real-time switching - eliminates keyboard/mouse delay when
switching between ports, offering a fluid and uninterrupted user experience.
- Hardware based peripheral protection - eliminates data leaks with
hardware-controlled unidirectional data flows that allow the primary input
devices (keyboard/mice, etc.) to communicate in only one direction, preventing
data from flowing back to the input devices for enhanced security.
- Multi-monitor flexibility - predefined, ease-of-use configuration tool
provides support of up to four displays per system. Secure compliance - NIAP
Certified to latest Common Criteria Protection Profile PSS Ver 3.0, which
exceeds EAL4 and PP PSS Ver. 2.1.
- Multiple Operating Systems - Windows, Linux, and Mac OS are all supported
with no additional software installation. (Driver is required when multiple
displays are connected to a single PC.)
- Unidirectional Optical Data Diodes assure data can only flow from devices
to host
- Active tampering system
- Secure Labeling to provide visual indication of tampering
Overview
The Belkin Secure KM switches are ideal for data-intensive applications where
information from multiple sources of varying security classes must be viewed on
multiple displays in real time. The Belkin Secure KM switches comply with the
latest NIAP Protection Profile Ver. 3.0 (PP3.0) standard. PP3.0 ensures agencies
are using the latest security safeguards relating to Keyboard, Pointing Device,
and Audio security.
Seamless cursor and keyboard switching (SCS) allows the user to change
automatically from one highly isolated computer system to another by simply
moving the mouse cursor between display borders, without having to push any
buttons. Every system remains visible on its own display(s), continuously and
simultaneously, while the Belkin Secure KM keeps the system isolated and secure.
Analysts and operators in defense and intelligence, banking and trading, or
complex command and control environments will benefit immediately and immensely
from seamless switching via the mouse.
Model F1DN104K-3 supports up to 4 PCs and 16 displays, in a desktop form
factor that can also be mounted under the desk.
Specifications
General |
|
Device
Type |
4-Port,
Secure KM |
Enclosure
Type |
Desktop |
Video
Ports |
Up
to 16 Monitors, depending on graphic cards used |
Keyboard/Mouse |
USB |
Max
Resolution |
Baed
on graphic card parameters |
|
|
Console
Ports |
1x
keyboard (USB Type A) |
|
1x
mouse (USB Type A) |
|
1x
PS/2 keyboard |
|
1x
PS/2 mouse |
|
1x
audio output (3.5mm female jack) |
|
1x
DCU: RJ14 |
|
|
Host
Ports |
4x
keyboard/mouse (USB Type A) |
|
4x
audio input (3.5mm Jack) |
|
|
Dimensions |
|
Weight |
4.3
lbs |
|
|
Power |
|
Power
Device |
External
power adapter |
Voltage |
100/240
VAC (+/- 10%), auto-ranging, 50/60Hz, 12VDC/1.5A
output |
|
|
Manufacturer
Warranty |
3
years service and parts |
|
|
Environmental
Parameters |
|
Min
Operating Temperature |
32°F |
Max
Operating Temperature |
104°F |
Operating
Humidity Range |
0-80%,
non-condensing |
Min
Storage Temperature |
-4°F |
Max
Storage Temperature |
140°F |
|
|
Certifications |
|
Security
Accreditation |
NIAP
Protection Profile Ver. 3.0 |
Regulatory
Compliant Standards |
FCC
Class B, CE, UL, ICES |
