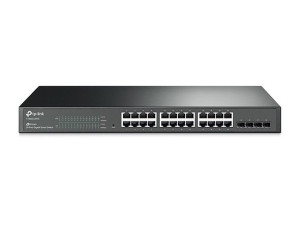

TP-Link T1600G-28TS (TL-SG2424) JetStream 24-Port Gigabit Smart Switch With 4 SFP Slots
Features
- Gigabit Ethernet connections on all ports provide full speed of data
transferring
- L2+ Feature——Static Routing, helps route internal traffic for more
efficient use of network resources
- Integrated security strategy including 802.1Q VLAN, Port Security and
Storm control help protect LAN area investment
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor
discovery
- WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management
features
Overview
TP-Link’s brand new JetStream T1600G-28TS gigabit smart switch provides huge
upgrade comparing with previous versions. New Web UI design features better
operating experience. Small and medium-sized businesses can get cost-effective
networking solutions without sacrificing enhanced usability and strong
performance because of the integrated L2 and L2+ features such as 802.1Q VLAN,
QoS, IGMP Snooping and Static Routing.
Abundant L2 and L2+ Features
T1600G-28TS supports a complete lineup of L2 features, including IGMP
Snooping/ MLD Snooping, 802.1Q/MAC/ Protocol VLAN, STP/RSTP/MSTP, Link
Aggregation Group(LAG), Port Isolation, Port Mirroring, and 802.3x Flow control
function. IGMP Snooping ensures the multicast stream be forwarded intelligently
to the appropriate subscribers by the switch, while IGMP Throttling &
Filtering restricts each subscriber on a certain level to prevent unauthorized
multicast access. Besides, T1600G-28TS also supports L2+ features like static
routing. It is a simple way to provide segmentation of the network with internal
routing through the switch and helps network traffic to be more efficient.
Advanced QoS Features
To integrate voice, data and video service on one network, the switch applies
abundant QoS policies. The administrator can designate the priority of the
traffic based on a variety of functions including Port Priority, 802.1P Priority
and DSCP Priority, which can ensure that voice and video are always clear,
smooth and jitter free. In conjunction with the Voice VLAN that the switch
supports, Voice Applications will perform better and smoother.
IPv6 Support
T1600G-28TS supports comprehensive IPv6 features including IPv6 management,
ACL, QoS and MLD Snooping, all of these features help to ensure a smooth
migration to IPv6-based network without changing switches in the future.
Enterprise Level Management Features
T1600G-28TS supports multiple user-friendly standard management features such
as intuitive web-based Graphical User Interface (GUI), industrially standard
Command Line Interface (CLI) and SNMP (v1/2/3). It supports RMON (Remote Network
Monitoring), which enables the administrator to obtain valuable status
information and also enables the switch to send traps when encountering abnormal
events. Also, the switch supports Dual Image function, which makes there be less
‘down-time’ when switches are being upgraded/downgraded.
Specifications
|
Standards
and Protocols |
IEEE
802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, |
|
|
IEEE
802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, |
|
|
IEEE
802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
|
Interface |
24
10/100/1000Mbps RJ45 Ports |
|
|
(Auto
Negotiation/Auto MDI/MDIX) |
|
|
4
Gigabit SFP Slots |
|
Network
Media |
10BASE-T:
UTP category 3, 4, 5 cable (maximum 100m) |
|
|
100BASE-TX/1000Base-T:
UTP category 5, 5e or above cable |
|
|
(maximum
100m) |
|
|
1000BASE-X:
MMF, SMF |
|
Fan
Quantity |
Fanless |
|
Power
Supply |
100~240VAC,
50/60Hz |
|
Dimensions
( W x D x H ) |
17.3*7.1*1.7
in. (440*180*44 mm) |
|
Mounting |
Rack
Mountable |
|
Max
Power Consumption |
20.4W
(220V/50Hz) |
|
Max
Heat Dissipation |
69.6
BTU/h |
|
PERFORMANCE |
|
|
Bandwidth/Backplane |
56Gbps |
|
Packet
Forwarding Rate |
41.7Mpps |
|
MAC
Address Table |
8K |
|
Jumbo
Frame |
9KB |
|
SOFTWARE
FEATURES |
|
|
Quality
of Service |
Support
802.1p CoS/DSCP priority |
|
|
Support
8 priority queues |
|
|
Queue
scheduling: SP, WRR, SP+WRR |
|
|
Port/Flow-
based Rate Limiting |
|
|
IPv6
QoS* |
|
|
Voice
VLAN |
|
L2
and L2+ Features |
Static
Routing |
|
|
DHCP
Relay* |
|
|
IGMP
Snooping V1/V2/V3 |
|
|
802.3ad
LACP (Up to 14 aggregation groups, containing 8 ports per
group) |
|
|
Spanning
Tree STP/RSTP/MSTP |
|
|
BPDU
Filtering/Guard |
|
|
TC/Root
Protect |
|
|
Loopback
detection |
|
|
802.3x
Flow Control |
|
|
LLDP,
LLDP-MED* |
|
VLAN |
Supports
up to 4K VLANs simultaneously (out of 4K VLAN IDs) |
|
|
MAC/Protocol-based
VLAN |
|
Access
Control List |
L2~L4
package filtering |
|
|
MAC
ACL |
|
|
IP
ACL |
|
|
Combined
ACL |
|
|
IPv6
ACL |
|
Security |
AAA |
|
|
Port
Security |
|
|
DHCP
Snooping |
|
|
IP-MAC-Port
Binding |
|
|
IPv6-MAC-Port
Binding |
|
|
ARP
Inspection |
|
|
802.1x
and Radius Authentication |
|
|
SSH
v1/v2 |
|
|
SSL
v3/TLSv1 |
|
|
Broadcast/Multicast/Unknown-unicast
Storm Control |
|
|
Dos
Defend |
|
IPv6 |
Dual
IPv4/IPv6 stack |
|
|
Multicast
Listener Discovery (MLD) Snooping |
|
|
IPv6
neighbor discovery (ND) |
|
|
Path
maximum transmission unit (MTU) discovery |
|
|
Internet
Control Message Protocol (ICMP) version 6 |
|
|
TCPv6/UDPv6 |
|
IPv6
Applications |
DHCPv6
Client |
|
|
Ping6 |
|
|
Tracert6 |
|
|
Telnet
(v6) |
|
|
IPv6
SNMP |
|
|
IPv6
SSH |
|
|
IPv6
SSL |
|
|
Http/Https |
|
|
IPv6
TFTP |
|
Management |
Web-based
GUI and CLI management |
|
|
SNMP
v1/v2c/v3,compatible with public MIBs and |
|
|
TP-LINK
private MIBs |
|
|
RMON
(1, 2, 3, 9 groups) |
|
|
CPU
Monitoring |
|
|
Port
Mirroring |
|
|
Firmware
Upgrade: TFTP &Web |
|
|
System
Diagnose: VCT |
|
|
SYSLOG
&Public MIBS |
|
|
Dual
Image |
|
|
EEE |
|
OTHERS |
|
|
Certification |
CE,
FCC, RoHS |
|
Package
Contents |
T1600G-28TS |
|
|
Power
Cord |
|
|
Installation
Guide |
|
|
Resource
CD |
|
|
Rackmount
Kit |
|
|
Rubber
Feet |
|
System
Requirements |
Microsoft®
Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or
Linux. |
|
Environment |
Operating
Temperature: 0~40 (32 ~104 ); |
|
|
Storage
Temperature: -40~70 (-40 ~158 ) |
|
|
Operating
Humidity: 10%~90% non-condensing |
|
|
Storage
Humidity: 5%~90% non-condensing |
|
Warranty |
Limited
3-Year Warranty |
