All stock codes associated to this product
WSC246MPRO/SE, WS C246M PRO/SE, 4287511, 4712900981742

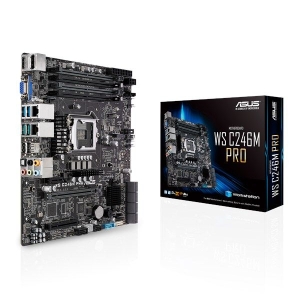

Asus WS C246M PRO/SE
Motherboard
Features
- Rack-optimized design for better cooling efficiency and stability
- Supports up to three independent displays simultaneously via HDMI,
DisplayPort and VGA
- Accelerated data-transfer speeds of up to 32Gbps with M.2
- Onboard USB 3.1 for fast transfer speeds of up to 10Gbps
- Dual Intel® Gigabit LAN with teaming support
- ASUS Control Center — A software utility that provides convenient, secure
and cost-saving centralized IT management for small and medium
businesses
Overview
WS C246M PRO Compact, rack-optimized Intel LGA1151 micro-ATX
motherboard with M.2, USB 3.1 Gen2 connectors and dual Gigabit LAN
Rack-optimized design for better cooling efficiency
WS C246M PRO is the perfect workstation motherboard for media server, cloud
gaming and video streaming applications. Its rack-optimized layout maximizes
cooling efficiency for the best performance and stability, ensuring it's ready
to meet the demands of enterprise or academia use.
Powerful performance with Intel Xeon E processor and ECC
memory
WS C246M PRO supports Intel E series processors to deliver powerful,
optimized performance in always-on usage scenarios. Support for Error-Correcting
Code (ECC) memory enables automatic detection and repair of single-bit memory
errors, reducing the chance of system crashes and data corruption to ensure
reliable and responsive workstation performance.
Supports up to three independent displays simultaneously
WS C246M PRO is equipped for total display flexibility with onboard HDMI,
DisplayPort and VGA connectivity. With a compatible latest-generation Intelprocessor,
you can connect up to three independent displays simultaneously for better
multitasking and enhanced productivity.
Accelerated data-transfer speeds of up to 32Gbps with
M.2
With PCIe 3.0 x4 bandwidth, one M.2 supports up to 32Gbps data-transfer
speeds with native NVMe that's up to 5.3X faster than traditional SSDs. WS C246M
PRO also supports the very latest 2.5-inch NVMe SSDs for quick and easy
setup.
Onboard USB 3.1 for fast transfer speeds of up to
10Gbps
WS C246M PRO has two onboard USB 3.1 Gen2 connectors that provide
data-transfer speeds of up to 10Gbps, twice as fast USB3.1 Gen1.
SafeSlot
ASUS SafeSlot is the PCIe slot reinvented by ASUS and engineered to
provide superior retention and shearing resistance, which protect your graphics
card investment. Manufactured in a single step using a new injection-molding
process integrates the slot with the fortifying metal for an inherently stronger
slot, which is then firmly anchored to the PCB through additional solder
points.
ASUS Control Center
WS C246M PRO features ASUS Control Center (ACC), a centralized and
integrated IT management platform for monitoring and controlling ASUS commercial
products, including servers, workstations and digital signage. ACC enables
remote BIOS updates, monitoring of multiple systems via mobile devices, and
one-click software updates and dispatching, allowing easier server management
for any IT infrastructure.
Specifications
|
Processor
/ System Bus |
1
x Socket LGA1151 |
|
|
Intel®
Xeon® processor E-2100 family |
|
Core
Logic |
Intel®
C246 Chipset |
|
|
|
|
Memory |
|
|
Total
Slots |
4
(2-channel) |
|
Capacity
|
Maximum
up to 64GB UDIMM |
|
Memory
Type |
Dual
Channel DDR4 2666/2400 /2133 |
|
Memory
Size |
16GB,
8GB UDIMM |
|
|
|
|
Expansion
Slots |
|
|
Total
Slot |
3 |
|
Slot
Location 1 |
PCI-E
x1 (Gen2 X1 Link) |
|
Slot
Location 2 |
PCI-E
x16 (Gen3 X16 Link) |
|
Slot
Location 3 |
PCI-E
x8 (Gen3 X4 Link) |
|
|
|
|
Form
Factor |
U
ATX (9.6"x9.6", 244mm x 244mm) |
|
|
|
|
Storage |
|
|
SATA
Controller : |
Intel®
C246 Chipset |
|
|
8
x SATA3 6Gb/s ports |
|
|
Intel®
Rapid Storage Technology(RST) (For Linux/Windows) |
|
|
(Support
Software RAID ) |
|
SAS
Controller : |
ASUS
PIKE II 3008-8i 8-port SAS 12G RAID card(Optional) |
|
|
ASUS
PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) |
|
|
|
|
Networking |
1
x Intel® I210AT |
|
|
1
x i219-LM |
|
On
Board I/O |
2
x USB 2.0 pin header |
|
|
1
x USB 3.0 pin header |
|
|
1
x M.2 Connector , NGFF Type : 2280/2260/2242 |
|
|
1
x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power
connector) |
|
|
1
x COM port |
|
|
1
x TPM header |
|
|
1
x S/PDIF Out (Optical) |
|
Back
I/O Ports |
2
x USB 3.1 ports (Type A) |
|
|
2
x USB 3.0 ports |
|
|
2
x USB 2.0 ports |
|
|
1
x HDMI |
|
|
1
x DisplayPort |
|
|
1
x VGA |
|
|
2
x RJ-45 ports |
|
|
8-channel
Audio I/O ports (5+1 Audio jacks) |
|
Management
Solution |
WfM
2.0, DMI 3.0, WOL by PME, WOR by PME, PXE |
|
Accessories |
Gift
Box (1-in-1) |
|
|
1
x Support CD |
|
|
1
x I/O shield |
|
|
8
x SATA 6G cables |
|
|
1
x Com port cable |
|
|
1
x User manual |
|
|
1
x Quick start guide |
|
|
1
x M.2 screw |
|
|
Bulk
Pack (10-in-1) |
|
|
1
x Support CD |
|
|
10
x I/O shield |
|
|
80
x SATA 6G cables |
|
|
10
x Com port cable |
|
|
1
x User manual |
|
|
1
x Quick start guide |
|
|
10
x M.2 screw |
|
Monitoring |
CPU
Temperature |
|
|
Fan
RPM |
