WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 4 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

ALTERNATE SPINNING
The GIGABYTE patent Alternate Spinning is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.

GAME IN STYLE
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the 6+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life. (Reference card is 5+2 power phase)

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

POWER INDICATORS
The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.

IN TOTAL COMMAND
The interface and functionality of the software is subject to each model.

AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your games requirements.

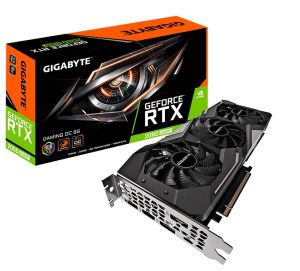

- Powered by GeForce RTX 2060 SUPER
- Integrated with 8GB GDDR6 256-bit memory interface
- WINDFORCE 3X Cooling System with alternate spinning fans
- 4 Copper Heat Pipes direct touch GPU
- RGB Fusion 2.0 synchronize with other AORUS devices
- Metal Back Plate

Specifications

Processor
Graphics processorGeForce RTX 2060 SUPER
Maximum resolution7680 x 4320 pixels
Graphics processor familyNVIDIA
CUDAYes
Parallel processing technology supportNot supported
Maximum displays per videocard4
FireStreamNo
CUDA cores2176
Memory
Discrete graphics adapter memory8 GB
Graphics adapter memory typeGDDR6
Memory bus256 bit
Memory clock speed14000 MHz
Memory bandwidth (max)448 GB/s
Ports &interfaces
Interface typePCI Express x16 3.0
HDMI ports quantity1
DisplayPorts quantity3
HDMI version2.0b
DisplayPort version1.4
USB Type-C ports quantity1
Performance
NVIDIA G-SYNCYes
Virtual Reality (VR) readyYes
TV tuner integratedNo
PhysXYes
DirectX version12.0
OpenGL version4.5
HDCPYes
Dual Link DVINo
Design
Number of fans3 fan(s)
Illumination colourMulti
IlluminationYes
Cooling typeActive
Form factorATX
Number of slots2
Product colourBlack
Power
Minimum system power supply550 W
Supplementary power connectors1x 6-pin, 1x 8-pin
System requirements
Windows operating systems supportedWindows 10
Weight &dimensions
Width280.4 mm
Height116.5 mm
Depth40.2 mm



No additional files, specification sheets, guides or documentation found for product.
