All stock codes associated to this product
WP400

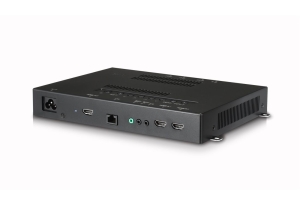

LG WP400 WebOS Box
Features
- LG webOS 4.0 Smart Signage Platform
- Ultra HD Video Playback
- Intuitive UX Dedicated for Digital Signage
- Embedded CMS
- Compatibility with LG SuperSign Solution and Signage 365 Care
Overview

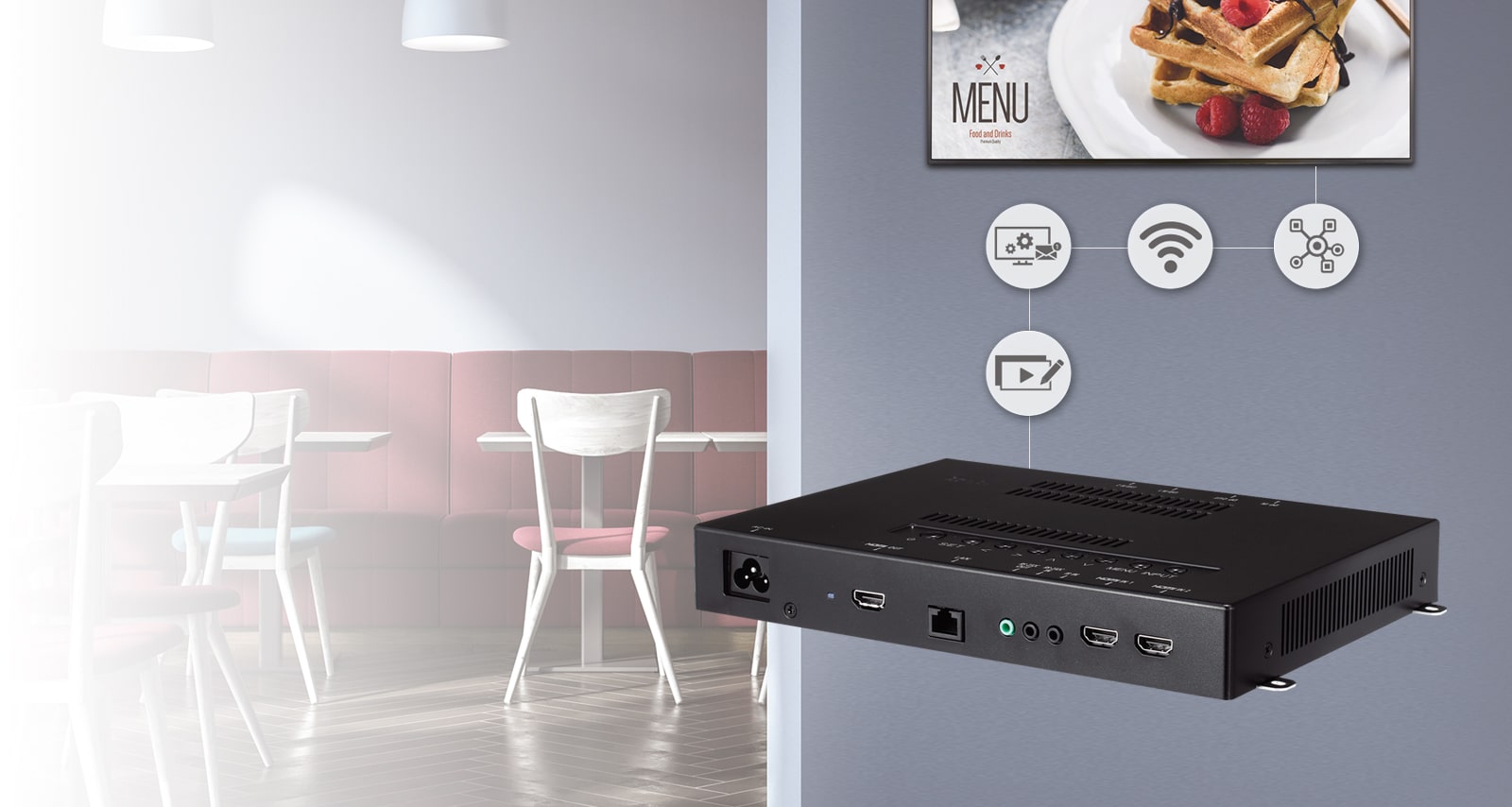

The User-Friendly Smart Signage Platform
The WP400 webOS box operates webOS 4.0, the enhanced user-friendly LG smart
signage platform, and is attached to existing LG digital signages and upgrades
them regardless of their original platform. It can execute several tasks at once
while providing smooth content playback, and provides an excellent user
experience.

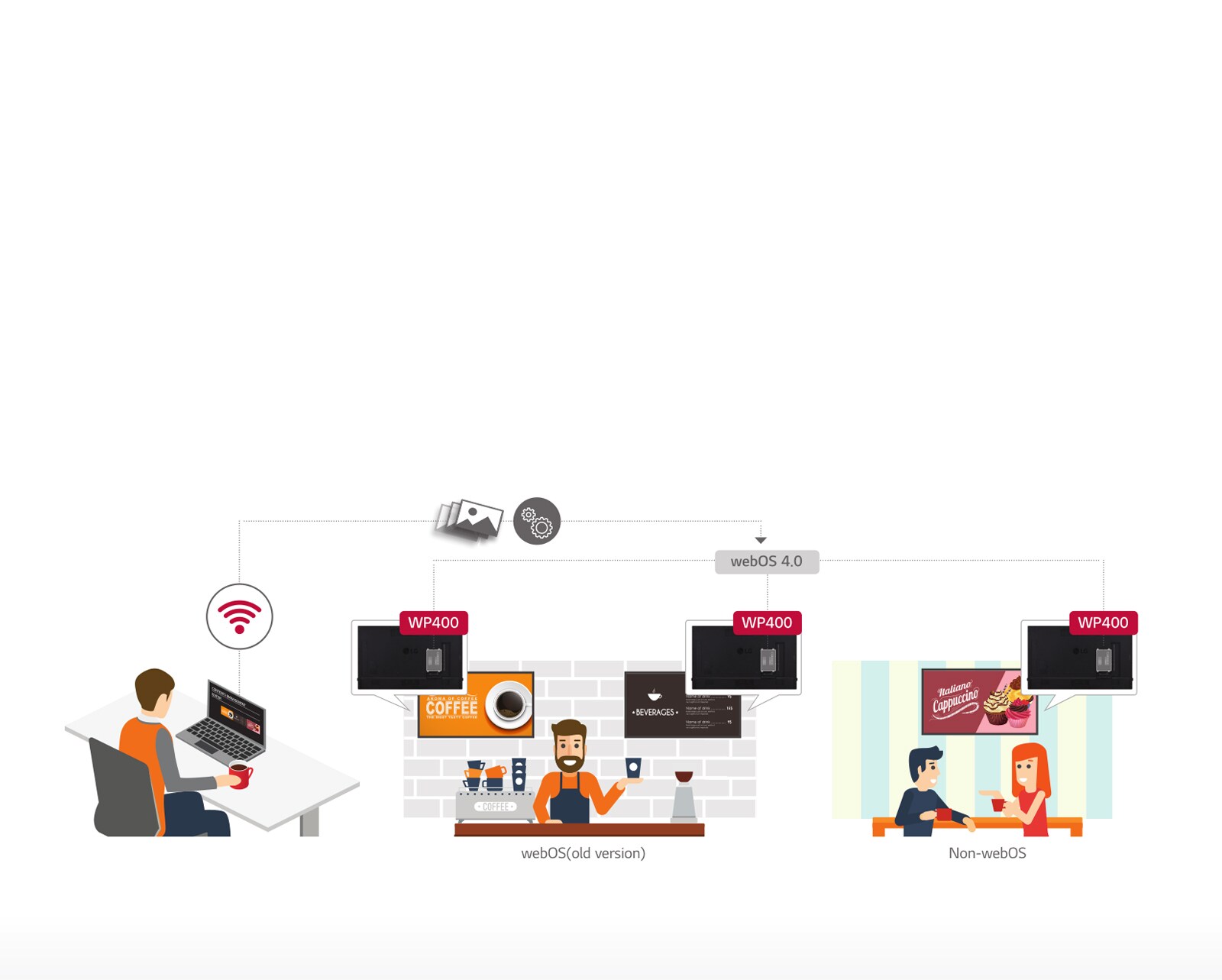

Upgrade to the webOS 4.0 Smart Signage Platform
The WP400 may be applied towards any type of LG digital signages regardless
of its platform. The webOS box provides user-friendly smart functions with
dedicated menus essential for business use. This way, users are able to easily
manage and distribute content or develop web-based applications for multiple
signages simultaneously.

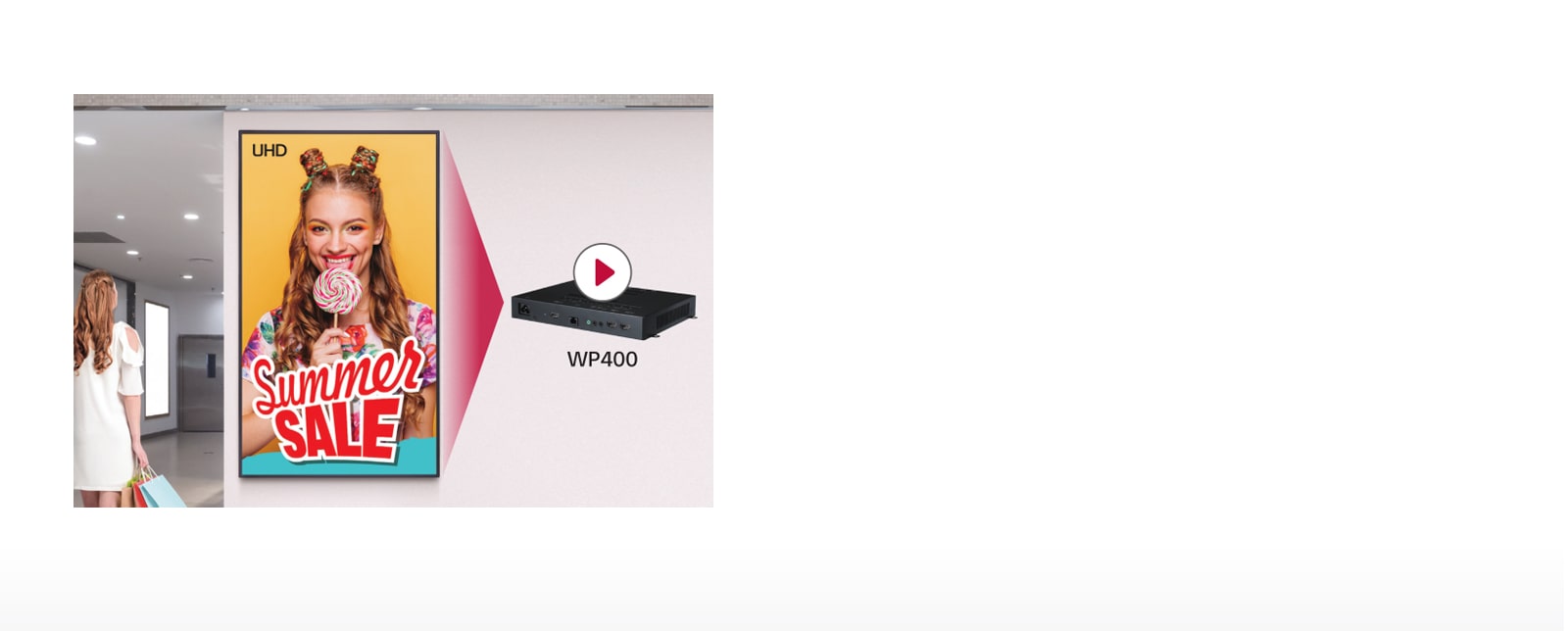

UHD Video Playback Supported
The WP400 supports Ultra HD high-quality video playback which delivers
true-to-life color details, with four times higher definition than FHD. Only a
single webOS box is required for this superior picture quality.

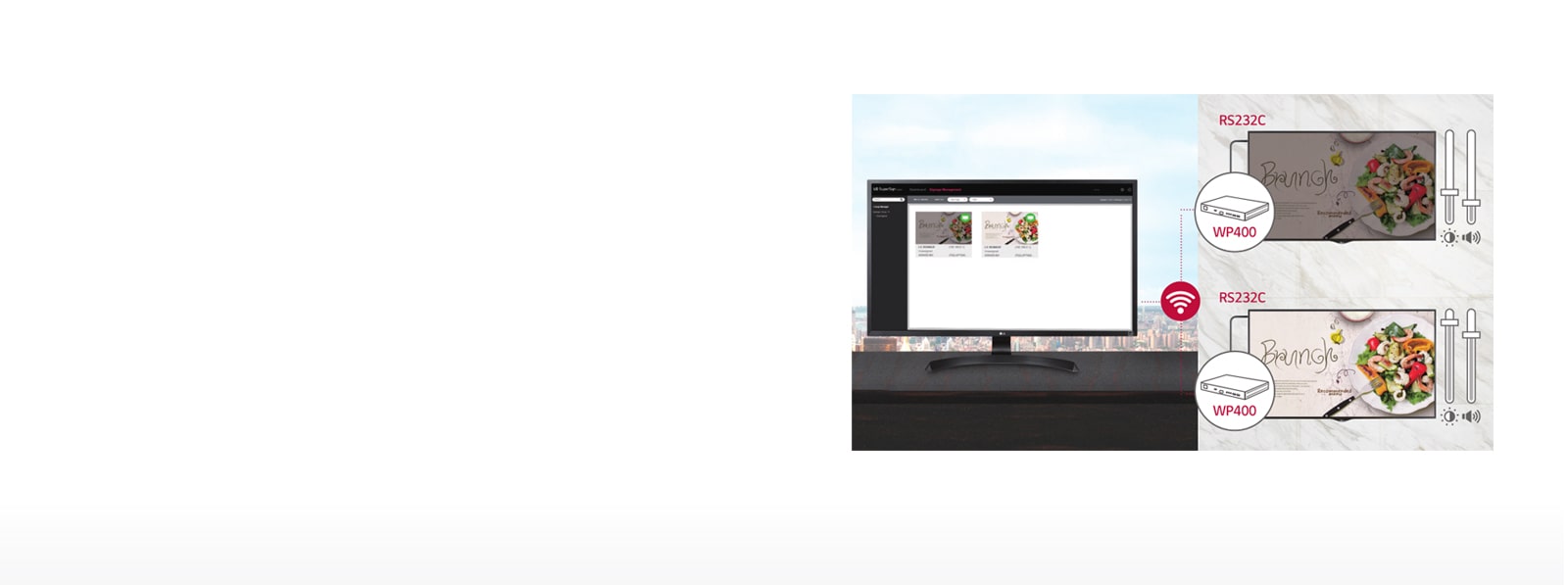

Display Control Capability
Beyond content management, control commands from the WP400 can be sent to LG
digital signages through the RS232C cable connection. It allows users to
flexibly set up display values such as power, brightness or volume for optimal
operation.

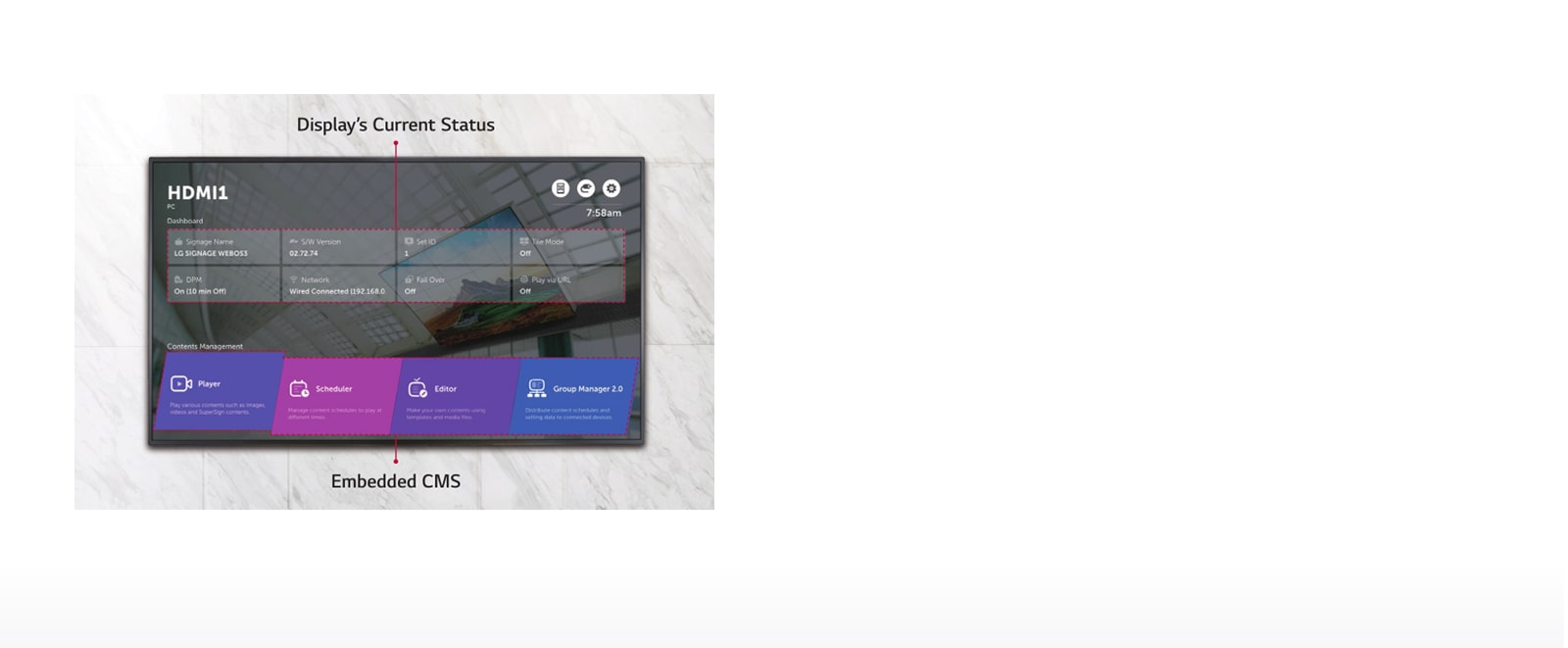

All-in-One Home Menu
The WP400 offers a signage-dedicated home menu that shows key information
related to signage operation at a glance. A dashboard showing the status of
devices, a content management menu, and shortcuts leading to quick settings
greatly enhance user convenience.

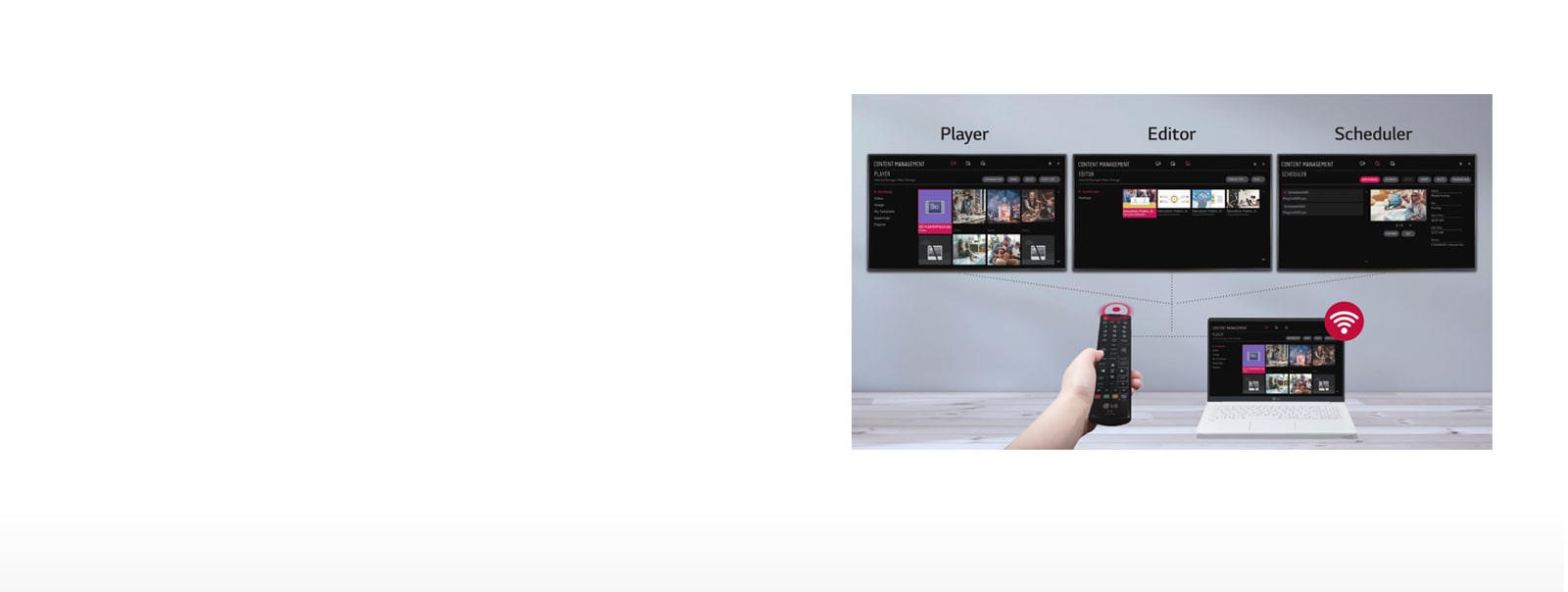

Embedded Content Management
The embedded CMS(Content Management System) allows users to edit content
using internal/external sources and set playlists to play at the desired
schedule. Users can easily explore and manage content through the intuitive GUI,
using various input devices, from a remote control to a laptop.

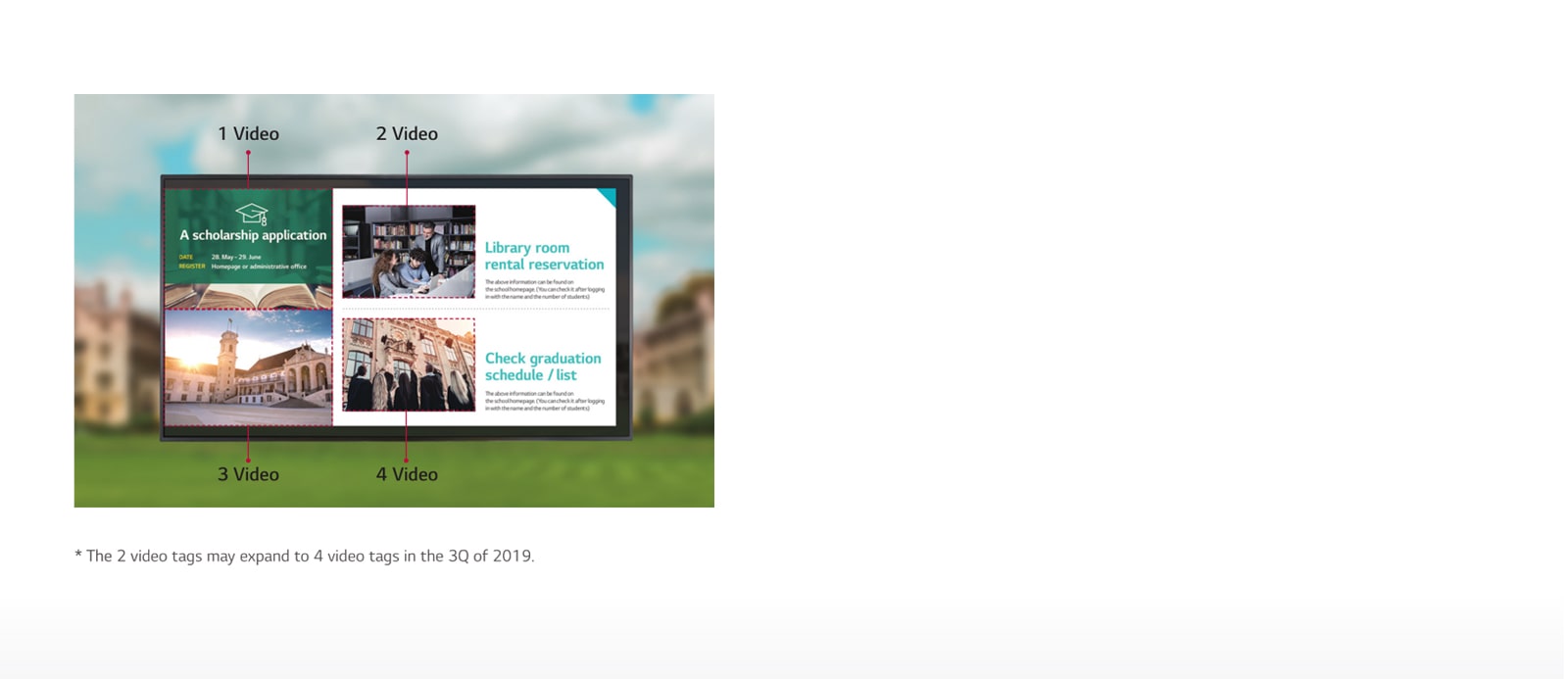

Multi Video Tags
Several different videos can be played at the same time using the multi video
tags* feature. This gives you greater flexibility to organize and deploy content
when various content items need to be delivered simultaneously via web apps.

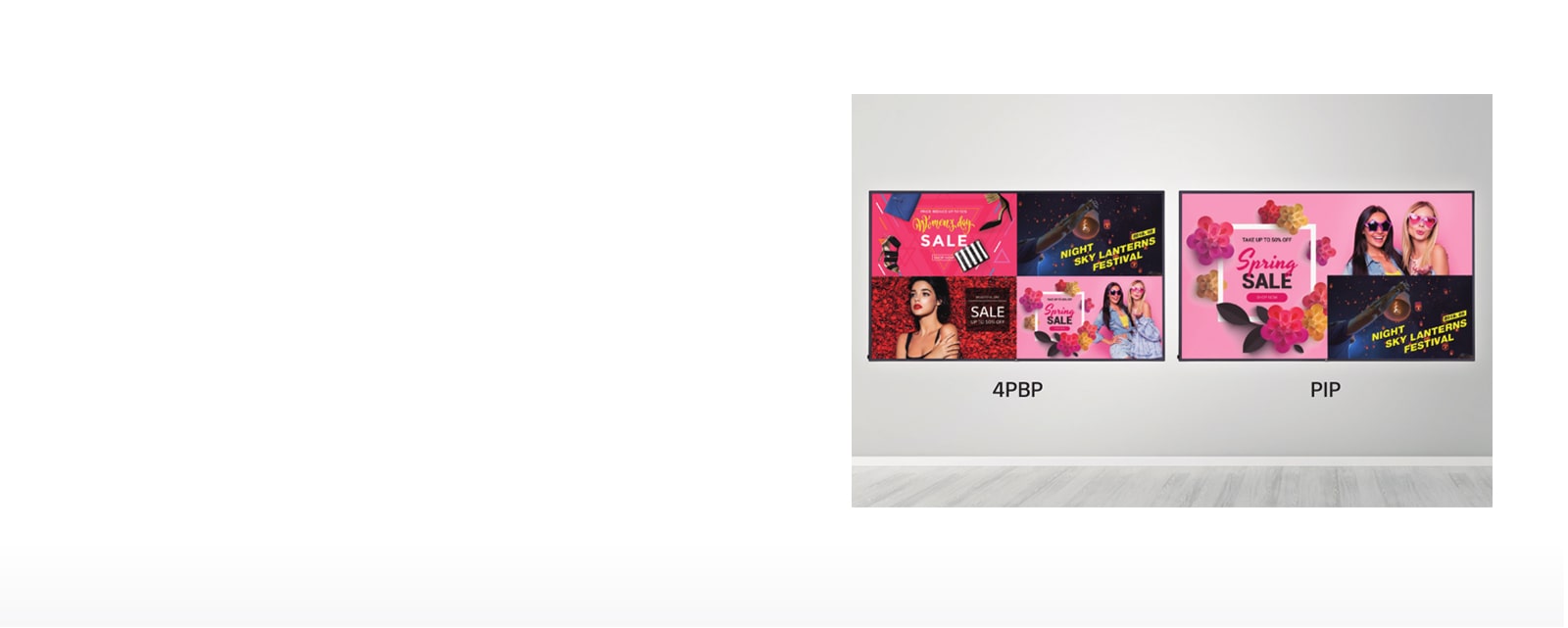

Multi Screen with PBP/PIP
PBP(Picture-By-Picture) features multi screen in a single display with upto 4
input sources while PIP(Picture-In-Picture) supports playing both main screen
and sub screen at the same time with various layouts. This gives great
flexibility to allocate space for each content souce.

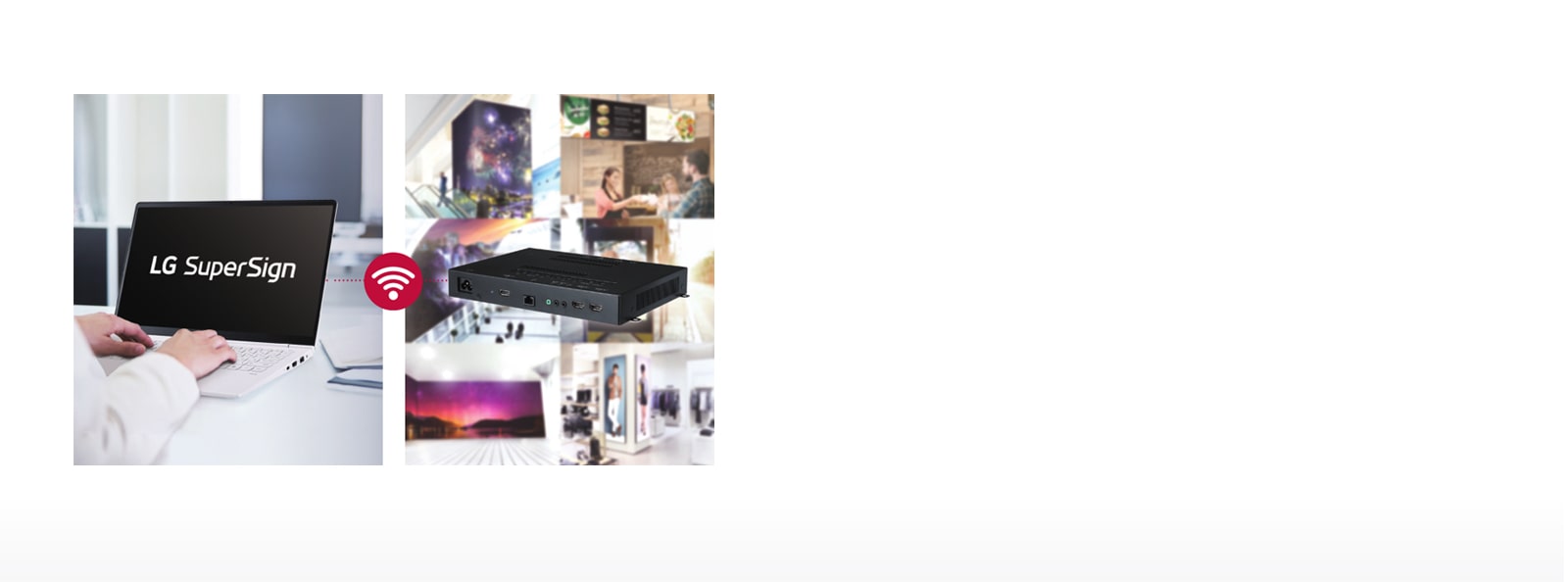

Compatibility with LG SuperSign Solutions
LG SuperSign is a comprehensive and indispensable software solution for the
integrated management of LG digital signages. With SuperSign, content creation
and distribution gets easier and centralized monitoring and control becomes
simpler, helping your business save time and operate more effectively across
different locations.

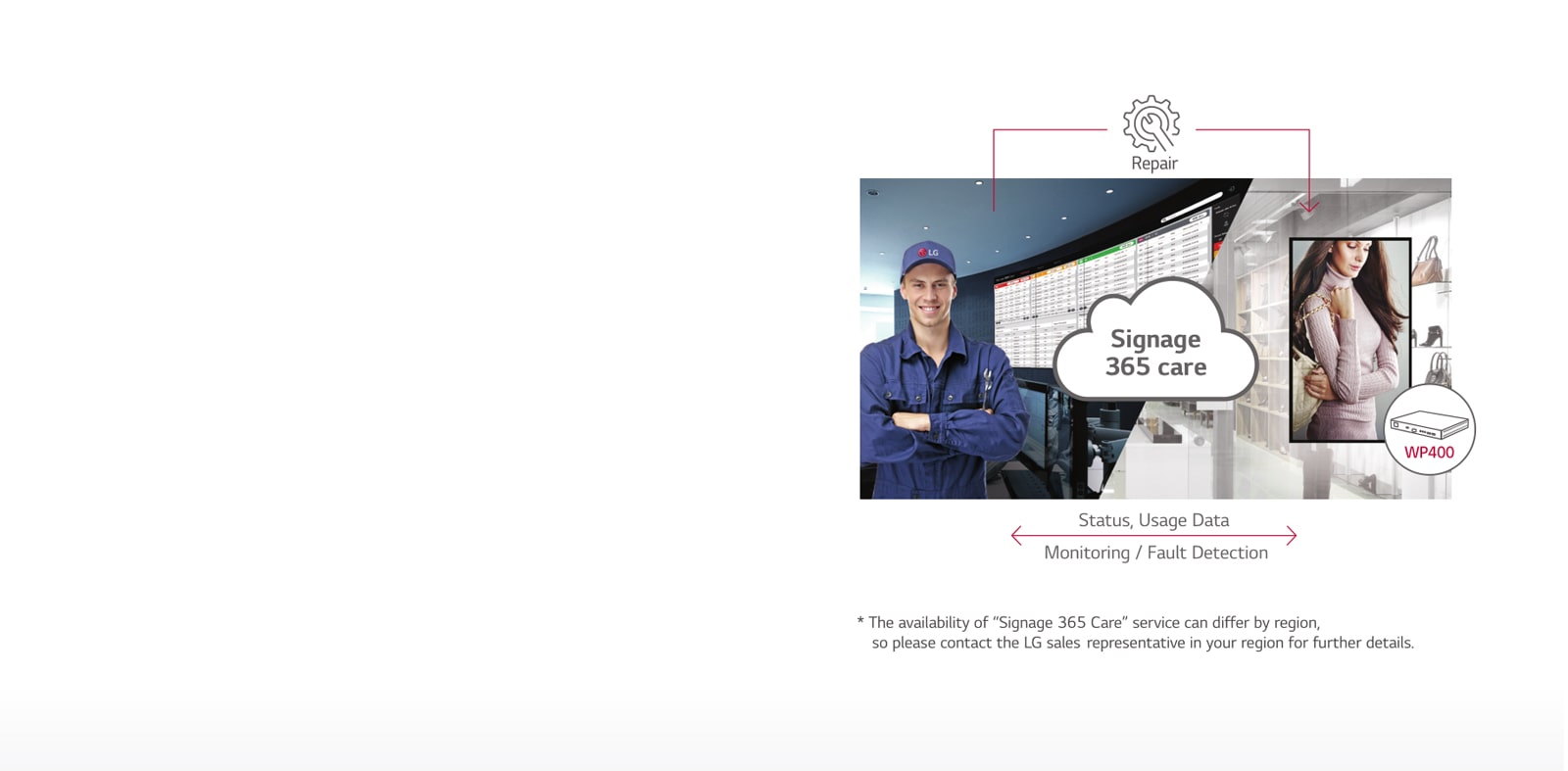

Real-Time Remote Care Service
The maintenance gets easier and faster with an optional service Signage 365
Care*, a cloud service solution provided by LG service. It remotely manages
status of displays in client workplaces for fault diagnosis and remote-control
services, ensuring the stable operation of a client’s business.
Specifications
|
Connectivity |
|
|
Input |
HDMI
(2), DP, USB 2.0 (2) |
|
Output |
HDMI,
DP(Daisy chain only) |
|
External
Control |
RS232C
in/out, RJ45 in, IR in |
|
Mechanical
Specification |
|
|
Player
Dimension (W x H x D) |
258
× 36.5 × 186 mm |
|
Weight |
1.4
kg |
|
Carton
Dimensions (W × H × D) |
314
x 124 x 359 mm |
|
Packed
Weight |
2.26
kg |
|
Key
Feature (Hardware) |
Internal
Memory 8GB (System 4GB, Available 4GB), Wi-Fi Built-in (ac combo), Thermal
Sensor, Power Indicator, Local Key Operation |
|
Key
Feature (Software) |
|
|
webOS
ver. |
webOS
4.0 |
|
Embedded
CMS |
USB
Auto Playback, Local Contents Scheduling, Group
Manager |
|
Fail
over |
O |
|
Customization |
No
Signal |
|
Content
Sync. |
RS-232C,
Local Network |
|
Multi-screen |
PIP/PBP(4) |
|
Screen
Share |
O |
|
Video
Tag |
O
(2) *2 Video tags may expand to 4 video tags in the 3Q of
2019. |
|
Play
via URL |
O |
|
OSD
Rotation |
O |
|
Lock
mode |
O
(Home Dashboard, USB, OSD, IR Operation, Local Key, WiFi, SoftAP, Screen
Share) |
|
Content
Rotation |
O |
|
Gapless
Playback |
O |
|
Tile
Mode Setting |
O
(Max. 15x15) |
|
Setting
Data Cloning |
O
(RS-232C, Network, USB) |
|
Firmware
Update by Network |
O |
|
SNMP(ver.2) |
O |
|
ISM
Mode |
(Image
Sticking Minimization) |
|
|
O |
|
Status
Mailing |
O |
|
Power
Mgmt. |
DPM,
On/Off Schedule, Holiday Schedule, Power on Status, Smart Energy Saving,
Wake on LAN, Power on Delay |
|
Control
Manager |
O |
|
Daylight
Saving Time |
O |
|
Beacon |
O |
|
HDMI-CEC |
O
*Compatibility may differ by equipment. |
|
SI
Server Setting |
O |
|
webRTC |
O |
|
Environment
Conditions |
|
|
Operation
Temperature |
0°C
to 40°C |
|
Operation
Humidity |
10%
to 80% |
|
Power |
|
|
Power
Supply |
100-240V~,
50/60Hz |
|
Power
Type |
Built-In
Power |
|
Power
Consumption |
|
|
Typ./Max |
16
W / 22 W |
|
Certification |
|
|
Safety |
CB |
|
EMC |
CE
Class A |
|
Software
Compatibility |
|
|
Content
Management Software |
SuperSign
CMS |
|
Control
and Monitoring Software |
SuperSign
Control/Control+ |
|
Accessory |
|
|
Basic |
Remote
Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C
Gender |
