Philips 328P6VUBREB LCD Monitor With USB-C Dock
Overview
Simplify your connections with USB-C docking monitor
- P Line
- 32 (31.5" / 80 cm diag.)
- 4K UHD (3840 x 2160)

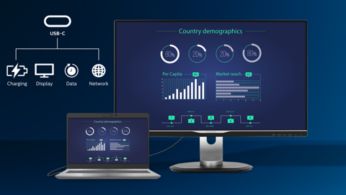

Built in USB-C docking station
This Philips display features a built-in USB 3.1 type-C docking station with
power delivery. Its slim, reversible USB-C connector allows for easy, one-cable
docking. Simplify by connecting all your peripherals like keyboard, mouse and
your RJ-45 Ethernet cable to the monitor's docking station. Simply connect your
notebook and this monitor with a single USB-C cable to watch high-resolution
video and transfer super-speed data, while powering up and re-charging your
notebook at the same time.
High Dynamic Range (HDR) for more lifelike colorful visuals
High Dynamic Range delivers a dramatically different visual experience. With
astonishing brightness, incomparable contrast and captivating color, images come
to life with much greater brightness while also featuring much deeper, more
nuanced darks. It renders a fuller palette of rich new colors never before seen
on display, giving you a visual experience that engages your senses and inspires
emotions.
Ultra Wide-Color wider range of colors for a vivid picture
Ultra Wide-Color Technology delivers a wider spectrum of colors for a more
brilliant picture. Ultra Wide-Color wider "color gamut" produces more
natural-looking greens, vivid reds and deeper blues. Bring, media entertainment,
images, and even productivity more alive and vivid colors from Ultra Wide-Color
Technology.
1.074 billion colors for smooth color gradations and detail
The 10-bit display delivers rich color depth with 1.074 billion colors and
12-bit internal processing for re-creating smooth, natural colors without
gradations and color banding.
UltraClear 4K UHD (3840x2160) resolution for precision
These latest Philips displays utilize high performance panels to deliver
UltraClear, 4K UHD (3840 x 2160) resolution images. Whether you are demanding
professional requiring extremely detailed images for CAD solutions, using 3D
graphics applications or a financial wizard working on huge spreadsheets,
Philips displays will make your images and graphics come alive.
LowBlue Mode for easy on-the-eyes productivity
Studies have shown that just as ultra-violet rays can cause eye damage,
shortwave length blue light rays from LED displays can cause eye damage and
affect vision over time. Developed for wellbeing, Philips LowBlue Mode setting
uses a smart software technology to reduce harmful shortwave blue light.

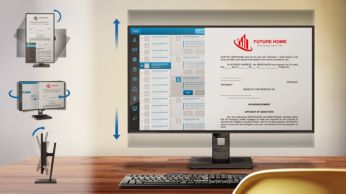

SmartErgoBase enables people-friendly ergonomic adjustments
The SmartErgoBase is a monitor base that delivers ergonomic display comfort
and provides cable management. The base's people-friendly height, swivel, tilt
and rotation angle adjustments position the monitor for maximum comfort that can
ease the physical strains of a long workday; cable management reduces cable
clutter and keeps the workspace neat and professional.
Built in RJ-45 ethernet gives data security
Power and re-charge compatible notebook from the monitor
This monitor features a built in USB-C connector which meets USB Power
Delivery standard. With intelligent and flexible power management, you can now
power up and or re-charge your compatible* Notebook directly from the Monitor
using a single USB-C cable.
MultiView enables simultaneous dual connect and view
With the ultra-high resolution Philips MultiView display you can now
experience a world of connectivity. MultiView enables active dual connect and
view so that you can work with multiple devices like a PC and notebook
simultaneously, for complex multi-tasking.
Built-in stereo speakers for multimedia
A pair of high quality stereo speakers built into a display device. It can be
visible front firing, or invisible down firing, top firing, rear firing, etc
depending on model and design.
Specifications
|
Picture/Display |
|
|
LCD
panel type |
VA
LCD |
|
Backlight
type |
W-LED
system |
|
Panel
Size |
31.5
inch / 80 cm |
|
Display
Screen Coating |
Anti-Glare,
3H, Haze 25% |
|
Effective
viewing area |
698.4
(H) x 392.85 (V) |
|
Aspect
ratio |
16:09 |
|
Optimum
resolution |
3840
x 2160 @ 60Hz |
|
Pixel
Density |
139.87
PPI |
|
Response
time (typical) |
4
ms (Gray to Gray)* |
|
Brightness |
600
cd/m² (peak)* |
|
Contrast
ratio (typical) |
3000:01:00 |
|
SmartContrast |
80,000,000
:1 |
|
Pixel
pitch |
0.181
x 0.181 mm |
|
Viewing
angle |
178º
(H) / 178º (V) |
|
|
@
C/R > 10 |
|
Flicker-free |
Yes |
|
enhancement |
SmartImage |
|
Display
colors |
Color
support 1.07 billion colors |
|
Color
gamut (min.) |
BT.
709 Coverage: 100%*; DCI-P3 Coverage: 98%* |
|
Color
gamut (typical) |
NTSC
116%*, sRGB 138%*, Adobe RGB 94%* |
|
HDR |
DisplayHDR
600 (DP/HDMI) |
|
Scanning
Frequency |
30
- 160 kHz (H) / 23 - 80 Hz (V) |
|
SmartUniformity |
95%
~ 103% |
|
Delta
E |
<
2 |
|
sRGB |
Yes |
|
LowBlue
Mode |
Yes |
|
EasyRead |
Yes |
|
|
|
|
Connectivity |
|
|
Signal
Input |
DisplayPort
1.4 x 1, HDMI 2.0 x 2, USB-C 3.1 Gen 1 x 1 (upstream, power delivery up to
60 W), USB 3.0 x 4 (downstream, 1 w/fast charging BC
1.2)* |
|
Sync
Input |
Separate
Sync |
|
|
Sync
on Green |
|
Audio
(In/Out) |
PC
audio-in |
|
|
Headphone
out |
|
RJ45 |
Ethernet
LAN (10M/100M/1G) |
|
|
|
|
USB
docking |
|
|
USB-C |
Reversible
plug connector |
|
Super
speed |
Data
and Video transfer |
|
DP |
Built-in
Display Port Alt mode |
|
USB-C
power delivery |
USB
PD version 2.0 |
|
USB-C
max. power delivery |
Upto
60watts (5V/3A; 7V/3A; 9V/3A; 12V/3A; 15V/3A; 20V/3A) |
|
|
|
|
Convenience |
|
|
Built-in
Speakers |
3
W x 2 |
|
MultiView |
PIP/PBP
mode |
|
|
2x
devices |
|
User
convenience |
SmartImage |
|
|
Multiview |
|
|
User |
|
|
Menu |
|
|
Power
On/Off |
|
|
|
|
Control
software |
SmartControl |
|
|
|
|
OSD
Languages |
Brazil
Portuguese |
|
|
Czech |
|
|
Dutch |
|
|
English |
|
|
Finnish |
|
|
French |
|
|
German |
|
|
Greek |
|
|
Hungarian |
|
|
Italian |
|
|
Japanese |
|
|
Korean |
|
|
Polish |
|
|
Portuguese |
|
|
Russian |
|
|
Simplified
Chinese |
|
|
Spanish |
|
|
Swedish |
|
|
Traditional
Chinese |
|
|
Turkish |
|
|
Ukranian |
|
|
|
|
Other
convenience |
Kensington
lock |
|
|
VESA
mount (100x100mm) |
|
|
|
|
Plug
&ay Compatibility |
DDC/CI |
|
|
Mac
OS X |
|
|
sRGB |
|
|
Windows
10 / 8.1 / 8 / 7 |
|
|
|
|
Stand |
|
|
Height
adjustment |
180
mm |
|
Pivot |
90
degree |
|
Swivel |
-170/+170
degree |
|
Tilt |
-5/20
degree |
|
|
|
|
Power |
|
|
ECO
mode |
34.6
W (typ.) |
|
On
mode |
41
W (EnergyStar 7.0 test method) |
|
Standby
mode |
<
0.5 W (typ.) |
|
Off
mode |
Zero
watts with Zero switch |
|
Power
LED indicator |
Operation
- White |
|
|
Standby
mode- White (blinking) |
|
Power
supply |
Built-in |
|
|
100-240VAC,
50-60Hz |
|
|
|
|
|
|
|
Dimensions |
|
|
Product
with stand(max height) |
742
x 657 x 270 mm |
|
Product
without stand (mm) |
742
x 438 x 63 mm |
|
Packaging
in mm (WxHxD) |
970
x 526 x 224 mm |
|
|
|
|
Weight |
|
|
Product
with stand (kg) |
9.36
kg |
|
Product
without stand (kg) |
6.40
kg |
|
Product
with packaging (kg) |
13.26
kg |
|
|
|
|
Operating
conditions |
|
|
Temperature
range (operation) |
0°C
to 40°C °C |
|
Temperature
range (storage) |
-20°C
to 60°C °C |
|
Relative
humidity |
20%-80
% |
|
Altitude |
Operation:
+12,000ft (3,658m), Non-operation: +40,000ft
(12,192m) |
|
MTBF
(demonstrated) |
70,000
hrs (excluded backlight) |
|
|
|
|
Sustainability |
|
|
Environmental
and energy |
EnergyStar
7.0 |
|
|
EPEAT
Gold* |
|
|
RoHS |
|
|
TCO
edge |
|
|
WEEE |
|
Recyclable
packaging material |
100
% |
|
Post
consumer recycled plastic |
65% |
|
Specific
Substances |
PVC
/ BFR free housing |
|
|
Mercury
free |
|
|
Lead
free |
|
|
|
|
Compliance
and standards |
|
|
Regulatory
Approvals |
CE
Mark |
|
|
FCC
Class B |
|
|
VCCI |
|
|
RCM |
|
|
ICES-003 |
|
|
J-MOSS |
|
|
cETLus |
|
|
EPA |
|
|
PSB |
|
|
CU-EAC |
|
|
SEMKO |
|
|
UKRAINIAN |
|
|
PSE |
|
|
CECP |
|
|
TUV/ISO9241-307 |
|
|
|
|
Cabinet |
|
|
Front
bezel |
Black |
|
Rear
cover |
Black |
|
Foot |
Black |
|
Finish |
Texture |
|
|
|
|
Web
navigation |
|
|
Hotel
TV |
N/A |
