All stock codes associated to this product
MCBNR600KGNNS00, MCB-NR600-KGNN-S00, 4489690, 4719512079355, 884102051845
CoolerMaster MCB-NR600-KGNN-S00 MasterBox NR600
Overview
Form & Function Steamlined
- Minimalistic Design
- Seamless Tempered Glass
- Ample Storage Support
- Headset Jack
- Fan Support
- Radiator Support
- Component Clearances

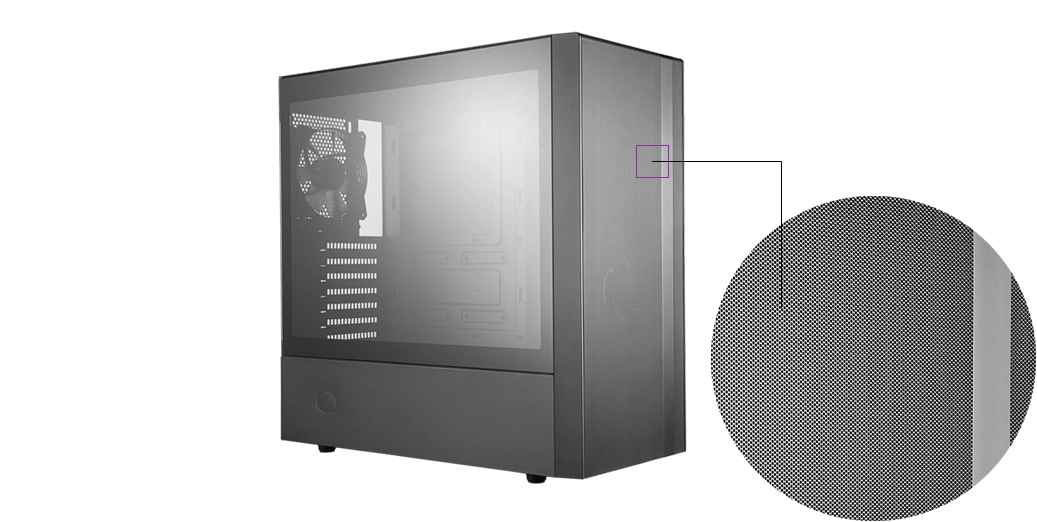

MINIMALISTIC DESIGN
The MasterBox NR600 is a pure and simple design that is focused on airflow
performance. A single-layer, fine mesh makes up the entire front panel,
achieving efficient airflow while also acting as a dust filter.

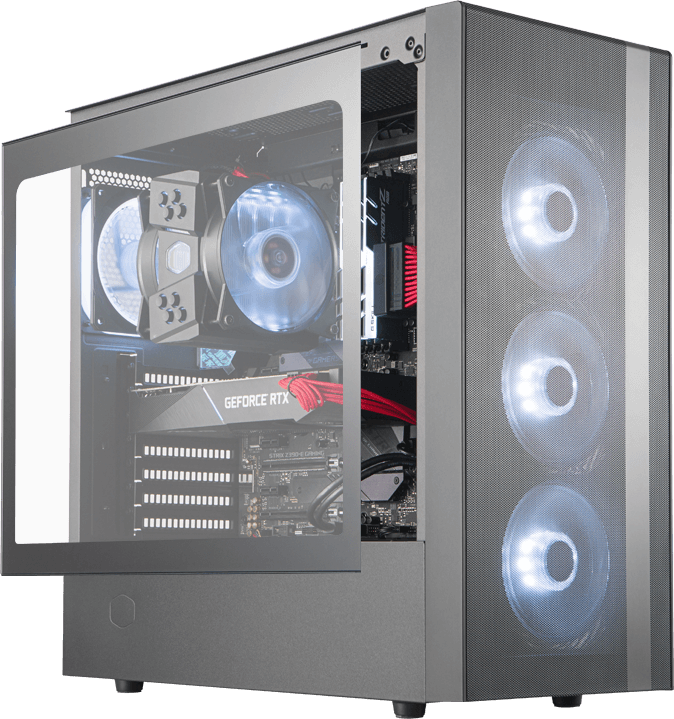

SEAMLESS TEMPERED GLASS
The tempered glass side panel sits completely flush against the chassis,
mounted securely and discreetly by a system of tabs and thumbscrews.
Front Side
Back Side

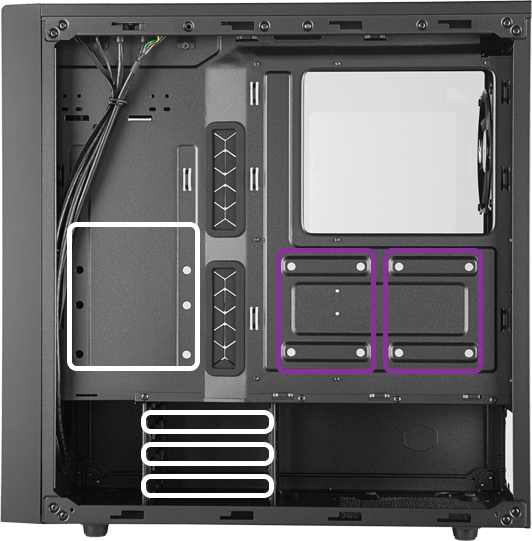

AMPLE STORAGE SUPPORT
A total of 5 x 2.5" and 4 x 3.5" drives can be mounted using a tool-less
system. Storage can be mounted on the PSU shroud, behind the motherboard tray,
and in the HDD cage.

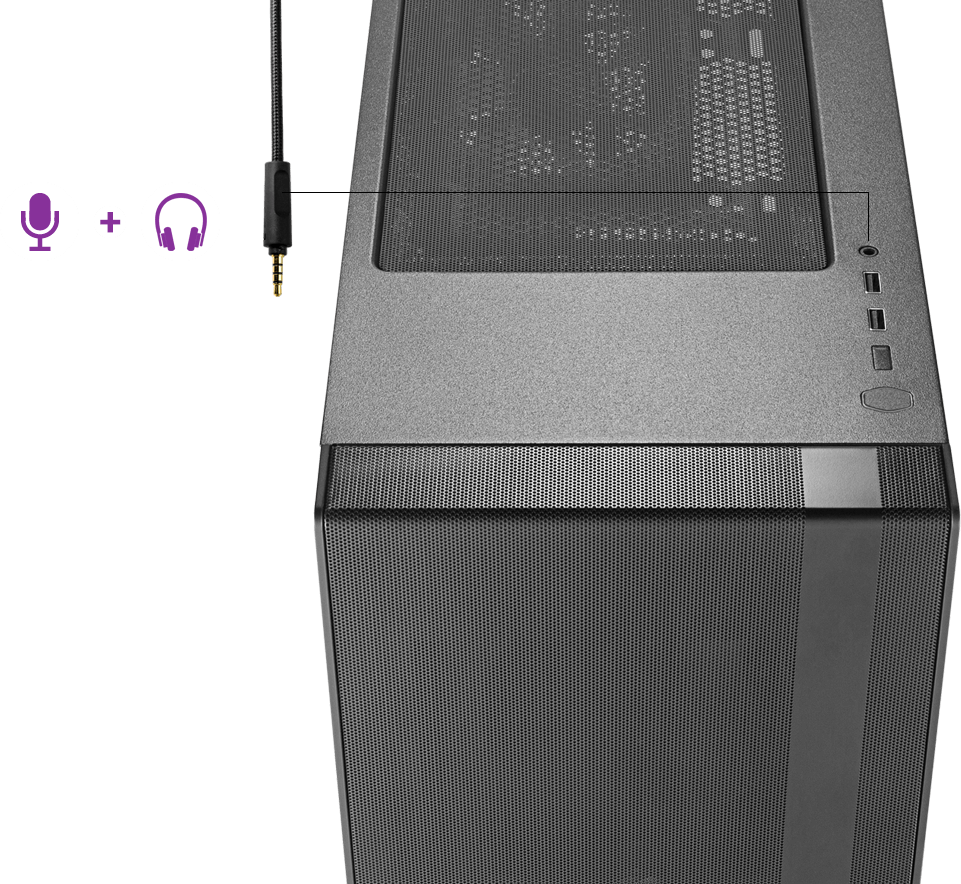

HEADSET JACK
The single 4 pole headset jack features both Audio and Microphone
capabilities simultaneously so that separate jacks are not needed.

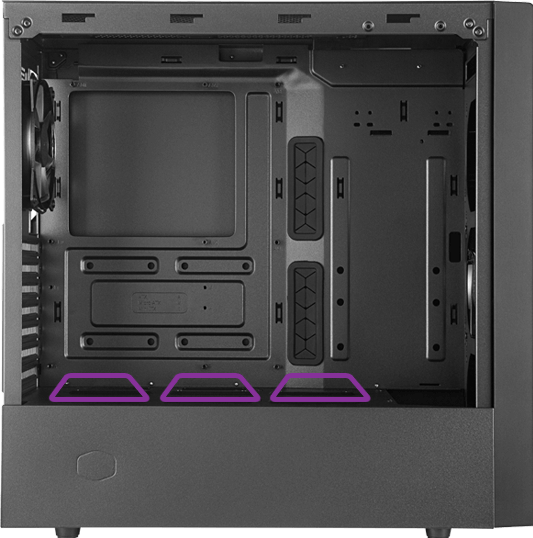

FAN SUPPORT
- Front: 140mm x2 / 120mm x3
- Top: 140mm x2 / 120mm x2
- Rear: 120mm x1

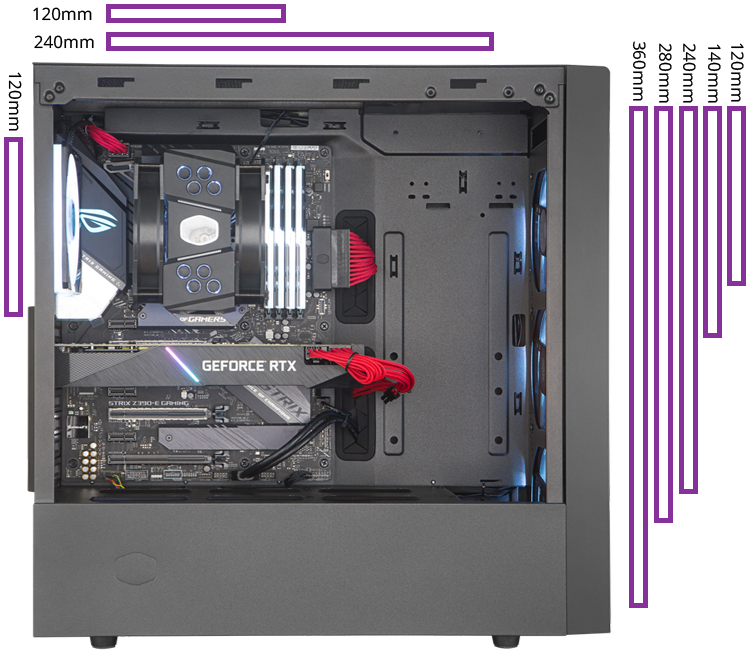

RADIATOR SUPPORT
- Front: 360/280/240/140/120mm
- Top: 120/240mm
- Rear: 120mm
Specifications
|
Product
Name |
MasterBox
NR600 |
|
Product
Number |
MCB-NR600-KGNN-S00 |
|
Exterior
Color |
Black |
|
Materials -
Body |
Steel,
Plastic |
|
Materials - Windowed
Side Panel |
Tempered
Glass |
|
Dimensions |
478 (L) x 209 (W) x 473
(H) mm |
|
Motherboard
Support |
Mini-ITX, Micro-ATX,
ATX |
|
Expansion
Slots |
7 |
|
5.25" Drive
Bays |
N/A |
|
3.5" HDD Drive
Bays |
4 |
|
2.5" SSD Drive
Bays |
5 |
|
I/O Panel - USB
Ports |
USB 3.0 x
2 |
|
I/O Panel - Audio In
/ Out |
1x 3.5mm Headset Jack
(Audio+Mic) |
|
Pre-installed Fan(s)
- Front |
120mm x
1 |
|
Pre-installed Fan(s)
- Rear |
120mm x
1 |
|
Fan Support -
Front |
140mm x 2 / 120mm x
3 |
|
Fan Support -
Top |
140mm x 2 / 120mm x
2 |
|
Fan Support -
Rear |
120mm x
1 |
|
Radiator Support -
Front |
360 / 280 / 240 / 140 /
120mm |
|
Radiator Support -
Top |
240mm / 120mm (35mm max
motherboard component height) |
|
Radiator Support -
Rear |
120mm x
1 |
|
Clearance - CPU
Cooler |
166mm /
6.54" |
|
Clearance - Power
Supply |
180mm /
7.08" |
|
Clearance - Graphics
Card |
410mm /
16.14" |
|
Cable Routing -
Behind MB Tray |
20~28mm /
0.78~1.10" |
|
Dust
Filters |
Top,
Bottom |
|
Power Supply
Support |
Bottom Mount,
ATX |
|
EAN
Code |
4719512079355 |
|
UPC
Code |
884102051845 |
