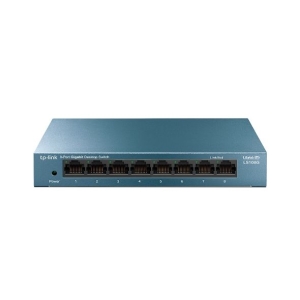

TP-Link LS108G 8-Port 10/100/1000Mbps Desktop Switch



Features

  • 10/100/1000Mbos Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
  • Green Ethernet technology saves power
  • IEEE 802.3X flow control provides reliable data transfer
  • Steel housing, desktop or wall-mounting design
  • Support 802.1p/DSCP QoS function
  • Plug and play, no configuration needed

Overview

Increase Your Network Speed and Save Energy

8-Port Gigabit Desktop Switch

Bring You Lighter Network Life

The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

  • Plug & Play
  • Gigabit Ethernet
  • Compact Metal Housing
  • Traffic Prioritization
  • Green Tech

Go Green with Your Ethernet

The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Durable Metal Casing

The interior components of LS108G are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, LS108G delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.

Use Where You Need, However You Need

The LS108G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

Specifications

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p

Interface

8 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity

Fanless

External Power Supply

External Power Adapter (Output: 9VDC / 0.6A)

LED Indicator

System Power

Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H )

6.2 x 3.9 x 1.0 in. (158 x 99.1x 25 mm)

Max Power Consumption

3.7W(220V/50Hz)

Max Heat Dissipation

12.617 Btu/hr

PERFORMANCE

Packet Forwarding Rate

11.9 Mpps

MAC Address Table

4K

Packet Buffer Memory

1.5 Mb

Jumbo Frame

16 KB

SOFTWARE FEATURES

Advanced Features

Green Technology

802.3X Flow Control

802.1P/DSCP QoS

Transfer Method

Store and Forward

OTHERS

Certification

CE, FCC, RoHS

Package Contents

8-Port 10/100/1000Mbps Desktop Switch

Power Adapter

Installation Guide

Environment

Operating Temperature

0°C~40°C (32°F~104°F)

Storage Temperature

-40°C~70°C (-40°F~158°F)

Operating Humidity

10% ~ 90% non-condensing

Storage Humidity

5%~90% non-condensing
