All stock codes associated to this product
B365MPROVH, B365M PRO-VH, 4719072622749, 824142178751
MSI B365M Pro-VH Motherboard
Overview
Intel LGA-1151 Micro-ATX motherboard with DDR4 2666MHz, Core Boost, DDR4
Boost, Audio Boost and EZ Debug LED.
-
Supports 9th/ 8thGen IntelCore / PentiumGold / Celeronprocessors for LGA 1151
socket
-
Supports DDR4 Memory, up to 2666
MHz
-
Turbo M.2:Running at PCI-E Gen3 x4
maximizes performance for NVMe based SSDs.
-
Core Boost: With premium layout
and fully digital power design to support more cores and provide better
performance.
-
Audio Boost: Reward your ears with
studio grade sound quality.
-
EZ Debug LED: Easiest way to
troubleshoot.
-
X-Boost: Software that
auto-detects and allows you to boost the performance of any storage or USB
device.
Extreme
Memory Profile with ease using a single option in the BIOS to gain performance
and create a perfectly stable system.
CPU
LOOKING COOL WHILE KEEPING COOL
High quality materials and smart fan optimizations contribute to cooling all
essential components, which is key to making sure your system runs stable and
delivers the best performance at all times.
CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power
design which allows for faster and undistorted current delivery to the CPU at
pin-point precision. Not only supporting multi-core CPU, also creating the
perfect conditions for your CPU.
MORE FOR PERFORMANCE
LOAD-LINE CALIBRATION
- What you set, is what you get. LLC makes sure your CPU voltage remains
100% stable under any load. This greatly improves stability when demanding
more CPU performance.
OVERVOLTAGE PROTECTION
- Prevents potential short-circuit damage to the CPU and other critical
components.
STORAGE
FAST AND FUTURE-READY STORAGE
MSI motherboards support all the latest storage standards, which allows users
to connect any ultra-fast storage device. Start games faster, load levels faster
and have a real advantage over your enemies.
M.2 32 Gbps 6X 6 Gbps

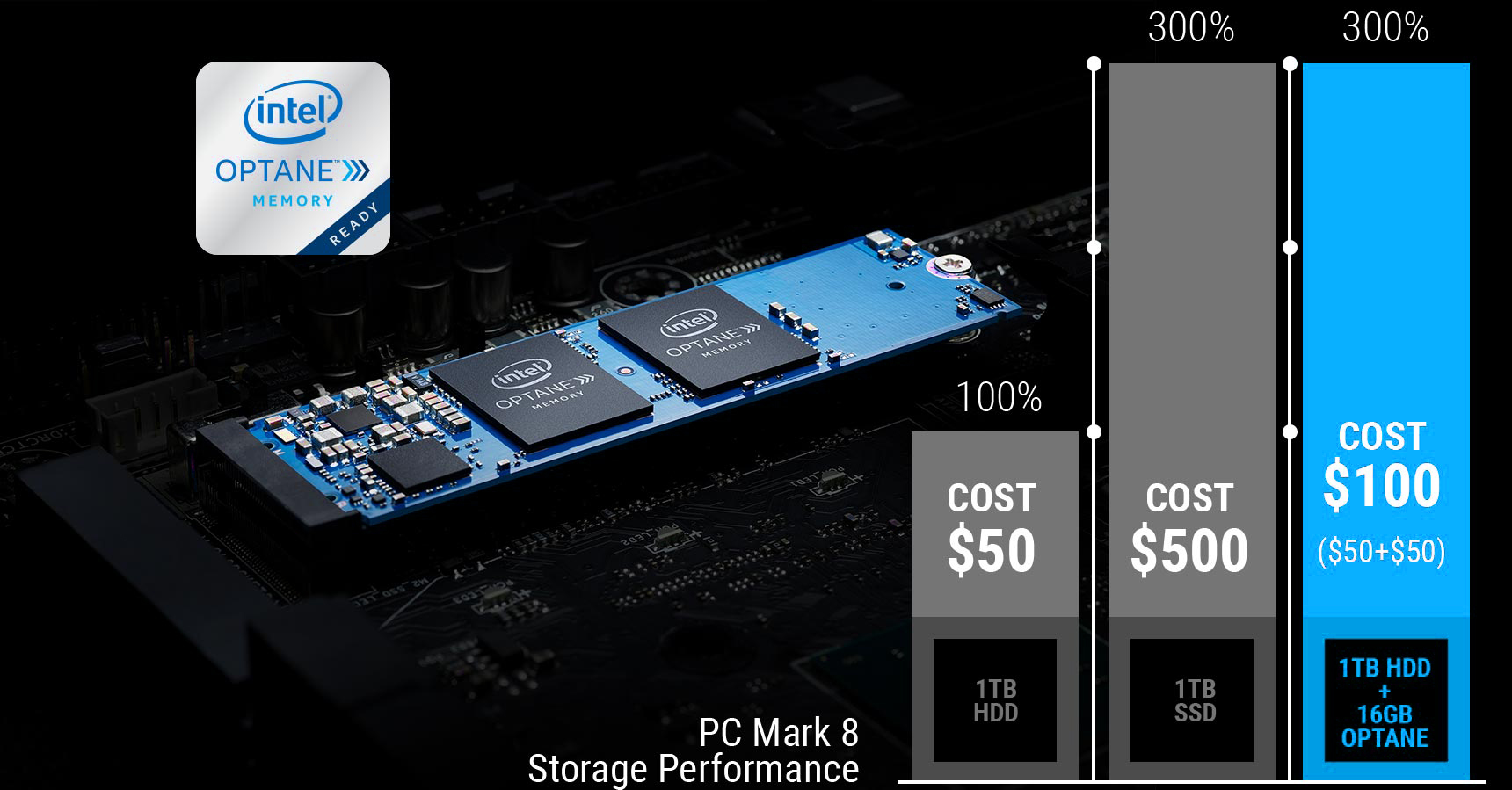

OPTANE: BOOST YOUR HDD TO PERFORM LIKE AN SSD
PC Enthusiasts can now enjoy the performance of an SSD on their HDD by
coupling it with the new IntelOptane Memory device. IntelOptane
technology provides an unparalleled combination of high throughput, low latency,
high quality of service, and high endurance. All MSI 300 Series motherboards are
ready for IntelOptane
Memory.
|
SOCKET |
1151 |
|
CPU (MAX
SUPPORT) |
i9 |
|
CHIPSET |
Intel B365
Chipset |
|
DDR4
MEMORY |
2666/ 2400/
2133 |
|
MEMORY
CHANNEL |
Dual |
|
DIMM
SLOTS |
2 |
|
MAX MEMORY
(GB) |
32 |
|
PCI-E
X16 |
1 |
|
PCI-E
GEN |
Gen3 |
|
PCI-E
X1 |
2 |
|
SATAIII |
6 |
|
M.2
SLOT |
1 |
|
RAID |
0/1/5/10 |
|
TPM
(HEADER) |
1 |
|
LAN |
1x Realtek
RTL8111H |
|
USB 3.1 PORTS
(FRONT) |
2(Gen1, Type
A) |
|
USB 3.1 PORTS
(REAR) |
4(Gen1, Type
A) |
|
USB 2.0 PORTS
(FRONT) |
4 |
|
USB 2.0 PORTS
(REAR) |
2 |
|
SERIAL
PORTS(FRONT) |
1 |
|
AUDIO PORTS
(REAR) |
Realtek ALC887
Codec |
|
VGA |
1 |
|
HDMI |
1 |
|
DIRECTX |
12 |
|
FORM
FACTOR |
Micro-ATX |
|
OPERATING
SYSTEM |
Support for Windows 10
64-bit |
