All stock codes associated to this product
GBAC300G, GB-AC300G, CAGBAC300G, CAGB-AC300G, II40470, 4719331551223
Gigabyte AORUS C300 Glass ATX Mid-Tower Case
Key Features
-
Full-Size 4mm Tempered Glass Side Panel
-
With HDMI and USB 3.1 Gen2 Type-C on I/O Panel
-
RGB Fusion 2.0 - Synchronize RGB Lighting with other AORUS
Devices
-
Support Vertical and Horizontal VGA Installation
-
Liquid Cooling Compatible
-
PSU Shroud Design
-
Detachable Dust Filter

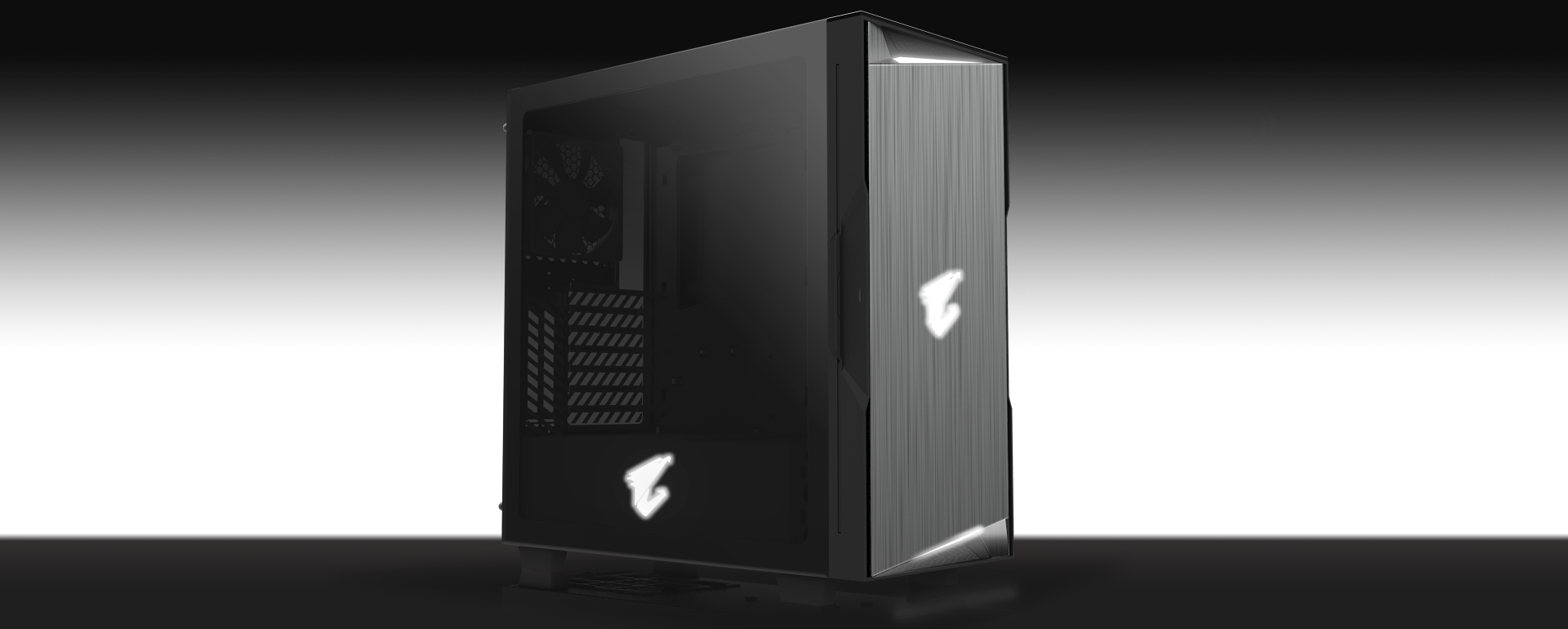

AORUS PRODUCT DESIGN
4MM BLACK TEMPERED GLASS
The tempered glass features abrasion, rub and scratch resistance maintaining
a clean and classy look for your system. The black tint offers a unique contrast
with your system while offering a subtle low key look. Enhanced frame design to
reduce pressure on your glass panel preventing fragmentation of your glass side
panel.
IMPACT RESISTANT DESIGN
The gap between the glass and metal frame of our case offers an impact
resistance case limiting and reducing chances of damage to the tempered
glass.

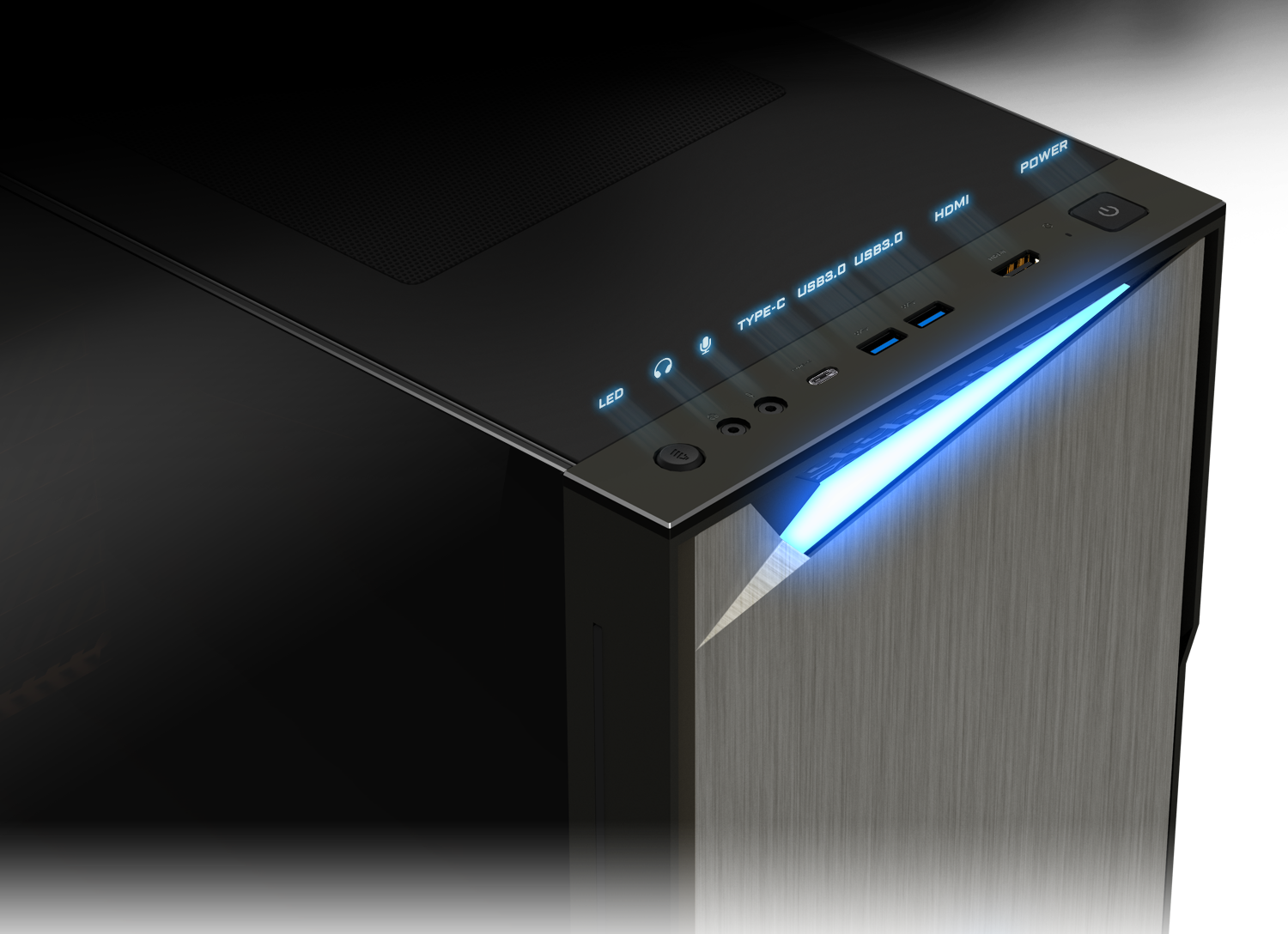

EVOLUTIONARY I/O PANEL
Equipped with an upgraded I/O panel, you have access to LED control, audio
ports, two USB 3.0 ports and a USB 3.1 Gen2 Type-C port.
(Support Latest Motherboard USB 3.1 Type-C Front Panel
Connector)
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can
choose lighting effects or synchronize with other AORUS devices.

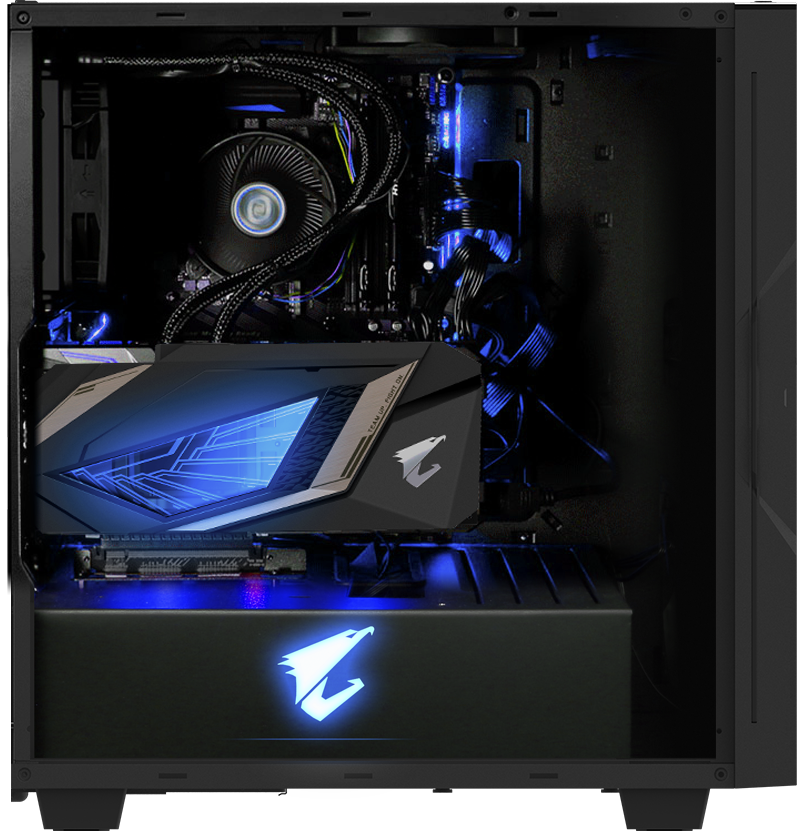

SUPPORT VERTICAL & HORIZONTAL VGA INSTALLATION
AORUS C300 GLASS is designed for both vertical and horizontal mounted VGA.
Show off your fancy graphics card for best viewing presentation with the
flexible support of vertical VGA installation.
PSU SHROUD DESIGN
Enjoy a clean look by hiding the PSU and those messy cable connectors inside
the PSU shroud, while separating the PSU heat from the rest of the internal
system.

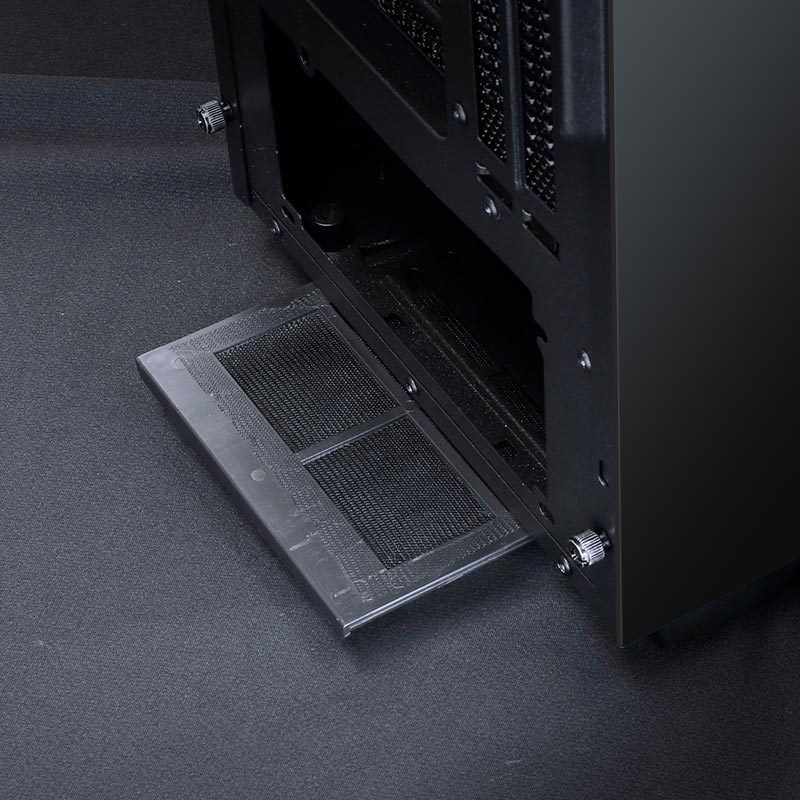

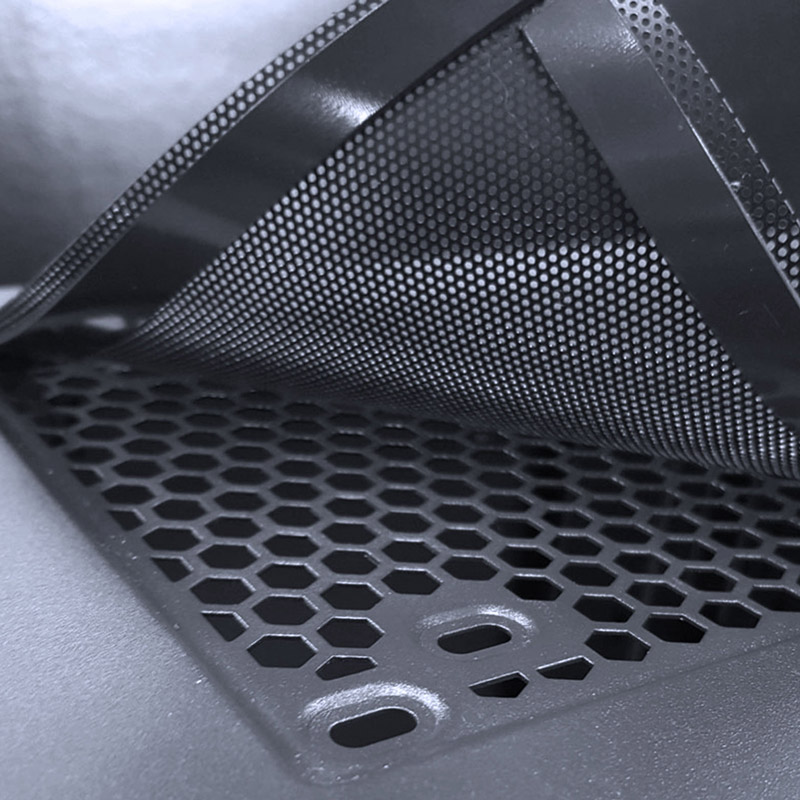

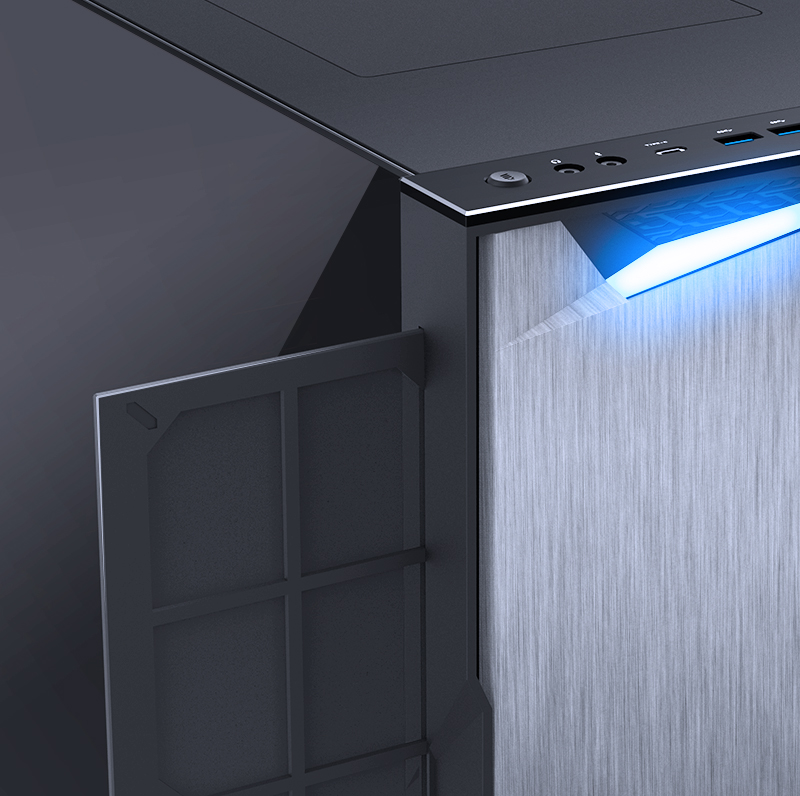

Keep dust out of the case and prevent your system from suffocating with the
detachable dust filters that are easy to clean with a quick, simple
rinse.
Mount the 2.5" SSD or 3.5" HDD hard drives from the back side of case,
keeping the system look clean and neat.

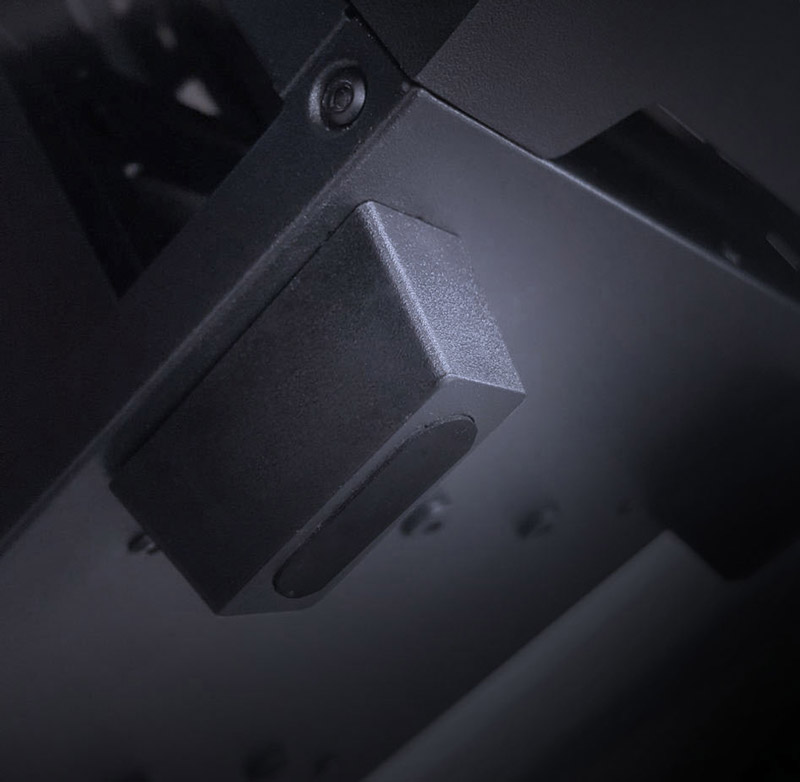

Anti-vibration rubber feet designed to absorb vibrations from PC cases and
help heat dissipation.

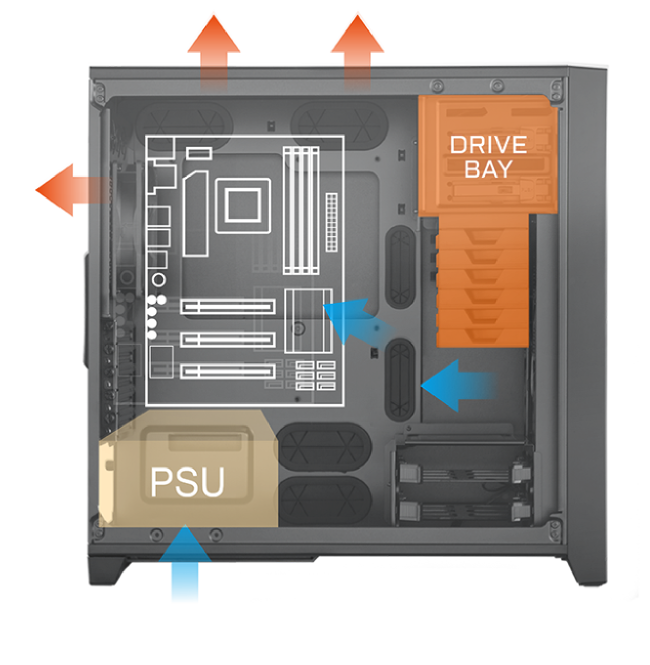

OPTIMAL COOLING AIRFLOW
AC300G - GOOD VENTILATION
OTHERS - DRIVE BAY IN THE WAY OBSTRUCT AIRFLOW
Specifications
|
Case Form
Factor |
Mid
Tower |
|
M/B
Type |
mini-ITX/m-ATX/ATX |
|
Color |
Black |
|
Materials |
Steel, Plastic,
Glass |
|
Dimensions |
L= 469 W= 211 H= 458mm
(Within 1% error) |
|
Expansion
slots |
7 or 2 (Requires PCIE
Riser Cable) |
|
5.25" Driver
Bays |
None |
|
3.5/2.5 Driver
Bays |
2 |
|
2.5" Driver
Bays |
3(Behind the MB
tray) |
|
I/O
Panel |
HDMI
x1 |
|
USB 3.1 Gen2 Type-C x1
|
|
USB 3.0
x2 |
|
Audio In & Out
(Supports AC97 / HD Audio) |
|
Fan
Support |
Front : 120mm x3 /
140mm x2 |
|
Top : 120mm x2 / 140mm
x2 |
|
Rear : 120mm
x1 |
|
(Default: Rear 120mm x
1, Front 120mm x 1) |
|
Radiator
Support |
Front : 360mm / 280mm /
240mm |
|
Rear :
120mm |
|
Power Supply
Type |
Standard ATX (Not
included) |
|
Maximum
Compatibility |
CPU Height :
170mm |
|
GPU Length :
400mm |
|
PSU Length :
180mm |
