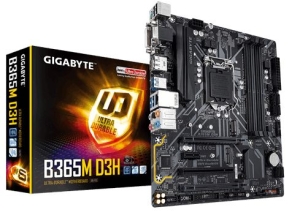

Gigabyte GA-B365M-D3H B365 Ultra Durable Motherboard



Features

Intel B365 Ultra Durable motherboard with USB 3.1 Gen2 Type-A, Intel GbE LAN with 25KV protection, PCIe Gen3 x4 M.2, 7 colors RGB LED strips support, Anti-Sulfur Resistor, Smart Fan5, DualBIOS™, CEC 2019 ready

  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • New Hybrid Digital PWM Design
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
  • RGB FUSION supports RGB LED strips in 7 colors
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • CEC 2019 Ready, Save the Power as Easy as One Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design
  • Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
  • Intel® Optane™ Memory Ready
  • GIGABYTE UEFI DualBIOS™

Overview

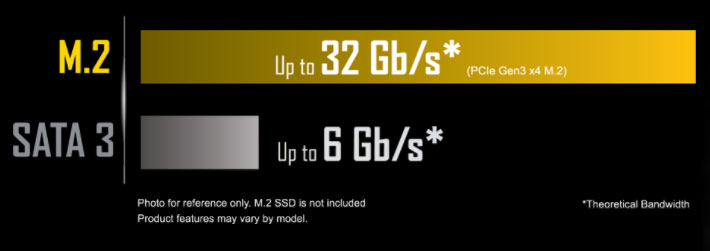

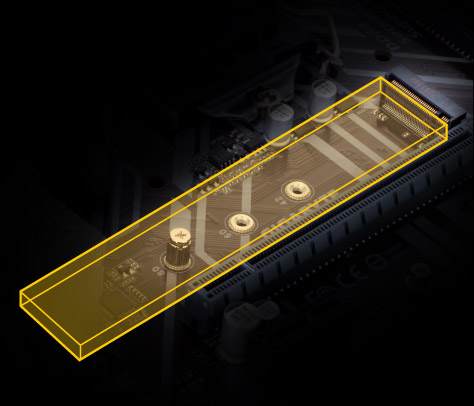

NVMe PCIe Gen3 x4 22110 M.2 Connector (Up to 32 Gb/s)

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

PERFORMANCE FUELED BY OPTANE

The H370/B365/B360 Platform supports Intel's latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.

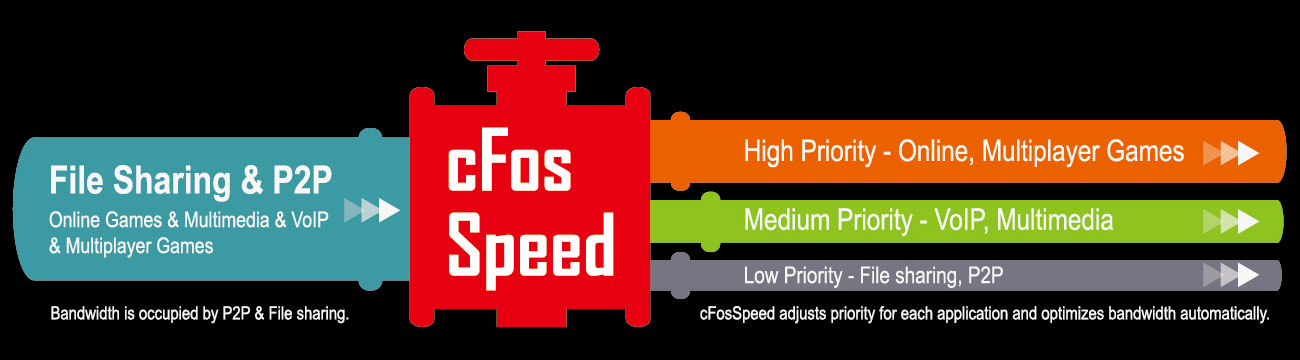

Intel® GbE LAN with cFosSpeed Internet Accelerator Networking

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

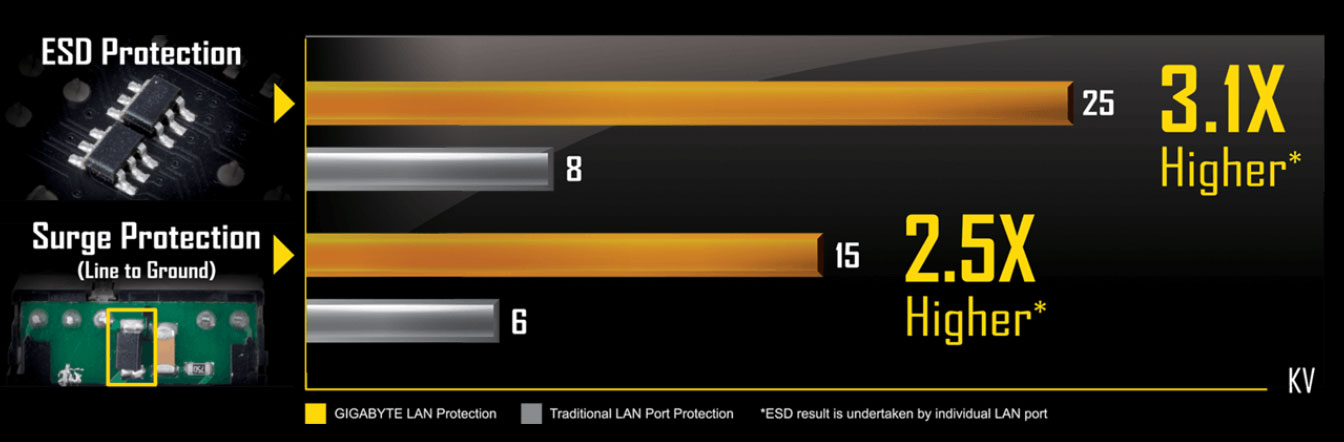

The Industry's Leading LAN Static-Electricity & Surge Protection

GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

High Definition Digital Outputs

Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.



  • 6 Temperature Sensors
  • 4 Fan Pin Headers
  • All Fan Pin Headers Upgraded to Hybrid Fan Headers
  • Interoperable Fans and Sensors
  • Intuitive UI for Fan Control

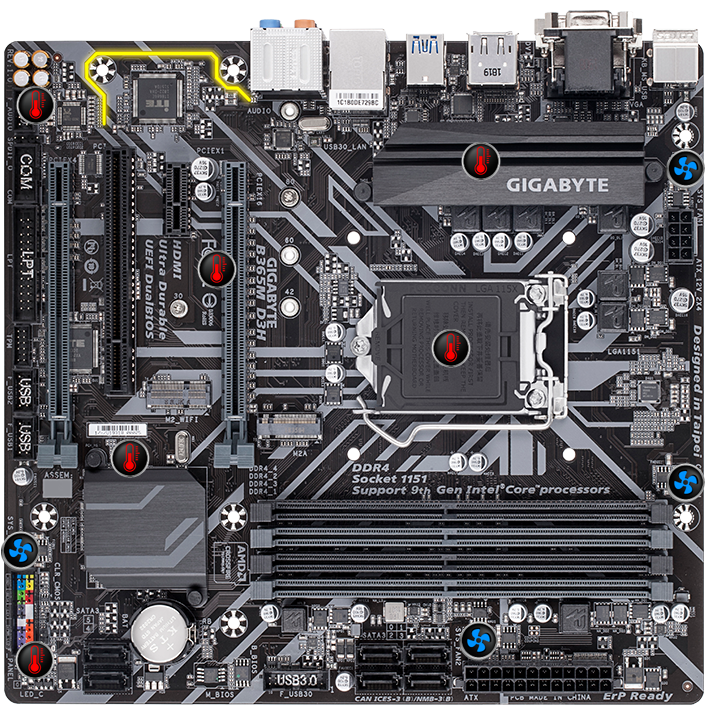

Temperature Sensors

Fan Pin Headers

Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.

Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

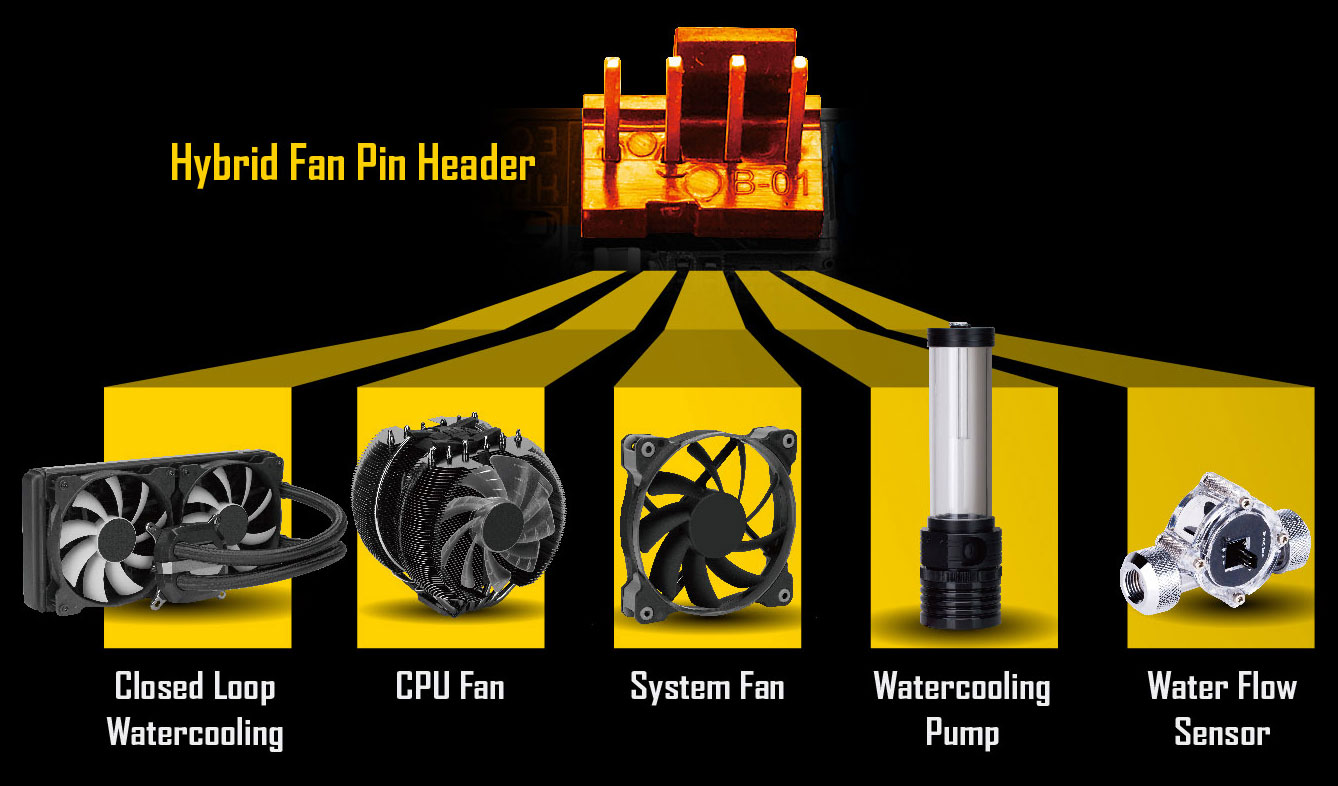

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

Intelligent Fan Control Design

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Interoperable Sensors and Fans

Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).

Fan Curve

Customize fan curves based on specific temperatures with the intuitive graphical UI.

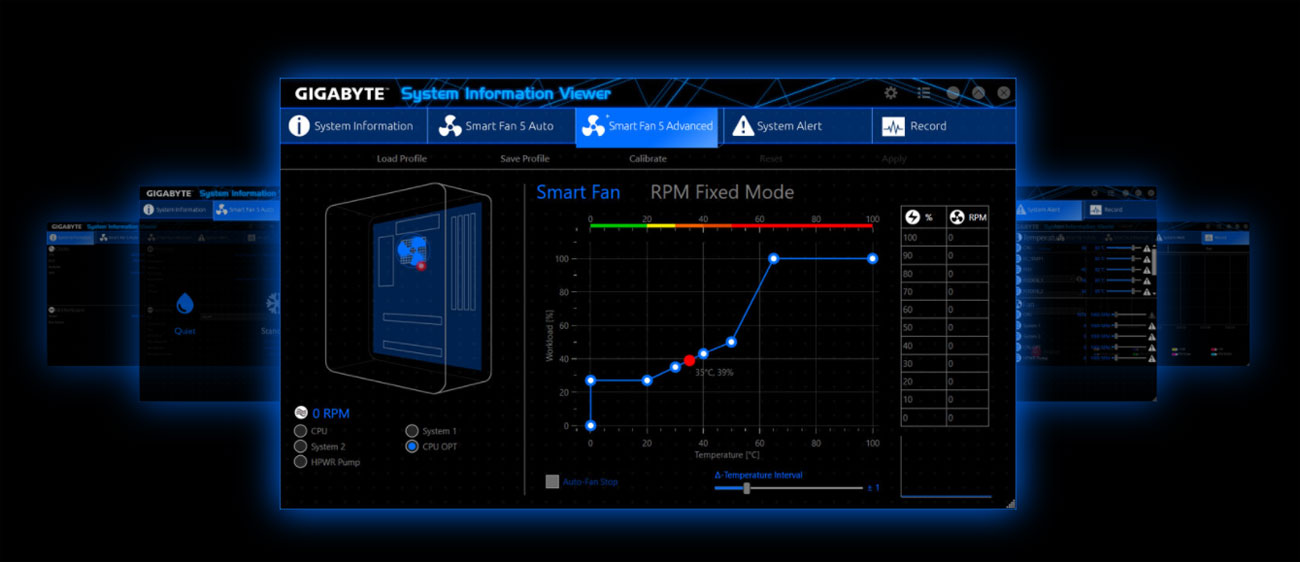

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Immersive VR

Gaming Experience

VR requires more performance than Full HD graphics for a steady 90FPS or greater.

> Only Gaming PCs can provide the best VR experience.

Recommended configuration for VR Gaming PC*

  • Graphics Card: NVIDIA GTX 1060 / AMD RX 480 or greater, Compatible HDMI 1.4 video output. CPU: Intel i5 equivalent or greater
  • Motherboard: GIGABYTE H370 / B365 / B360 / H310 series motherboards
  • Memory: 8GB RAM or greater
  • USB Ports: 3x USB 3.0 ports plus 1x USB 2.0 port or greater
  • OS: Windows 10 64-bit or newer

*Please check VR vendor website for full system requirements.

To create a seamless VR experience GIGABYTE Motherboards offer the best features to make your virtual reality feel like your actual reality. With technologies such as NVMe support via M.2 or U.2 it's obvious that GIGABYTE has the tools you need to start your journey in VR. To set the mood GIGABYTE Motherboards include RGB Fusion to put you in the center of action.

2-Way CrossFire ™ Multi Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

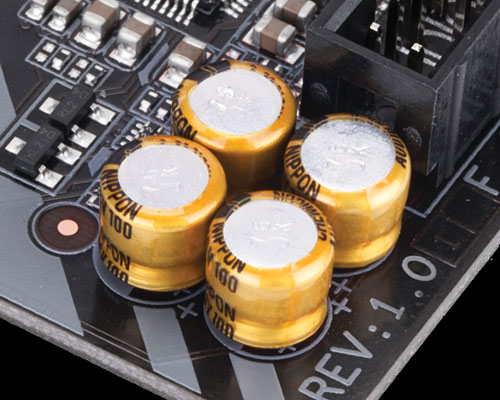

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

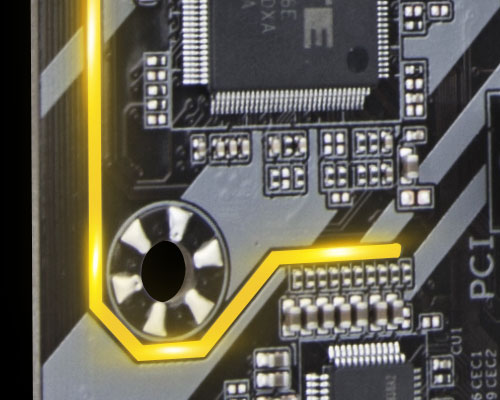

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.



LIGHTING

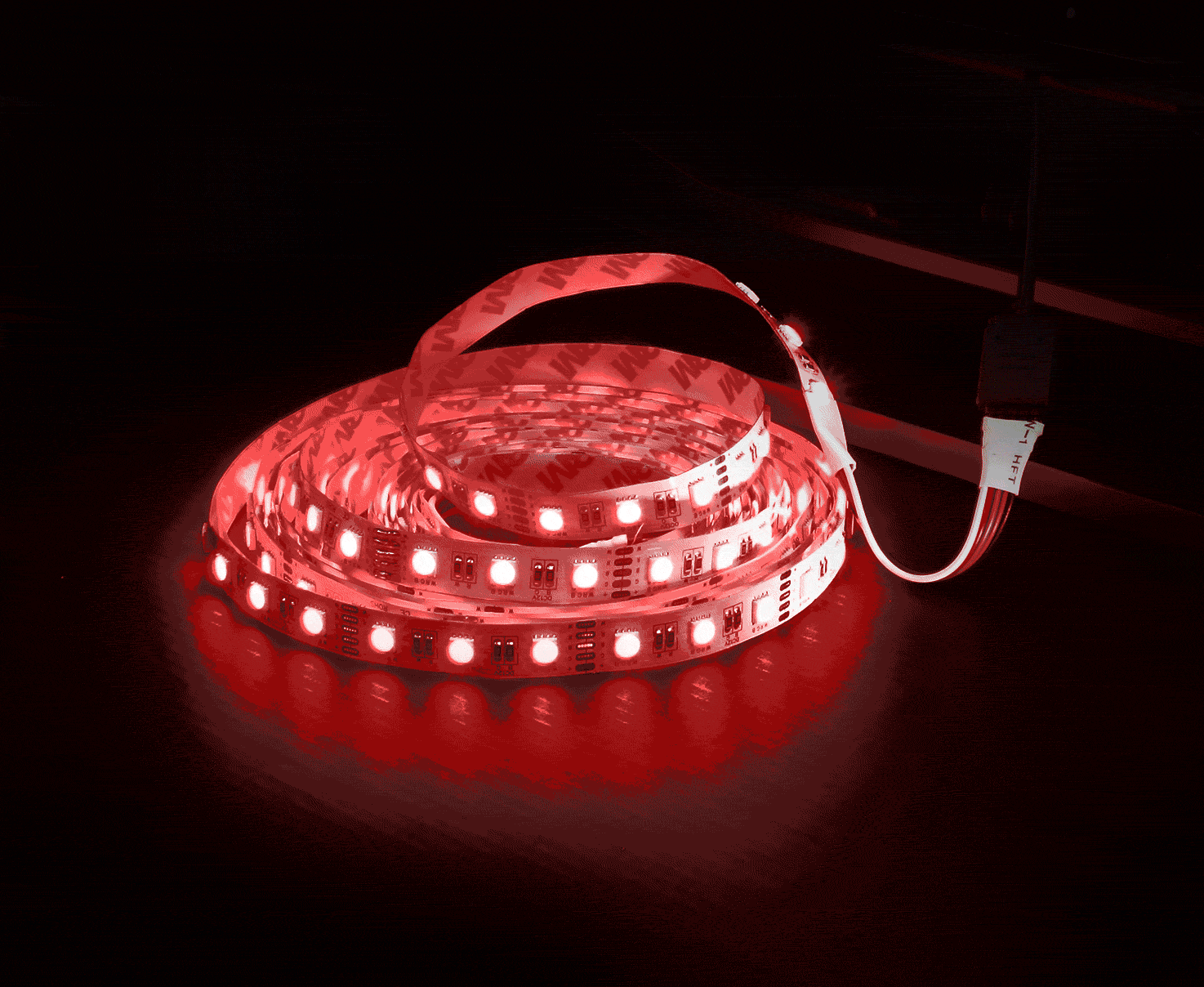

Supports RGB Light Strips in 7 Colors

Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. A total of 7 colors are available to make your system appearance unique!

RGB Calibration

Different light strips sometimes have different RGB pin definitions, RGB Fusion softwear can relocate each pin location for the best compatibility.

Lighting Profile

Save, export and import profiles to quickly change effects based on you perference and to share with others.

GIGABYTE RGB Fusion APP

Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.

With a dazzling array of products supported, RGB Fusion is the software that brings it all together, letting your accessories synchronize to the same beat. Customize all your LEDs how you like have them match, dazzle and impress. Learn more about RGB Fusion

ULTRA DURABLE

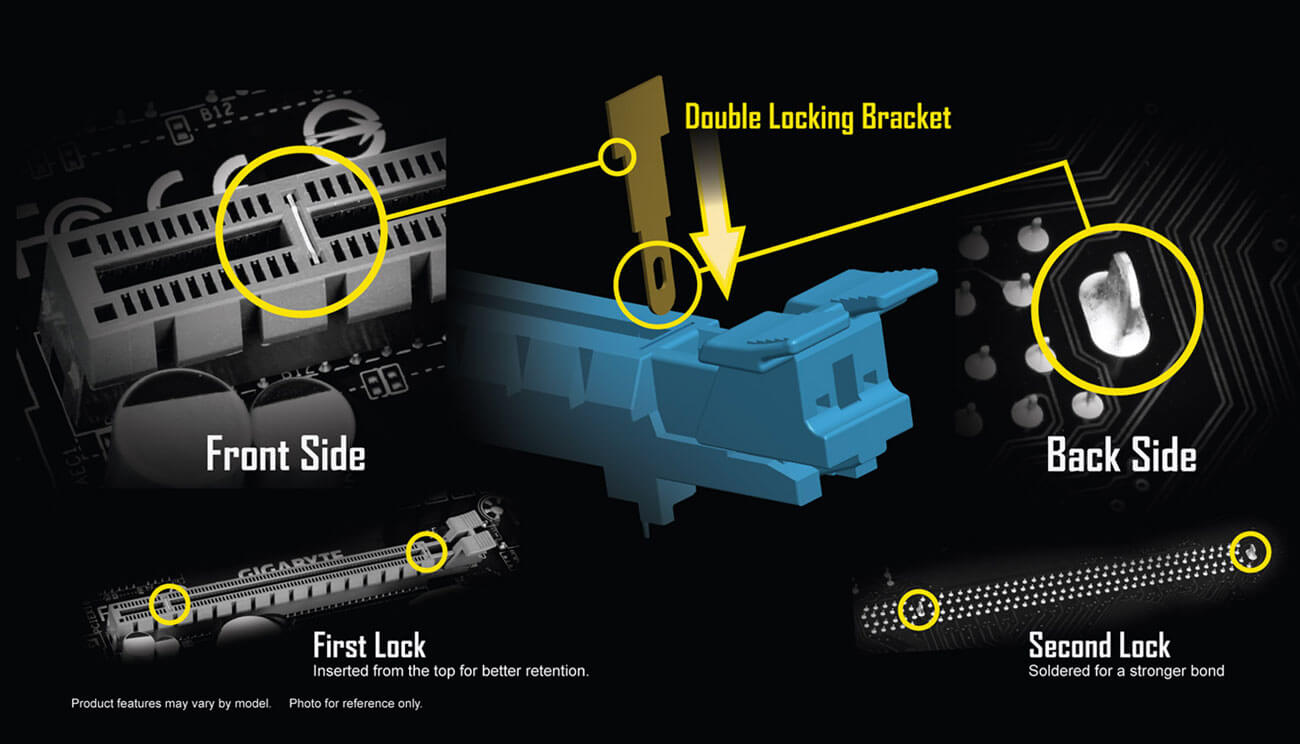

GIGABYTE Patented Double Locking Bracket

GIGABYTE Patented DualBIOS™ Design

GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

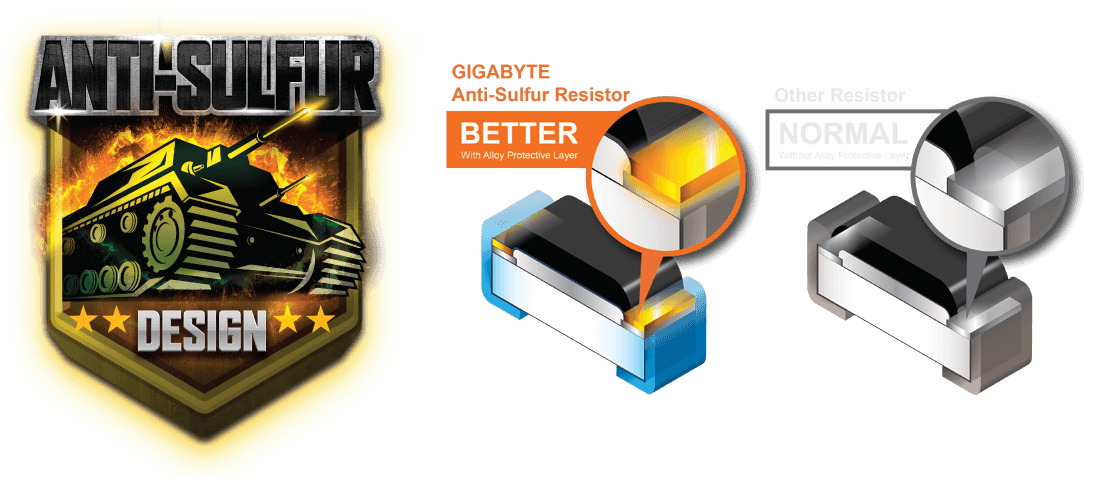

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

GIGABYTE EXCELLENCE

CEC 2019 Ready

Save the power as easy as one click

CEC Requirement : PC power consumption must be under a certain level when it's in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.

GIGABYTE BIOS & Applications

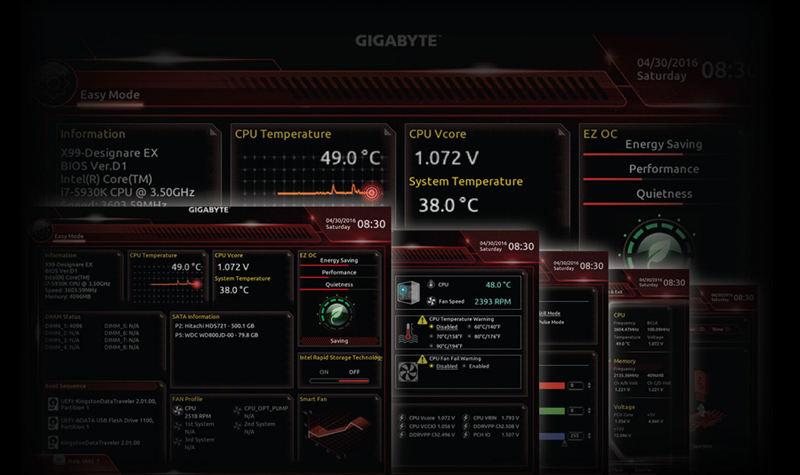

Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

* Photos are for reference only. Product features may vary by model.

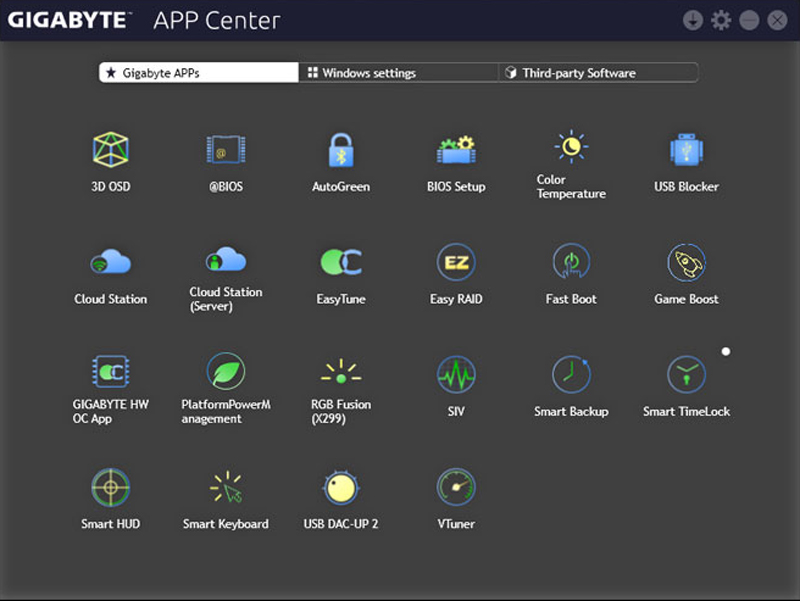

GIGABYTE APP Center

The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

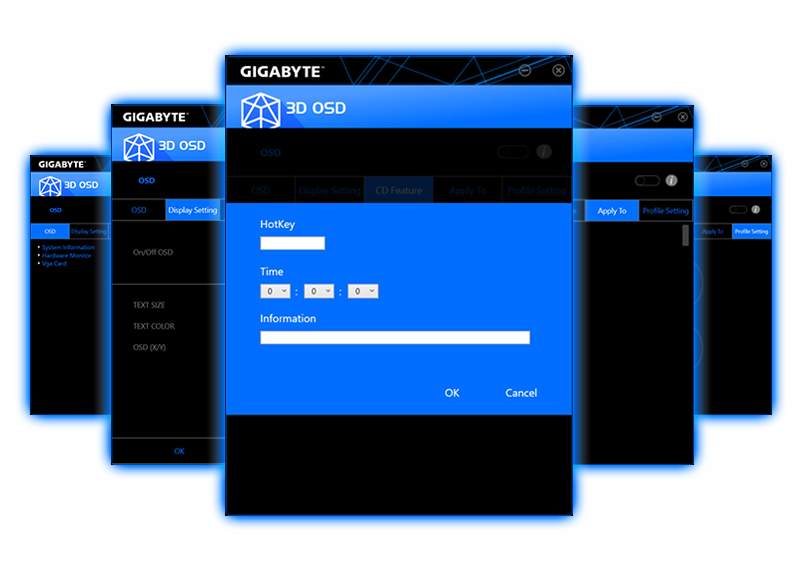

3D OSD

3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.

HDMI™ - The Next Generation Multimedia Interface

HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

Specifications

CPU

Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package


L3 cache varies with CPU


(Please refer "CPU Support List" for more information.)



Chipset

Intel B365 Express Chipset



Memory

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory


Dual channel memory architecture


Support for DDR4 2666/2400/2133 MHz memory modules


Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)


Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules


Support for Extreme Memory Profile (XMP) memory modules


* To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel Core i9/i7/i5 processor.


(Please refer "Memory Support List" for more information.)



Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:


1 x D-Sub port, supporting a maximum resolution of [email protected] Hz


1 x DVI-D port, supporting a maximum resolution of [email protected] Hz


* The DVI-D port does not support D-Sub connection by adapter.


1 x DisplayPort, supporting a maximum resolution of [email protected] Hz


* Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.


1 x HDMI port, supporting a maximum resolution of [email protected] Hz


* Support for HDMI 1.4 version and HDCP 2.2.


Support for up to 3 displays at the same time


Maximum shared memory of 1 GB


Actual support may vary by CPU



Audio

Realtek ALC892 codec


High Definition Audio


2/4/5.1/7.1-channel


Support for S/PDIF Out



LAN

Intel GbE LAN chip (10/100/1000 Mbit)



Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)


* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.


1 x PCI Express x16 slot, running at x4 (PCIEX4)


1 x PCI Express x1 slot


(All of the PCI Express slots conform to PCI Express 3.0 standard.)


1 x PCI slot


1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)



Multi-Graphics Technology

Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies



Storage Interface


Chipset:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)


6 x SATA 6Gb/s connectors


Support for RAID 0, RAID 1, RAID 5, and RAID 10


* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.


Intel Optane Memory Ready



USB


Chipset:

1 x USB Type-C port on the back panel, with USB 3.1 Gen 1 support


5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)


6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)



Internal I/O Connectors

1 x 24-pin ATX main power connector


1 x 8-pin ATX 12V power connector


1 x CPU fan header


3 x system fan headers


1 x RGB LED strip header


1 x M.2 Socket 3 connector


6 x SATA 6Gb/s connectors


1 x front panel header


1 x front panel audio header


1 x S/PDIF Out header


1 x USB 3.1 Gen 1 header


2 x USB 2.0/1.1 headers


1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)


1 x serial port header


1 x parallel port header


1 x Clear CMOS jumper



Back Panel Connectors

1 x PS/2 keyboard/mouse port


1 x D-Sub port


1 x DVI-D port


1 x DisplayPort


1 x HDMI port


1 x USB Type-C port, with USB 3.1 Gen 1 support


3 x USB 3.1 Gen 1 ports


2 x USB 2.0/1.1 ports


1 x RJ-45 port


6 x audio jacks



I/O Controller

iTE I/O Controller Chip



H/W Monitoring

Voltage detection


Temperature detection


Fan speed detection


Overheating warning


Fan fail warning


Fan speed control


* Whether the fan speed control function is supported will depend on the cooler you install.



BIOS

2 x 128 Mbit flash


Use of licensed AMI UEFI BIOS


Support for DualBIOS


PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



Unique Features

Support for APP Center


* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


@BIOS


AutoGreen


Cloud Station


EasyTune


Easy RAID


Fast Boot


Game Boost


ON/OFF Charge


Platform Power Management


RGB Fusion


Smart Backup


Smart Keyboard


System Information Viewer


USB Blocker


Support for Q-Flash


Support for Xpress Install



Bundled Software

Norton Internet Security (OEM version)

cFosSpeed



Operating System

Support for Windows 10 64-bit



Form Factor

Micro ATX Form Factor; 24.4cm x 23.0cm



Remark

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.


Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
