All stock codes associated to this product
QSW308S, QSW-308S, QN17058

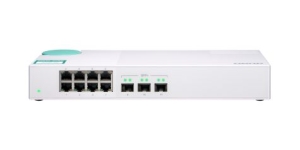

Qnap QSW-308S Cost-effective entry-level 10GbE Switch with 10G SFP+
fiber and Gigabit Ethernet
Overview
The QSW-308S is a 3-port 10G SFP+ and 8-port Gigabit Unmanaged Switch,
allowing you to instantly upgrade to a hybrid high-speed network environment at
a cost-effective price. With its desktop size and silent operation, the QSW-308S
perfectly blends into homes and offices while providing high performance, low
latency and superb functionality.
The QSW-308S provides three 10GbE SFP+ ports and eight Gigabit ports for
connecting various devices.
The unique fanless design with ventilated construction provides silent
operations while maintaining high performance.
Simply connect the QSW-308S to your devices and it will do the rest. It
supports auto-negotiation for optimal speed and duplex detection when connecting
different devices.

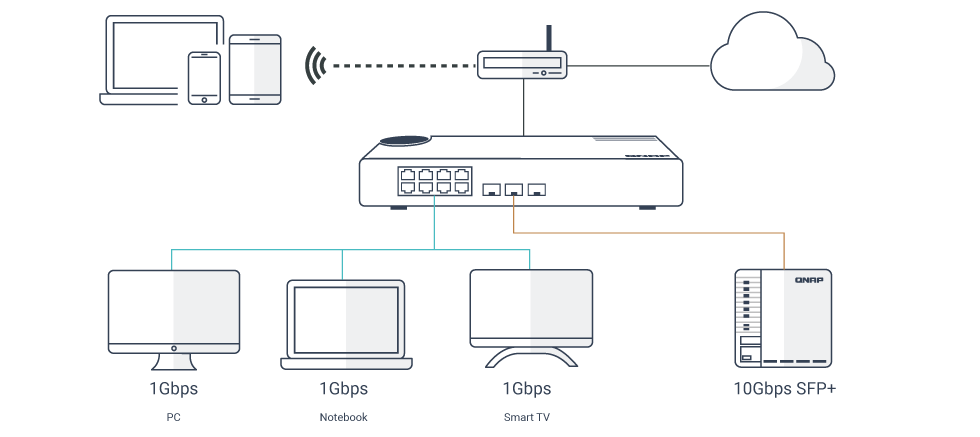

Flexible deployment with multiple 10G SFP+ fiber and Gigabit
ports
The QSW-308S provides three 10GbE SFP+ ports and eight Gigabit ports for
connecting various devices and enabling a hybrid high-speed network in homes and
offices. With SFP+ interfaces, direct attach copper (DAC) cables can be used for
connecting directly to SFP+ devices. You can also use 10G-SFP-T copper
transceiver modules to connect 10GBASE-T/NBASE-T devices through RJ45 Category
6, 5 or 5e cabling. The switching capacity of QSW-308S is 76Gbps, guaranteeing
the full potential of each port.

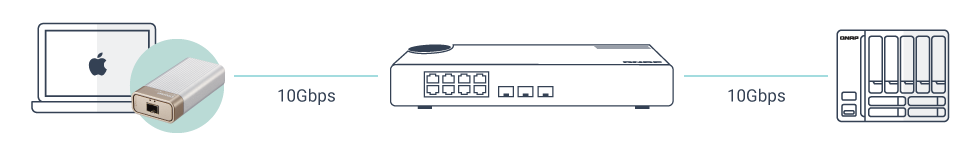

Improve your productivity with a 10GbE-enabled QNAP NAS
Many QNAP NAS series are designed with 10GbE readiness, and can be
immediately upgraded by purchasing and installing a 10GbE network adapter. QNAP
NAS are also available with 10GbE SFP+ and 10GBASE-T as standard to fully
support 10GbE high-speed networks, making them beneficial for IOPS-demanding
applications such as virtualization, databases, high-resolution video editing,
and sharing workflows.
Easily build a High-Speed Network with QNAP Network
Adapters
QNAP provides a wide range of network devices to assist business and home
users with upgrading their network infrastructure to meet growing bandwidth
requirements. QNAP's Thunderbolt 3 to 10GbE Network Adapter provides a quick and
budget-friendly method for laptops (and other upgrade-constrained devices) to
take advantage of high-speed 10GbE connectivity.

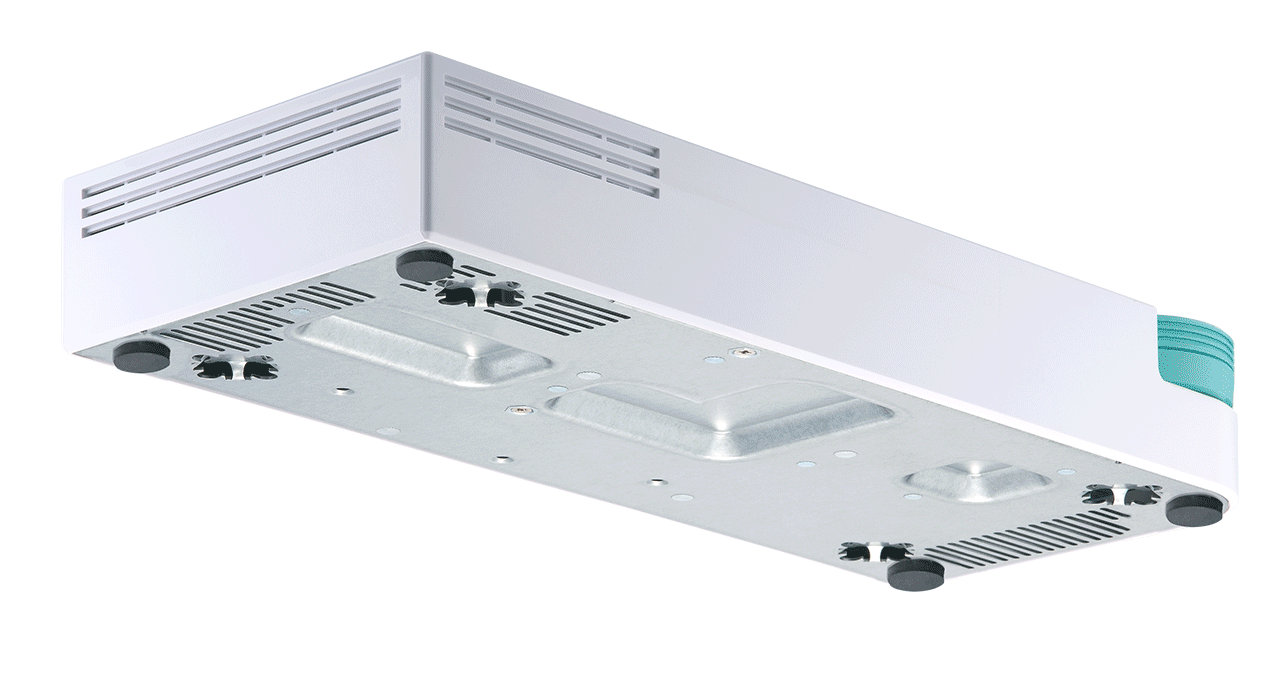

Cool and quiet operation
The QSW-308S features a fanless design for silent operations. The unique
ventilated construction assists in cooling while maintaining high
performance.

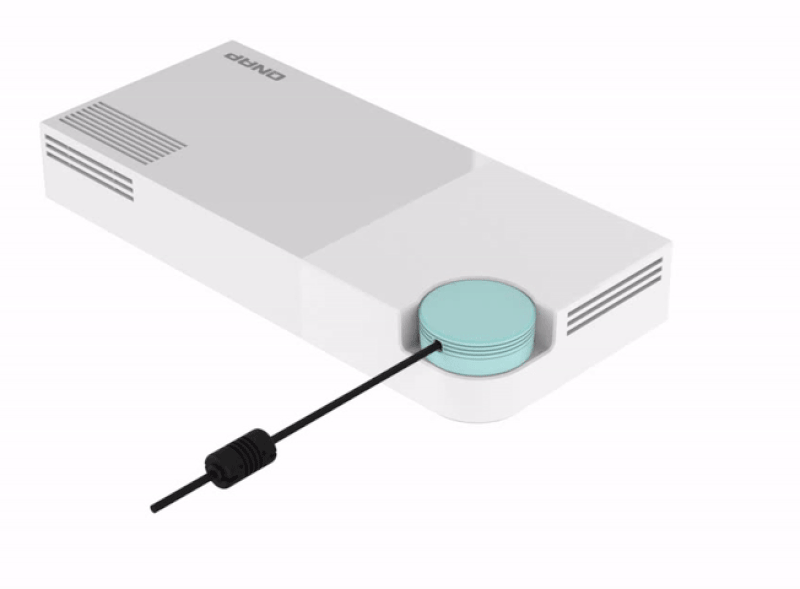

Desktop size for easy use in homes and offices
With a compact and modern design, the QSW-308S fits perfectly alongside other
devices in modern digital homes and offices. Featuring a delicate white polished
or textured surface design, the QSW-308S helps users to easily identify each
port. The flexible DC power connector also assists in universally deploying the
QSW-308S.
Specifications
|
10GbE SFP+
ports |
3 |
|
Note: The 10GbE SFP+
ports are not backward compatible with 1GbE SFP. |
|
1GbE (RJ45)
ports |
8 |
|
Form
Factor |
Desktop |
|
Switching
capacity |
76
Gbps |
|
MAC address caching
capacity |
16K |
|
Number of priority
queues |
8 |
|
Jumbo frame
support |
Up to 10K packet
size |
|
Power Supply
Unit |
100 - 240 V AC, 50 -60
Hz, max. 2.5 A |
|
Power Consumption
(W) |
All ports used,
line-rate traffic: 36 W |
|
Min power
(W) |
link-down standby: 1.8
W |
|
Fan |
Fanless |
|
Operating
Temperature & Relative Humidity |
0 - 40 C / 32 - 104
F |
|
5 - 95 %,
non-condensing |
|
Electromagnetic
compliance |
Class B,
UL62368 |
|
LED
Indicators |
Per switch:
Power/Status |
|
Per port:
Speed/Link/Activity |
|
Dimensions (H x W x
D) |
42.5 x 290 x 127
mm |
|
Weight |
0.74
kg |
|
Limited
warranty |
2
years |
|
Supported
standards |
IEEE 802.3
Ethernet |
|
IEEE 802.3u
100BASE-TX |
|
IEEE 802.3ab
1000BASE-T |
