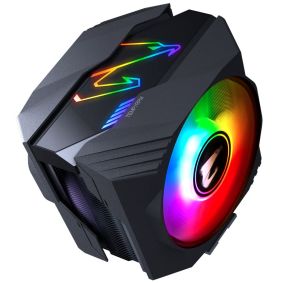

Gigabyte ATC800 AORUS CPU Cooler



Features

  • 6 x 6mm copper direct pipe, efficiently dissipates 200W CPU heat.
  • 2 x 12cm 2 ball bearing RGB fan.
  • Supports RGB FUSION 2.0synchronization with other AORUS devices.
  • CPU Temp and RPM indicator, easy to monitor CPU status.
  • Memory compatibility design.
  • Warranty: Limited 3 years.

ATC800 Cooler For Multi-Core CPUs.

Superior Heat Dissipation Maximum Cooling Ultra Cool Style

DESIGN CONCEPT WINGS OF EXCELLENCE

Unique Fan Design, Borderless Design, Evolved From Traditional Fan Designs

The falcon utilizes its powerful wings to soar through the skies and lock down its prey. The AORUS Core takes inspiration from the falcon's aerodynamic wings, incorporating a multi-layered design which features wing shaped contours and also resembles the falcons high velocity ascension and dive through the skies. With sleek and metallic armor, the AORUS Core symbolizes advancement in technology with its futuristic style.

Cooling Tower Fans Designed For Multi-Core CPUs

  • Excellent Heat Dissipation Test Inteli9 9900K All Cores 5GHz
  • Copper Heatpipes For Increased Contact Area
  • Conduction Enhanced Heatsinks

UNIQUE FAN DESIGN

MAXIMUM FAN AIRFLOW

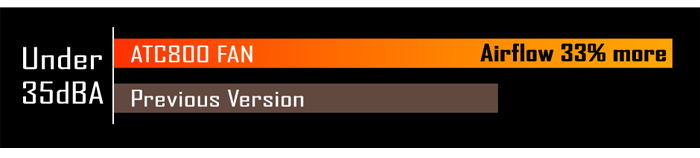

All new fan blade design for maximum fan airflow, providing up to 33% airflow compared to the previous generation.

UNIQUE FAN BLADE DESIGN

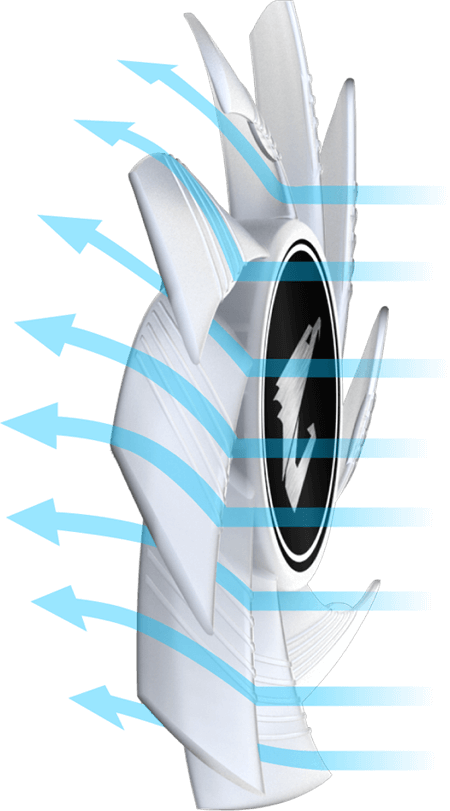

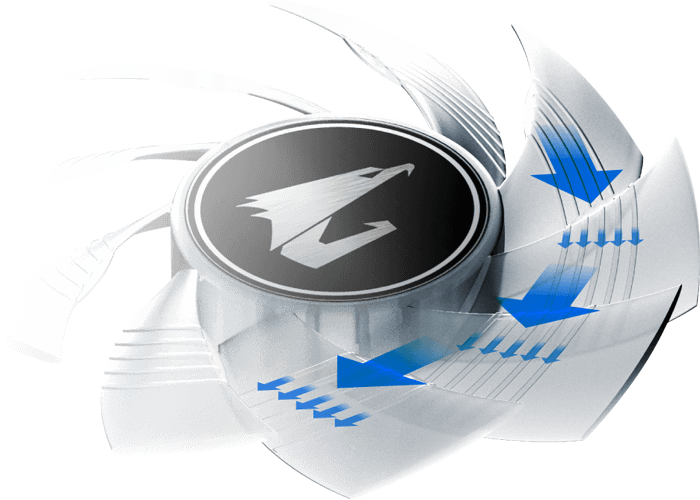

The 120mm dynamic adjusting fan provides the silent operation. The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow by over the traditional fans.

DOUBLE BALL BEARING STRUCTURE

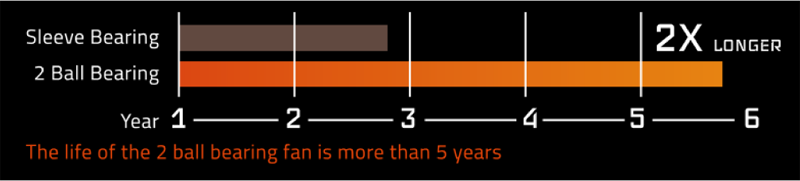

The double ball bearing structure has better heat endurance and efficiency than sleeve structure. Hence it will provide longer life time.

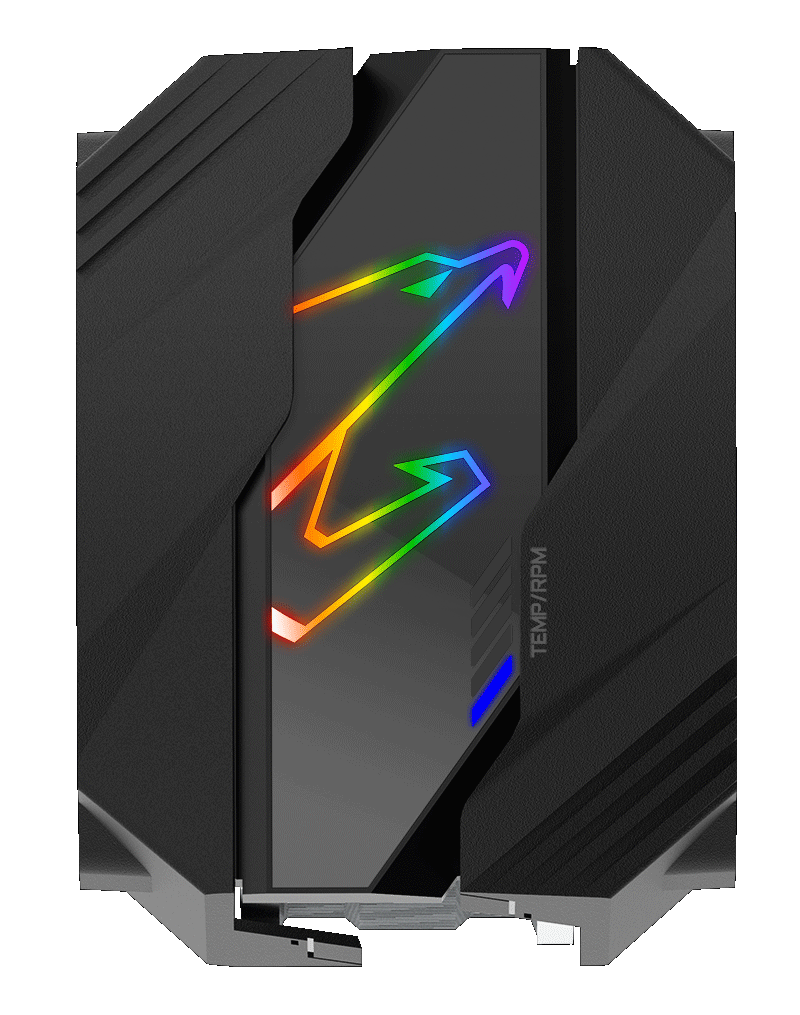

Smart CPU TEMP/ RPM indicator

The Unique CPU Temperature Indicator allows users to monitor CPU Temperatures and adjust fan speeds to lower temperatures. Fan speed control function also indicates fan operation status.

Smart detectedCPU temperature is displayed through the lighting. The color will change according to CPU loading and temperatures. Lighting indicator bars increase/decrease as RPM increases/decreases.

RGB Fusion 2.0

All-new RGB LED Design. RGB Fusion 2.0 Software allows users to control the lighting patterns on the AORUS Falcon logo and fan blades and enables lighting synchronization with peripherals so that users can showcase their own style.

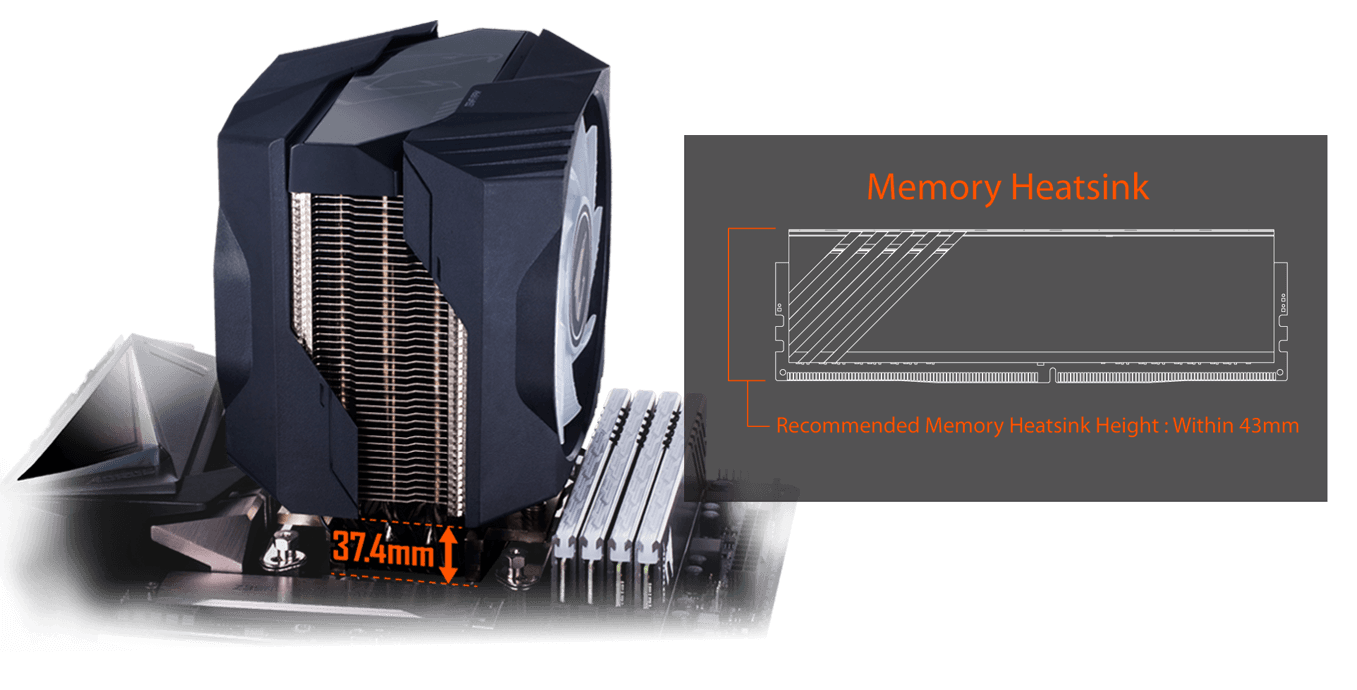

MEMORY COMPATIBILITY DESIGN

Specifications

Rated Voltage

12 V

Rated Current

0.12 A

Fan Speed

600 - 2000 RPM10%

Bearing Type

2 Ball Bearing

Weight

1010g

CPU Socket

Intel Socket 2066 , 2011, 1366, 1156, 1155, 1151, 1150

AMD Socket AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2

TDP

>200W

Dimensions (LxWxH)

L139 x W107 x H163 mm

Heat Sink Material

6 x 6mm Copper Direct Heat Pipes, Aluminum Fins

Fan Dimensions

120 x 25 mm x 2pcs

Fan Air Flow

14.05 - 51.7 CFM

Fan Air Pressure

0.18 - 2.0 mm H2O

Fan Life Expectancy

70,000 Hours

Noise Level

18 ~ 31 dBA

Connector

Fan 4-Pin , UBS 2.0

Power Consumption

1.44 W

Fan Control Mode

PWM / DC

Note

To fully support CPU TEMP /RPM Indicator functions recommend GIGABYTE motherboard.
