All stock codes associated to this product
86UT640S, II40072

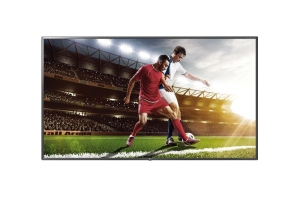

LG 86UT640S 86" Hotel Commercial TV
Key Features
- Content Management/Group Management
- SuperSign Control
- SNMP
- Wake-up On Lan
- Crestron Connected (Network Based Control)

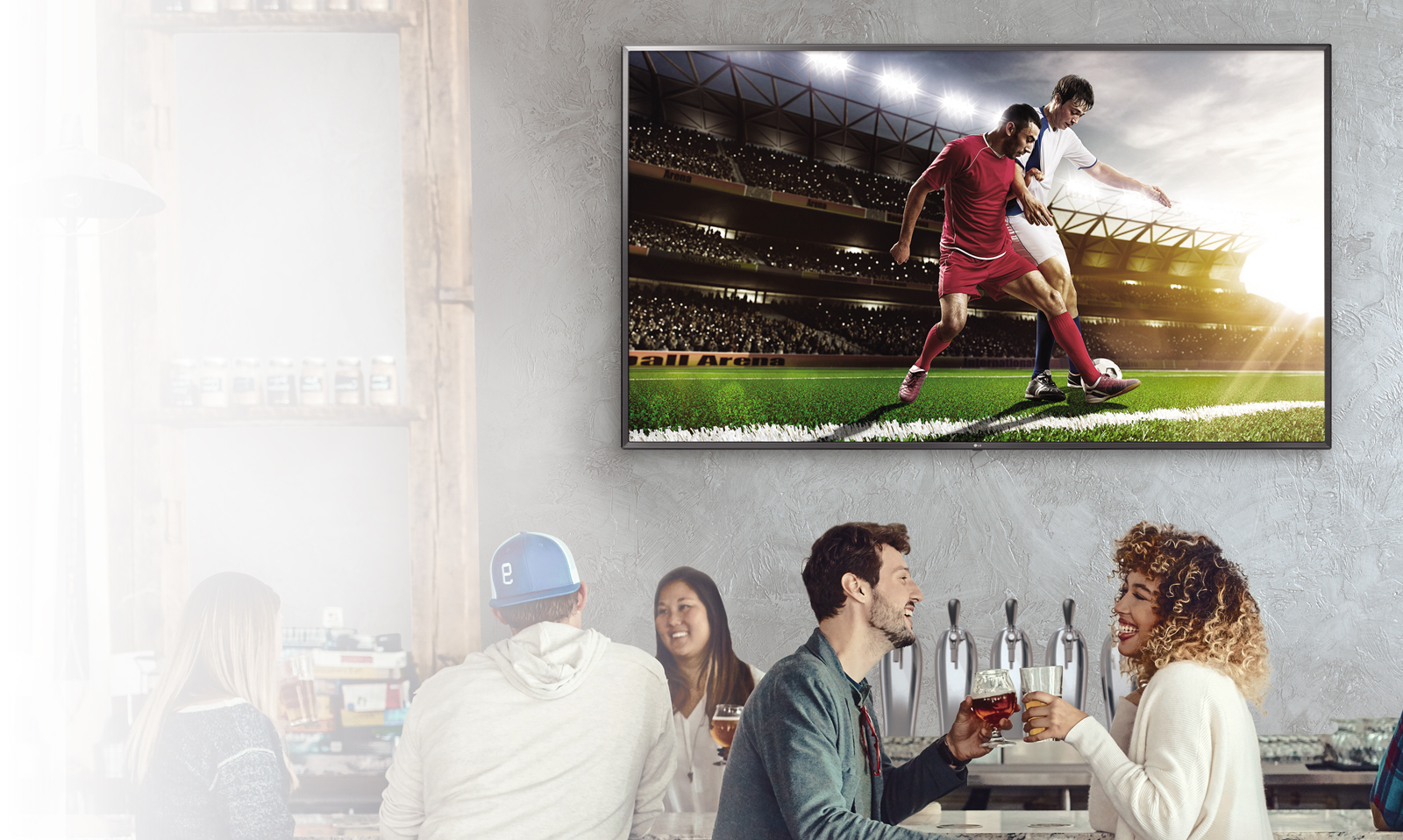

UHD Commercial TV with Essential Smart Function
The UT640S Series is specifically designed for diverse business environments.
By providing compatibility with AV Control systems and DPM (Display Power
Management) as well as its smart connectivity, simple user friendly interface,
and UHD picture quality.
Embedded Content & Group Management
The embedded Content and Group Management System allows you to edit and play
content, schedule playlists and groups, and control Signage via remote control,
mouse and mobile phone without the use of separate PC or software. This makes
content management much easier and more user-friendly.

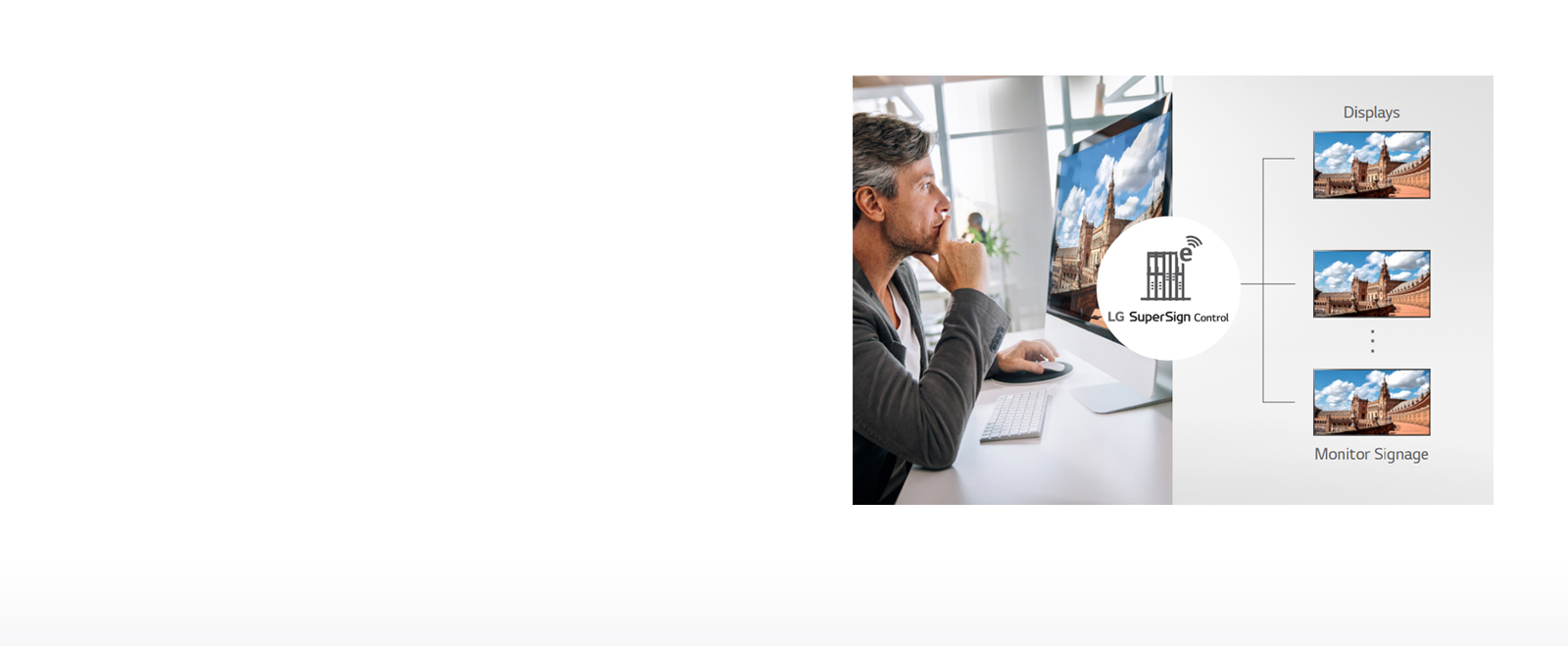

SuperSign Control
SuperSign Control is the basic control software, and it can manage up to 100
displays through a single account and server. Power, volume, and scheduling can
be remotely adjusted, and firmware updates supported.

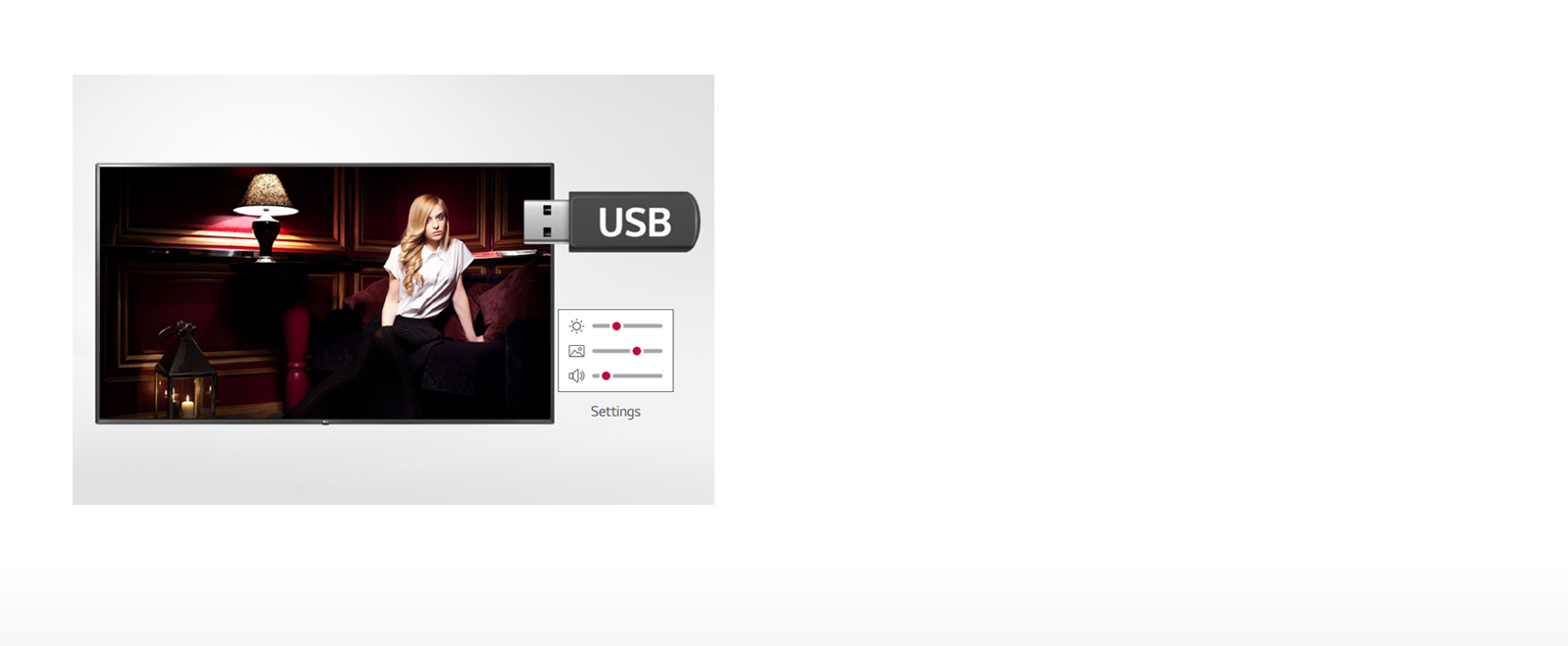

USB Data Cloning
USB data cloning increases efficiency in managing multiple displays for
optimal operation since users dont have to set up each display one by one. Once
users copy data to a USB device in one display, it can be easily distributed to
the other displays through a USB plug-in.

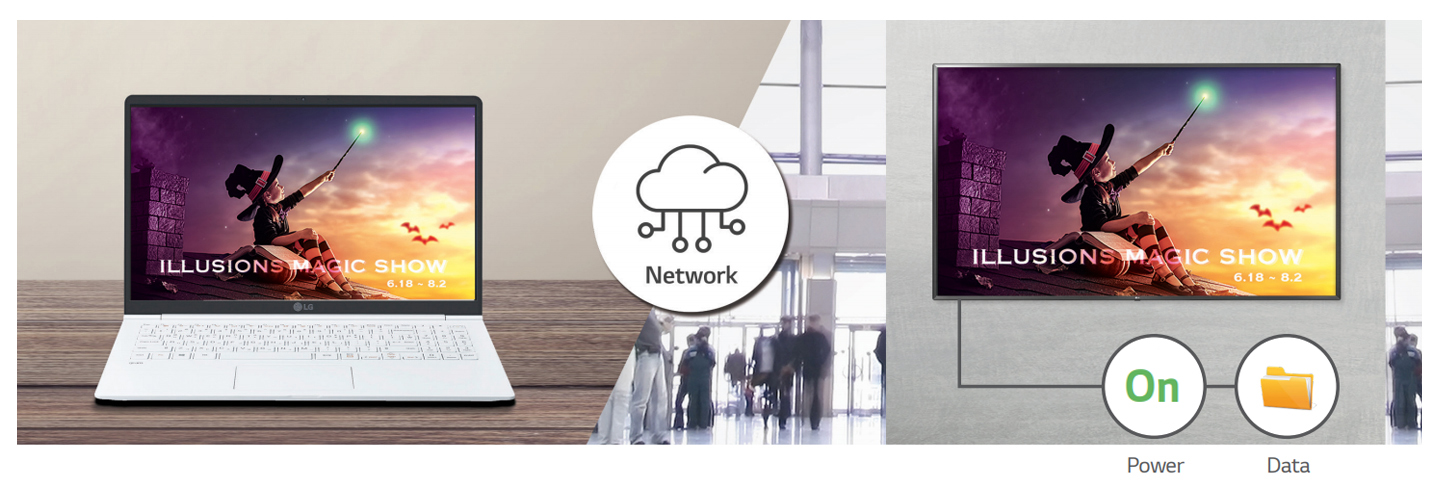

SIMPLE CONTENT MANAGEMENT
Real-Time Remote Monitoring
Malfunctions or errors can be easily handled through real-time remote care.
When an error occurs, notifications can be sent through the SNMP (Simple Network
Management Protocol) protocol.
WOL(Wake-on-LAN)
WOL (Wake-on-LAN) enables users to turn on displays by sending the relevent
packet through a network.
True Color, Immersive View
The UT640S series is large in size to enhance the visibility of content and
captivate viewers. The LG IPS panel provides a wide range of viewing angles so
that content can be clearly seen, regardless of the viewer's position. Each
pixel in the IPS panel reproduces true-to-life colors without distorting
images.

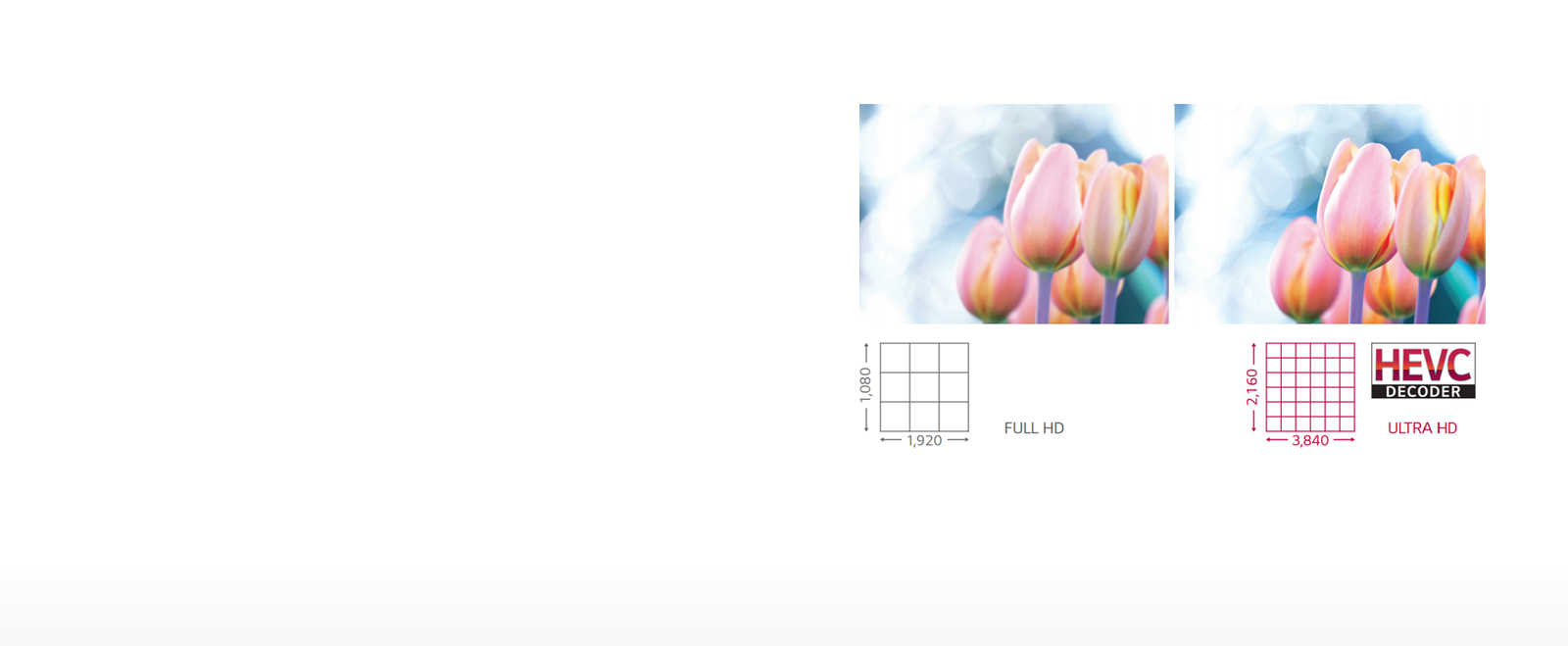

Perfect Picture Quality and Color
Enjoy Full HD content in 4K ULTRA HD quality, optimized by the 4K Upscaler.
The 4K upscaler automatically upgrades Full HD content to ULTRA HD through
several upscaling processes so that images look crisp and clear in any viewing
situation.

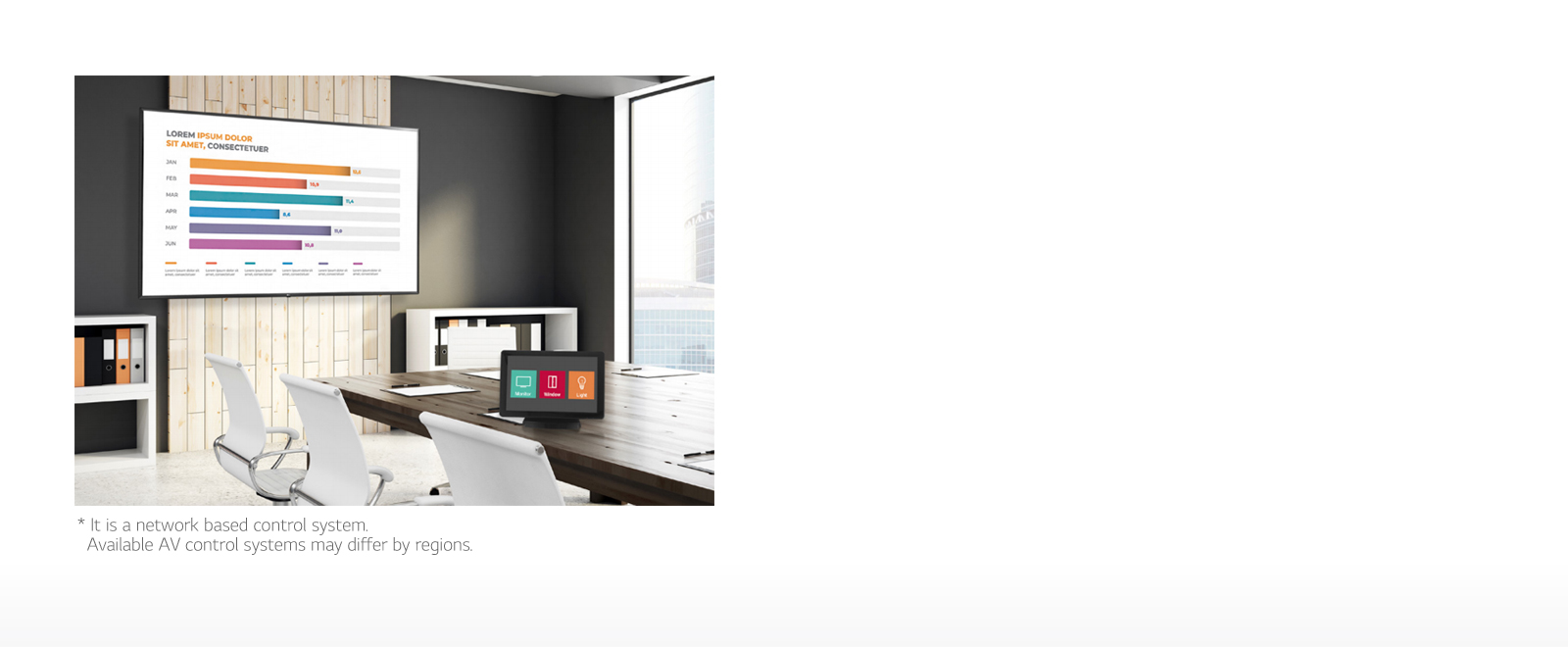

Compatibility with AV Control Systems
The UT640S series has been certified Crestron Connected, proving that it has
a higher level of compatibility with professional AV controls. This results in
seamless integration and automated control*, boosting business management
efficiency.
DPM (Display Power Management)
Display Power Management (DPM) can be configured to be On only when there is
a TV signal present to manage power more efficiently.
Specifications
Display |
|
Inch |
86" |
Resolution |
3840 X 2160
(UHD) |
Brightness
(cd/m) |
315 |
|
|
Broadcasting
System |
|
Digital |
DVB-T2/C |
|
|
Video |
|
HDR (10 Pro /
HLG) |
-/ - |
|
|
Audio |
|
Audio
Output |
10W +
10W |
Speaker
System |
2.0
ch |
DOLBY
ATMOS |
- |
One Touch Sound
Tuning |
- |
LG Sound
Sync |
Bluetooth
required |
|
|
Features |
|
Hospitality |
Public Display Mode,
Lock mode (Limited), Welcome Screen (Splash Image), Insert Image, One
Channel Map, IP Channel Manager, External Speaker Out (Int /Fixed, 3.5mm,
Stereo, Single ended Type(GND,L+,R+), 1W with 8), V-Lan Tag, RJP (remote
jack pack) Compatibility (Teleadapt/Guestlink (HDMI CEC)), Moving Picture
Playback (SD/HD/Plus HD), Auto Off / Sleep Timer, Smart Energy Saving,
Motion Eye Care |
|
|
Jack
Interface |
|
Set
Side |
HDMI In 2(2.0), USB
(2.0) |
Set
Rear |
HDMI In (HDCP) 2.0, RF
In (tuner), AV In (Phone Jack Type), Digital Audio Out (Optical),
RS-232C(D-Sub 9pin) (Control & Service), RJ45 (Usage Purpose) 2
(Ethernet, SNMP), External Speaker Out(3.5mm phone jack) (Spk-out 1, 1W,
8), Debug (Phone Jack Type) |
|
|
Dimension (Unit: mm
/ kg) |
|
Vesa |
600 x
400 |
W x H x D / Weight
(with stand) |
1,943 x 1,188 x 345 /
45.0 |
W x H x D / Weight
(without stand) |
1,943 x 1,118 x 93.3 /
44.2 |
W x H x D / Weight
(Shipping) |
2,116 x 1,261 x 285 /
59.0 |
|
|
Power (Unit :
Watts) |
|
Voltage,
Hz |
100 ~ 240 V, 50/60
Hz |
Power
Consumption(Typ.) |
301W |
Stand-by |
0.5W |
