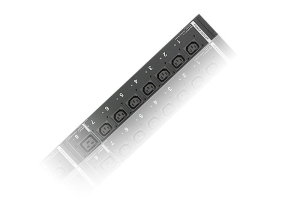

Aten PE6324LG 30A/32A 24-Outlet Metered & Switched Low Profile
eco PDU
Overview
- Bank level power metering and monitoring
- Remote power outlet control ( On/Off, Power Cycle) by individual outlets
and outlet groups
- Support TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense,
Ping, Telnet, andSNMP V1,V2&V3
- Proactive Overload Protection (POP) automatically powers off outlets when
current overloads to protect operating devices
The NRGence PE6324L eco PDUs are low profile intelligent PDUs that contain 24
AC outlets and are available in various IEC or NEMA socket configurations. The
low profile series has a smaller input region on the PDU to provide more
installation space for data centers.
The PE6324L eco PDUs offers remote power control with real-time power
measurement - allowing you to monitor the power status of devices attached to
the PDUs, either at the PDU device or Bank level, from practically any location
via a TCP/IP connection. The power status of each outlet can be set
individually, allowing users to switch each device On/Off.
NRGence eco PDU supports any 3rd party v1, v2 & v3 SNMP Manager Software
and ATEN eco Sensors (eco PDU Manager Software). eco Sensors provides you with
an easy method for managing multiple devices, offering an intuitive and
user-friendly Graphical User Interface that allows you to configure a PDU device
and monitor power status of the equipment connected to it.
Package Contents
- 1x PE6324L eco PDU
- 1x Mounting Kits
- 1x CD-ROM (Manual, eco Sensors Software)
- 1x User Instructions
Features
Connections
- Support 10/100Mbit Ethernet Interface
- Support TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense,
Ping, Telnet, and SNMP V1,V2&V3
- Support 2-level account/password security, IP/MAC filter, 128 bit SSL,
RADIUS
- Support : eco Sensors, Browser (IE, Firefox, Chrome,
Safari)
Metering
- Bank level power metering and monitoring
- Environment Monitoring : support external temperature/temperature &
humidity sensors for rack temperature and humidity monitoring
- Current, voltage, power, power dissipation, temperature, and humidity
metering and threshold level setting
Outlet Switch Control
- Remote power outlet control ( On/Off, Power Cycle) by individual outlets
and outlet groups
- Support multiple power control methods Wake on LAN, System After AC Back,
Kill the Power
- Power-On sequencing users can set the power on sequence and delay time for
each outlet to allow equipment to be turned on in the proper order
- Proactive Overload Protection (POP) automatically powers off outlets when
current overloads to protect operating devices
Diagram
Specifications
|
Electrical |
|
Nominal
Input Voltage |
100 240
VAC |
|
Maximum
Input Current |
32A(Max) |
|
Input
Frequency |
50-60
Hz |
|
Input
Connection |
IEC 60309
32A |
|
Input
Power |
7360
VA(Max) |
|
Outlet
Type |
Total: 21 x IEC320 C13
+ 3 x IEC320 C19 |
|
Bank1-1: Outlet 1 8; 7
x C13 + 1 x C19 |
|
Bank1-2: Outlet 9 16; 7
x C13 + 1 x C19 |
|
Bank2: Outlet 17 24; 7
x C13 + 1 x C19 |
|
Nominal
Output Voltage |
100 240
VAC |
|
Maximum
Output Current (Outlet) |
C13:
10A(Max) |
|
C19:
16A(Max) |
|
Maximum
Output Current (Bank) |
16A(Max) |
|
Maximum
Output Current (Total) |
32A(Max) |
|
Breakers |
2 x 16A Slim
Breaker |
|
Metering |
Bank Level Current,
Voltage, VA , PF and kWh Monitoring |
|
Outlet
Switching |
Yes |
|
Environment
Sensor Ports |
2 |
|
Metering
Accuracy |
Voltage Range: 100VAC ~
250VAC +/-1% |
|
Power Range: 100W ~
Maximum Capacity +/- 2% |
|
Current Range: 0.1A~1A
+/- 0.1A, 1A~20A +/-1% |
|
Physical
Properties |
|
Dimensions
(L x W x H) |
177.50 x 6.60 x 4.40
cm |
|
(69.88 x 2.6 x 1.73
in.) |
|
Weight |
5.76 kg ( 12.69 lb
) |
|
Power
Cord Length |
1.6
m |
|
Environmental |
|
Temperature
(Operating / Storage) |
040C /
-2060C |
|
Humidity
(Operating & Storage) |
080% RH,
Non-Condensing |
|
Compliance |
|
EMC
Verification |
CE, C-Tick, Others by
Request |
|
Safety
Verification |
CE-LVD, Others by
Request |
|
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH format. |
