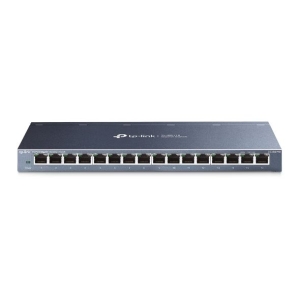

TP-Link TL-SG116 16-Port Gigabit Desktop Switch
Overview
- 16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting
Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping function
- Plug and play, with no configuration needed
What This Product Does
The TP-Link 16-Port 10/100/1000Mbps Desktop Switch provides you an easy way
to make the transition to Gigabit Ethernet. Increase the speed of your network
server and backbone connections, or make Gigabit to the desktop a reality. Plug
and Play design, with no configuration required, makes the product easy to
use.Moreover, TL-SG116 adopts lower power consumption design. With the
innovative energy-efficient technology, the TL-SG116 can save power consumption,
making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 16 10/100/1000Mbps ports, TL-SG116 greatly expands your network
capacity, enabling instant large files transferring. So, power users in the
home, office, workgroup, or creative production environment can now move large,
bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia
files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This
new generation TL-SG116 16-Port 10/100/1000Mbps Desktop Switch features the
latest innovative energy-efficient technologies that can greatly expand your
network capacity with much less power. It automatically adjusts power
consumption according to the link status and cable length to limit the carbon
footprint of your network.
Traffic Optimization
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and
video, and IGMP Snooping optimizes the Multicast data stream.
Easy to use
The auto features of this gigabit switch make installation plug and play and
hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for
crossover cables. Auto-negotiation on each port senses the link speed of a
network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for
compatibility and optimal performance. Moreover, fanless design ensures quiet
operation.
Specifications
|
HARDWARE
FEATURES |
|
Standards and
Protocols |
IEEE 802.3i,
IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.1p |
|
Interface |
16 10/100/1000Mbps
Ports |
|
Auto-Negotiation,
Auto-MDI/MDIX |
|
Fan
Quantity |
Fanless |
|
External Power
Supply |
External Power Adapter
100VAC ~ 240VAC |
|
(Output: 12VDC /
1.0A) |
|
LED
Indicator |
System
Power |
|
Link/Act indicators per
port built into each RJ-45 port |
|
Dimensions ( W x D x H
) |
11.3 4.4 1.0
in. |
|
(286 112 25
mm) |
|
Max Power
Consumption |
10W |
|
Max Heat
Dissipation |
34.1
BTU/h |
|
PERFORMANCE |
|
Packet Forwarding
Rate |
23.8Mpps |
|
MAC Address
Table |
8K |
|
Packet Buffer
Memory |
4.1Mb |
|
Jumbo
Frame |
10KB |
|
SOFTWARE
FEATURES |
|
Advanced
Features |
Green
Technology |
|
802.3x Flow
Control |
|
802.1p/DSCP
QoS |
|
IGMP
Snooping |
|
Transfer
Method |
Store and
Forward |
|
OTHERS |
|
Certification |
FCC
,RoHS |
|
Package
Contents |
16-Port 10/100/1000Mbps
Desktop Switch |
|
Power
Adapter |
|
Installation
Guide |
|
Rubber
Feet |
|
Environment |
Operating Temperature:
0C~40C (32F~104F) |
|
Storage Temperature:
-40C~70C (-40F~158F) |
|
Operating Humidity: 10%
~ 90%, non-condensing |
|
Storage Humidity:
5%~90%
non-condensing |
