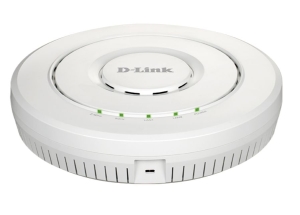

D-Link DWL-8620AP Wireless AC2600 Wave 2 Dual-Band Unified Access Point



Features

  • 802.11ac Wave 2, Dual-Band, up to 2.5 Gbps
  • 2 Internal Omnidirectional Antennas
  • Up to 64 dynamic VLANs per access point
  • 802.11k Fast Roaming1, MU-MIMO and QoS with WMM
  • Link Aggregation
  • Limited Lifetime Warranty with registration

Wave 2

AC2500 Wave 2

Combined wireless speeds of up to 2.5 Gbp2with 802.11ac Wave 2 technology

Virtual Access Points

Dual-Band Wi-Fi

Two bands to improve throughput and coverage. Reduces co-channel interference.

MU-MIMO

4 x 4 MU-MIMO

Improved efficiency in handling throughput distribution to multiple devices connected to the network

Automatic RF

Automatic Radio Frequency (RF) Management

Greatly reduces RF interference and enables denser AP deployments.

802.11k Fast Roaming

Allows wireless clients to move freely, jumping from AP to AP without losing connectivity.

Centrally Managed

Centrally Managed

Used as a standalone wireless access point, self-configuring cluster or managed centrally via a D-Link Wireless Controller.

Enjoy Faster Business with Wave 2

The DWL-8620AP is designed for medium to large-scale Wi-Fi networks, delivering fast Wave 2 wireless speeds. Its highly manageable, it fits into any existing network, and can be scaled to meet future wireless demands.

DWL-8620AP Wireless AC2600 Wave 2 Dual-Band Unified Access Point

Greater Speeds and Reliable Connectivity

Utilise the full potential of 802.11ac Wave 2. Provide faster connectivity with combined data rates of up to 2.5 Gbps

It also supports Link Aggregation, which allows two Gigabit Ethernet ports to be linked together to act as a single port to double the available bandwidth and maximise the access points overall throughput.

MU-MIMO efficiency for multiple devices

Increase Network Efficiency

The DWL-8620AP’s 4 x 4 MU-MIMO takes full advantage of all streams to serve more wireless clients, dramatically improving wireless performance.

MU-MIMO (Multi-User Multiple Input Multiple Output) simultaneously communicates with multiple clients using multiple antennas. This allows the access point to utilise the spectrum more efficiently and significantly increase the network capacity.

Rapid Deployments

It can be ceiling mounted or wall mounted to provide the best wireless coverage. The built-in Power over Ethernet (PoE) port makes deployments faster and means it can be installed in areas without power outlets.

DWL-8620AP installed on a ceiling

Robust Management

When working in conjunction with D-Link Unified Wireless Controllers (DWC-1000, and DWC-2000), multiple DWL-8620AP units in the Wi-Fi network can be easily and efficiently centrally managed.

D-Link DWC controllers for DWL access points

Automatic Radio Frequency (RF) Management

Radio Frequency (RF) resource management1 allows wireless coverage to be managed automatically, providing the best possible coverage for wireless clients.

RF Management

When access points are deployed in close proximity to each other, there may be interference between channels if RF management is not implemented. When the DWL-8620AP senses a neighbouring AP nearby, it will automatically select a non-interfering channel.

This greatly reduces RF interference and allows you to deploy APs more densely. To further minimise interference, when a nearby AP is on the same channel, the DWL-8620AP will automatically adjust its transmission power1. If an AP goes down, others will increase their transmission power to expand coverage.

Band Steering

Band Steering

It places clients on the optimal wireless band to avoid congestion and allows for smooth streaming of video, seamless browsing, and fast downloads speeds.

Airtime Fairness

Ensures equal airtime given to each client. Increases performance even if slower devices are connected.

802.11k Fast Roaming

Allows the wireless client to roam seamlessly between access points.

802.1p Quality of Service (QoS)

Supports 802.1p QoS for enhanced throughput and better performance of time-sensitive traffic like VoIP and streaming DSCP.

Wi-Fi Multimedia (WMM)

In the event of network congestion, time-sensitive traffic can be given priority ahead of other traffic.

Specifications

Type

Hardware-managed AP

Wireless standard

Wireless AC Wave 2

Frequency band mode

Dual-band simultaneous

Wireless speed

1733 Mbps 5 GHz

800 Mbps 2.4 GHz

Antenna type

Embedded omni-directional antennas

Antenna gain

3 dBi for 2.4 GHz

4 dBi for 5 GHz

Power-over-Ethernet

Yes

Wired interface

2 x Gigabit Ethernet LAN

Console port

Yes

Indoor/outdoor

Indoor

Type of housing

Plastic

Plenum rated (UL-2043)

Yes

Wireless modes

Access Point (AP)

WDS bridge

WDS with AP

Wireless client

Wireless extender

Advanced features

MU-MIMO

Maximum number of SSIDs

16 per radio

Auto channel selection

Yes

WMM-PS/802.11e (U-APSD)

Yes

Wi-Fi scheduler

Yes

AP traffic load balance

Yes

L2 roaming

Yes

WPA/WPA2-Personal/Enterprise

Yes

TKIP/AES encryption

Yes

WLAN partition

Yes

SSID broadcast disable

Yes

Rogue AP detection

Yes

Station isolation

Yes

MAC address filtering

Yes

802.1X authentication

Yes

Wireless controller/unified switch managed features

AP load balance

Auto-channel, auto-RF management

Captive portal

L2/L3 fast roaming

Rogue AP mitigation

View neighbour AP information

WIDS/WIPS

Supported D-Link Wireless Controllers/Unified Switches

DWC-1000

DWC-2000

Management platform

Hardware controller: DWC/DWS Series

WEB

Yes

SNMP (v1, v2c, v3)

Yes

CLI

Yes

Telnet

Yes

SSH

Yes

Syslog

Yes
