All stock codes associated to this product
US3342AT, US3342-AT, USAUS3342AT, USA-US3342-AT, 4719264649189

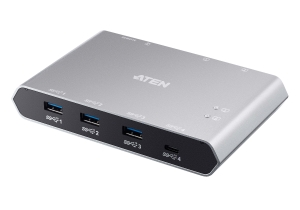

Aten US3342 2-Port USB-C Gen 2 Sharing Switch with Power
Pass-through
Overview
- Enables two USB-C computers to share 4 USB 3.2 Gen 2 peripheral devices
with data transfer rates up to 10Gbps
- Supports USB-C Power Delivery 3.0 for laptop charging up to 85W
(Additional USB-C Power Adapter is needed)*
- BEZEL X Enable file transfer function and mice control cross two
platforms, Windows and Mac
- Supports power profiles 5V, 9V, 15V, and 20V power
specification
Share Devices with Two Computers
No more dealing with plugging and unplugging. Connect your USB-C laptops to
US3342 and start sharing peripheral devices. Use only one set of keyboard and
mouse to seamlessly control two systems and to share data and multiple USB
devices without the need to plug and unplug or configure complicated
network-based server/client setups.
Operate Two Computers as They are One
Switching between computers has never been so easy and so intuitive. Mouse
Switching allows you to effortlessly move the mouse cursor across the screen
border and onto the target computer to switch control without clicking a button.
Less time waiting on switching, more time focusing on creating and
producing.
Make Quicker Work of Everything
The US3342 builds a direct link between the two computers with up to 10Gbps
transfer speed. With Clipboard Sharing, you can copy and paste or drag and drop
files, images, and texts directly from one to another without the trouble of
using a storage device as an intermediate with double the transfer time. The
ultra-fast 10Gbps transfer rate allows you to work with unprecedented speed, 20x
faster than USB 2.0.
Power to your Laptop and all your Devices
The 85W USB-C power delivery 3.0 pass-through charges one of your laptop and
also provides enough power to power-hungry devices, such as external hard drives
and gaming devices. You can use your favorite keyboard and mouse to work and
play, even with a power-hungry RGB gaming rig.
Share without Boundaries
Powered by US3342, your computers can work seamlessly and share with each
other, no matter if they are Windows to OS X, OS X to OS X, or Windows to
Windows. Create simplified, productive workspaces for any desktop-like
environment.
Package Contents
- 1x US3342 2-Port USB-C Gen 2 Sharing Switch with Power
Pass-through
- 2x USB-C 3.1 Gen 2 Cable
- 1x Remote Port Selector
- 1x User Instructions
Features
ATEN US3342 is a 4-port USB 3.2 Gen 2 peripheral sharing device that allows
users to share data between four USB devices in two different USB-C enabled
laptops. The US3342 is USB 3.2 Gen 2 compliant, which can support data transfer
rate up to 10Gps, and also compatible with USB 3.1 Gen 1, USB 2.0 and
USB1.1.
With the US3342, you can quickly and effortlessly switch computers by using a
convenient remote port selector pushbutton with LED that indicates which
computer is being active. It provides the power that matched to USB-C Windows or
Mac laptops with PD Profile specifications of 5V, 9V, 15V, and
20V.
Featuring exclusive function by BEZEL X software, the US3342 allows two
laptops to share files and data across two different platforms - Window and Mac,
by dragging the mouse from one screen to another. The BEZEL X software makes it
easier to control and transfer files in a fingertip.
The connecting cables are bundled to save the extra cost of purchasing more
USB cables. The additional USB-C cable included in the US3342 package, which
allows the users to connect it to the USB-C laptops for flexible installation.
The US3342 is the most cost-effective solution for USB-C equipped
laptops.
In conclusion, the US3342 with its compact and all-in-one design is an ideal
solution for users that seeks to save desk space and keep the desk
well-organized in an efficient manner.
- Enables two USB-C computers to share 4 USB 3.2 Gen 2 peripheral devices
with data transfer rates up to 10Gbps
- Supports USB-C Power Delivery 3.0 for laptop charging up to 85W
(Additional USB-C Power Adapter is needed)*
- BEZEL X Enable file transfer function and mice control cross two
platforms, Windows and Mac
- Supports power profiles 5V, 9V, 15V, and 20V power
specification
- Switch device via Remote Port Selector by pressing a button
- LEDs Console Indicator Allow users to know which computer is
active
- Plug and play No drivers or external power adapter needed
- Over-current protection
*For device charging, a Limited Power Source (LPS) certified USB-C PD Power
Adapter over 65Watt is recommended. The minimum system power requirement for
basic USB functions and video output should be at least 5V, 3A.
Diagram
Specifications
|
Computer
Connections |
2 |
|
Connectors |
|
Computer |
USB 3.2 Gen 2 Type-C
Female (Black) x 2 |
|
Device |
USB 3.2 Gen 2 Type-A
Female (Blue) 3 |
|
USB 3.2 Gen 2 Type-C
Female (black) x 1 |
|
Power |
USB Type-C Female x 1,
supports USB PD3.0 at 5V, 9V, 15V and 20V output |
|
Port
Selection |
|
Input |
Remote port selector /
software |
|
Power
Consumption |
DC5V:0.43W:428BTU |
|
LEDs |
|
Selected |
2
(White) |
|
Environmental |
|
Operating
Temperature |
0-40 |
|
Storage
Temperature |
-20-60 |
|
Humidity |
080% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Aluminum |
|
Weight |
0.26 kg ( 0.57 lb
) |
|
Dimensions (L x W x
H) |
14.30 x 9.00 x 2.38
cm |
|
(5.63 x 3.54 x 0.94
in.) |
|
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH
format. |
