All stock codes associated to this product
HX426C16FB3K2/8, 4592118, 740617296587

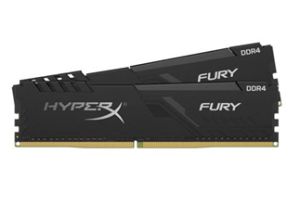

HyperX FURY Memory Black - 8GB Kit*(2x4GB) - DDR4 2666MHz CL16
DIMM
Overview
- Part Number: HX426C16FB3K2/8
- Specs: DDR4, 2666MHz, CL16, 1.2V, Unbuffered
- Timings: 2666MHz, 16-18-18, 1.2V
HyperX HX426C16FB3K2/8 is a kit of two 512M x 64-bit (4GB) DDR4-2666 CL16
SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 512M x 8-bit FBGA
components per module. Each module kit supports Intel Extreme Memory Profiles
(Intel XMP) 2.0. Total kit capacity is 8GB. Each module has been tested to run
at DDR4-2666 at a low latency timing of 16-18-18 at 1.2V.
Features
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- On-Die termination (ODT)
- 16 internal banks; 4 groups of 4 banks each
- Bi-Directional Differential Data Strobe
- 8 bit pre-fetch
- Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
- Height 1.3425 (34.1mm), w/heatsink
Specifications
CL(IDD) |
16
cycles |
Row Cycle Time
(tRCmin) |
45.75ns(min.) |
Refresh to
Active/Refresh Command Time (tRFCmin) |
260ns(min.) |
Row Active Time
(tRASmin) |
29.25ns(min.) |
UL
Rating |
94 V -
0 |
Operating
Temperature |
0o C to +85o
C |
Storage
Temperature |
-55o C to +100o
C |
